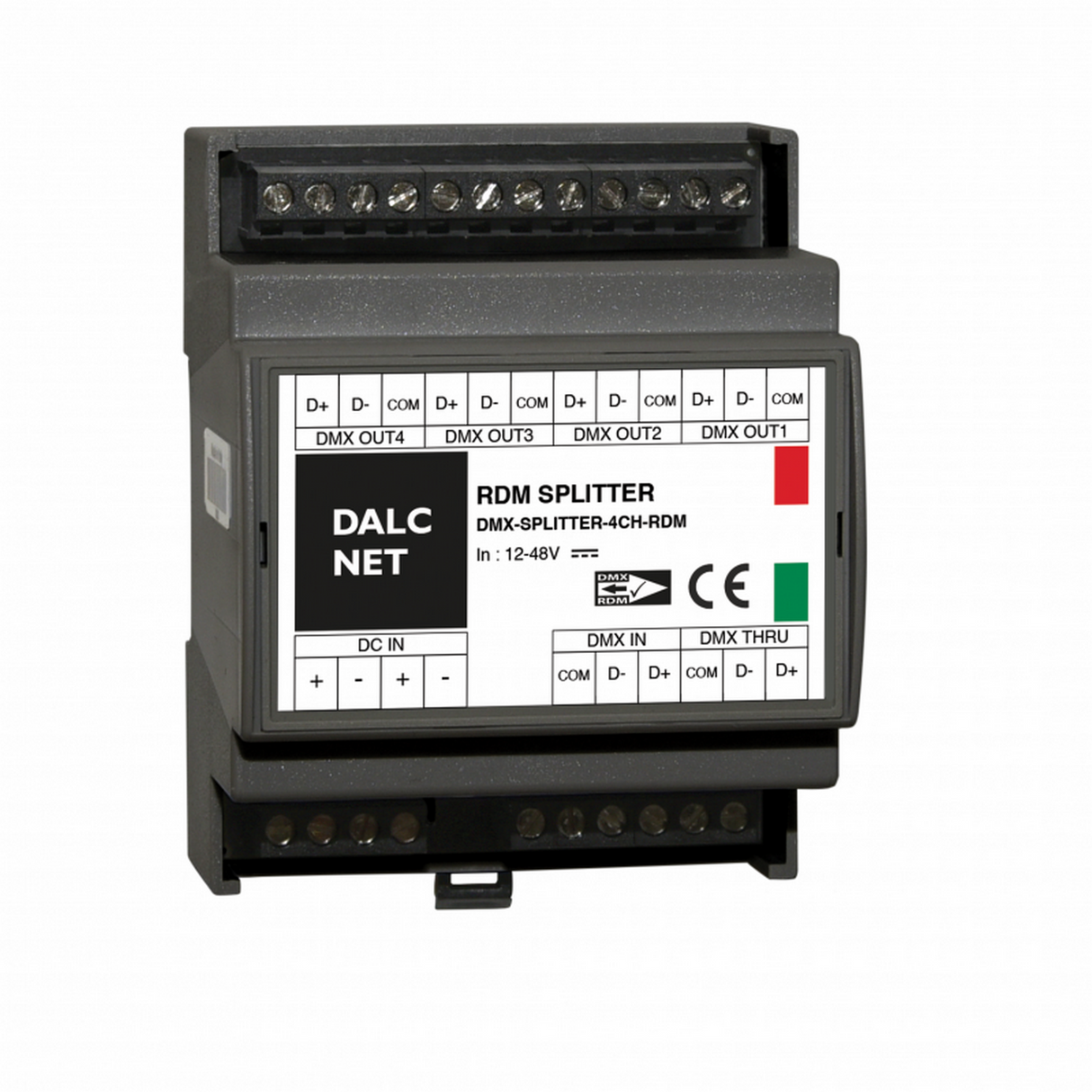

4-Channel DMX Bus Splitter for Lighting Control Systems ~ Model DMX-SPLITTER-4CH-RDM-LE

Splitter only ~ all other accessories are sold separately

Description

The DMX-SPLITTER-4CH-RDM-LE is a 4 way DMX splitter that enables seamless distribution of DMX and RDM signals across multiple output channels. With one DMX/RDM input and four isolated DMX/RDM outputs, this DMX splitter effectively amplifies and regenerates incoming signals, ensuring reliable and consistent signal transmission.

Featuring a robust 32-bit ARM processor, the timing of the outputs is regenerated digitally, ensuring precise synchronization across all connected devices. The splitter's unique design allows for the amplification and redistribution of RDM return messages, enabling seamless communication and control across multiple splitters connected through the input, up to a maximum of three different splitters.

An intuitive LED indicator provides visual feedback on the presence or absence of the signal, with a steady light indicating an active signal and a blinking light indicating a lack of signal. This feature ensures easy troubleshooting and monitoring of the system's performance.

General specifications

• Input voltage: 12-48V DC
• Channels output: 4
• Bus Command: DMX+RDM
• Working Temperature Range: -10/+60°C
• 32 bit ARM processor (RDM Variant)
• 5 year warranty

Downloads

• DMX-SPLITTER-4CH-RDM-LE cut sheet
