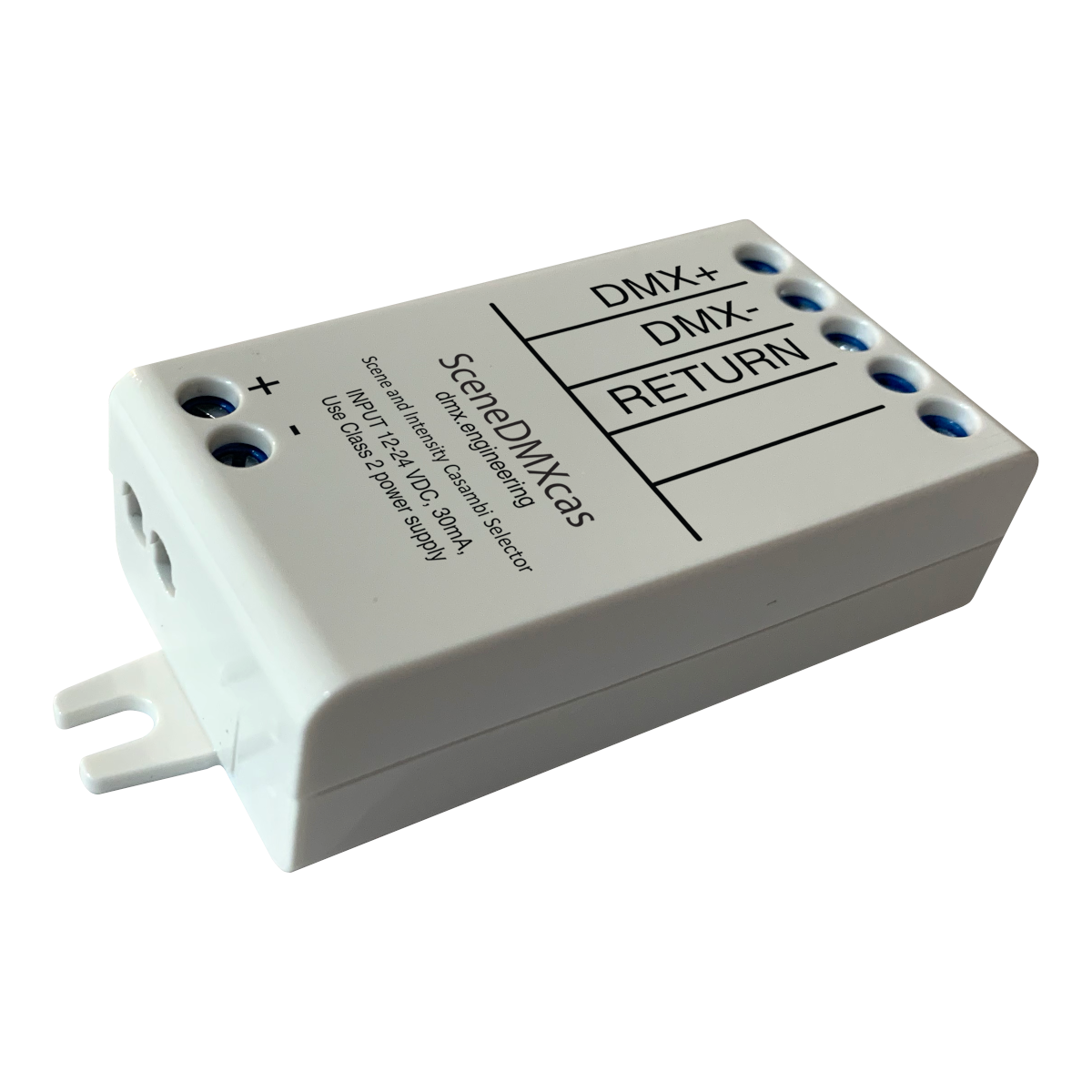

DMX to Casambi Wireless Scene Selector ~ Model SceneDMXcas

Interface module only ~ power supply and other accessories are sold separately

Description

The SceneDMXcas is an interface that enables remote Casambi Scene selection via DMX-512 control commands. This means you can use a DMX-512 master to select scenes on a Casambi Bluetooth mesh network.

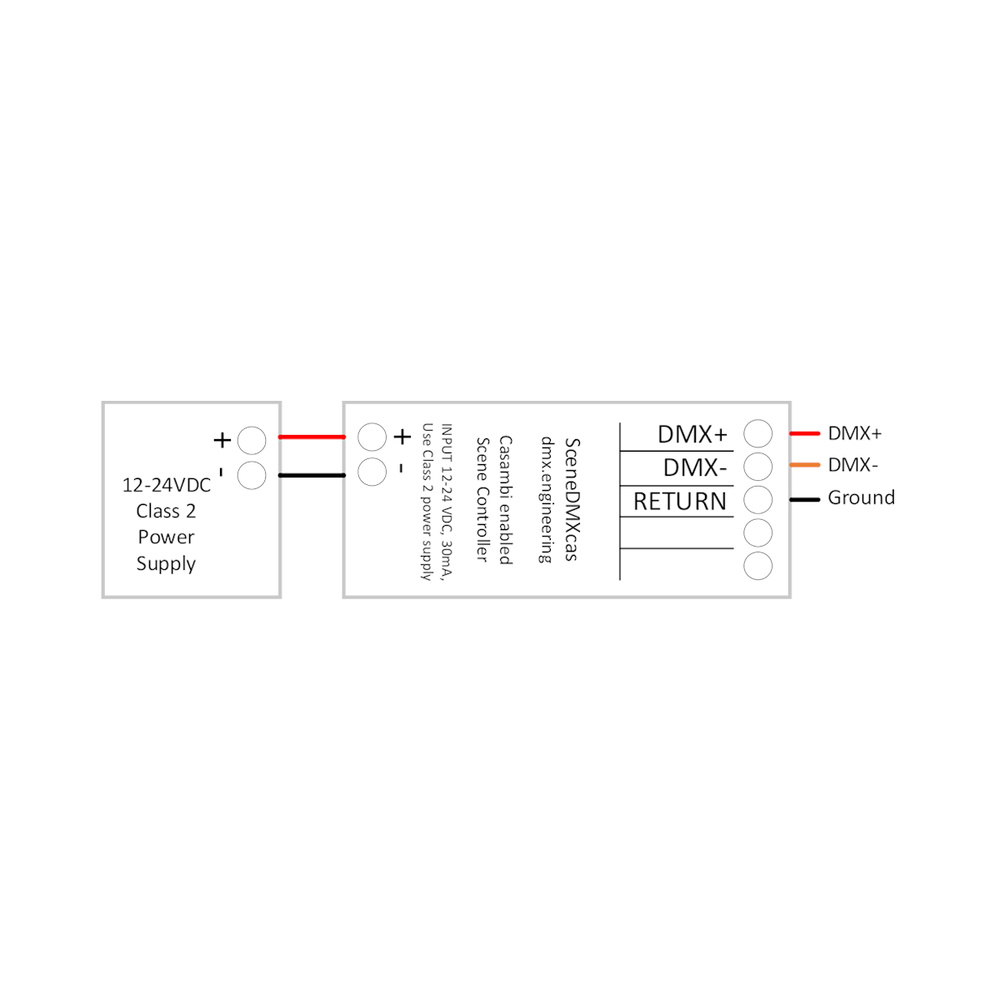

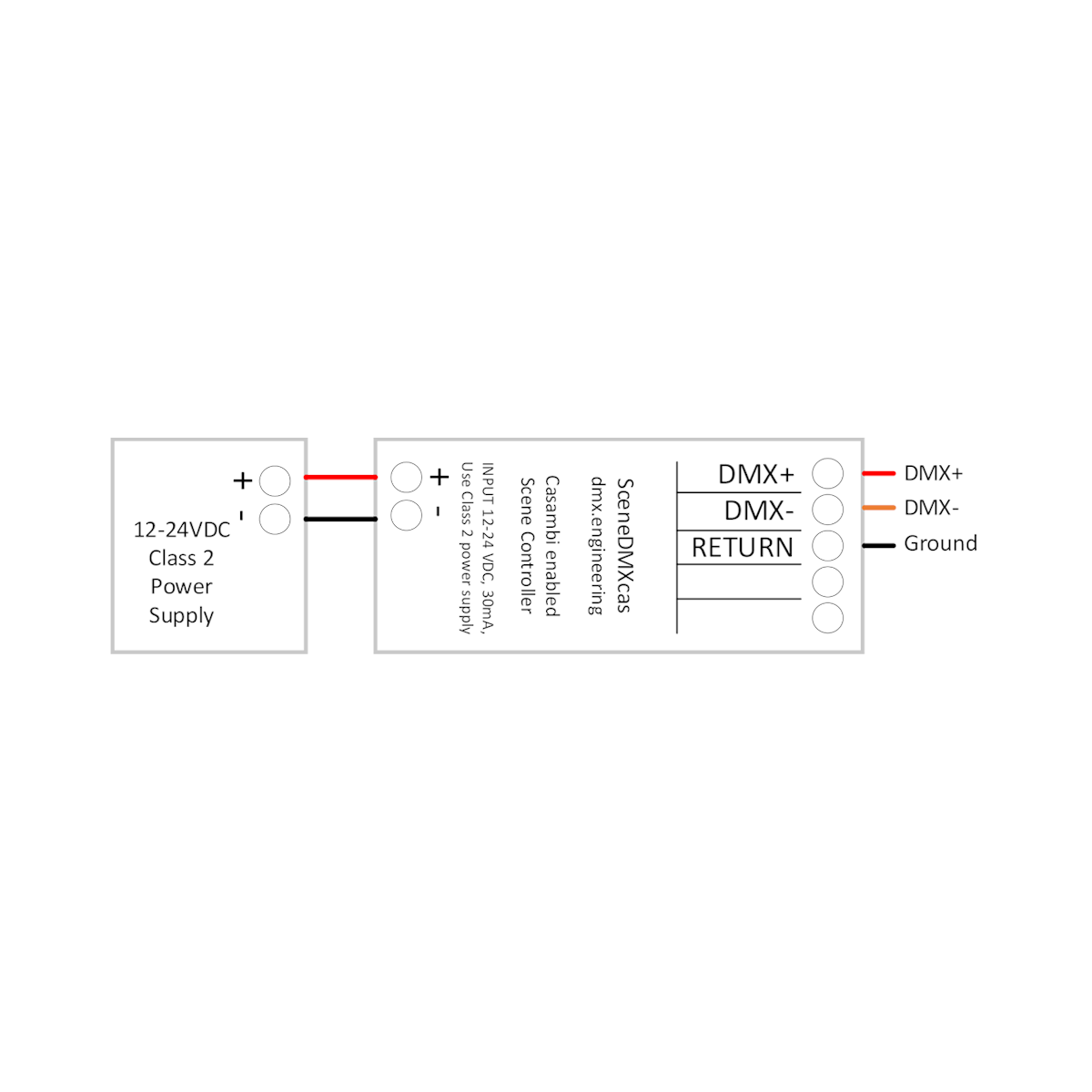

Simply connect your SceneDMXcas to a 12-24V DC power supply and your DMX-512 universe. Then use the free Casambi smartphone app to configure your custom Casambi scene and intensity mapping. The DMX Start Address for each SceneDMXcas is also user selectable.

The first DMX channel provides scene selection for up to 20 Casambi Scenes. The second DMX channel provides optional 0-100% intensity control for the selected Casambi Scene.

Casambi is an intelligent home automation network ecosystem with a wide selection of devices for almost every application. The SceneDMXcas DMX-to-Casambi scene selector allows you to control scenes in your Casambi installation from your DMX master controller.

Read about how to use wireless DMX devices.

General specifications

• Ecosystem: Casambi (Bluetooth mesh)
• Power supply: 12-24V DC Class 2
• Outputs:
  • Casambi wireless
• Inputs:
  • DMX-512 slave (3-wire, non-isolated)
• Applications: 1x Casambi Scene selection and Intensity control

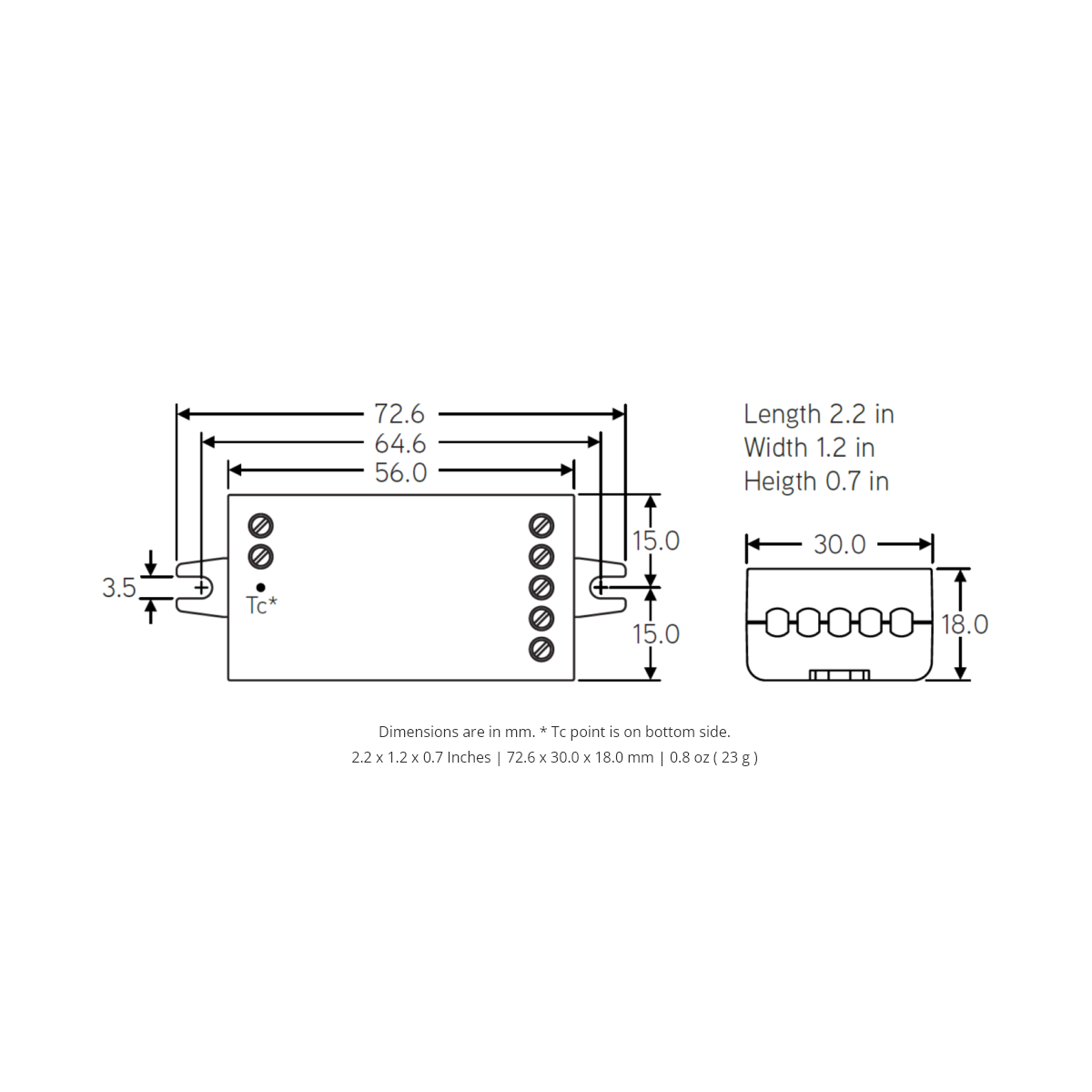

• Dimensions: 73 x 30 x 18mm (2.2 x 1.2 x 0.7")
• Note: To ensure effective Bluetooth signal, the 10cas should not be installed in a metal junction box
• Approvals: ETL Listed, UL 916 Listed, FCC Approved
• Designed and manufactured in the USA

Instructions

• Casambi tutorial videos

Downloads

• SceneDMXcas installation guide
