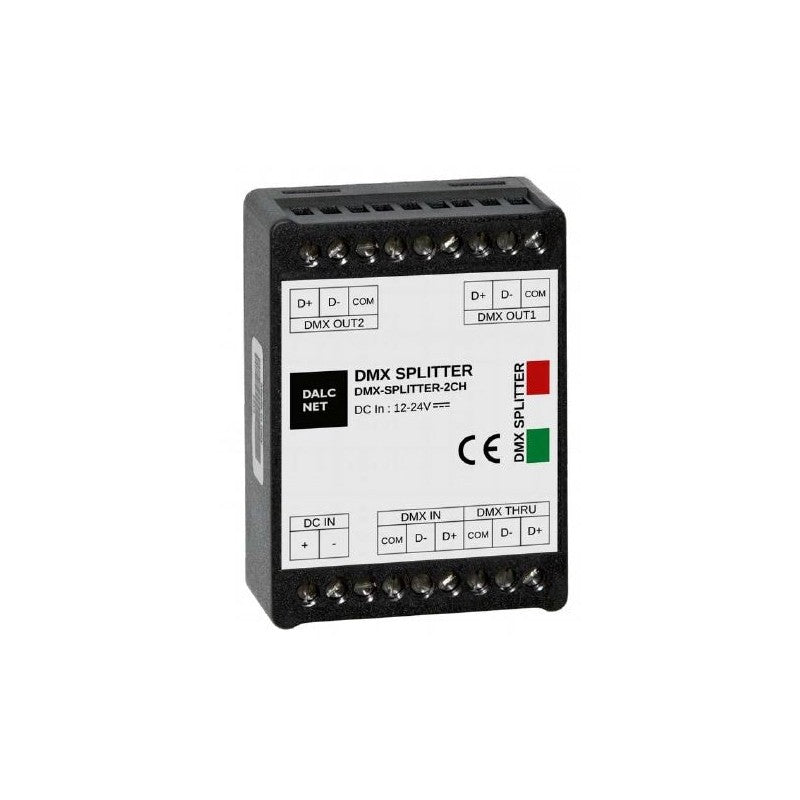

2-Channel DMX Bus Splitter Lighting Control Systems ~ Model DMX-SPLITTER-2CH-RDM

Splitter only ~ all other accessories are sold separately

Description

DMX-SPLITTER-2CH-RDM is a DMX splitter that features one DMX/RDM input and 2 DMX/RDM outputs. This DMX splitter takes the incoming DMX signal and splits the signal into two separate output channels. Each of these output channels and the input channel are completely electronically isolated or separated from one another, and all channels have their own independent line driver to boost the DMX signal.

In addition, It offers functional insulation and the timing of outputs are regenerated in digital mode from a 32-bit ARM processor. The RDM return messages are subsequently amplified and redistributed across the other outputs. These messages are redistributed through splitters connected via the input, crossing up to a maximum of three different splitters.

The DMX-SPLITTER-2CH-RDM is powered by a 12-24 Vdc power supply and supports three DMX512+RDM buses with NSC, SIP, and RDM functionality. This splitter is designed for extended temperature ranges and undergoes 100% functional testing. It also comes with a two-year warranty.

General specifications

• Input voltage: 12-24V DC
• Channels output: 2
• Bus Command: DMX+RDM
• Working Temperature Range: -40/+60°C
• 32 bit ARM processor
• 2 years warranty

Downloads

• DMX-SPLITTER-2CH-RDM cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request
