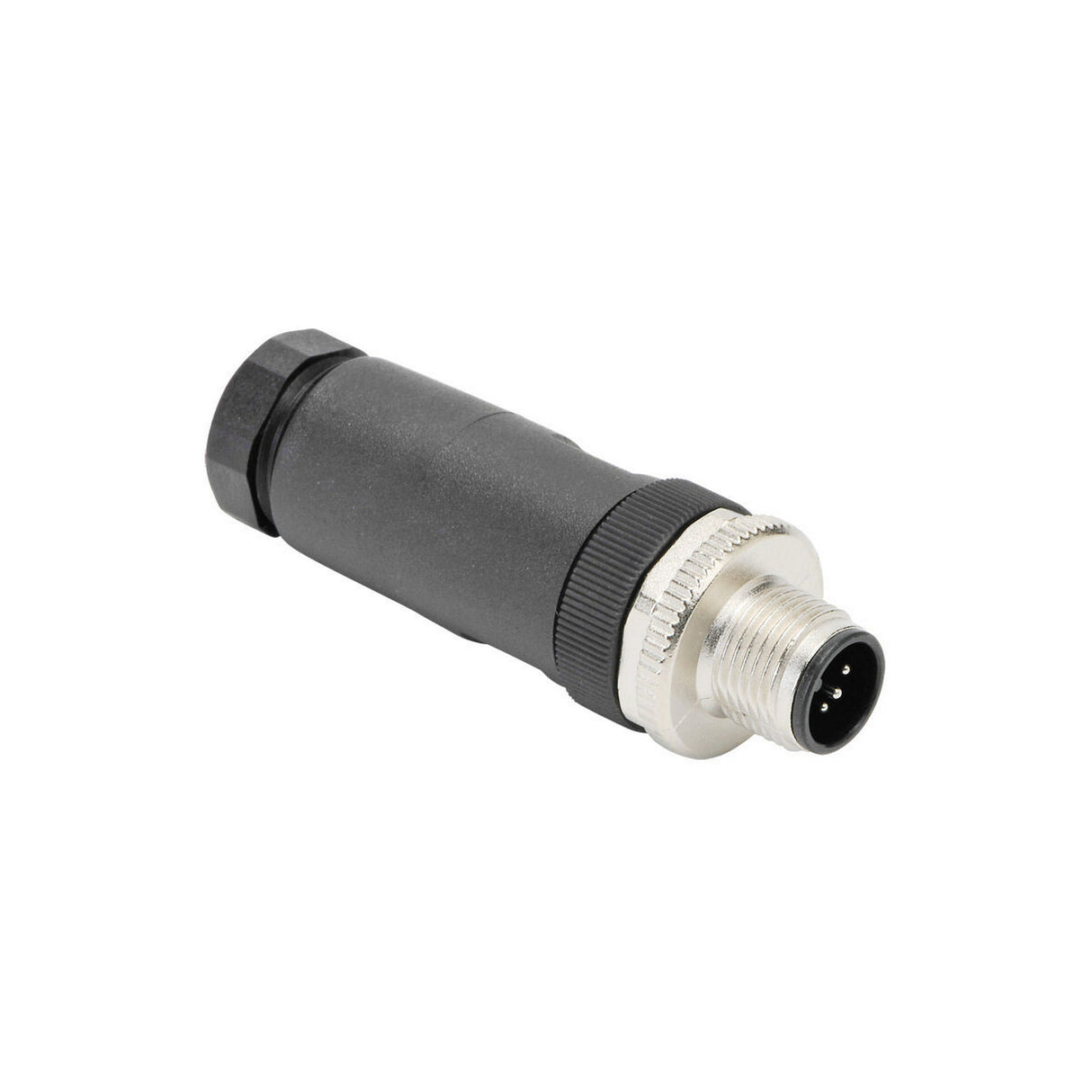

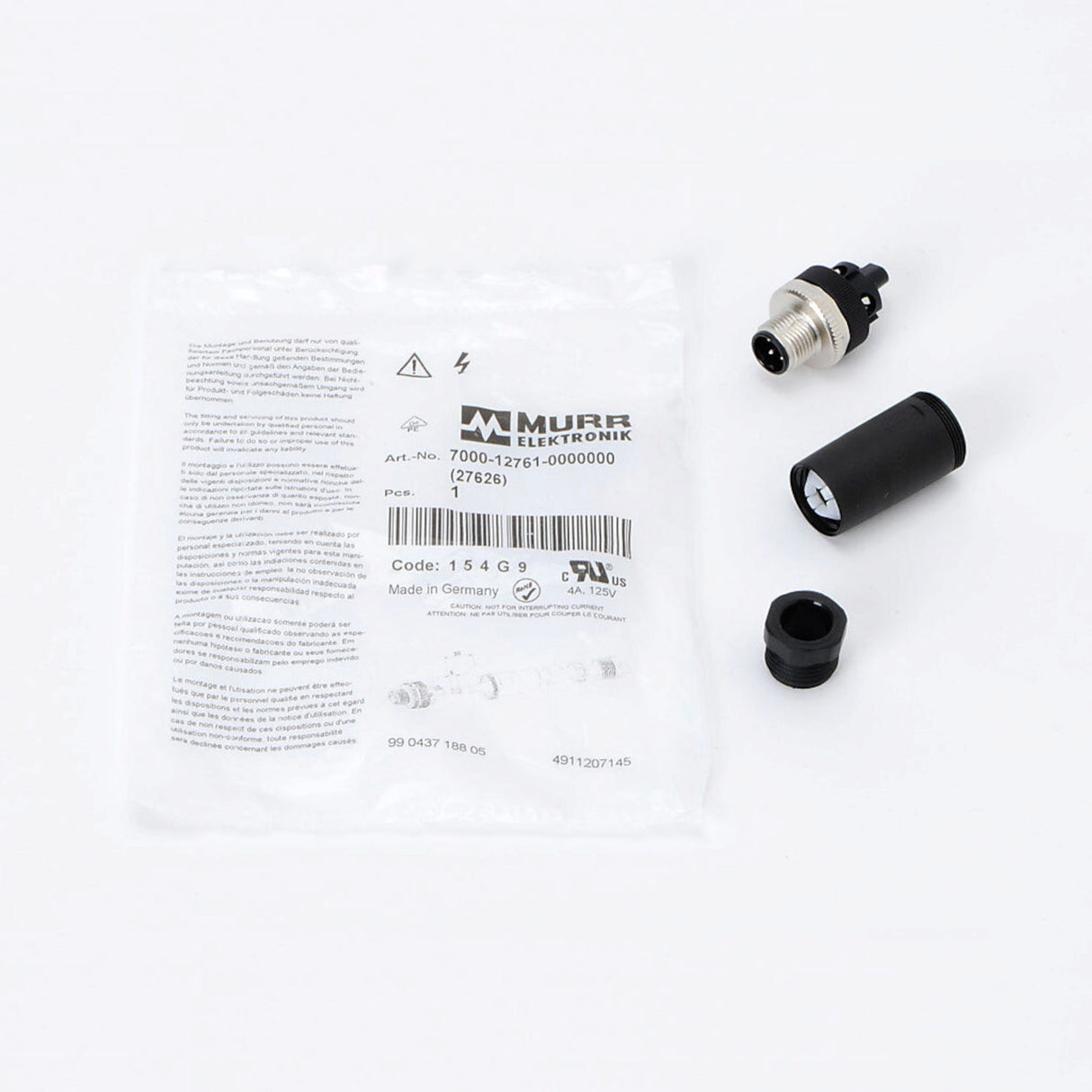

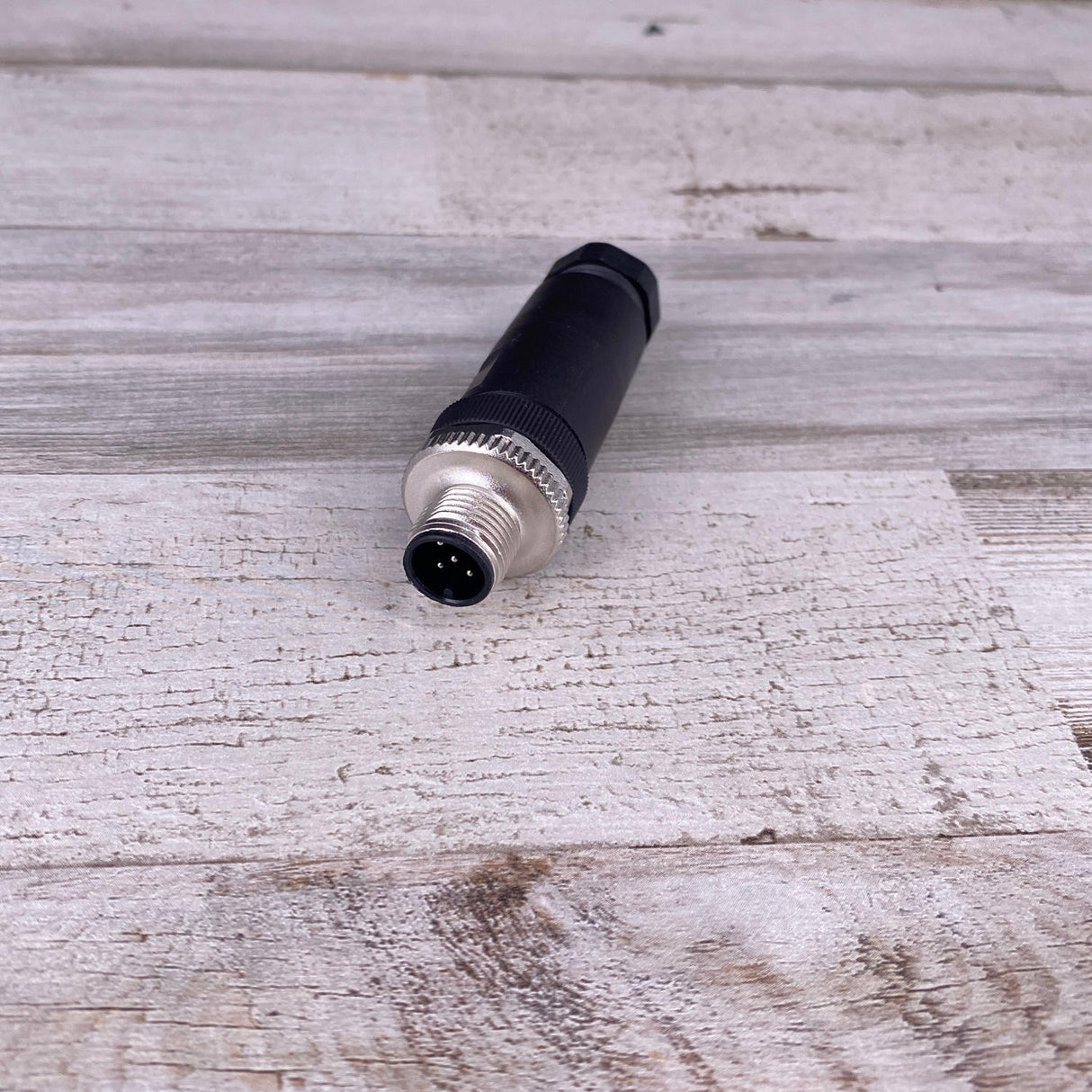

RGBW Male 5-pin Waterproof M12 Connector

connector only ~ junction block, wire, and all other accessories are sold separately

Description

This 5-pole field-wireable connector is suitable for RGBW lighting applications. You can use this IP67 waterproof connector for outdoor LED lighting connections along with the ZipPort waterproof junction blocks.

General specifications

• Sold a single connector
• Connector type: M12, 5-pole, A-coded
• Maximum voltage: 125V AC/DC
• Maximum current: 3A (UL)
• Maximum wire size: 0.75mm² (18 AWG)
• Cable connection: Screw terminal
• Cable diameter: 6 - 8mm (0.24" - 0.31")
• Material: PA (housing)
• Dimensions: 60 x 20mm (2.36" x 0.79")
• Environmental protection: IP67 (inserted and tightened)
• Operating temperature: -40 to +85°C (-40 to 185°F)

Downloads

• Male 5-pin M12 connector cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request
