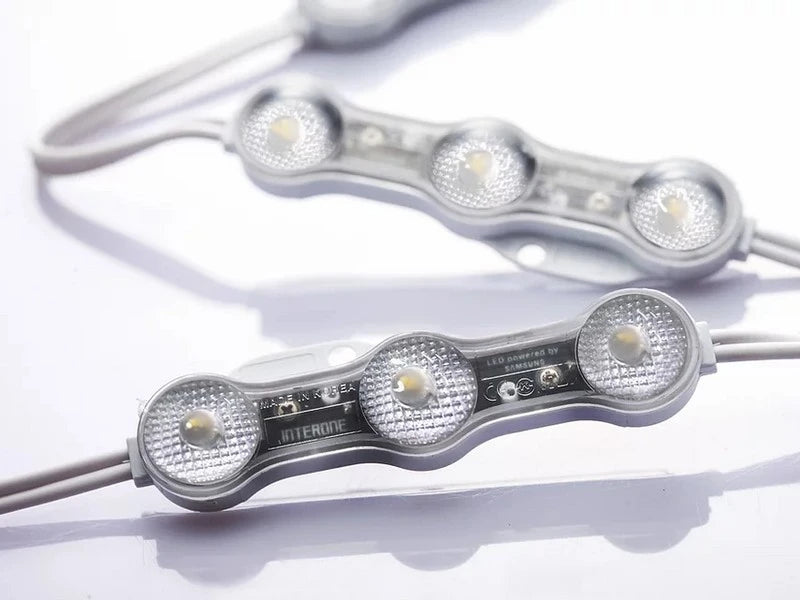

Samsung chip 3 LED module with 180 deg lens (12V) ~ White Peanut Series

Description

Samsung chip 3 LED module with 180 deg lens (12V) ~ White Peanut Series is equipped with an ultra-wide 180° crystal lens. The lens is ideal for limited channel depth and eliminates hot spots.

Choose from 0.72W and 1.20W versions in 6500K cool white. Each module is built with highly efficient Samsung 2835 SMD chips and 99.99% copper 18 AWG wire, and features reverse circuit protection for stable and secure operation.

With certifications from CE, UL, and RoHS, you can trust the reliability and quality of this product, which comes in a compact 68 × 15 × 7.1mm size for effortless installation. Each module is pre-assembled in strings of 50, streamlining the setup process.

Safe and user-friendly, the LED module operates with a 12V DC power source and offers a non-polarity sensitive connection. Its ultra-wide 180° lens ensures an even distribution of light, providing a generous viewing angle for optimized illumination.

Designed to withstand challenging conditions, this LED module boasts durable weather protective molding with an IP68 rating, making it capable of handling wet and exposed applications with ease.

General specification

• Voltage: 12V DC
• LED chips: Samsung 2835 SMD
• Color temperatures available: 6500K (Cool White)
• Beam angle: 180°
• Power consumption: 0.72 W/module or 1.2 W/module
• Module size: 68 × 15 × 7.1mm
• Mounting: 3M adhesive backing or screw
• Environmental temperature: -22°F – 158°F
• Environmental protection: IP68 waterproof
• Lifespan: >50,000 hours
• Warranty: 5 years
• CE, UL, RoHS Approved
• Made by Interone in Korea
• Pre-assembled strings of 50 modules.

Downloads

• Cut sheet
• Photometric report

Important Notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
