Surface Mount LED Strip Channel ~ Model Surface10

Profile only - all accessories sold separately

Description

The Surface10 LED channel is a surface-mounted aluminum LED profile designed to house and protect LED strip lights up to 10mm wide. It installs directly onto flat surfaces without the need for routing or recessed mounting, making it ideal for cabinets, shelves, furniture, kitchens, and other residential or commercial lighting applications.

Its aluminum construction acts as an efficient heat sink, helping reduce heat buildup and extend the lifespan of LED strips. This makes the Surface10 LED profile a reliable choice for creating durable and professional linear lighting installations.

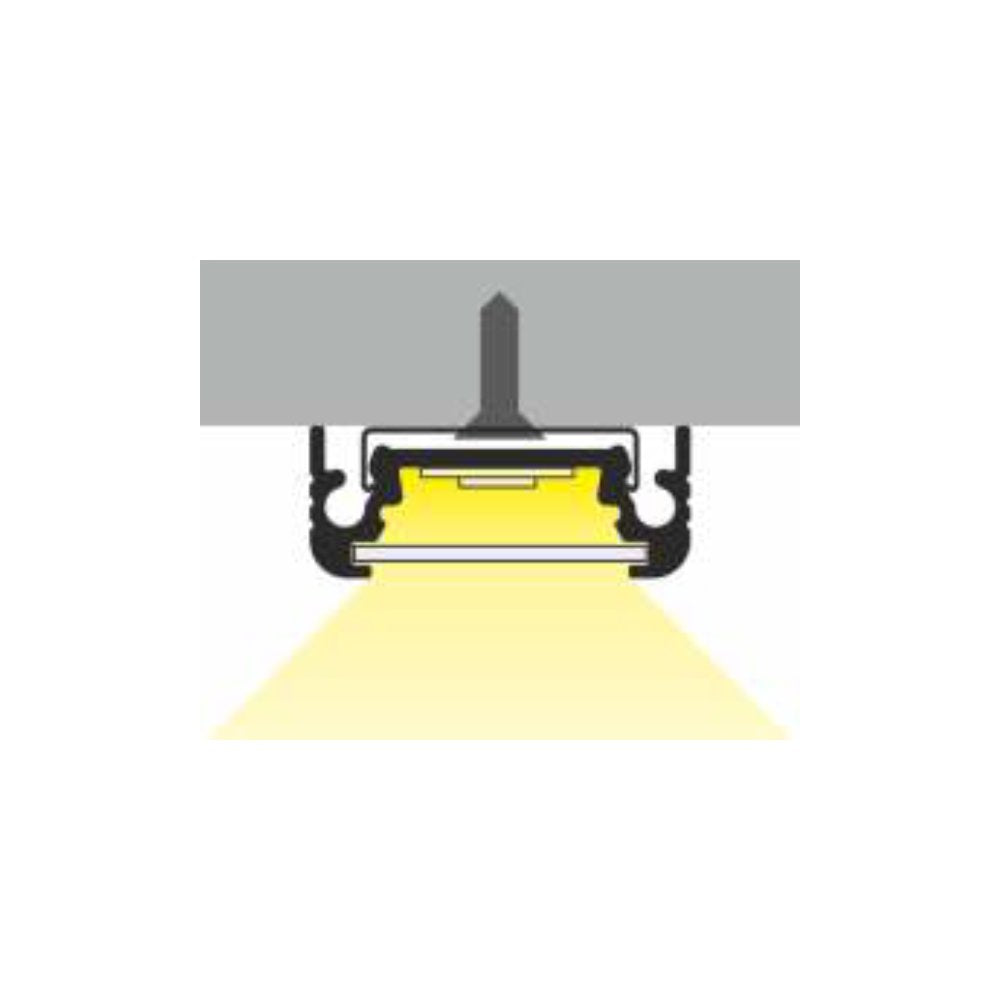

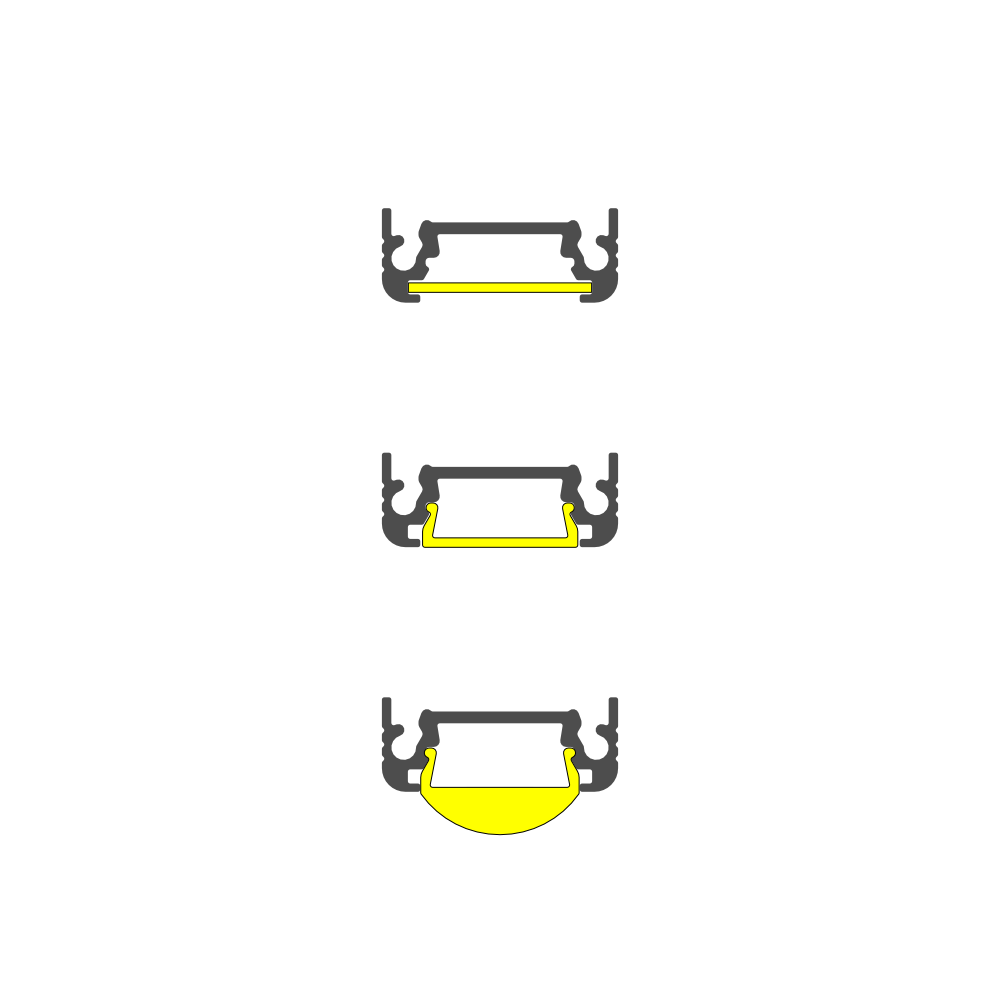

The Surface10 surface-mounted LED channel supports installation using dedicated U or X mounting plates, as well as screws, mounting adhesive, or high-quality double-sided tape. It is compatible with click-in C diffusers in transparent or opal finishes and slide-in B diffusers in multiple transparency options, providing smooth, even light diffusion while protecting the LED strip from dust and damage.

General specifications

• Installation type: Surface mount
• Material: Aluminum

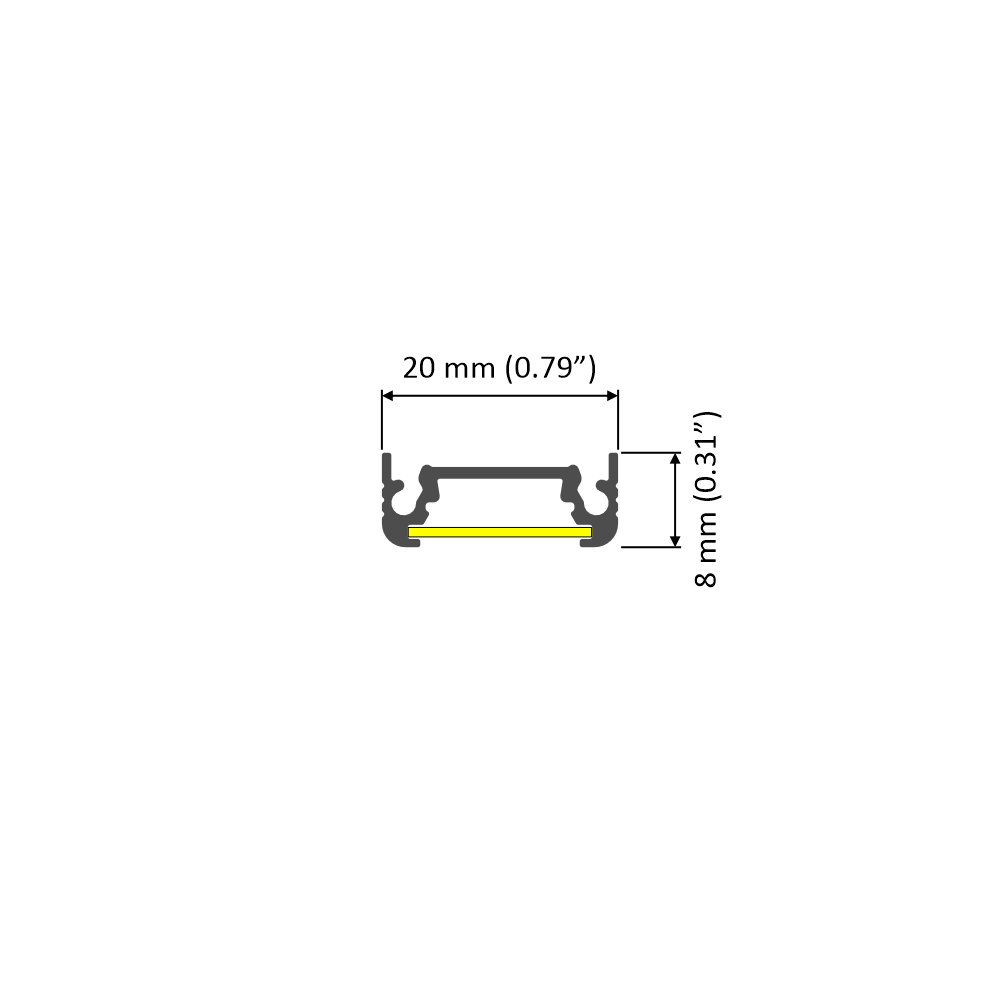

• Overall dimensions: 20mm x 8mm (0.79” × 0.31")
• Maximum LED strip width: 10mm

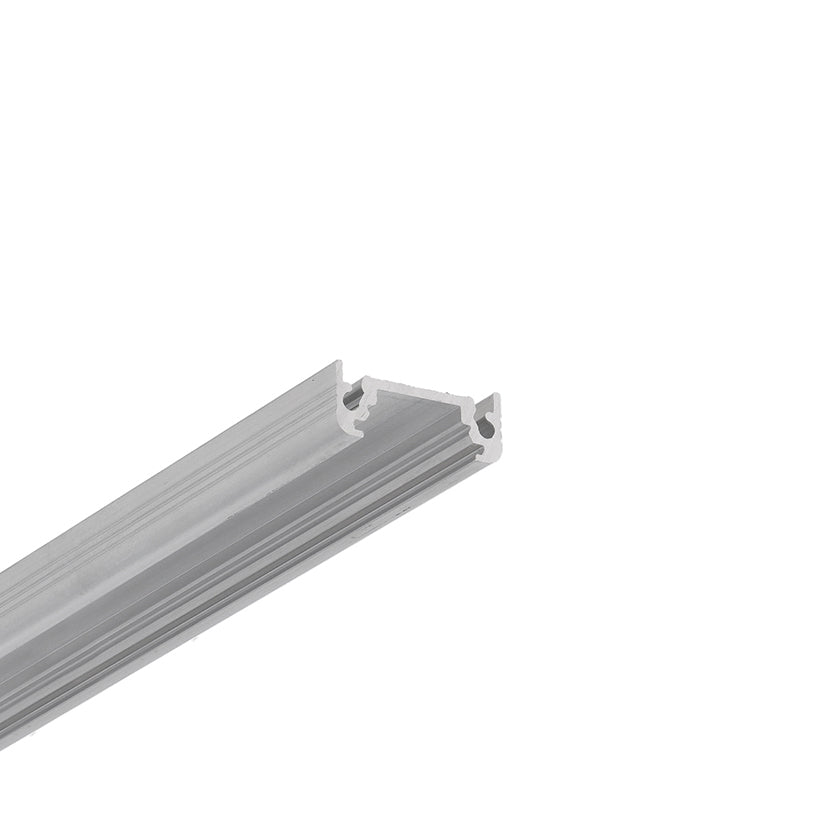

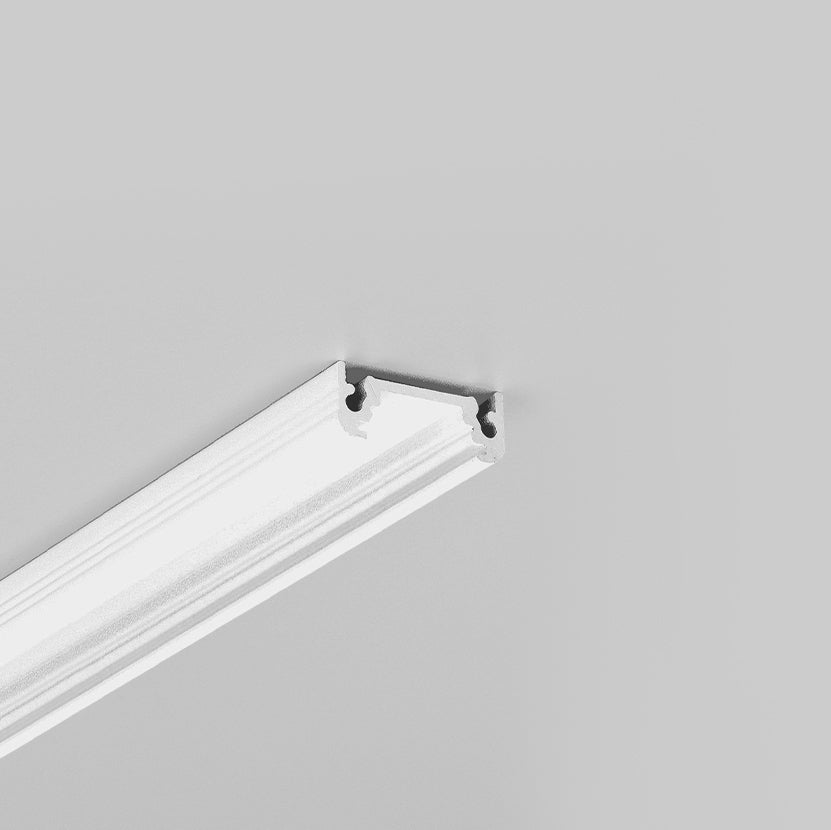

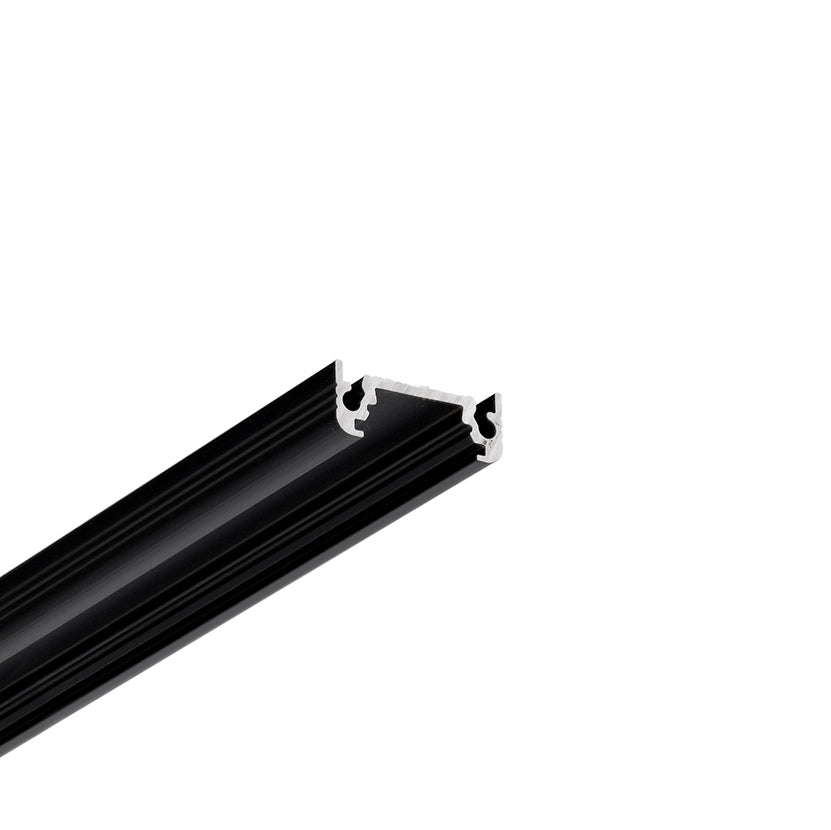

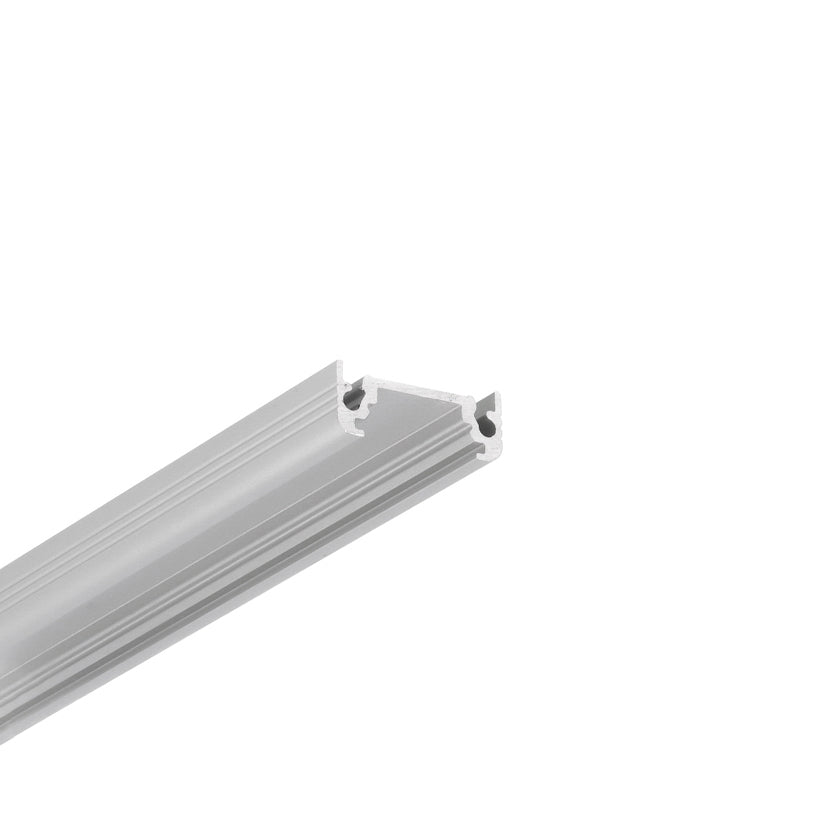

• Color & Finish: Raw aluminum, Silver anodized, Black anodized, White painted

Downloads

• Surface10 cut sheet

Important notes

• You can easily cut LED profiles by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
• We ship items in stock the same day from Knoxville, Tennessee, United States. Our team dedicates themselves to carefully packing and safely delivering all packages to their destination.
• Bulk pricing is available on request. For larger orders, we offer additional discounts and customized pricing to fit your project needs. All in all, please contact us to learn more about our bulk pricing options.
