White High CRI IP20 LED Strip (24V) ~ White Iris Series

LED strip only ~ Profile, channel, covers, end caps and all other accessories are sold separately

Description

Our White Iris Series high CRI IP20 LED strip offers a color rendering index of Ra90+, guaranteeing excellent color rendering. This high quality LED strip is the ideal light source for professional indoor linear lighting application and offers stable performance and long lifetime due to top quality LED chips and think FPC.

The White Iris white LED strip is offered with a selection of output ratings from 60 LEDs per meter (4.8W/m) to 180 LEDs per meter (12.8W/m) and in color temperatures from ultra warm white (2700K) through to cool white (6000K). Read our explanation of LED color temperature, or Kelvin ratings, and see what the different colors look like.

Product video

General specifications

• TAA compliant.
• Colors available: 2200K Ultra warm white, 2700K Ultra warm white, 3000K Warm white, 4000K Natural white, 6000K Cool white

• Supply voltage: 24V DC

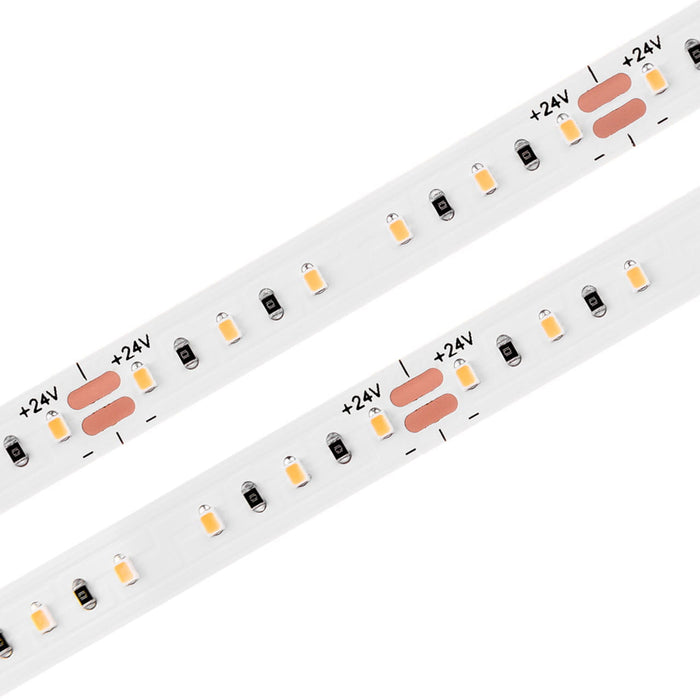

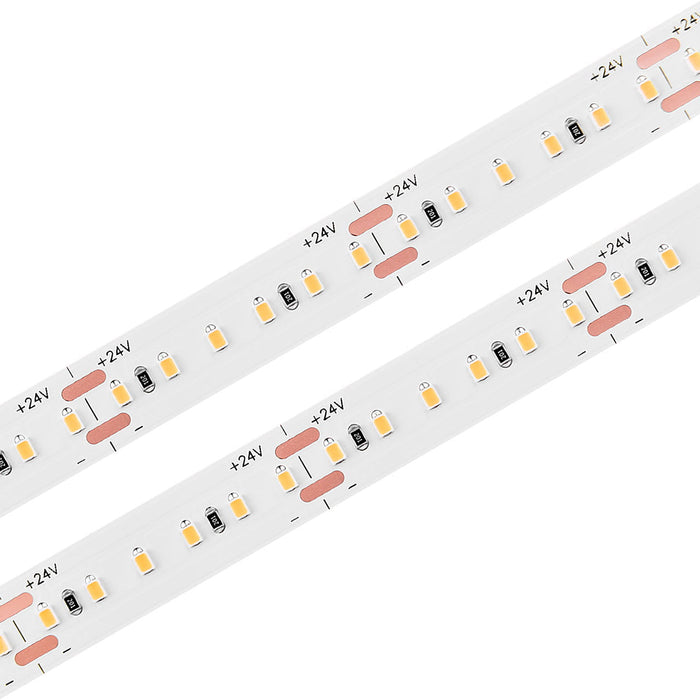

• LED density: 60, 120, or 180 LEDs/m (18, 36, or 54 LEDs/ft)
• Power consumption:
  • 60 LEDs/m: 4.8 W/m
  • 120 LED/m: 8.4 W/m
  • 180 LEDs/m: 12.8 W/m
• Luminous flux:
  • 60 LED/m: 616 lm/m (2700K) - 654 lm/m (6000K)
  • 120 LED/m: 965 lm/m (2700K) - 1052 lm/m (6000K)
  • 180 LEDs/m: 1309 lm/m (2700K) - 1405 lm/m (6000K)
• Luminous efficacy:
  • 60 LEDs/m: 136 lm/W
  • 120 LEDs/m: 125 lm/W
  • 180 LEDs/m: 110 lm/W
• LED strip dimensions:
  • 60 LEDs/m: 8mm x 1.4mm
  • 120 LEDs/m: 8mm x 1.4mm
  • 180 LEDs/m: 10mm x 1.4 mm
• Cutting pitch:
  • 60 LEDs/m: every 100mm (4")
  • 120 LEDs/m: every 50mm (2")
  • 180 LEDs/m: every 33mm (1.3")
• IP rating: IP20 non-waterproof
• Mounting method: 3M double-sided adhesive backing tape
• Power up to 8-10m of LED strip at 24V from one side without any visible loss of light at the end (double that amount when powering from both sides).
• CRI rating: CRI Ra90+ (high CRI)

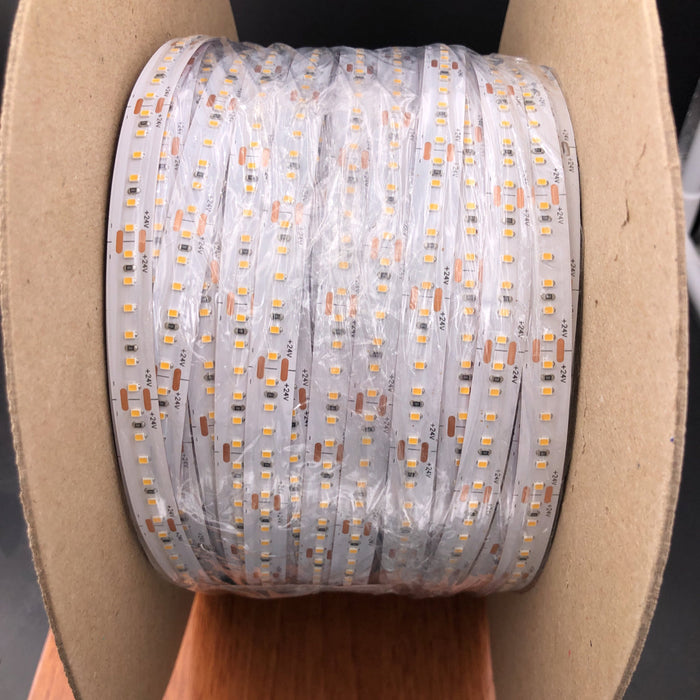

• 100m (328ft) bulk led strip rolls available.
• Look at our blog to see the White Iris 4000K LED strip in action.

Downloads

• White Iris 120 LED/8.4W per meter cut sheet
• White Iris 180 LED/12.8W per meter cut sheet

What makes us different from others?

• High CRI LED Strip not made in China
• Factory with over 20 years of experience in the lighting market
• Carefully selected components from leading brands
• Designed by engineers with many years of experience
• All production batches go through a 5-step quality control
• Our High CRI LED Strip rolls are available in 5m (16.4ft) and contractor bulk LED strip 100m (328ft) rolls (on demand)
• >5 year warranty
• Our LED strip is stocked and shipped from Knoxville, Tennessee, USA
