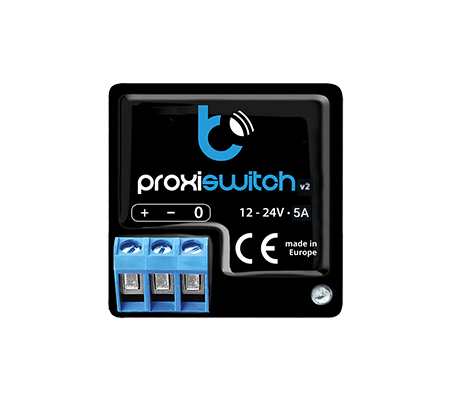

Touchless Switch with Proximity Sensor for Invisible Control Buttons ~ proxiSwitch by BleBox

proxiSwitch only ~ all other components are sold separately

Description

proxiSwitch by Blebox is designed to revolutionize your lighting control experience, offering a seamless invisible switch and contactless solution that allows you to switch lights on and off without the need for physical touch. With its proximity switch "ON / OFF'' functionality, this 12-24V DC sensor responds to the touch or movement of your hand, offering an intuitive and convenient way to operate your lights.

Controllable by touch or a simple close-up of your hand, the proxiSwitch brings a sense of magic to your living spaces. It enables you to transform any countertop, cabinet, or object into a functional button, creating invisible buttons that blend effortlessly with your surroundings.

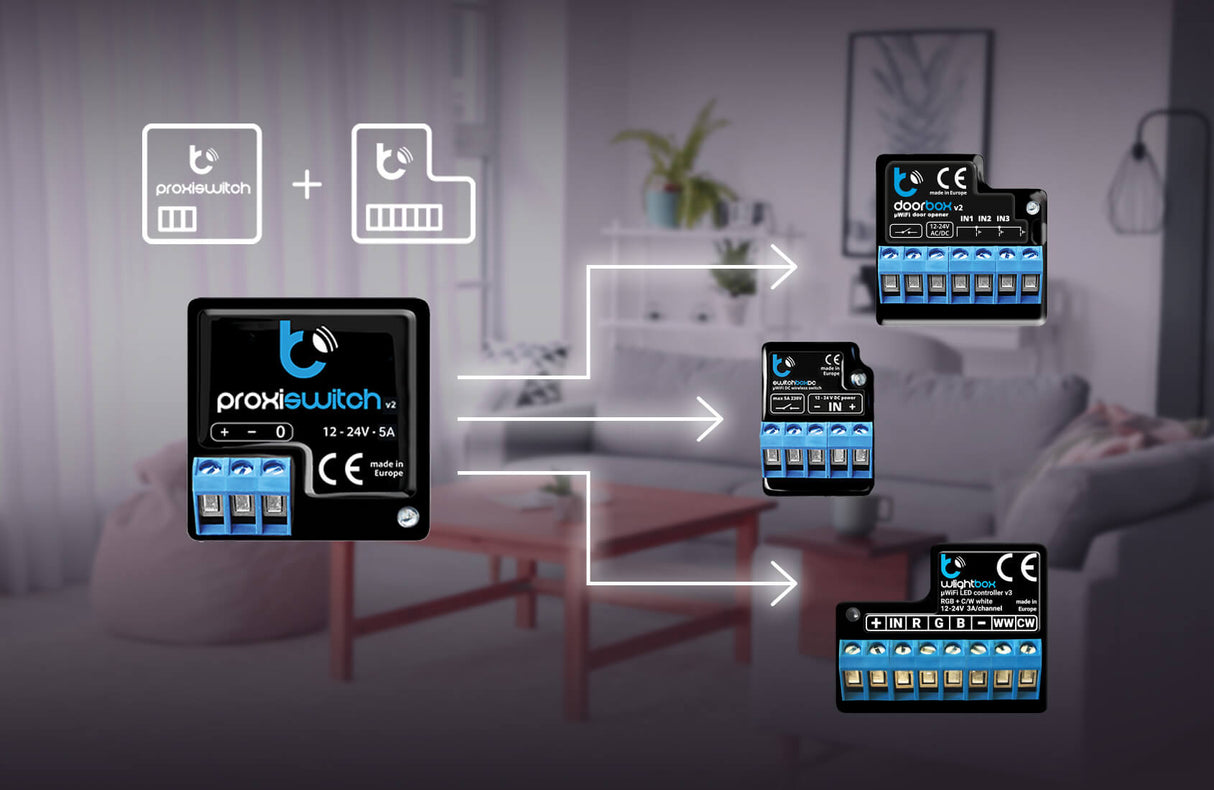

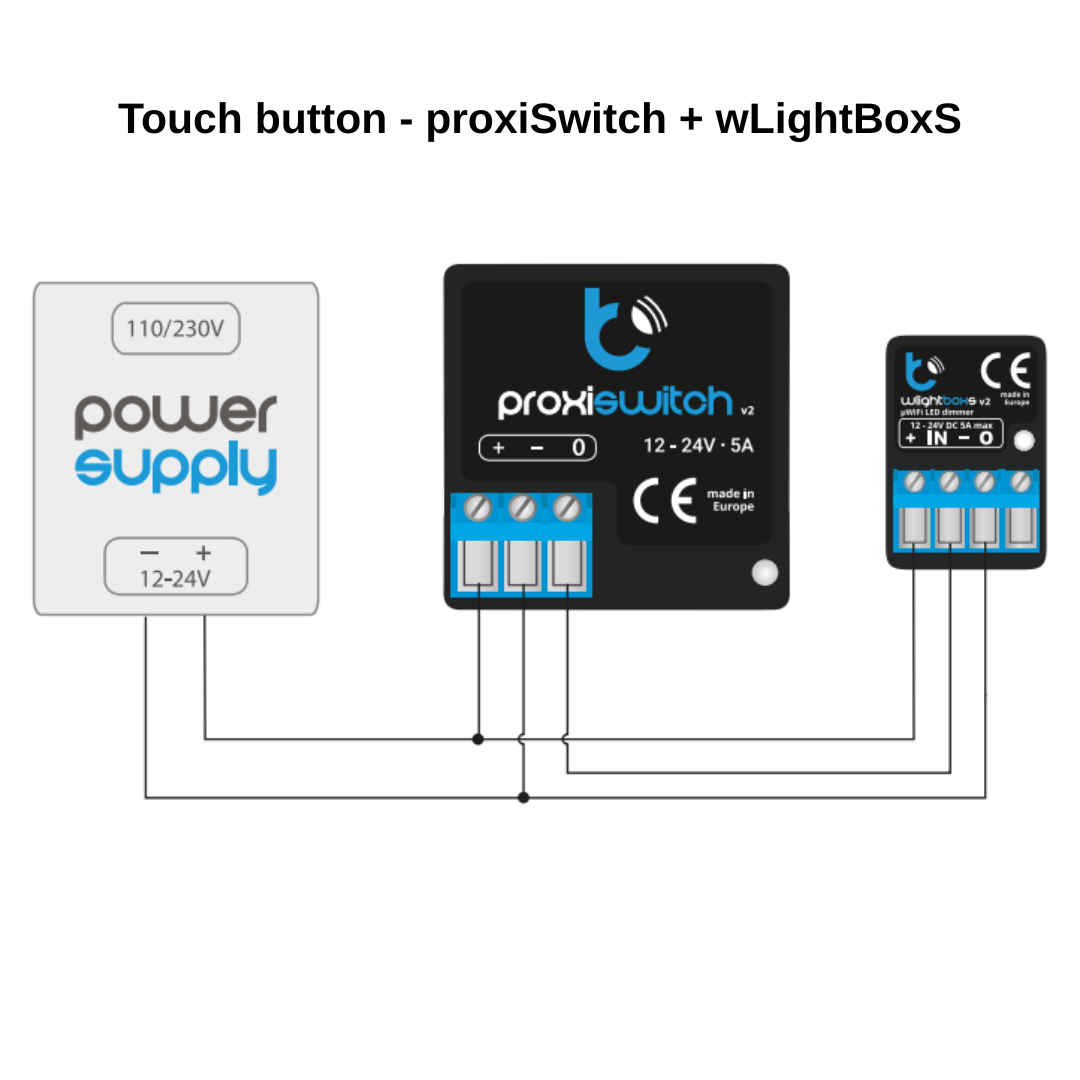

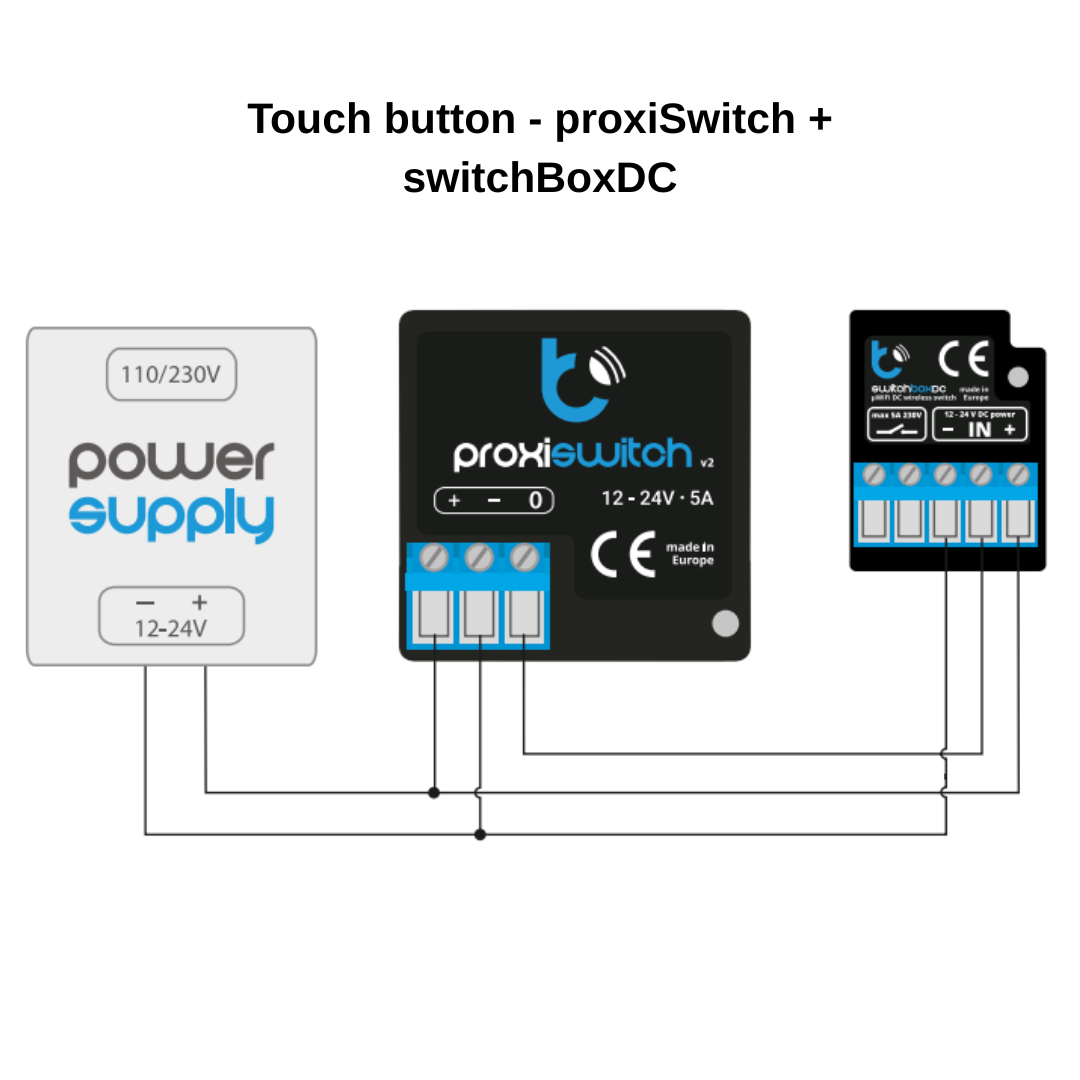

Take control to the next level by using the proxiSwitch as an additional touch button for your WiFi controllers, expanding the capabilities of your smart home automation. With automatic calibration, setup becomes effortless, and you can choose between bistable and monostable operating modes, tailoring the switch's behavior to suit your needs.

Equipped with a capacitive sensor and sophisticated algorithms, the proxiSwitch controller accurately detects the proximity of your hand, ensuring reliable and responsive operation. Its high sensitivity empowers you to discreetly hide the low voltage light switches under a kitchen counter, on the side of a wardrobe, within a wall, or even concealed inside another object, making it into an invisible light switch.

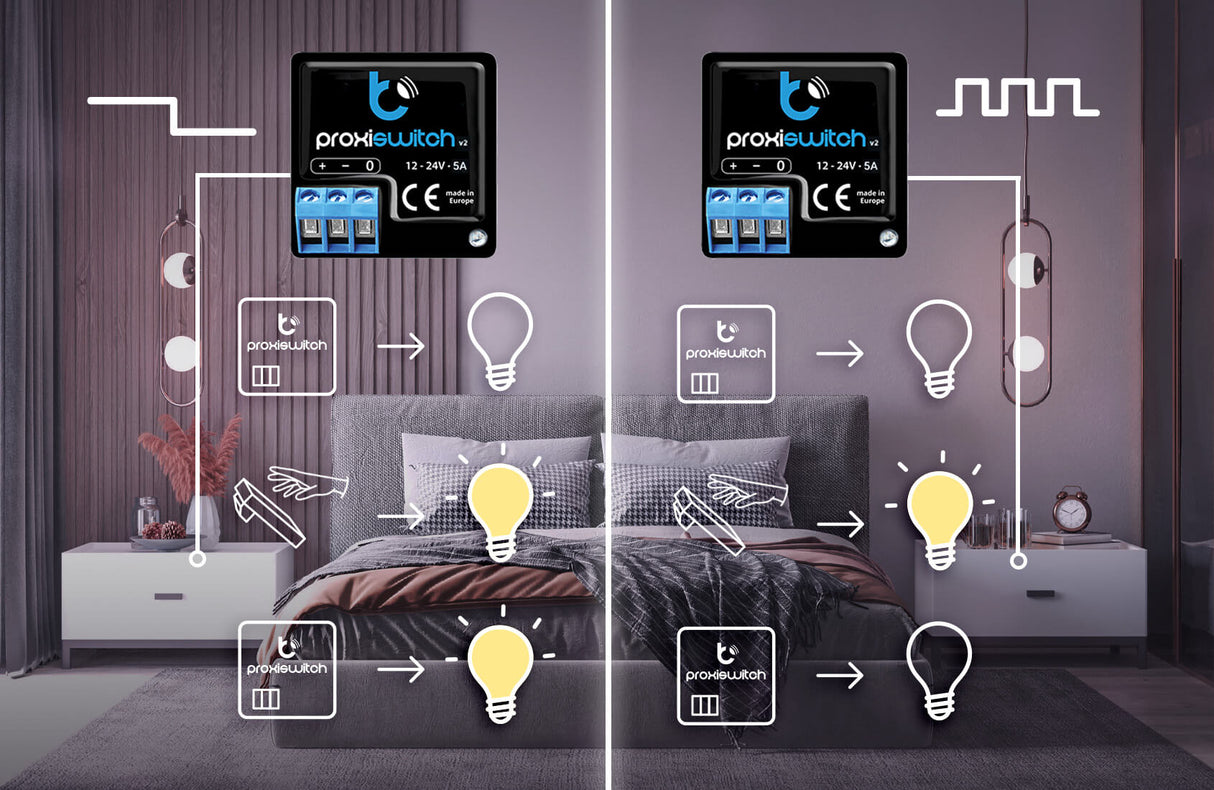

The device can operate in four operating modes:

1. bistable without memory — On power up, the output is off. Each time you activate the switch, the output state changes.
2. bistable with memory — On power up, the output state depends on the state before power loss (the last state is remembered 5 seconds after its last change). Each time you activate the switch, the output state changes.
3. monostable NO — On power up, the output is off. It turns on while your hand is near the switch.
4. monostable NC — On power up, the output is on. It turns off while your hand is near the switch.

General specifications

• Supply voltage: 12 – 24V DC
• Maximum current: 5A
• Maximum power: 120W
• Energy consumption: <0.1W
• Sensor: proximity, capacitive sensor
• Protection rating: IP20
• Operating temperature: -20°C to 50°C (-4°F to 122°F)

Downloads

• proxiSwitch cut sheet
