Single Channel Wi-Fi LED Controller ~ wLightBoxS by BleBox

Single Channel Wi-Fi LED Controller only ~ all accessories are sold separately

Description

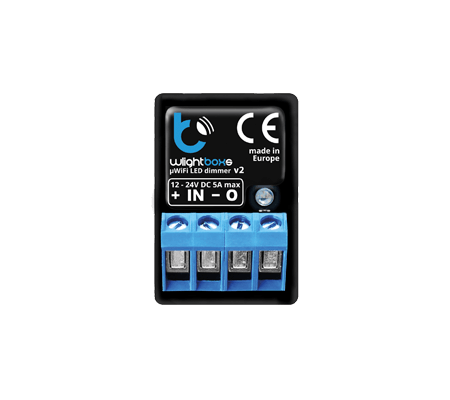

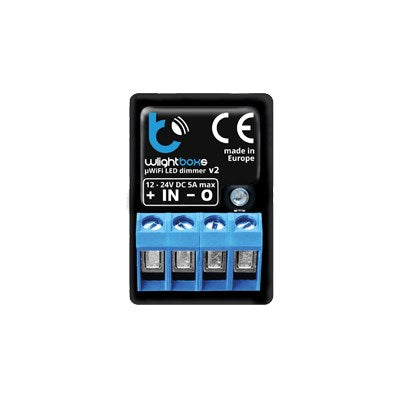

Single Channel Wi-Fi LED Controller ~ wLightBoxS by BleBox

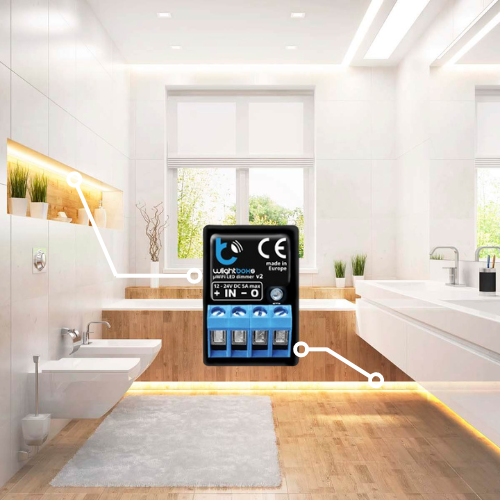

Turn on and off low voltage LED lighting in the home, garden or business with a smartphone or tablet. Set the appropriate brightness for reading, a romantic dinner, or watching a movie with just one touch on the screen. You can also save electricity and protect the environment.

With its one-channel output, it is able to control the brightness of mono color LED strip, white LED strip, or halogen bulb.

By using the free wBox app, you can control all the BleBox devices in your home, garden, or business, both within range and from anywhere in the world, without additional devices – all you need is a home Wi-Fi network.

Additional features:

• Presence simulation deters intruders when you are not at home.
• Make the controller turn the lighting on at the time you wish. Adapt it to your needs.

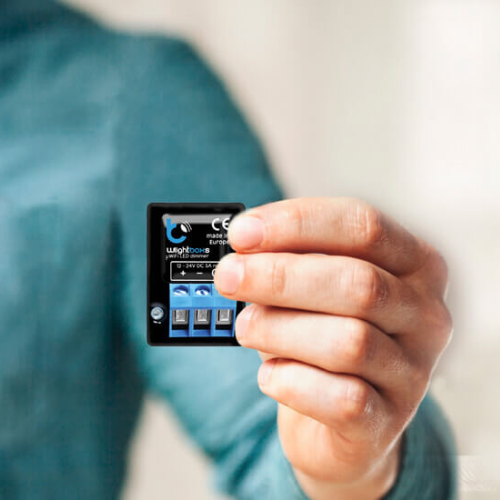

• Its small size allows you to install it in completely invisible places.

General specifications

• Voltage: 12-24V DC
• Maximum current: 5A
• Maximum power: 120W
• Energy consumption: <1W
• Number of outputs: 1

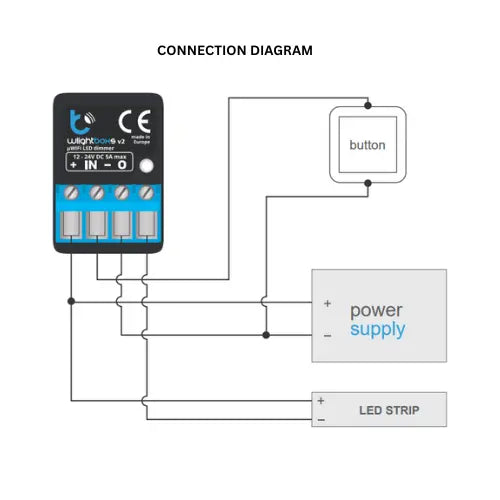

• Output type: PWM, open drain, low-side control
• Number of inputs: 1
• Input type: Low voltage, logical, push-button, short circuited to GND
• Supported switches: Monostable (push-button), not-illuminated
• Dimensions: 35 x 24 x 19 mm (1.38" x 0.94" x 0.75")
• Protection rating: IP20
• Communication standard: μWiFi, compatible with WiFi, 802.11g
• Communication mode: Direct connection (as access point), WiFi connection via a standard router, connection with access from any location in the world (requires access to the Internet)

Downloads

• Instruction guide for V1
• Instruction guide for V2
• Alexa User Guide
• Google Home User Guide

API Calls

When configuring a "control another device" action in the BleBox app, an "API call" is required. The most common ones for controlling the wLightBoxS are as follows:

• Toggle on/off, last state: /s/offon/last
  Use this for toggling on/off using a single button or equivalent.
  If the output is off, turns it on with the last used brightness. If the output is on, turns it off.

• Turn on, last state: /s/onlast
  Turns on the output with the last used brightness.
• Set brightness: /s/{brightness}
Use this to turn on the output with a certain brightness.
  Sets the output to the specified brightness.
  Replace {brightness} with the brightness in hexadecimal, in the range 00–FF (decimal: 0–255). E.g., 00 (0) is off, FF (255) is full brightness, 7F (127) is half brightness.

• Set brightness for time: /s/{brightness}/forTime/{time}
Use this to set the output to a certain brightness for a certain amount of time.
  Sets the output to the specified brightness for the specified time. After the specified amount of time passes, the output will be set back to its previous state.
  Replace {brightness} with the brightness in hexadecimal, in the range 00–FF (decimal: 0–255). E.g., 00 (0) is off, FF (255) is full brightness, 7F (127) is half brightness. Replace {time} with the time in seconds, in the range 1–65535.

• Turn off: /s/00
Use this to turn off the output.
  See above. Uses the "set brightness" command to set the brightness to 0 (off).

• Increase brightness: /s/inc/{delta}
Increase the brightness by a certain amount.
  Replace {delta} with how much you want to change the brightness by, in hexadecimal, in the range 00–FF (decimal: 0–255). E.g., to increase the brightness by 25%, use 40 .

• Decrease brightness: /s/dec/{delta}
  As above, but decreases the brightness.

For the full API documentation:

1. Open https://technical.blebox.eu/ .
2. Under the "APIs list by API type" heading, find the item labeled "wLightBox".
3. Open the top link in the list.
4. The section with the API calls used for the "Control another device" action is titled "Control with GET".

Frequently Asked Questions

Q: Is this controller compatible with any smart home systems?
A: The BleBox Controllers are compatible with Google Home or Amazon Alexa smart systems. You can refer to the User manual for more information on how to pair the controller to your phone.

Q: Is it possible to control multiple Blebox controllers with a single phone?
A: Yes, using a single phone, you have the capability to control multiple light fixtures through your Smart Home app. You can manage these fixtures individually or group them together as needed. For example, you can create groups, such as one for controlling the lights in your living room and kitchen, or control individual receivers to independently manage the ceiling lights and accent lighting in your bedroom.

Q: What app do I need to download on my phone to use this controller?
A: You need to download the wBox by blebox.eu app and sync it to the receiver to control your lights. The app is available for both Android and iOS operating systems.

Q: Do I need a physical remote to use this controller?
A: No, this controller works through the phone app, Amazon Alexa, or Google Home integrations as well as physical remotes. It's a convenient choice for users who want to control their lights using smartphones or voice commands.

Q: Is this receiver outdoor-rated?
A: No. Please install this receiver indoors and ensure it is protected from exposure to moisture or direct sunlight.

Q: Is this compatible with my Apple or Android device?
A: Yes, the compatible devices and systems are: Apple iPhone, Apple iPad, iPad Mini, Android, and any computer or mobile device supporting HTML5.
