White Outdoor LED Wall Washer Light ~ Revo Basic Magno Dim Series

White Outdoor LED Wall Washer Light ~ Revo Basic Magno Dim Series

Original price - Original price
Original price
Current price
SKU LED-R-1M-1-03-1

🚚 - Free shipping on most orders over $350 - T&C Apply

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

wall washer fixture only ~ all other accessories sold separately

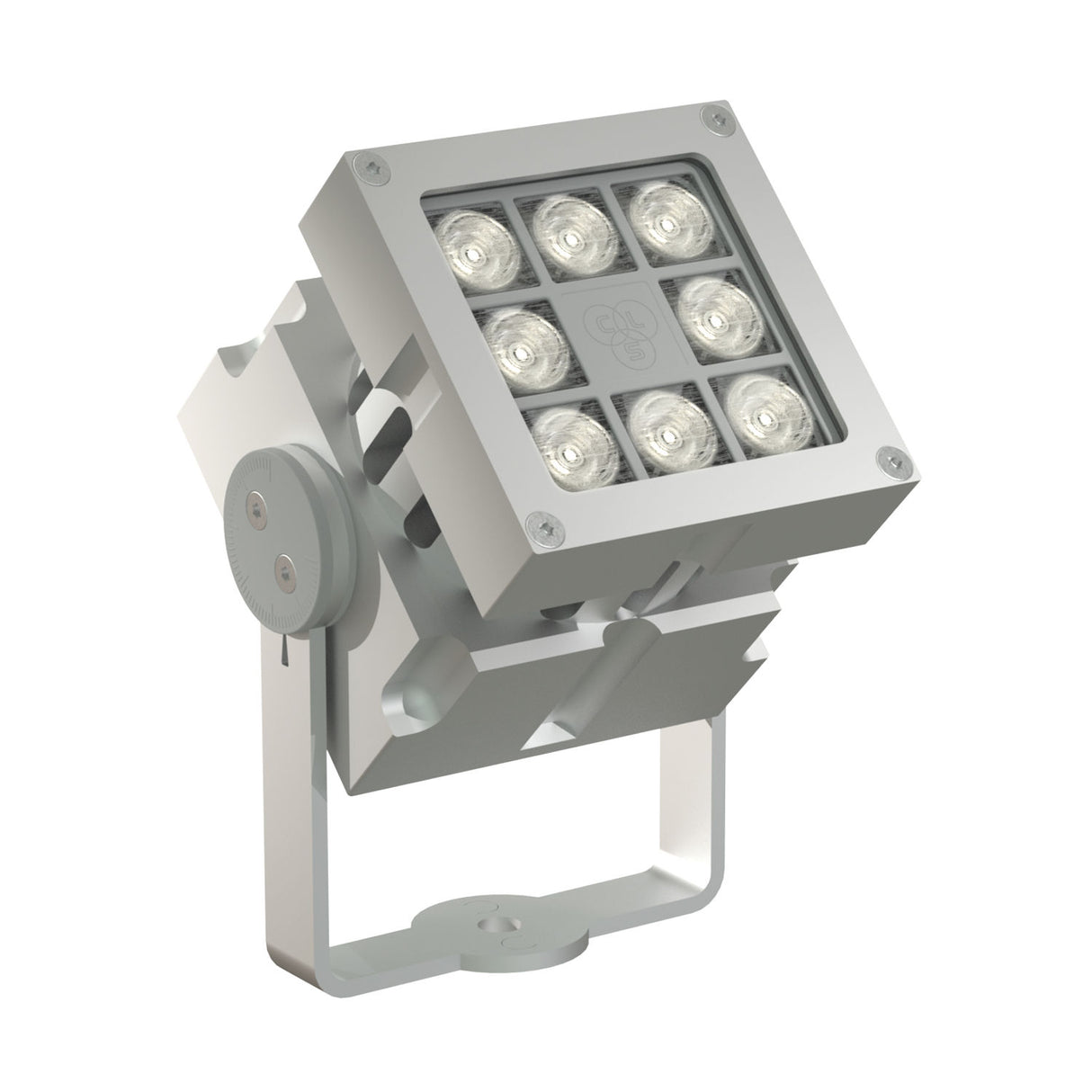

Designed & made in the Netherlands, the Revo product line is the perfect combination of innovation, quality, and functionality in a compact size to create vibrant colors. It's no wonder that it has become a favorite among architects and lighting designers around the world!

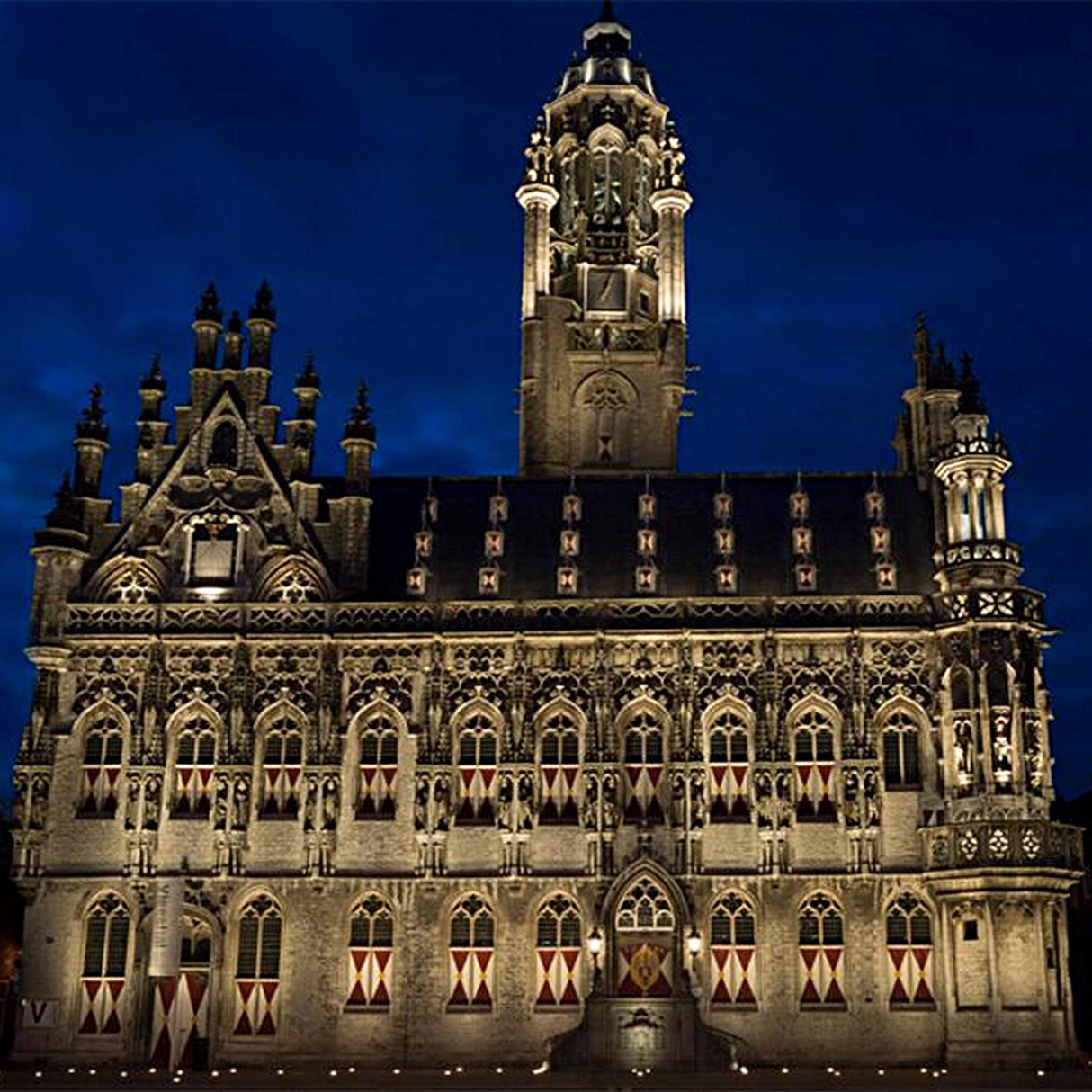

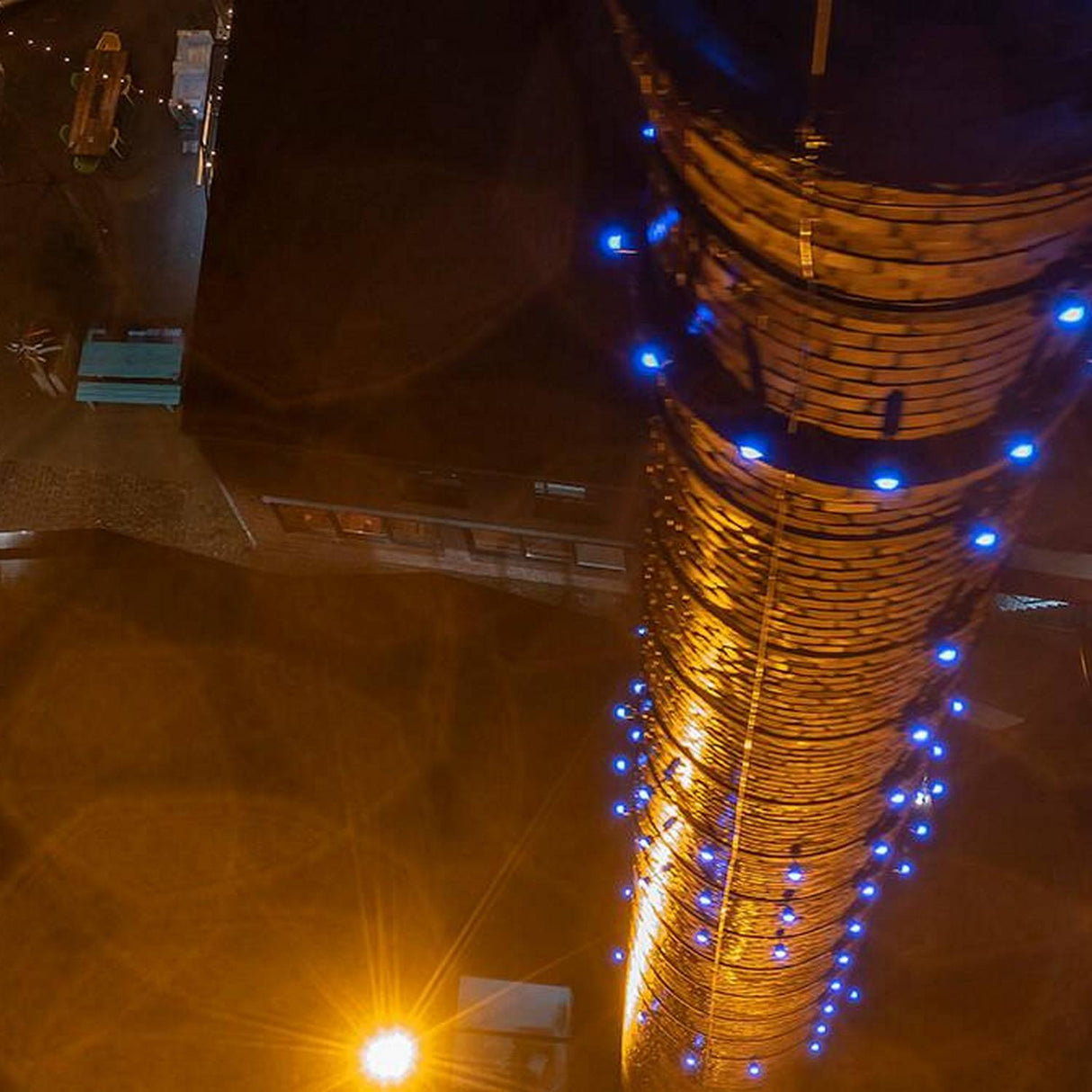

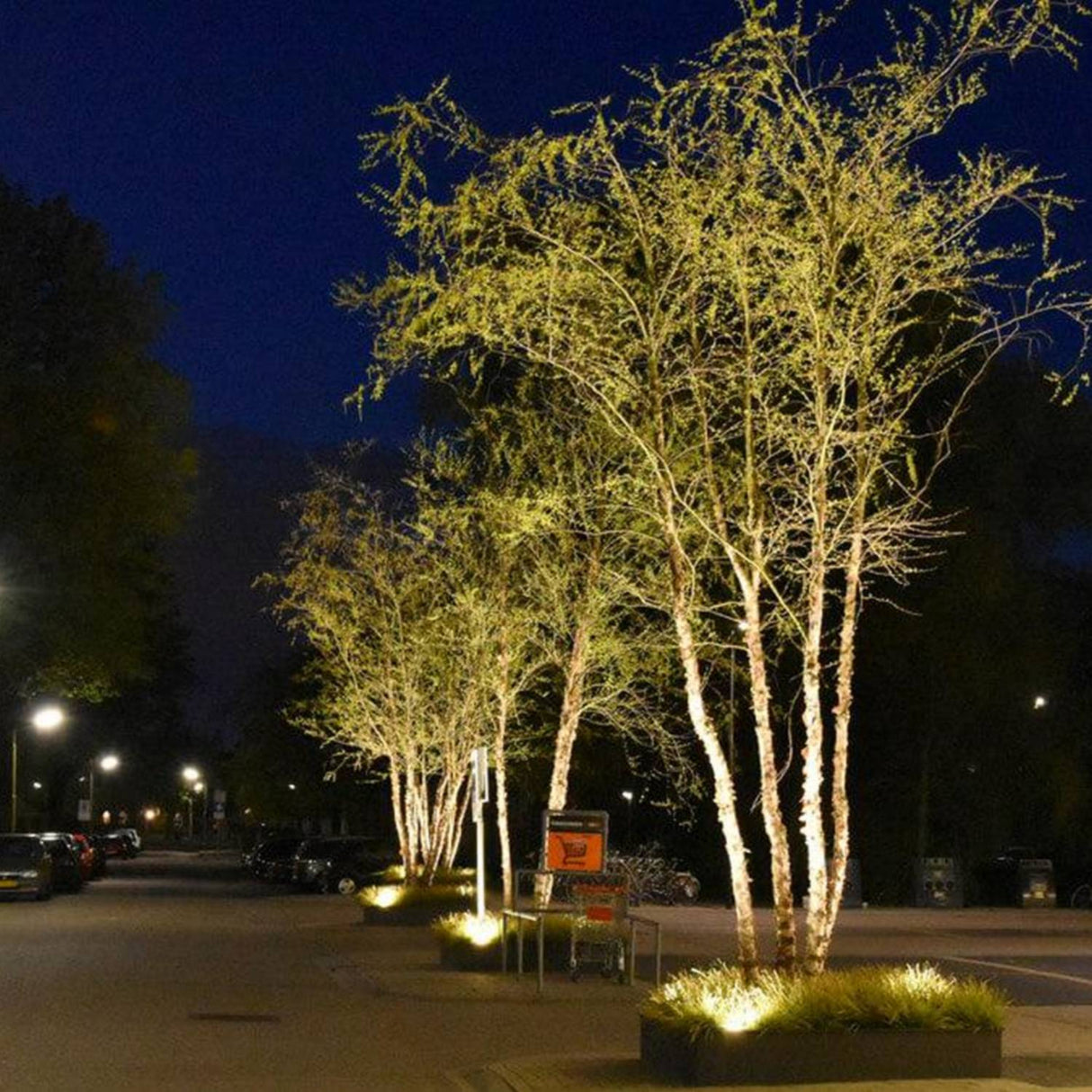

This versatile lighting solution has been employed in a wide range of outdoor projects. It has been used to illuminate building facades, structures, trees, shrubs, gardens, parks, and even entire roller coasters in theme parks.

The white Revo Basic Magno Dim series of wall washer LED fixtures comes in various white color temperatures. With the unique Magno Dim functionality, you can individually adjust the brightness of each fixture, giving you precise control to fine-tune your installation.

A selection of optical beam angles allows you to use the Revo Basic as a close-up flood light for walls with the wide-angle option, or as a long-range outdoor spotlight for architectural features with the spot or superspot lens options. This means that you can use the Revo Basic series of waterproof wall washers for anything from illuminating an entire facade, to selectively highlighting only a tower or spire.

The Revo series of outdoor wall washers is available in additional configurations with other beam angles, LED colors or control options. Visit the Revo Basic configuration page and send us the model code once you have configured the fixture to your requirements.

General specifications

  • Power consumption: Max 20 watts
  • Mounting option: Surface-mounted wall washer
  • Material: CNC-cut massive anodized aluminum housing

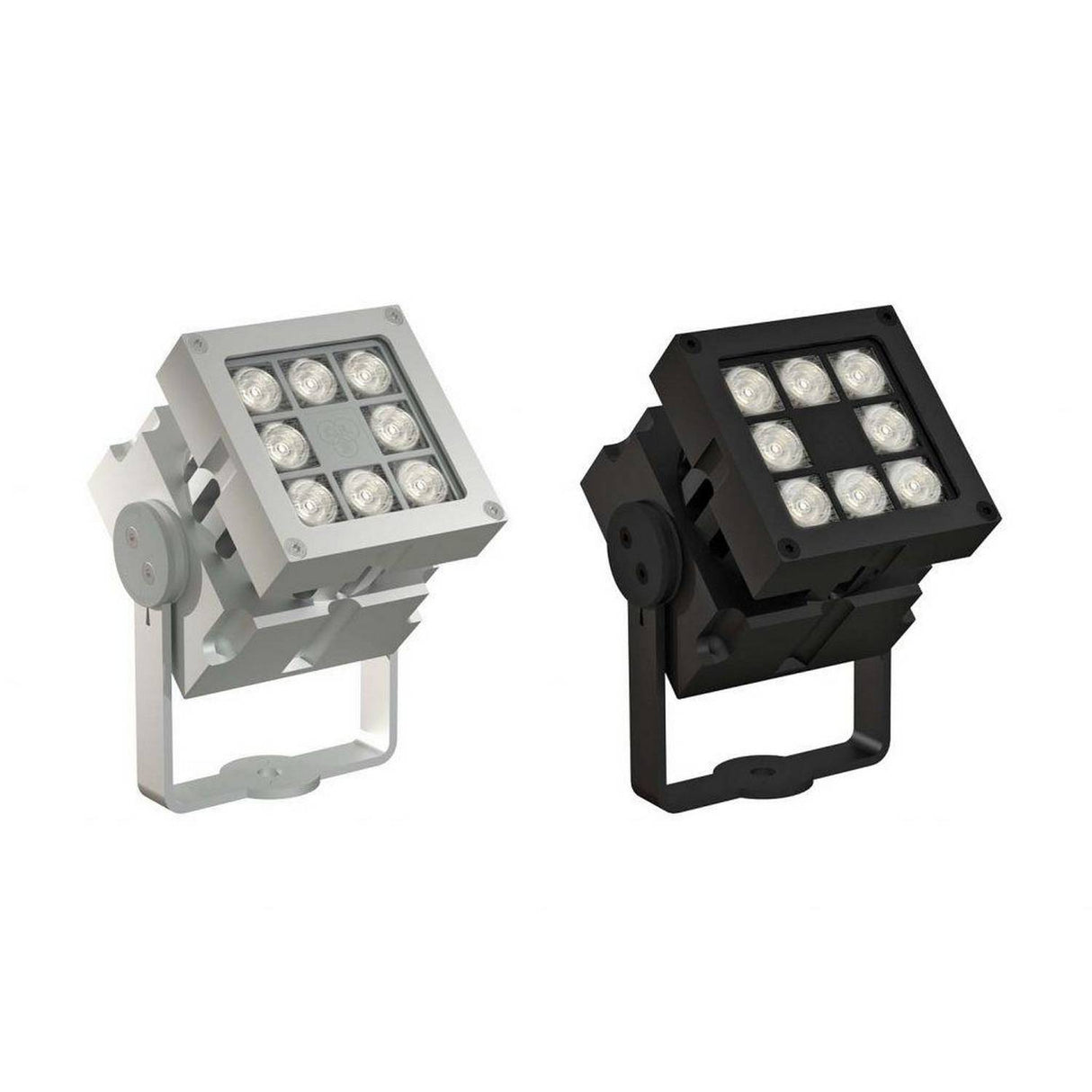

  • Finish: Silver anodized | Black anodized
  • Environmental protection: IP67 waterproof
  • Weight: 1.8kg (4lb)
  • Swivel: 360 horizontal, 270 vertical
  • Optics: 8º | 12º | 30º | 60º | 80º | 12 x 46º
  • Dimmable: Magno Dim manual adjustment
  • Supply voltage: 100-240V AC
  • Connection: Cable, 2m (6.56ft)
  • Warranty: 3 years
