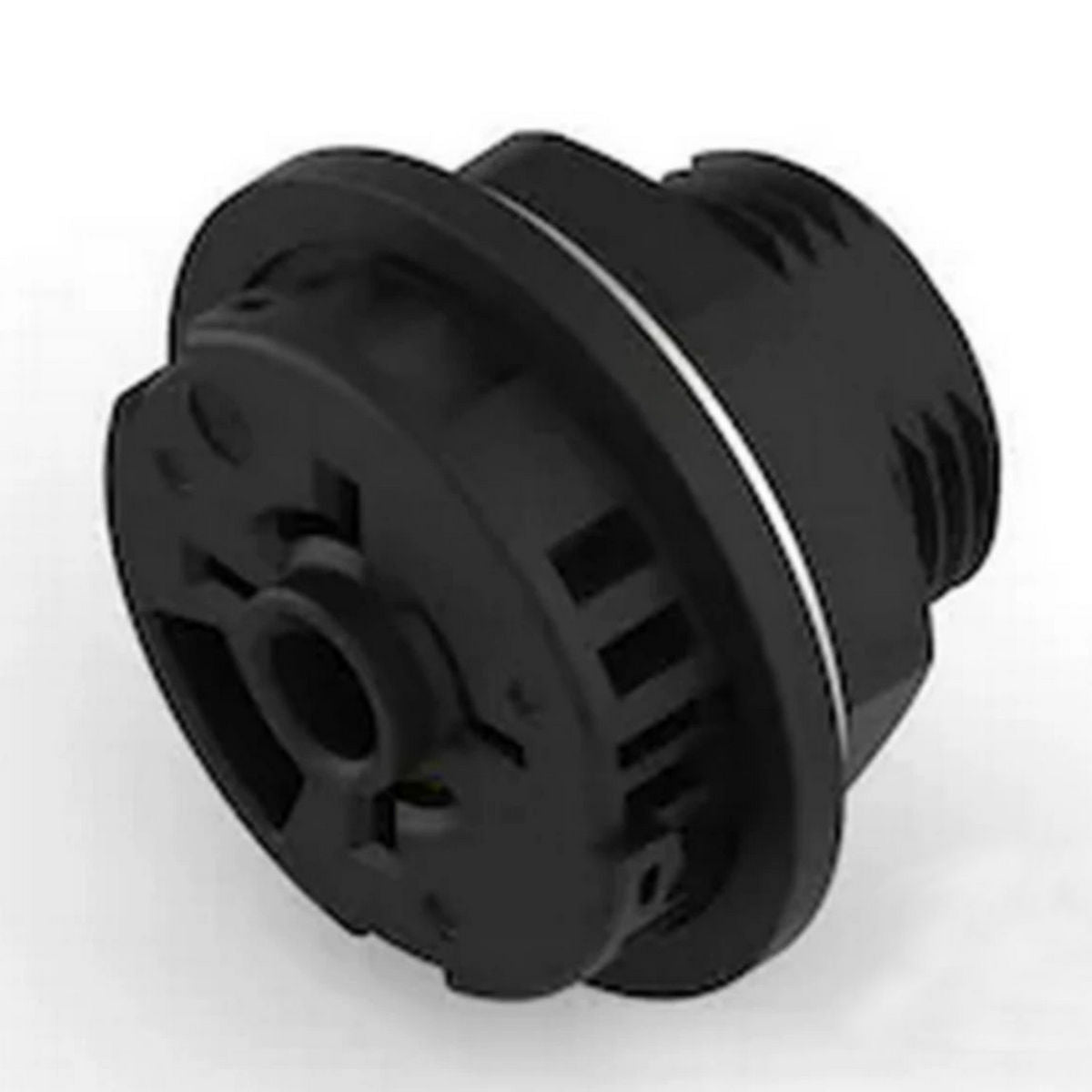

Zhaga Book 18 Z10 Receptacle

connector only ~ LED controllers and sensors not included

Description

The Lumawise Endurance S connector series from TE Connectivity is a complete solution for wiring outdoor lighting controls, for example street and area lighting. While the standard Zhaga Book 18 connector system is designed for wiring DALI D4i devices, the Z10 series connectors offered here are keyed for alternative applications.

These connectors are fully certified and offer IP66 waterproof rating as well as UV resistant materials for excellent outdoor durability.

The S-series receptacles use a push-in (or "poke-in") wiring system for quick and easy connection. The connection system accommodates 16AWG solid core, or 18-20AWG solid or stranded wire. Note that stranded wire should be tinned before inserting into the connector. Refer to the instruction sheet for further details.

Note: The receptacle is not waterproof without a sensor module or sealing cover installed.

General specifications

• Connector series: Lumawise Endurance S
• Connector standard: Zhaga Book 18, Z10 A-keyed
• Poles: 4-pole
• Contact rating: 5A, 250V
• Wire size:
  • Solid core: 16-20AWG
  • Stranded: 18-20AWG dipped/tinned
• Mounting: M20x1.5 (lock washer and nut included)
• Environmental protection: IP66
• Operating temperature: -40-194°F (-40-90°C)
• Materials: PBT receptacle, LSR gasket
• Certification: IEC61984, UL773

Downloads

• Lumawise Endurance S connector catalog
• Lumawise Endurance S instructions
