Recessed Walk-Over LED Channel for Tiled Floors ~ Model Floor12

Profile only ~ diffusers and all other accessories are sold separately

Description

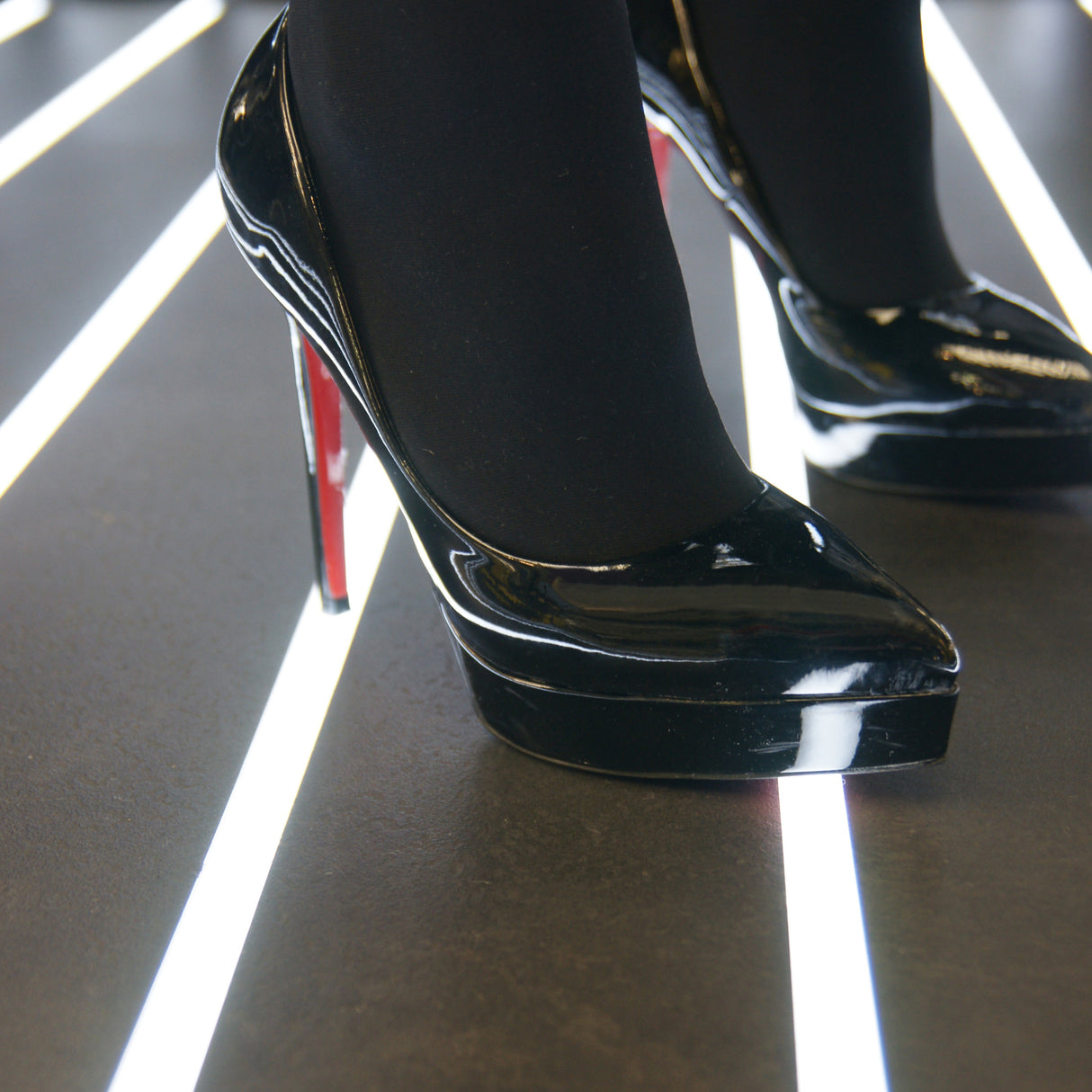

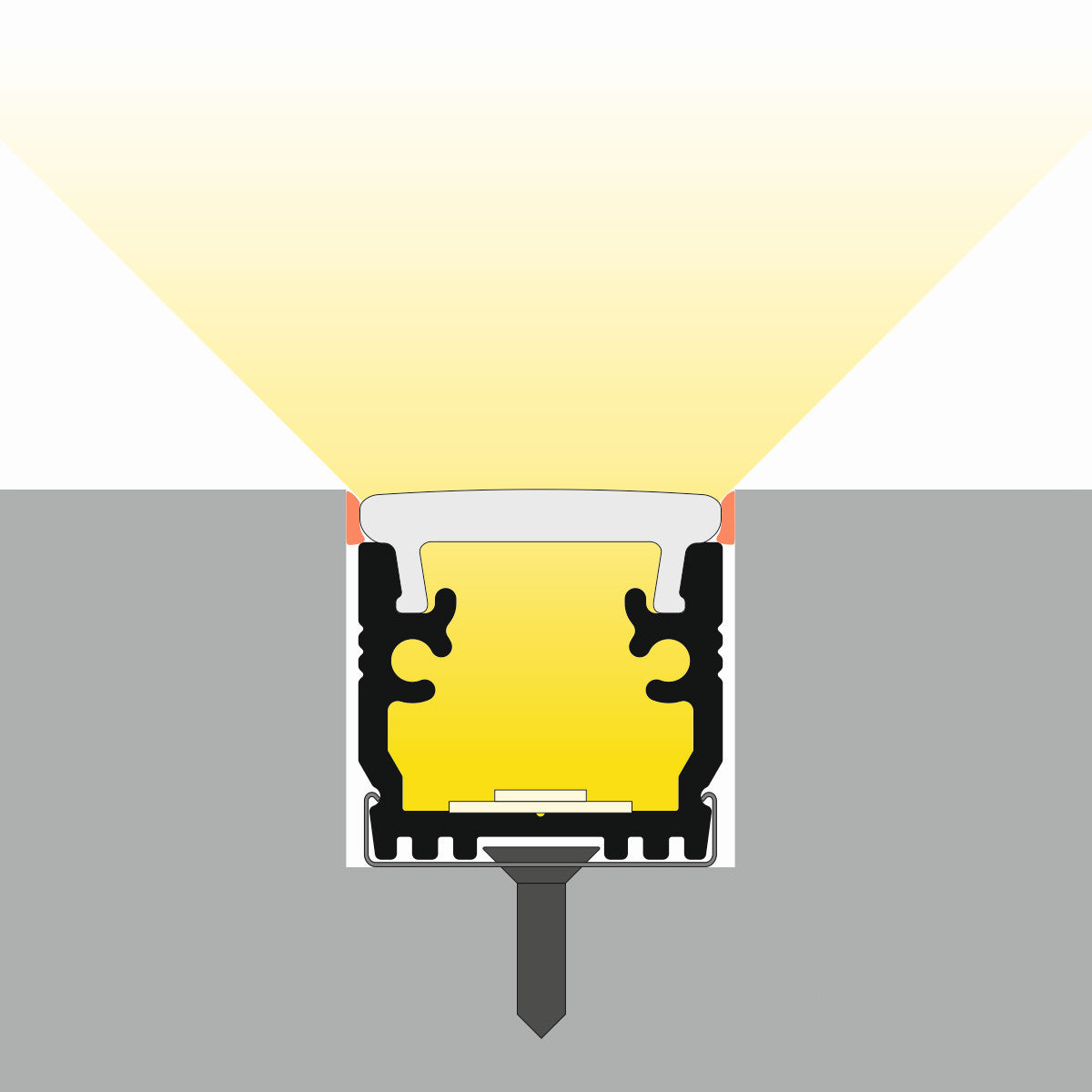

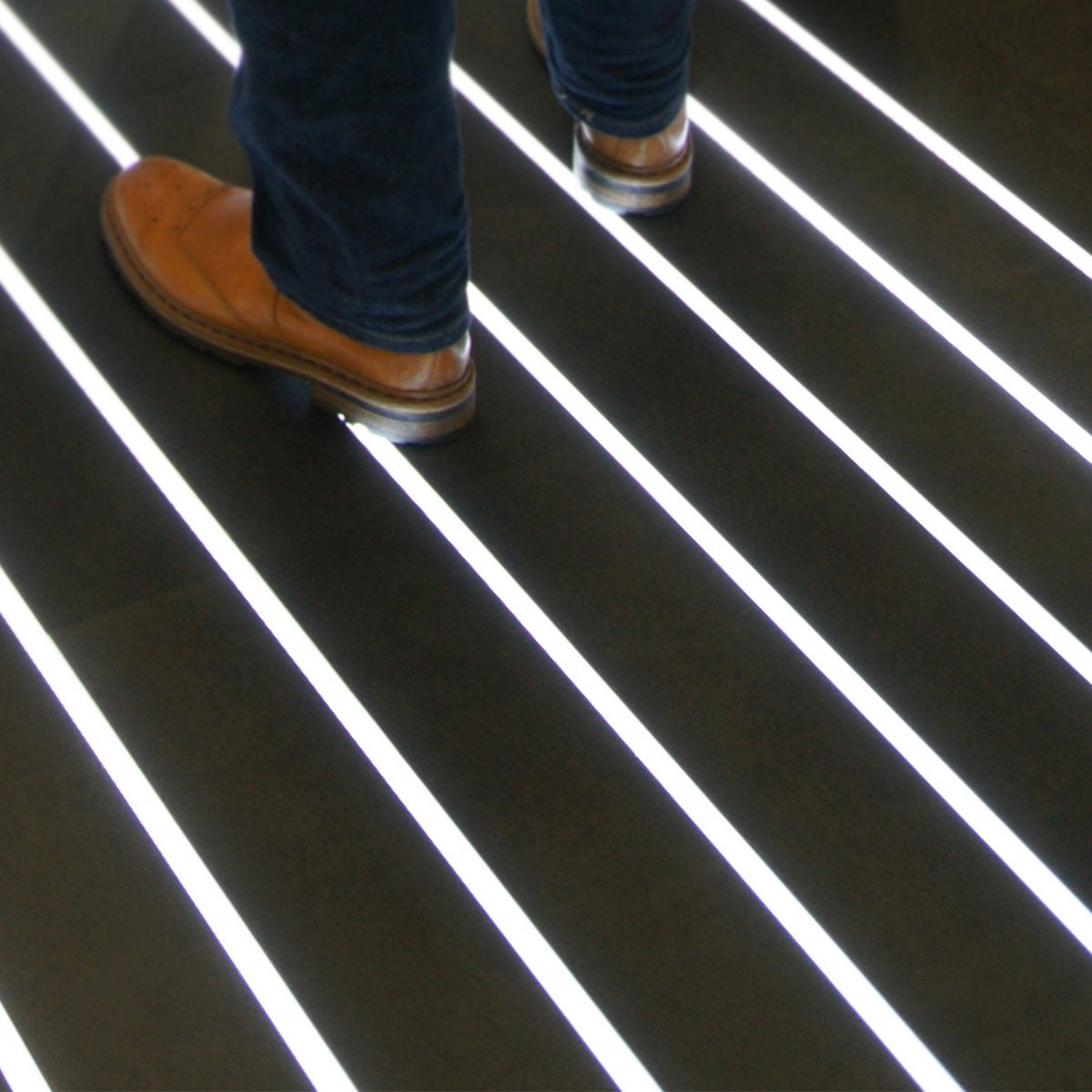

The Floor12 recessed floor tile LED channel has a wide range of applications. Floor12 is perfect for floor lighting, corridors and bathrooms. It also fits well in passageways and stairs, while giving each surface an innovative and subtle character. It is also easy to fit the profile into concrete surfaces and this way we achieve a perfect adhesion to the wall.

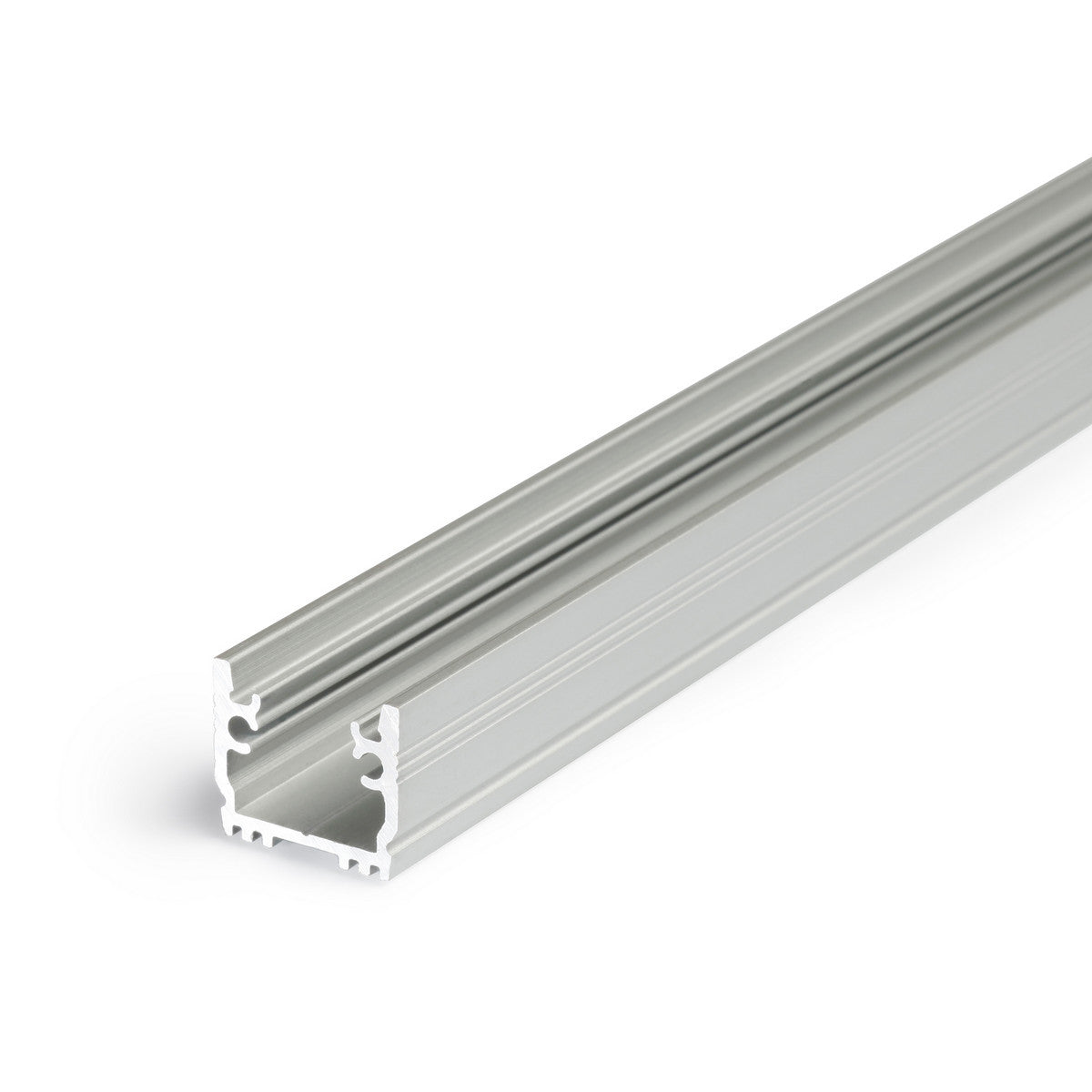

This architectural LED aluminum extrusion is designed to create a fantastic recessed lighting effects between and around tiles. This channel is resistant to abrasion and can withstand foot traffic. The Floor12 is also suitable for use in humid environment.

The opal cover minimizes the dotting effect of LED strip lights by diffusing them, creating a smooth and even light. The aluminum channel serves as a heat sink and helps to distribute the heat generated from the LEDs which in turn helps prolong the lifespan of the LED strip lights.

General specifications

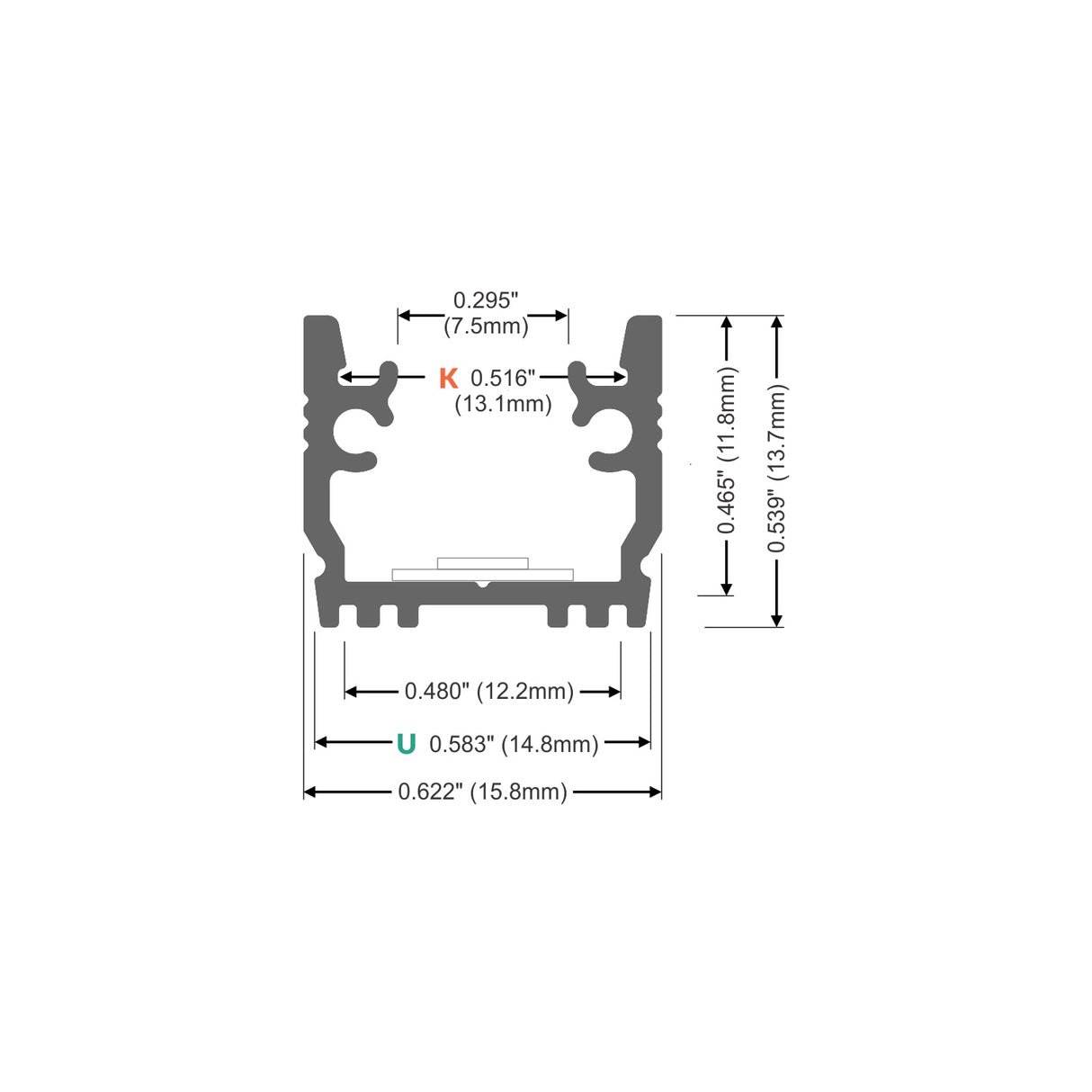

• Overall dimensions: 15.8mm x 13.7mm (0.622" x 0.539")
• Maximum LED strip width: 7mm; 12mm if slid in from end
• Impact resistance: IK08 – suitable for foot traffic

Downloads

• Floor12 cut sheet

Important notes

• You can easily cut LED profiles by hand or by machine.
• For your convenience, Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
• We ship items in stock the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
