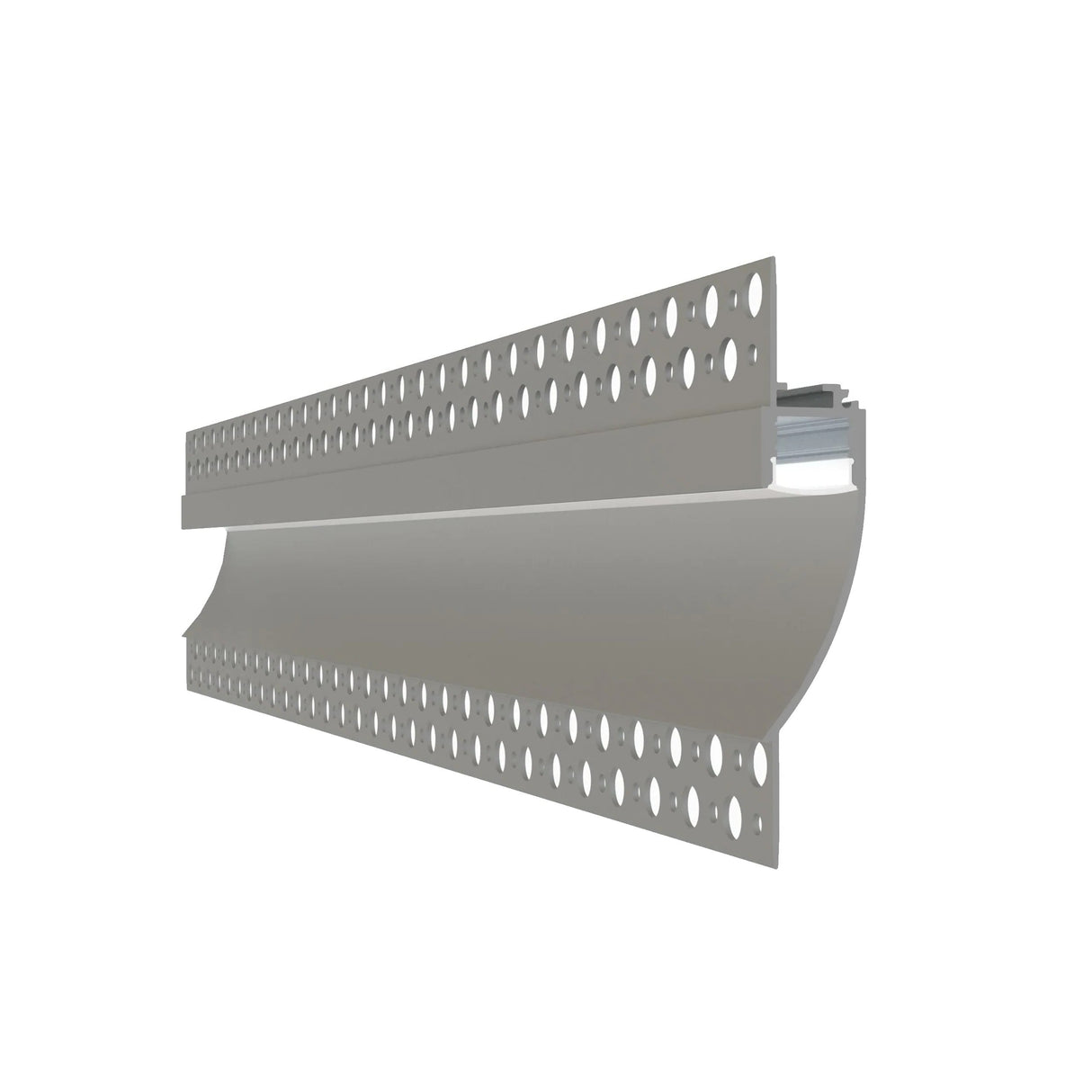

0.48" Indirect Trimless Mud-In LED Drywall Channel ~ Model TL-401

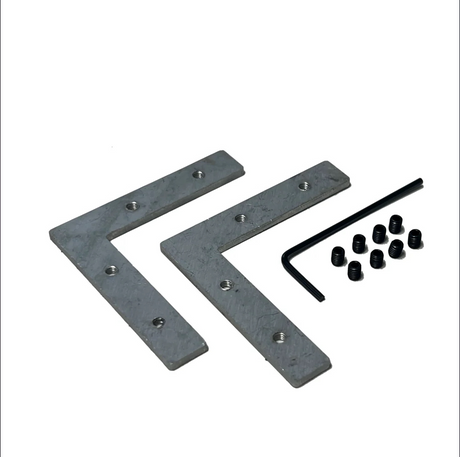

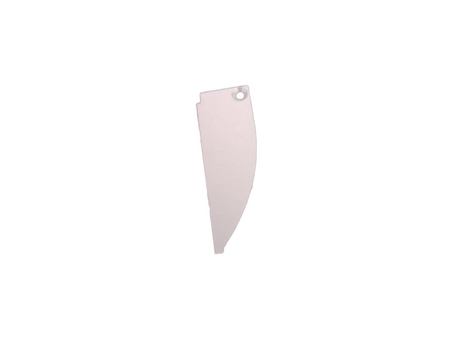

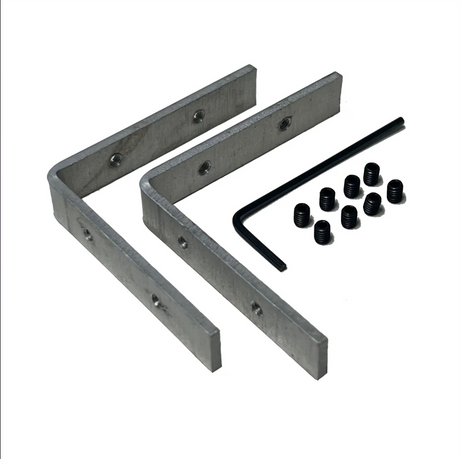

Profile and diffuser kit only ~ end caps and all other accessories are sold separately

Description

The TL-401 trimless mud-in LED channel is an aluminum LED channel designed for recessed linear lighting installations that require a clean, seamless, no-visible-trim finish on walls or ceilings. Built for drywall integration, this trimless mud-in LED drywall channel is installed directly into the surface and finished with joint compound, creating a smooth, architectural lighting detail that blends seamlessly into modern interiors.

This recessed LED channel delivers a hot-spot-free, uniform lighting effect when paired with compatible LED strip lights. Its deeper profile helps improve light diffusion, reducing visible diode spotting and producing a clean, continuous line of light. The TL-401 is compatible with a wide range of tape lights, making it a versatile solution for both residential and commercial lighting applications.

Constructed from durable aluminum, the TL-401 LED channel provides effective heat dissipation to extend the lifespan and performance of LED strips. The channel is field-cuttable, allowing for flexible installation and easy customization on-site to fit various project requirements.

General specifications

• Material: Aluminum

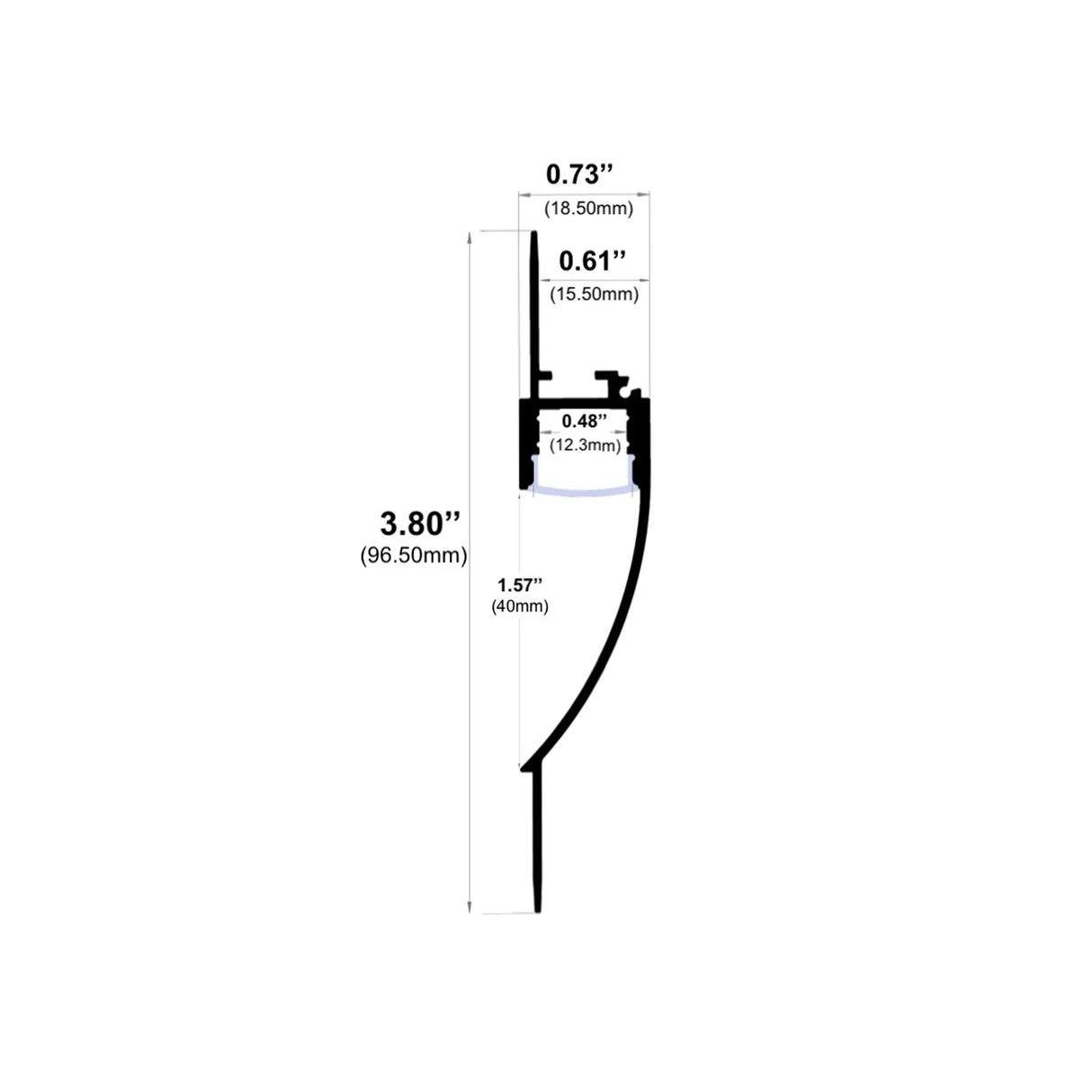

• Overall dimensions: 18.50mm x 96.50mm (0.73" x 3.80")
• Maximum LED strip width: 12mm

Downloads

• TL-401 cut sheet

Important notes

• Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
• You can easily cut LED profiles by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We can also assemble a plug and play light fitting with this profile according to your specifications.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
• We ship items in stock the same day from Knoxville, Tennessee, United States. Our team dedicate themselves to carefully packing and safely delivering all packages to their destination.
• Bulk pricing is available on request. For larger orders, we offer additional discounts and customized pricing to fit your project needs. Contact us to learn more about our bulk pricing options.
