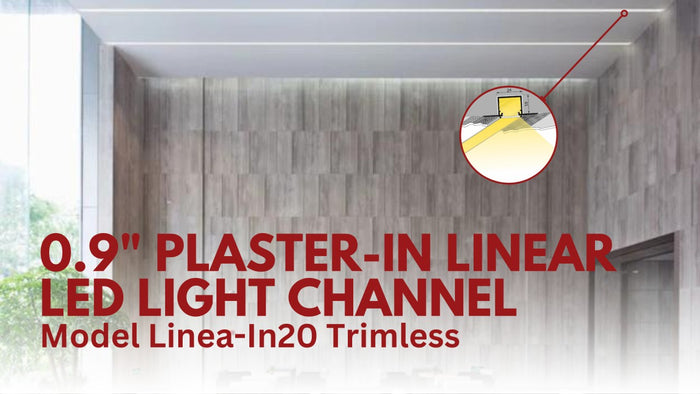

0.9" Plaster-In Linear LED Light Channel ~ Model Linea-In20 Trimless

Profile only ~ diffusers and all other accessories are sold separately

Description

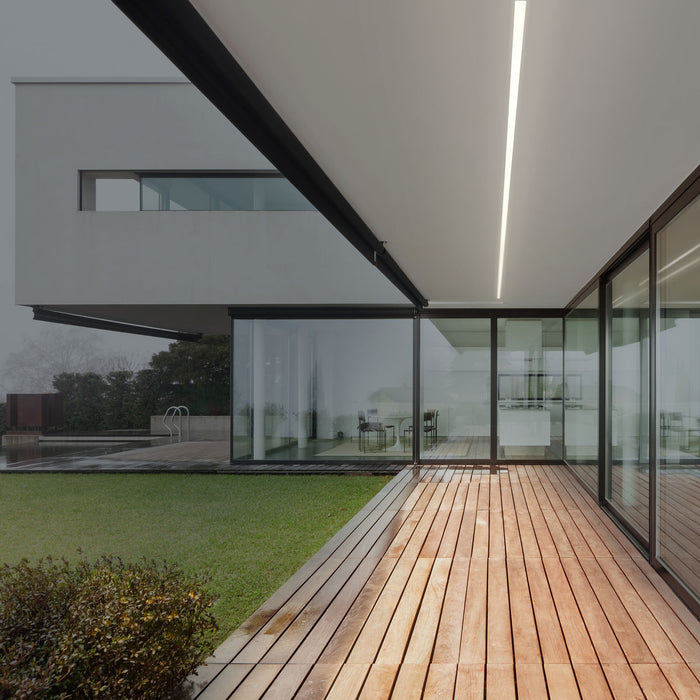

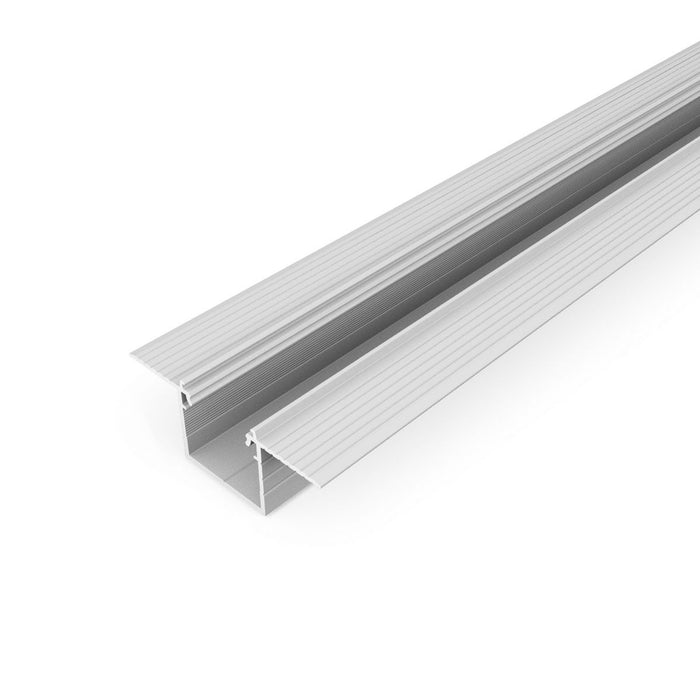

The Linea-In20 Trimless Linear LED Lighting is a lightweight recessed LED channel and is designed to be plastered-in for a seamless finish. This architectural aluminum LED extrusion is designed to create fantastic recessed lighting effects in building and architectural arrangements.

Additionally, this channel is available in anodized silver or painted white finishes which are resistant to corrosion and scratches. The profile also serves as a heat sink for the LED strip which extend its life by protecting it from overheating. A range of compatible covers and end caps protect the strip against dirt and mechanical damage.

Linea-In20 Trimless Linear LED Lighting has a selection of compatible cover options: The F-Click cover is easy to install. There is also the E7 cover which protrudes from the profile by approximately 1/2" and allows the light to spread from three sides to create an eye-catching and efficient luminaire.

General specifications

• Material: Aluminum

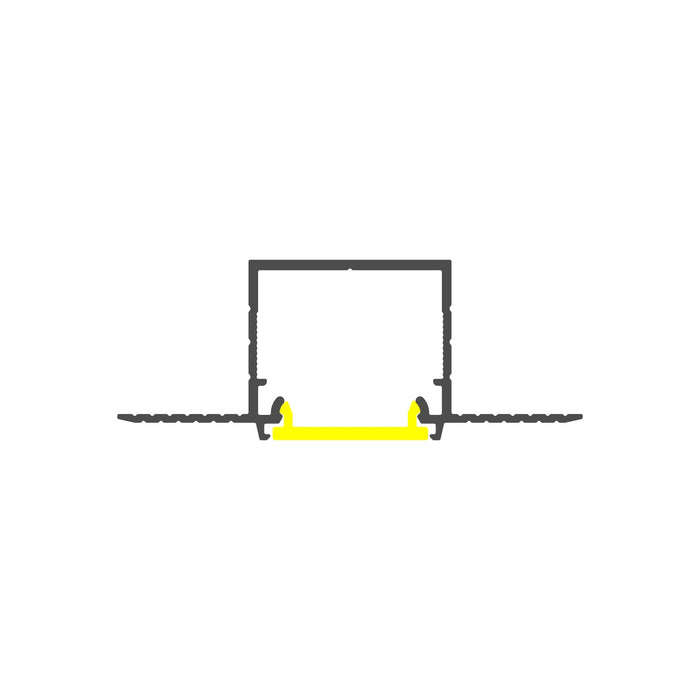

• Overall dimensions: 53.2mm x 20.6mm (2.09" x 0.81")
• Maximum LED strip width: 20mm

Downloads

• Linea-In20 Trimless cut sheet
• Linea-In20 Trimless instructions

Important notes

• Wired4signs USA sells LED strip, covers, mounting brackets, end caps, shelf/sign panels, and other accessories separately from the aluminum profile. Customers can select the available components below.
• You can easily cut LED profiles by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Hence, please leave instructions in the order comment box.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
• We ship items in stock the same day from Knoxville, Tennessee, United States. Additionally, our team dedicates themselves to carefully packing and safely delivering all packages to their destination.
• Bulk pricing is available on request. Moreover, for larger orders, we offer additional discounts and customized pricing to fit your project needs. All in all, please contact us to learn more about our bulk pricing options.
