1.1" Oval Wardrobe Rail Lighting LED Channel ~ Model Oval20

Profile only ~ diffusers and all other accessories are sold separately

Description

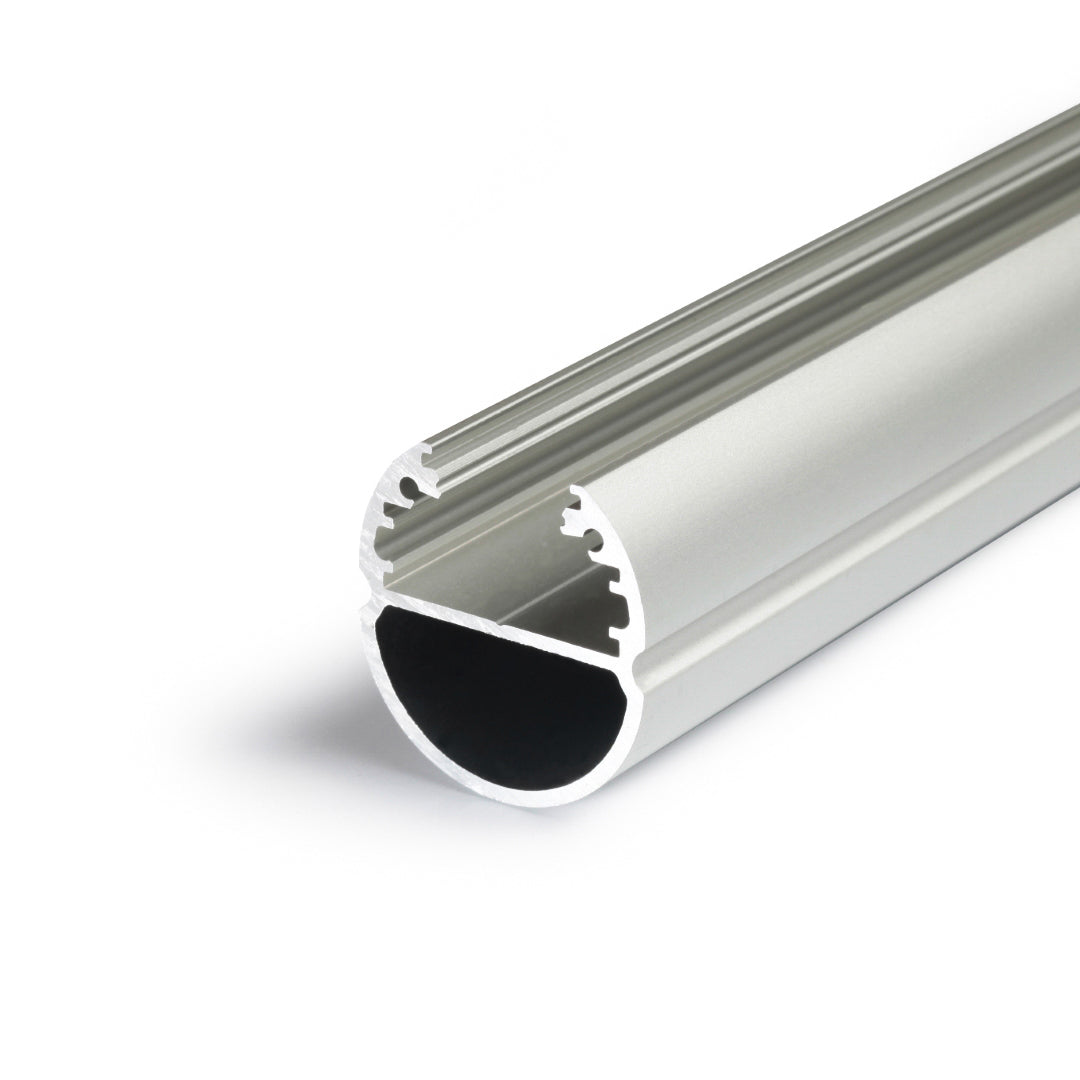

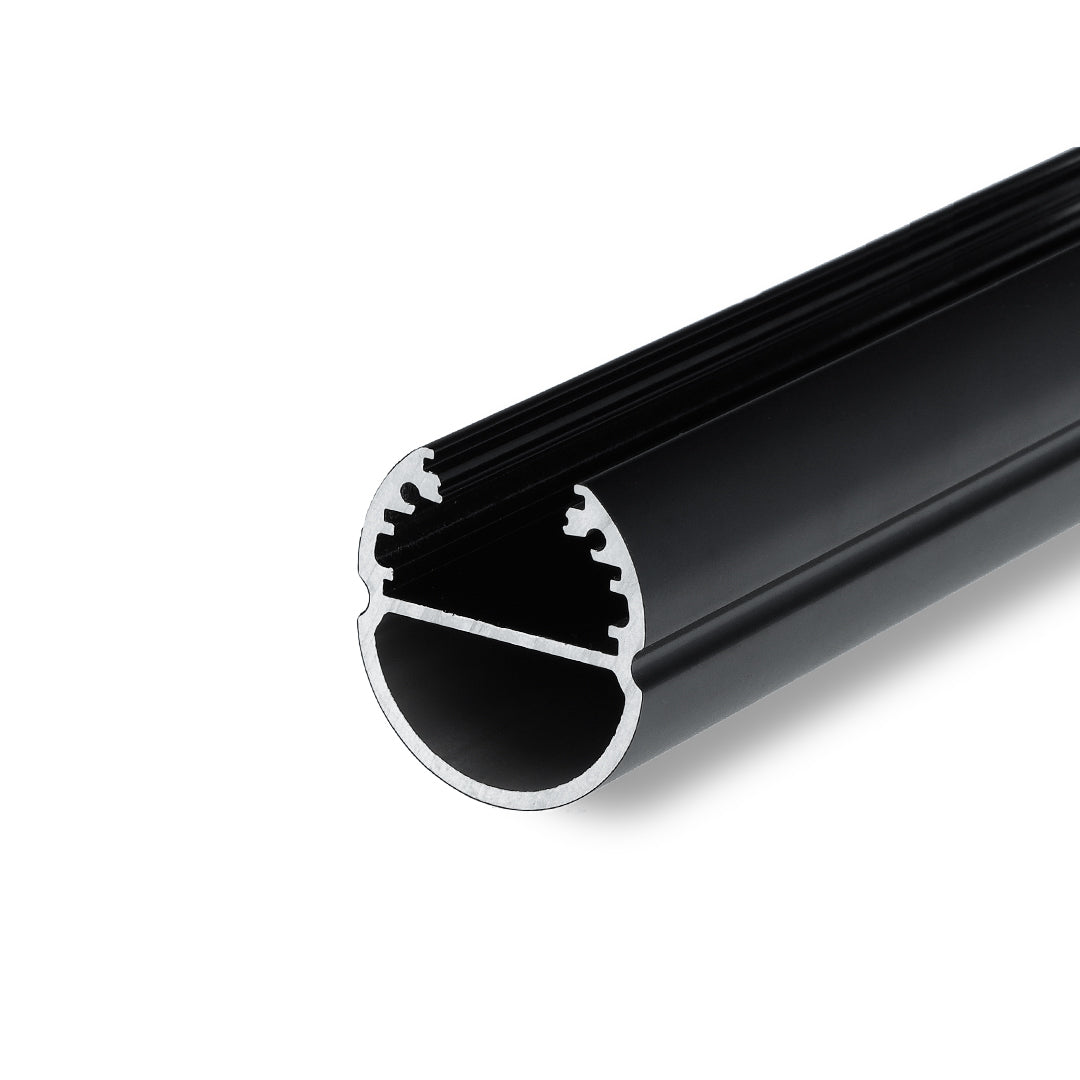

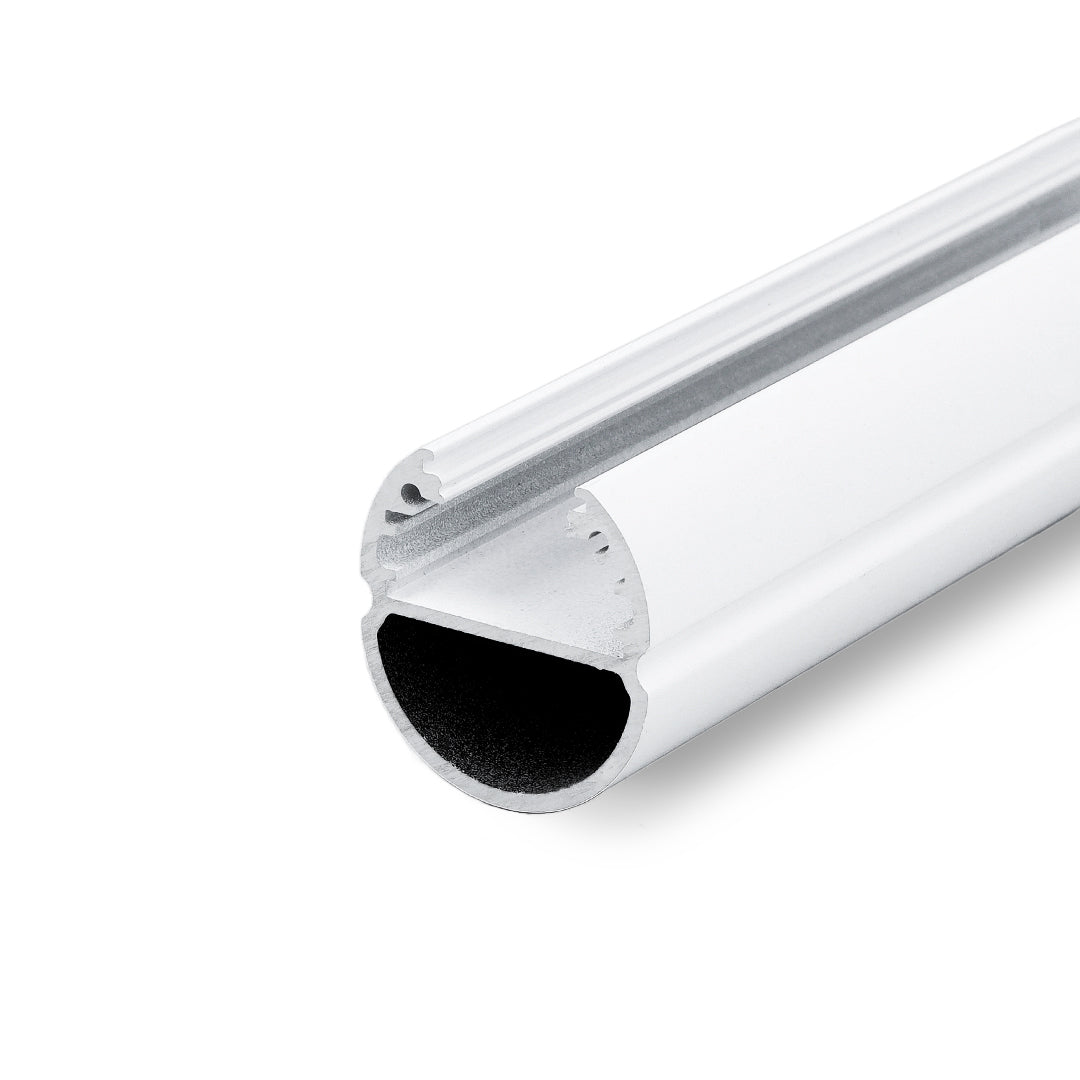

The Oval20 is made of anodized aluminum and functions as a wardrobe rail LED channel, combining garment hanging and LED lighting in a single profile. It replaces a traditional clothes rail while improving space efficiency in wardrobes and closets, supporting up to 10 kg of hanging garments per meter of length (6.7 lb/ft).

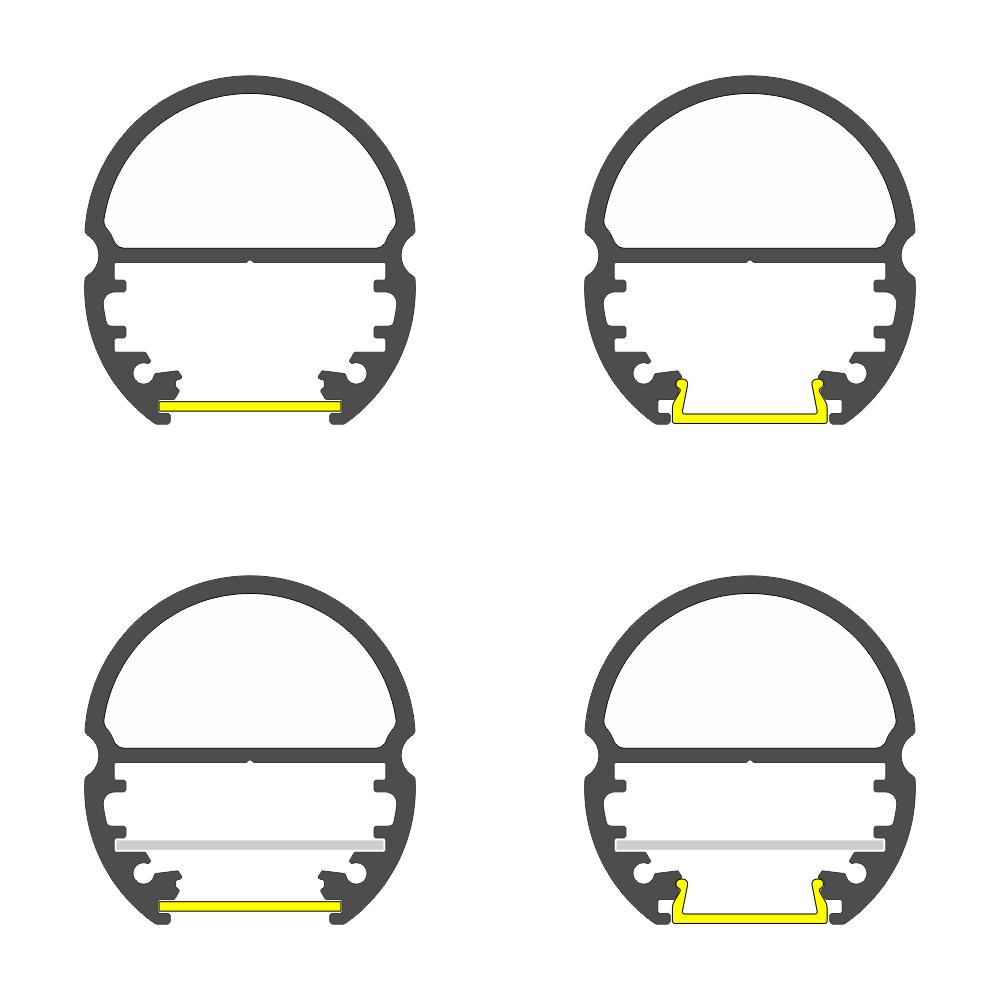

This Oval20 LED channel accommodates strips up to 20mm wide, providing uniform illumination inside wardrobes and cabinets. The aluminum construction also acts as a heat sink, dissipating heat from the LED strip to extend its lifespan and prevent overheating.

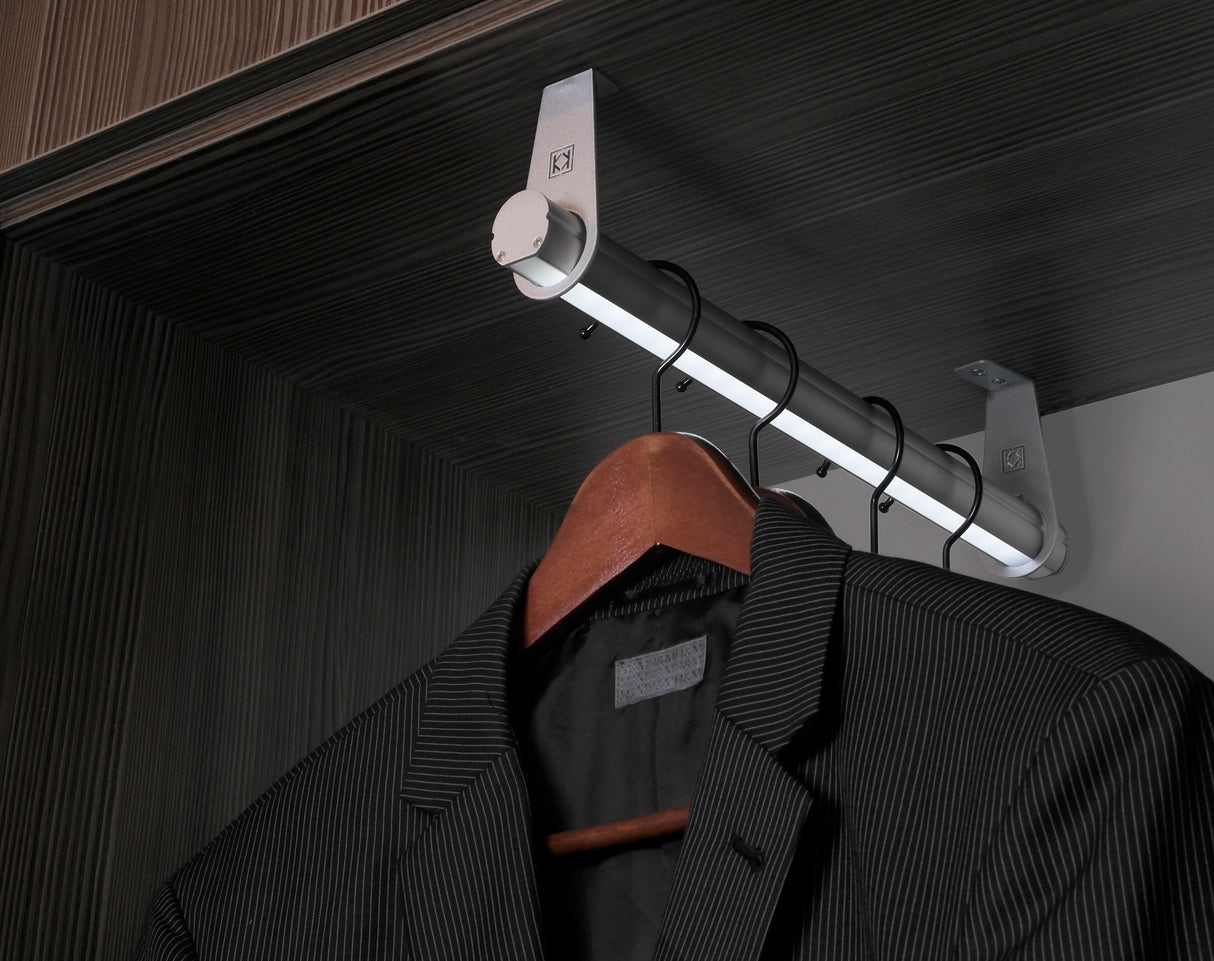

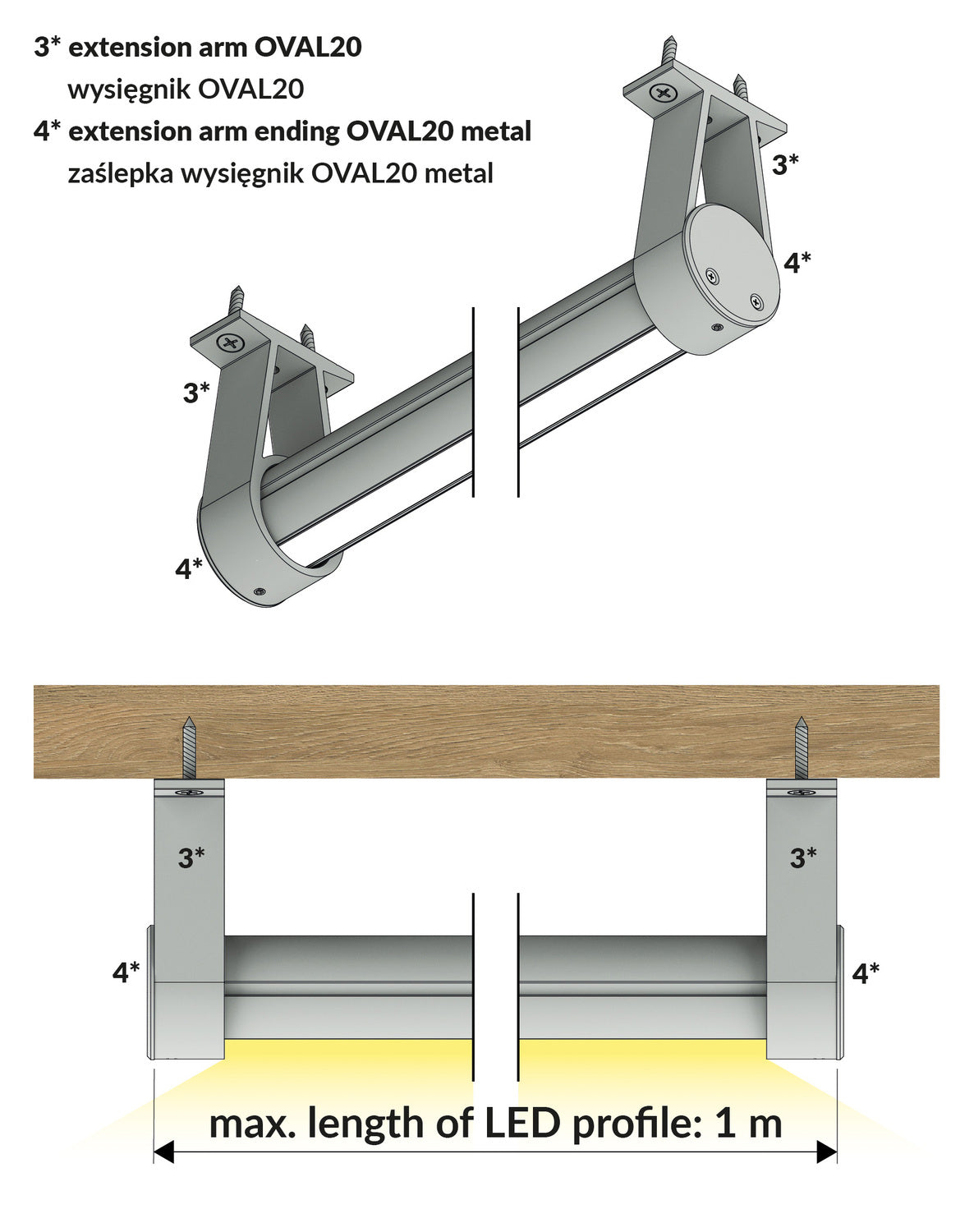

The Oval20 wardrobe LED profile offers flexible installation options. It can be mounted side-to-side between wardrobe panels, suspended from the surface above, or a combination of both. These mounting configurations allow adaptation to various wardrobe and closet layouts.

General specifications

• Material: Aluminum

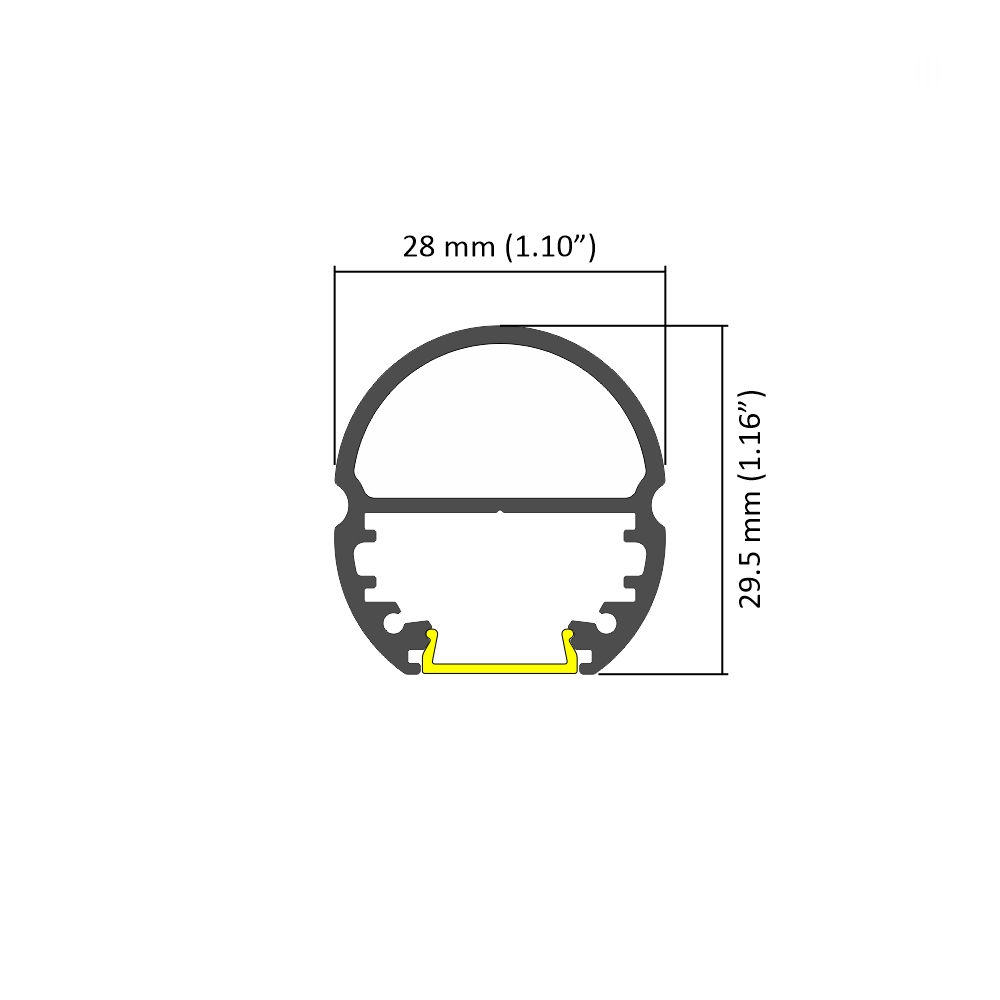

• Overall dimensions: 28mm x 29.5mm (1.10" x 1.16")
• Maximum LED strip width: 20mm
• Load capacity: 10 kg/m (6.7 lb/ft)

Downloads

• Oval20 cut sheet

Important notes

• You can easily cut LED profiles by hand or by machine.
• For your convenience, Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
