2" Round LED Channel Pendant ~ Model Alu-Round 52

Original price - Original price
Original price
Current price
Shipping restrictions

We cannot ship rigid items over 2.4m (8ft) in length due to freight restrictions. These products are offered for customer pickup only. Please refer to our Shipping Policy for further information.

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

Profile only ~ diffusers and all other accessories are sold separately

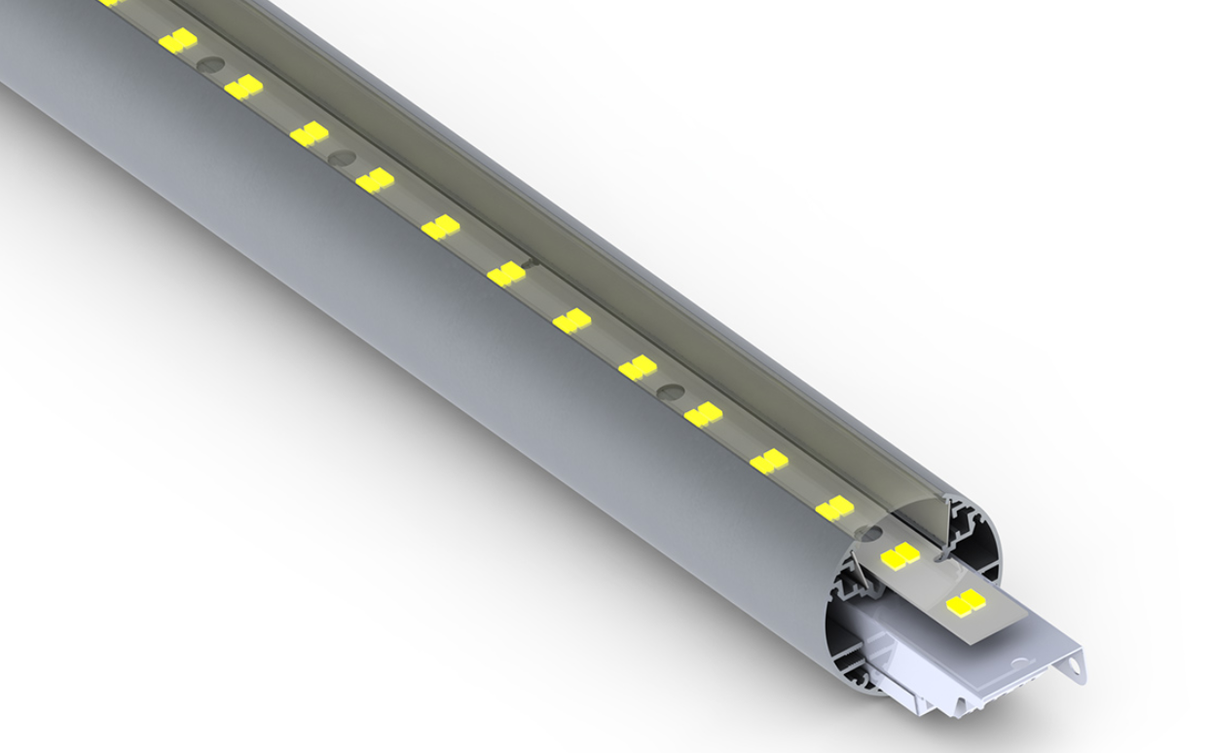

This new large round LED Channel is made of anodized aluminum and is designed for mounting LED strip and linear light engines. The diameter is 52mm (just over 2") and it allows the use of strips width a width 20mm made in the zhaga standard (contoured channels for mounting screws), as well as hiding inside a linear power supply with standard dimensions of 30x21mm

Thanks to a sufficiently large heat transfer surface, it was also possible to reduce the weight of the profile. It can be safely used for high power LED strips (36W/m) while not exceeding the temperature of 45 degrees Celsius (ambient temperature 25 degrees C).

The high strength of the round LED channel allows for use in construction applications (illuminated frames, hangers in cabinets, etc.).

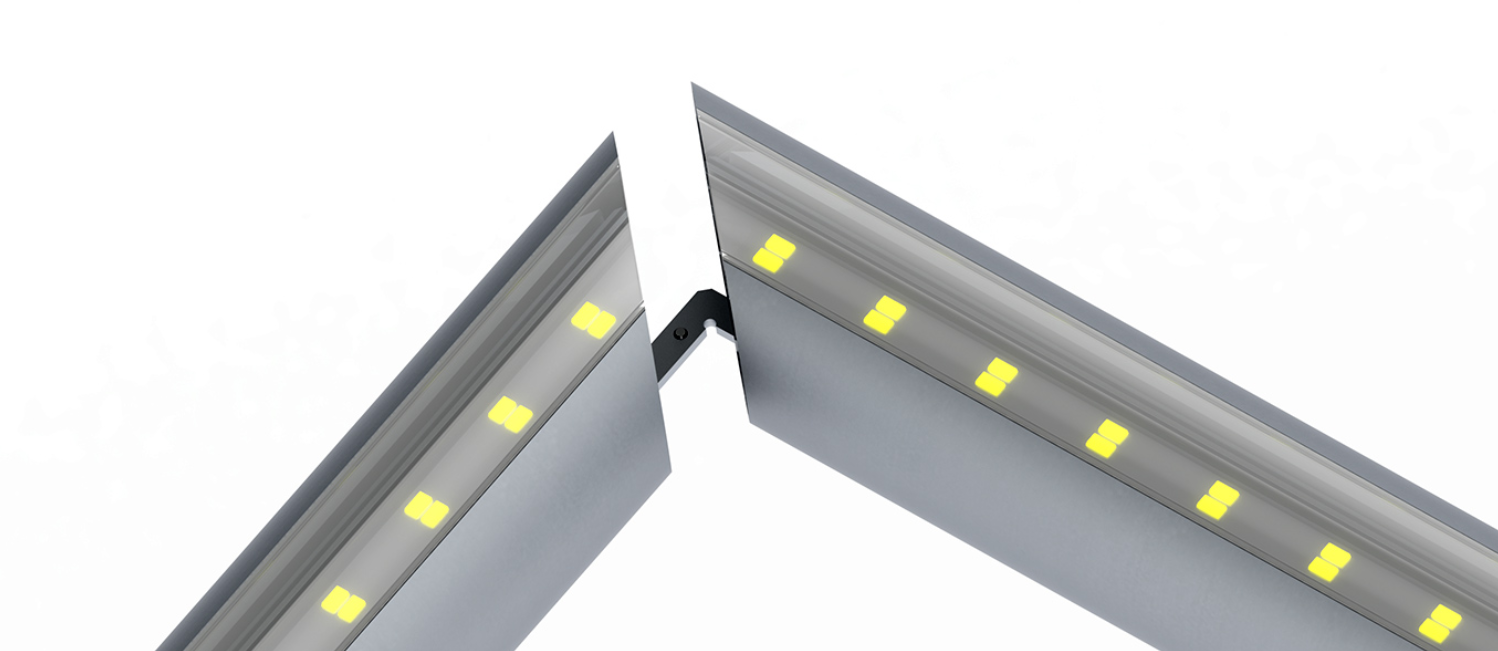

In addition, Alu-Round 52 looks modern and professional and it can be combined into long suspended lines and also connected at an angle of 90 degrees to create awesome suspended linear LED lighting.

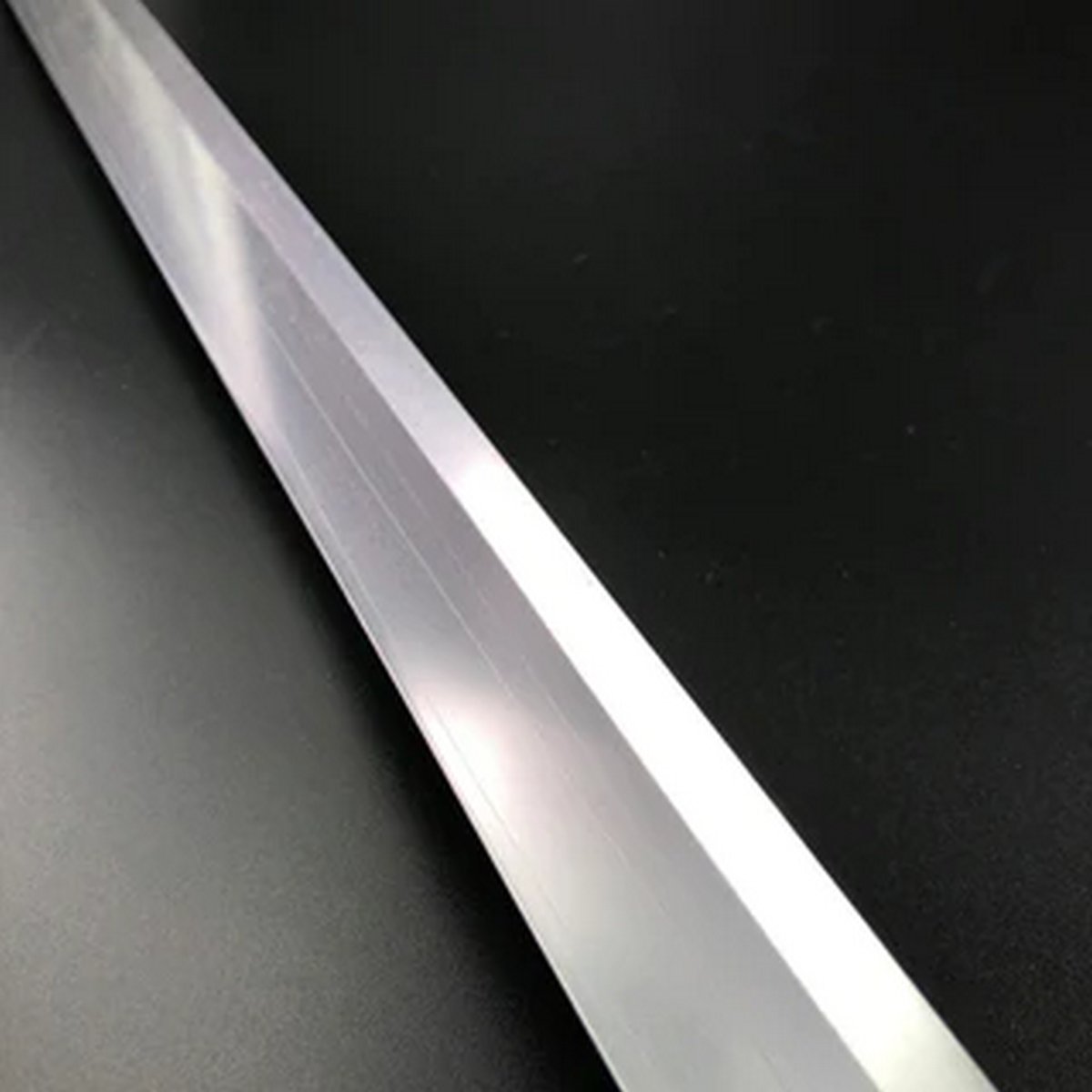

Depending on the place of application, we offer our clients two types of UV damage resistant covers: matt and smooth. In addition, the Alu-Round 52 has the option of using the optional extra reflector that can improve the light output by 10-18% depending on the light source.

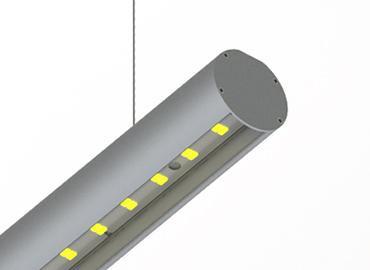

This modern-looking round LED channel can be used as hanging lighting, artistic lighting and for lighting up stores.

General specifications

  • Material: Aluminum

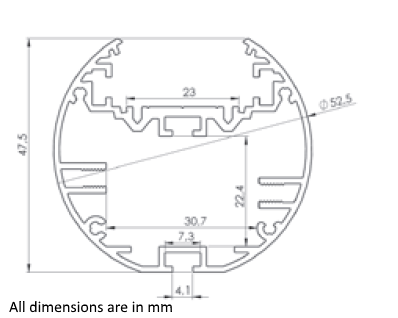

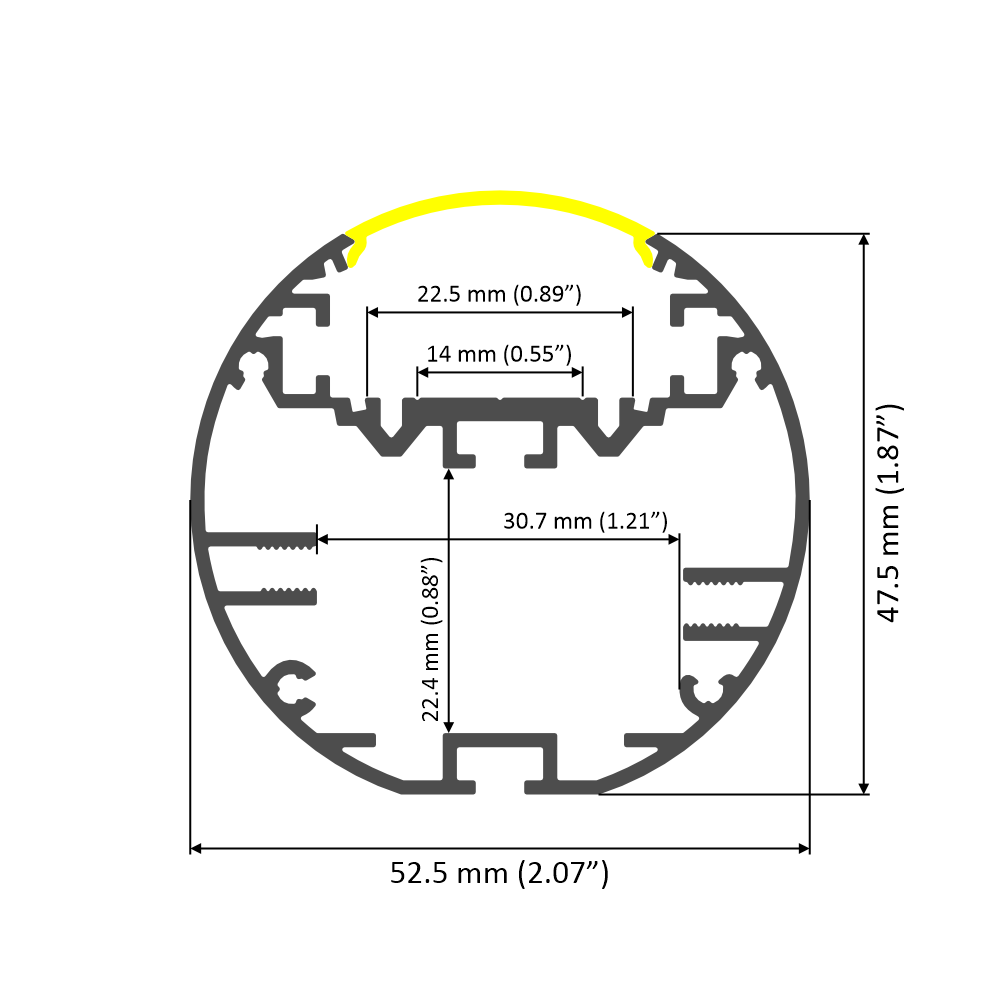

  • Overall dimensions: 52.5mm x 47.5mm (2.06" x 1.87")
  • Maximum LED strip width: 20mm


Important notes

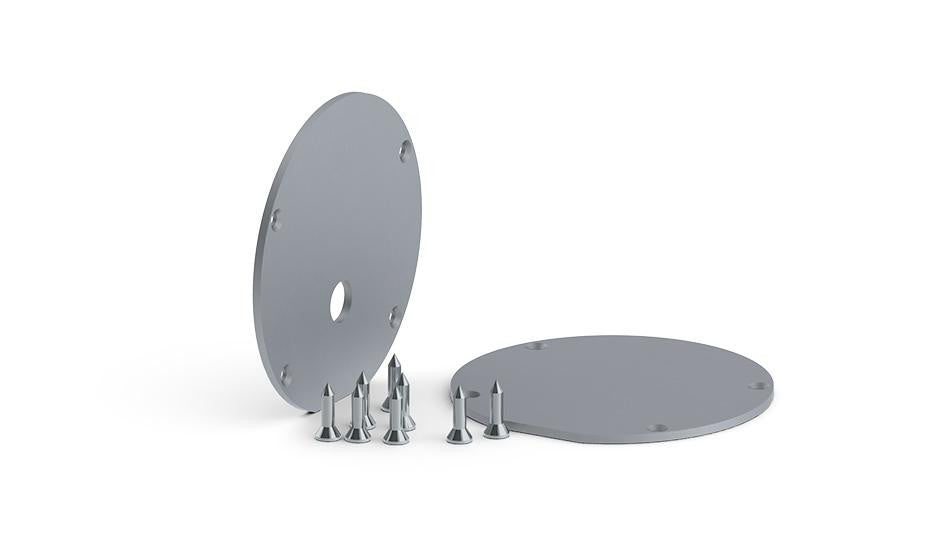

  • LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
  • Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
  • LED profiles can easily be cut by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • Please note that we cannot refund or replace LED profiles and covers that have been cut.
  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request.
