Product details
Profile only - diffusers and all other accessories are sold separately
Description

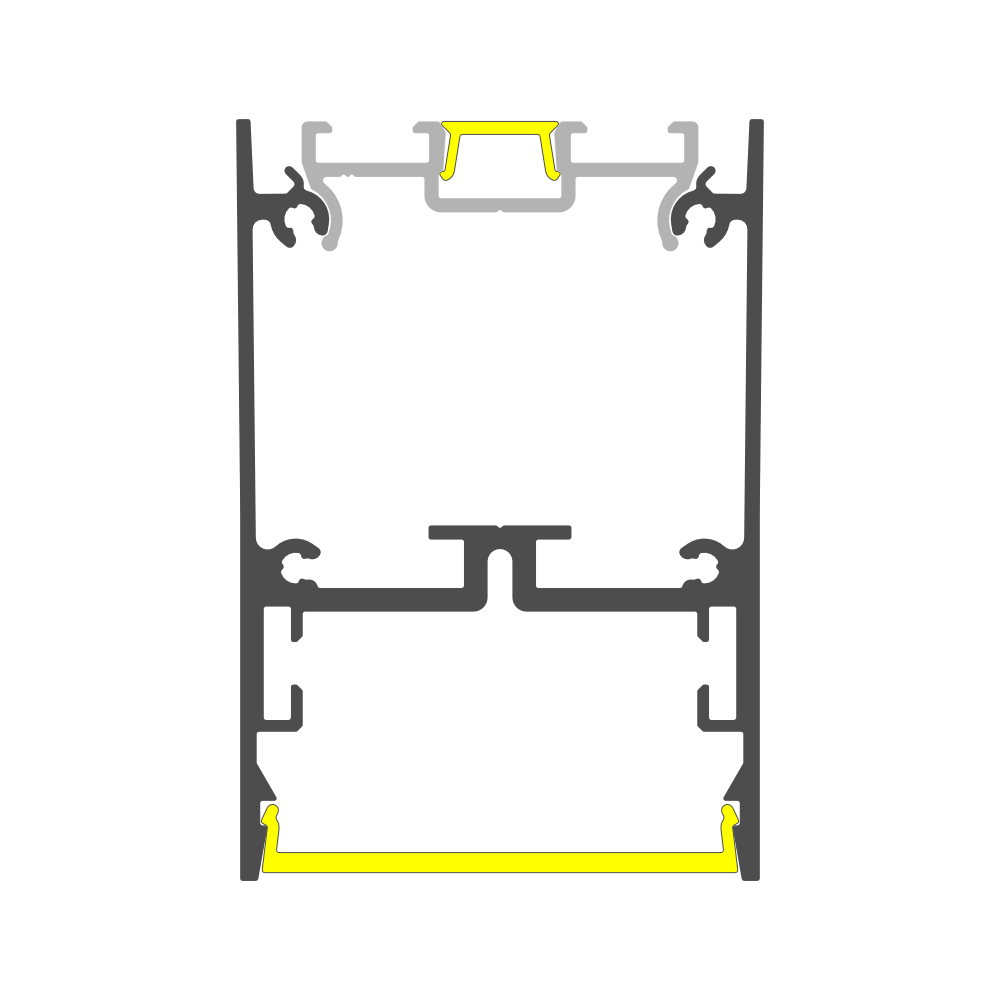

The Pixel33-02 LED profile is a surface mount aluminum LED channel designed for larger linear lighting installations that require both up and down lighting. Made from high-quality aluminum, it provides excellent durability, efficient heat dissipation, and supports LED strips up to 33mm wide for high-performance architectural lighting.
Its larger profile helps reduce glare (UGR), improve light direction control, and deliver high lighting efficiency while creating a clean, professional appearance. The design also minimizes screen reflections, making it suitable for offices, commercial spaces, retail environments, and other areas where visual comfort is important.
Designed for both surface-mounted and suspended applications, the Pixel33-02 LED profile provides reliable protection for LED strips while producing balanced, efficient illumination.

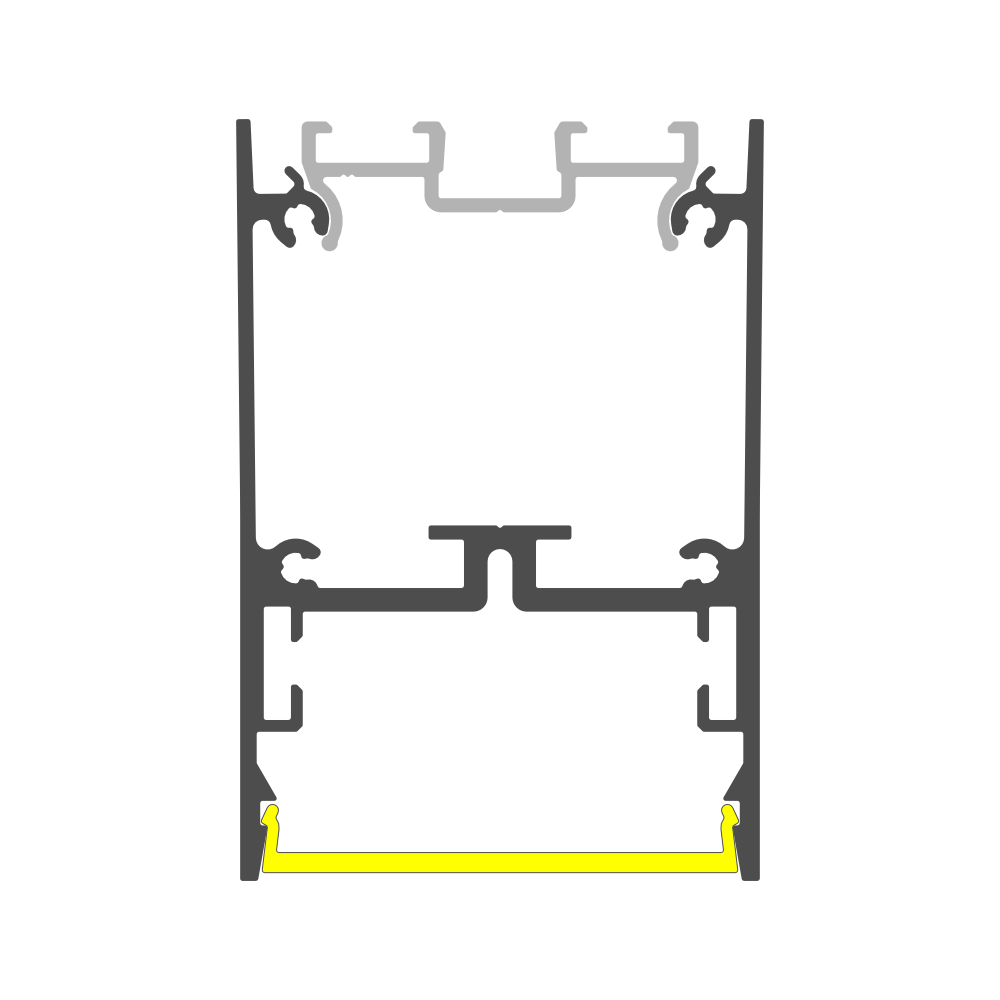

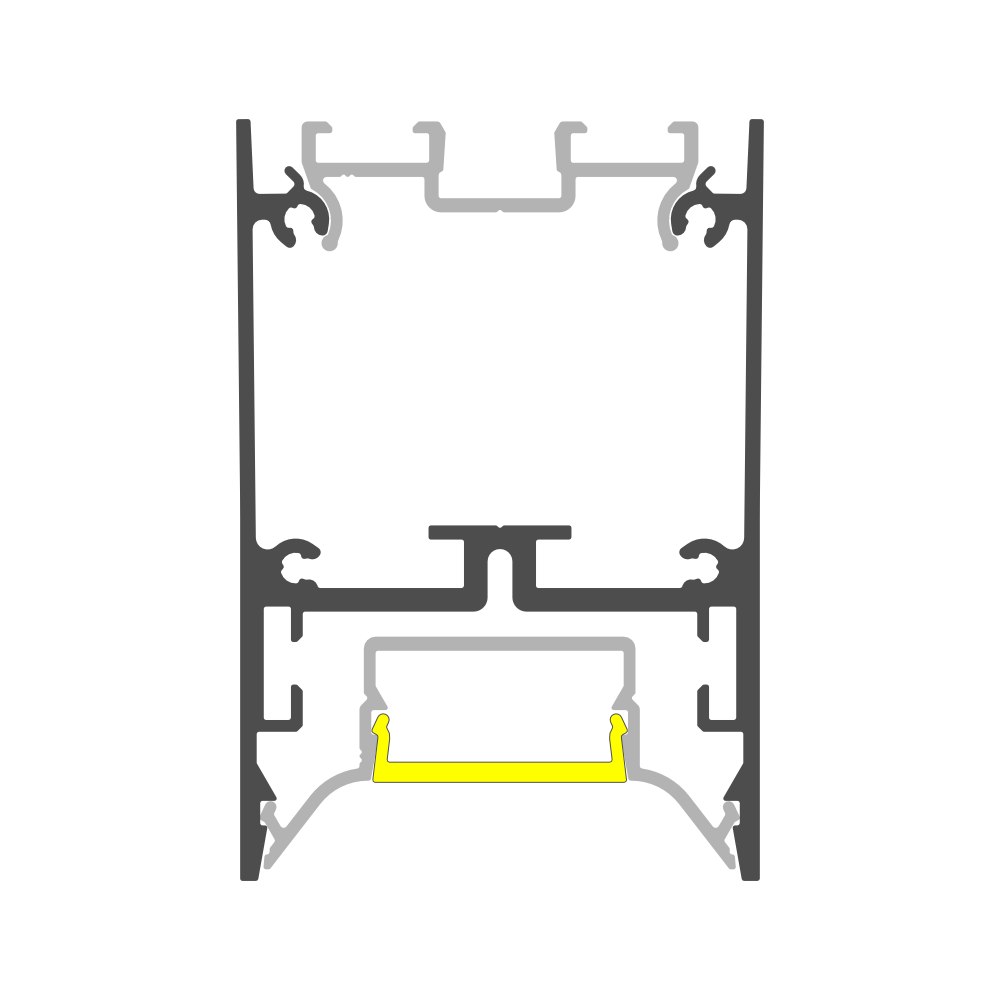

Please note that Pixel33-02 profile requires the Pixel33-03 complementary profile to complete the fixture, which is sold separately.
General specifications
- Installation type: Surface mount, suspended

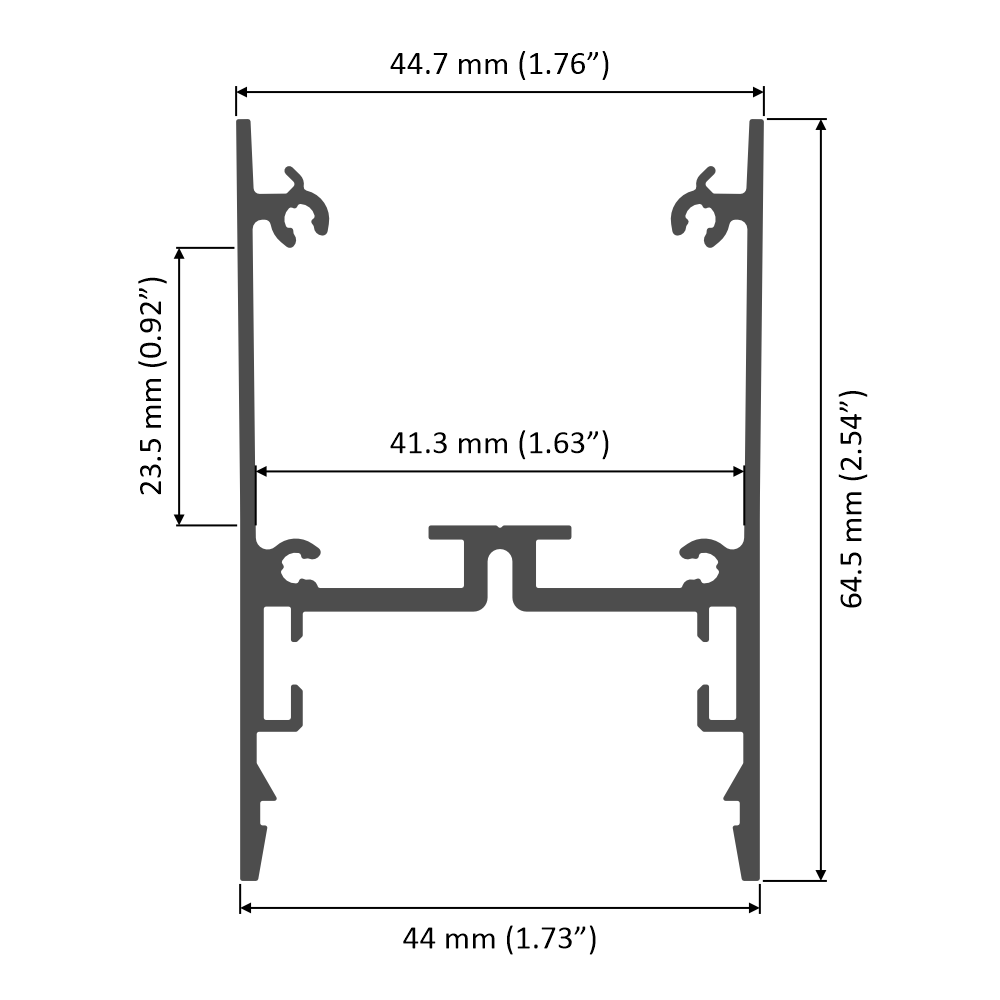

- Dimensions: 44 x 64.5mm (1.73” × 2.54”)
- Maximum LED strip width: 33mm
- Material: Aluminum

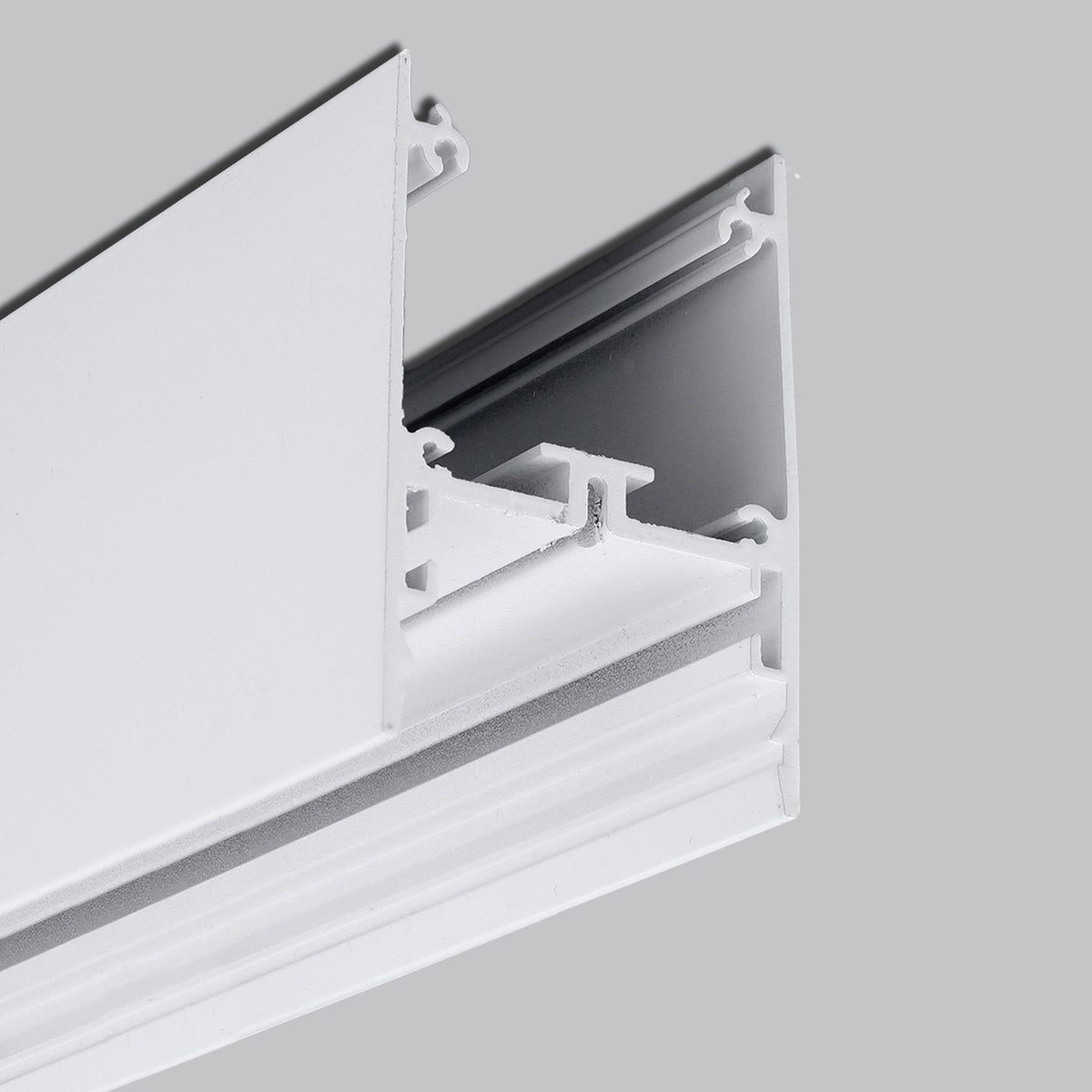

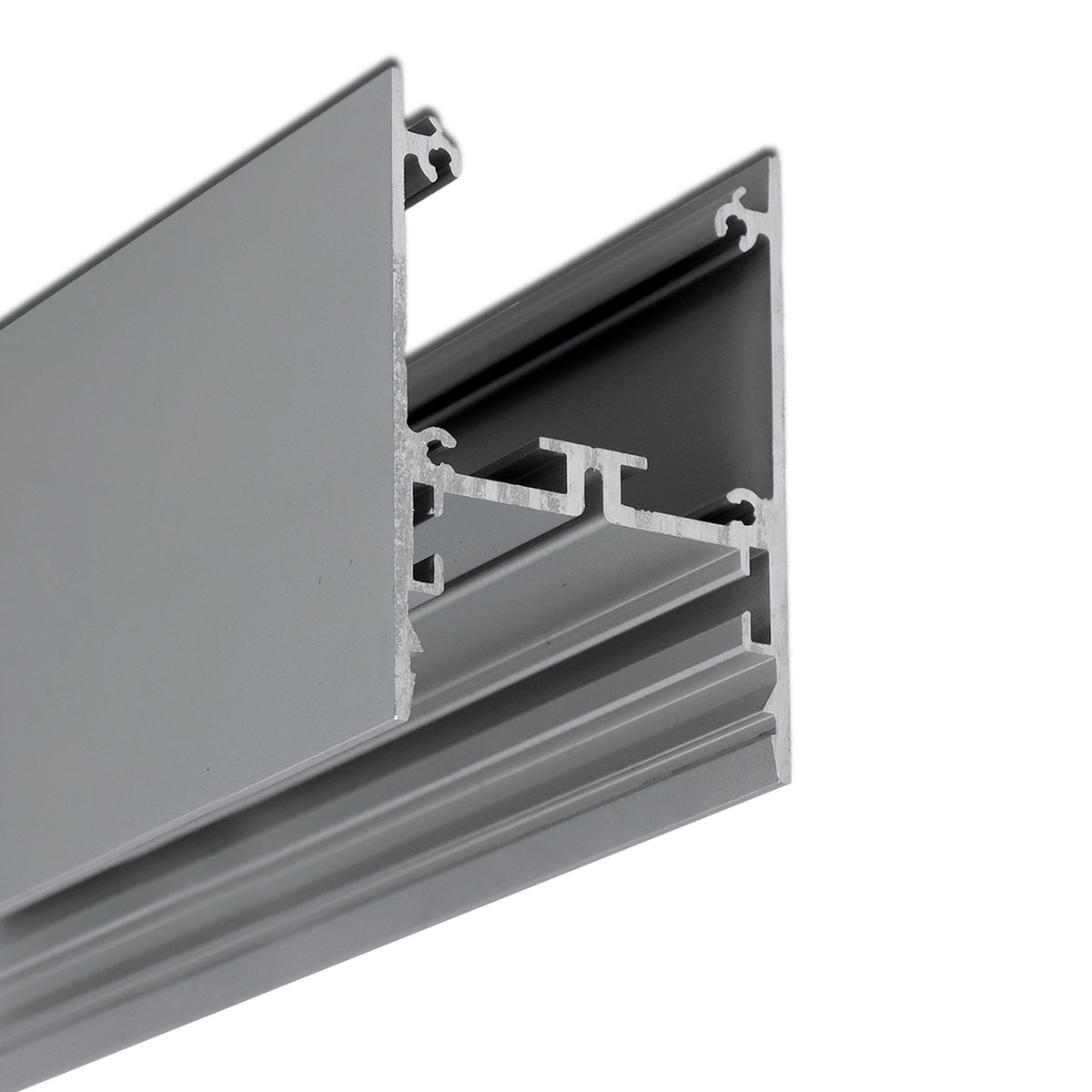

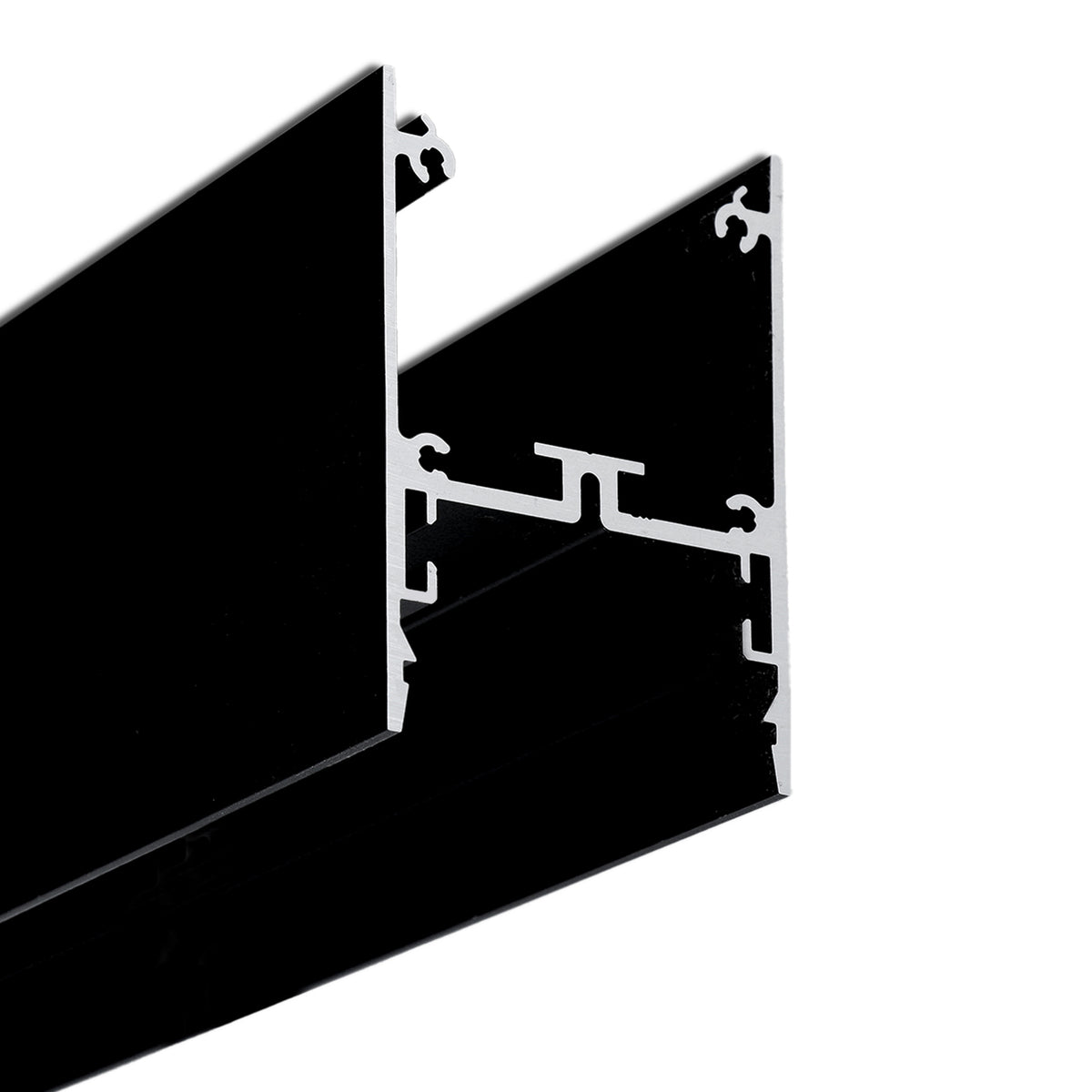

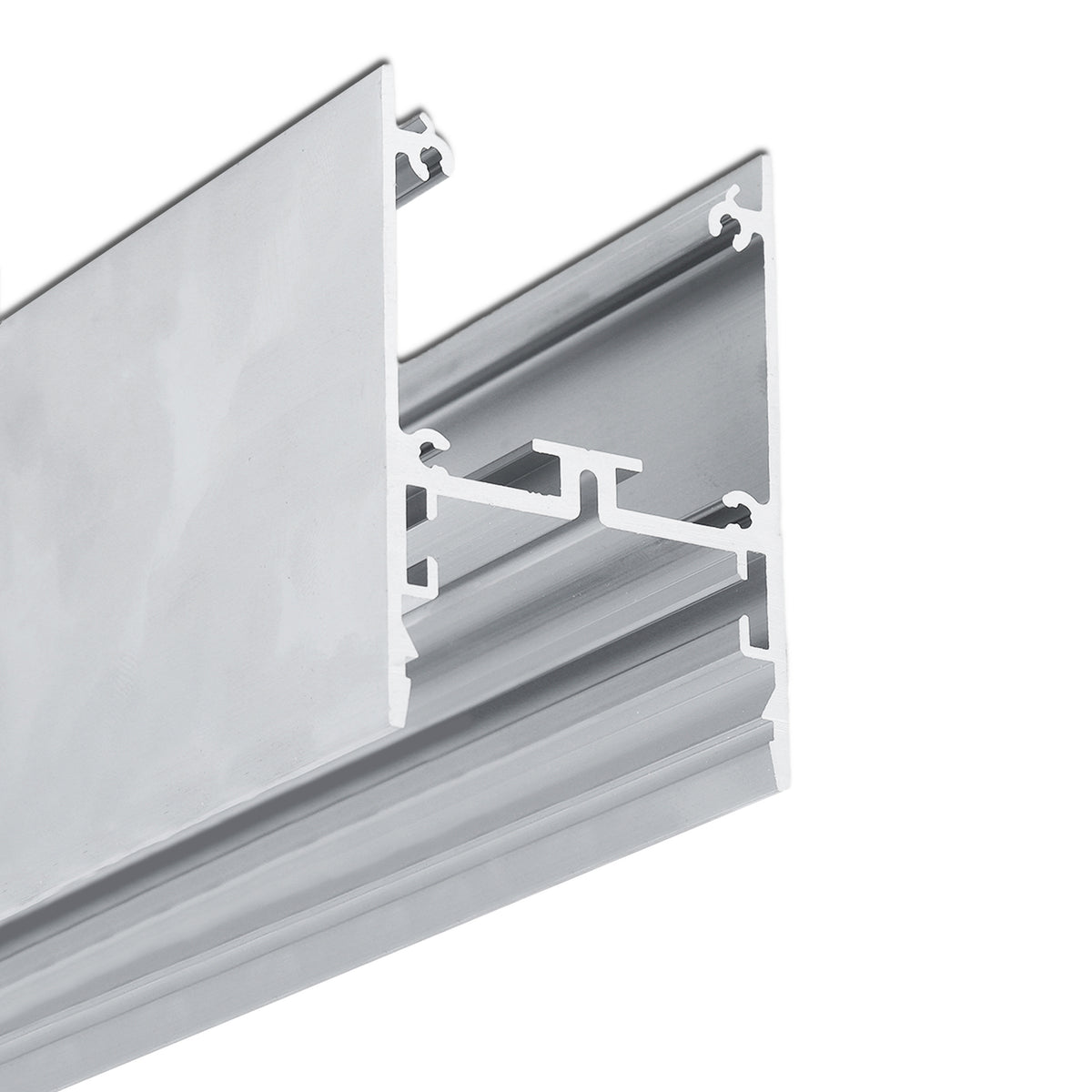

- Color & Finish: Raw aluminum, Silver anodized, Black anodized, White painted
Downloads
Important notes
- You can easily cut LED profiles by hand or by machine.
- For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
- We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
- We ship items in stock the same day from Knoxville, Tennessee, United States.
- Bulk pricing is available on request.
