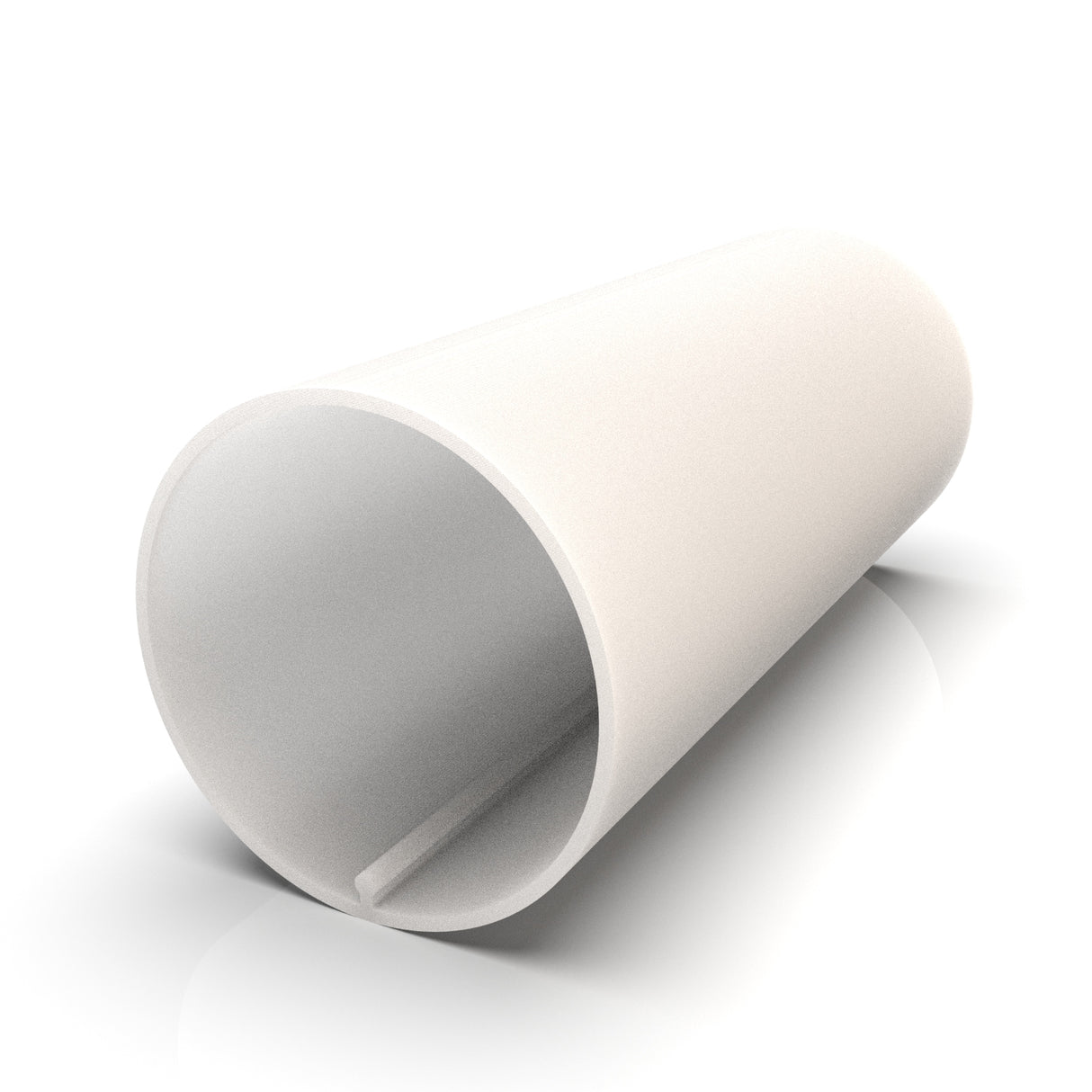

2.56" Round Acrylic LED Lighting Tube ~ Model Sierra65

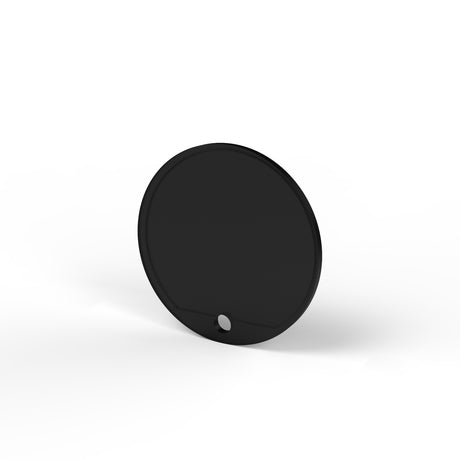

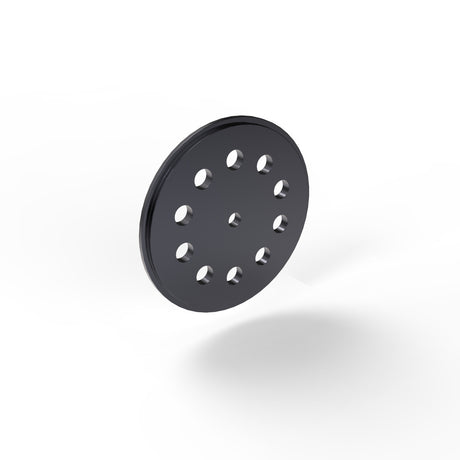

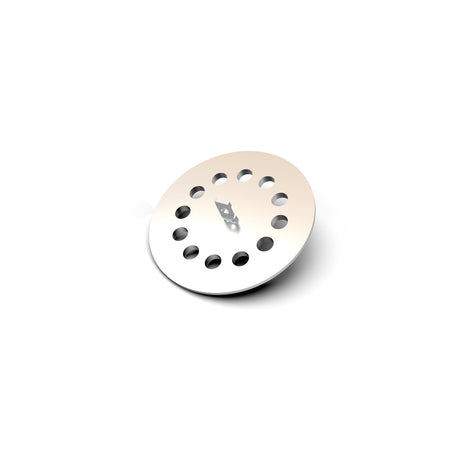

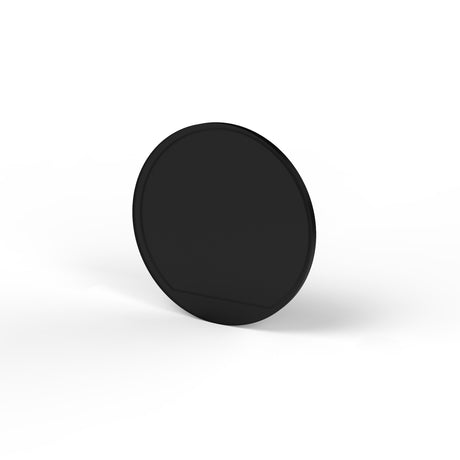

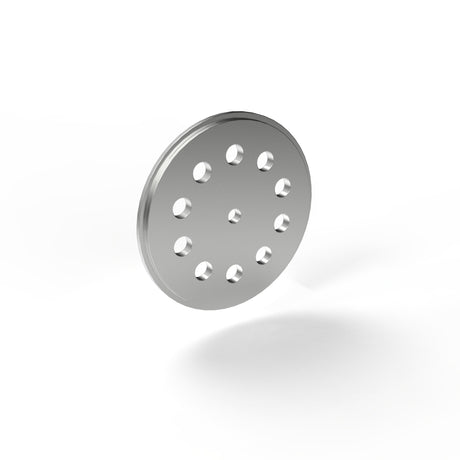

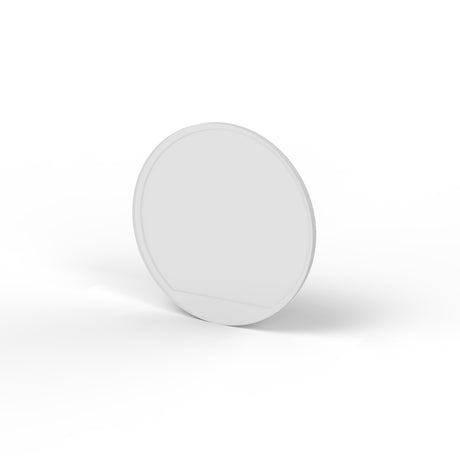

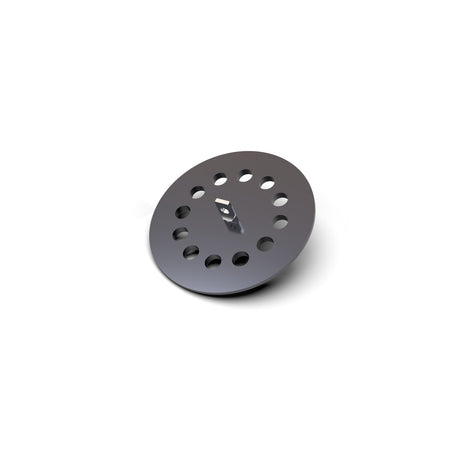

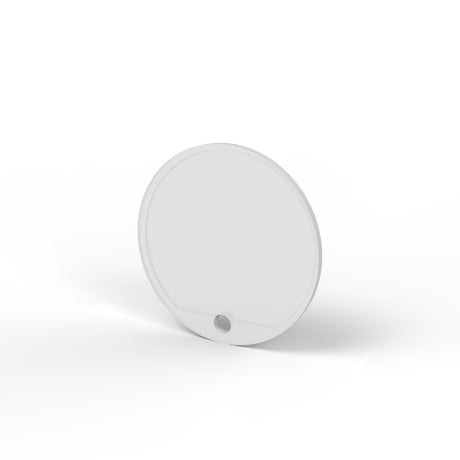

Diffuser tube only ~ end caps, LED strip and all other accessories are sold separately.

Please contact us for a custom complete LED fixture using this tube.

Description

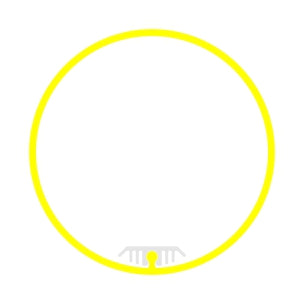

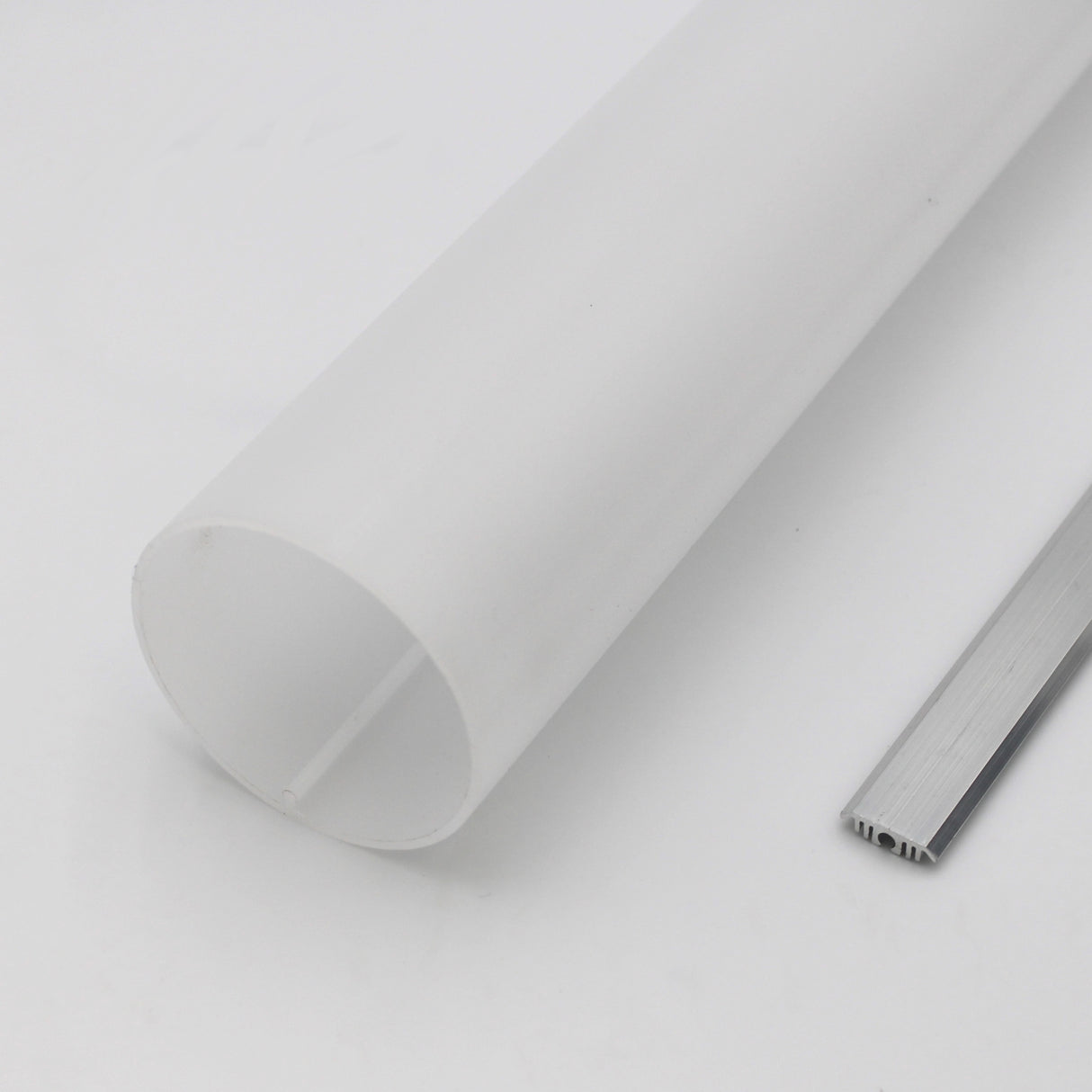

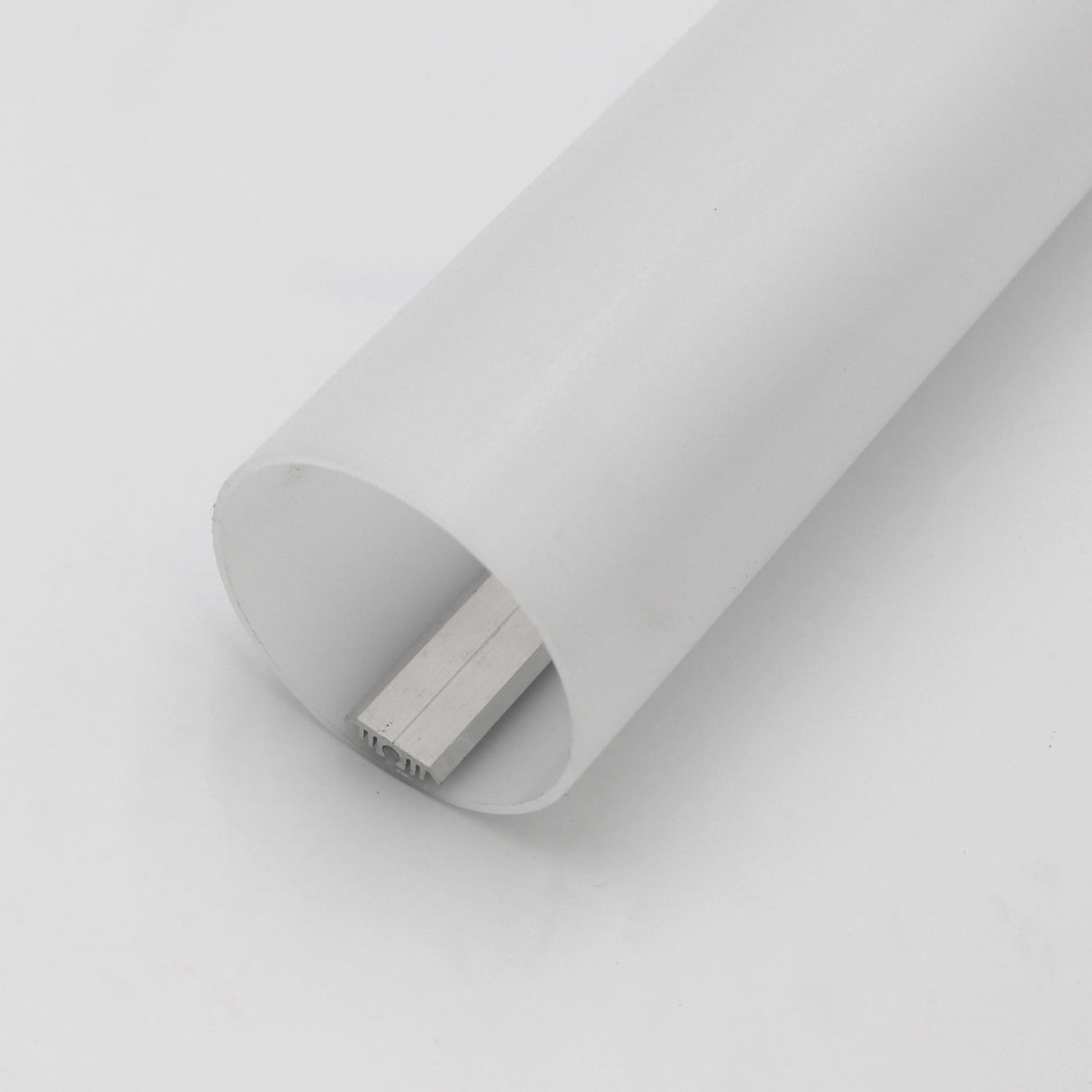

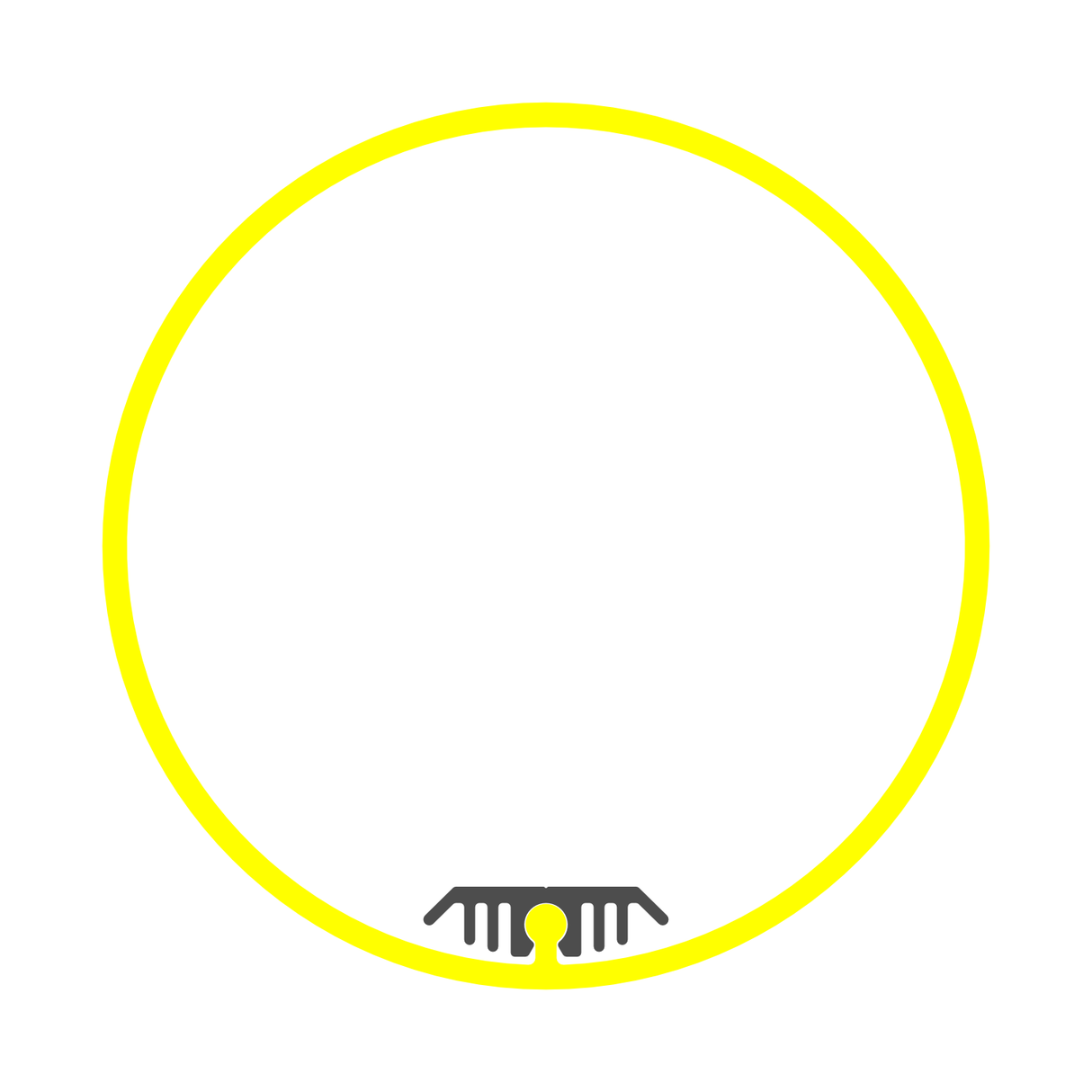

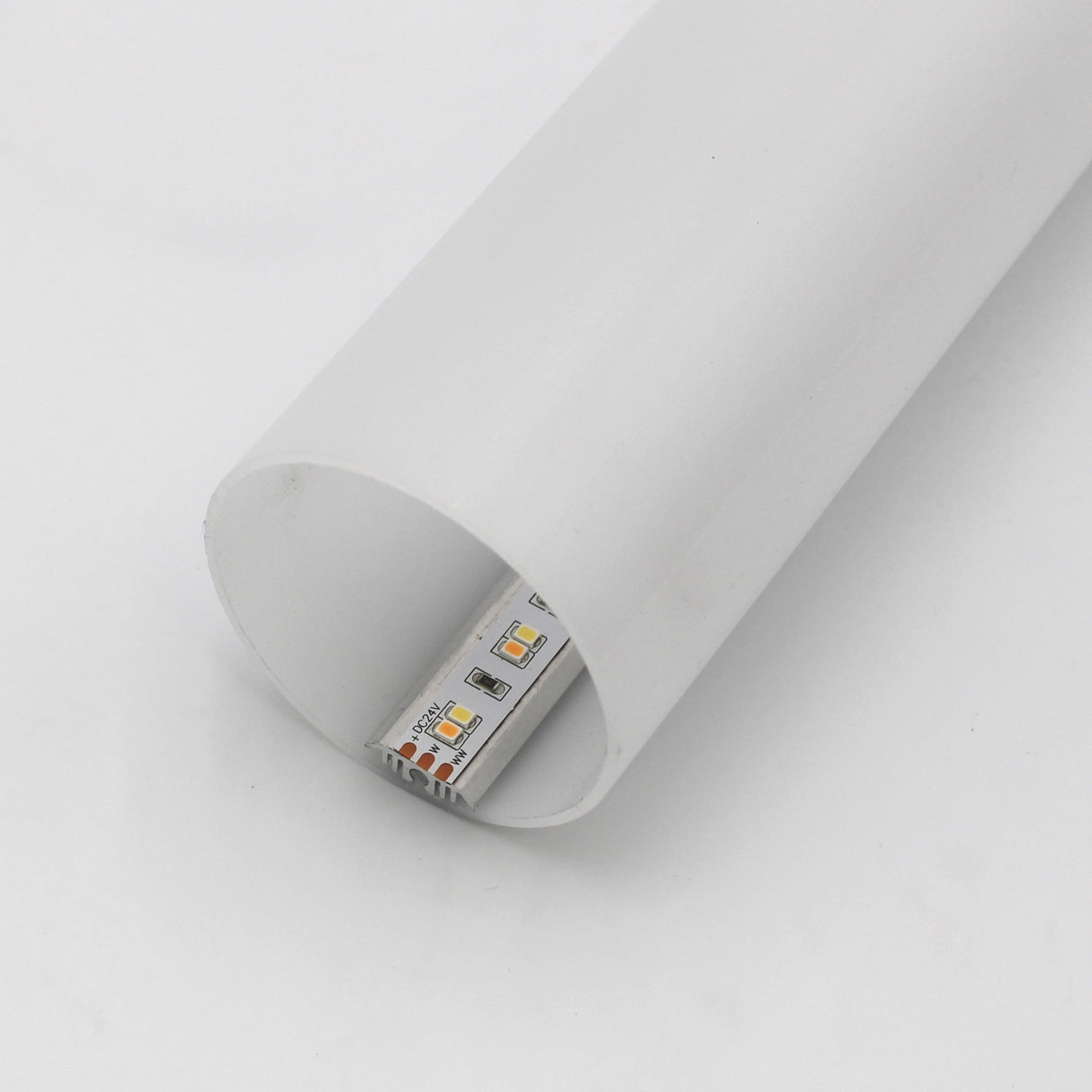

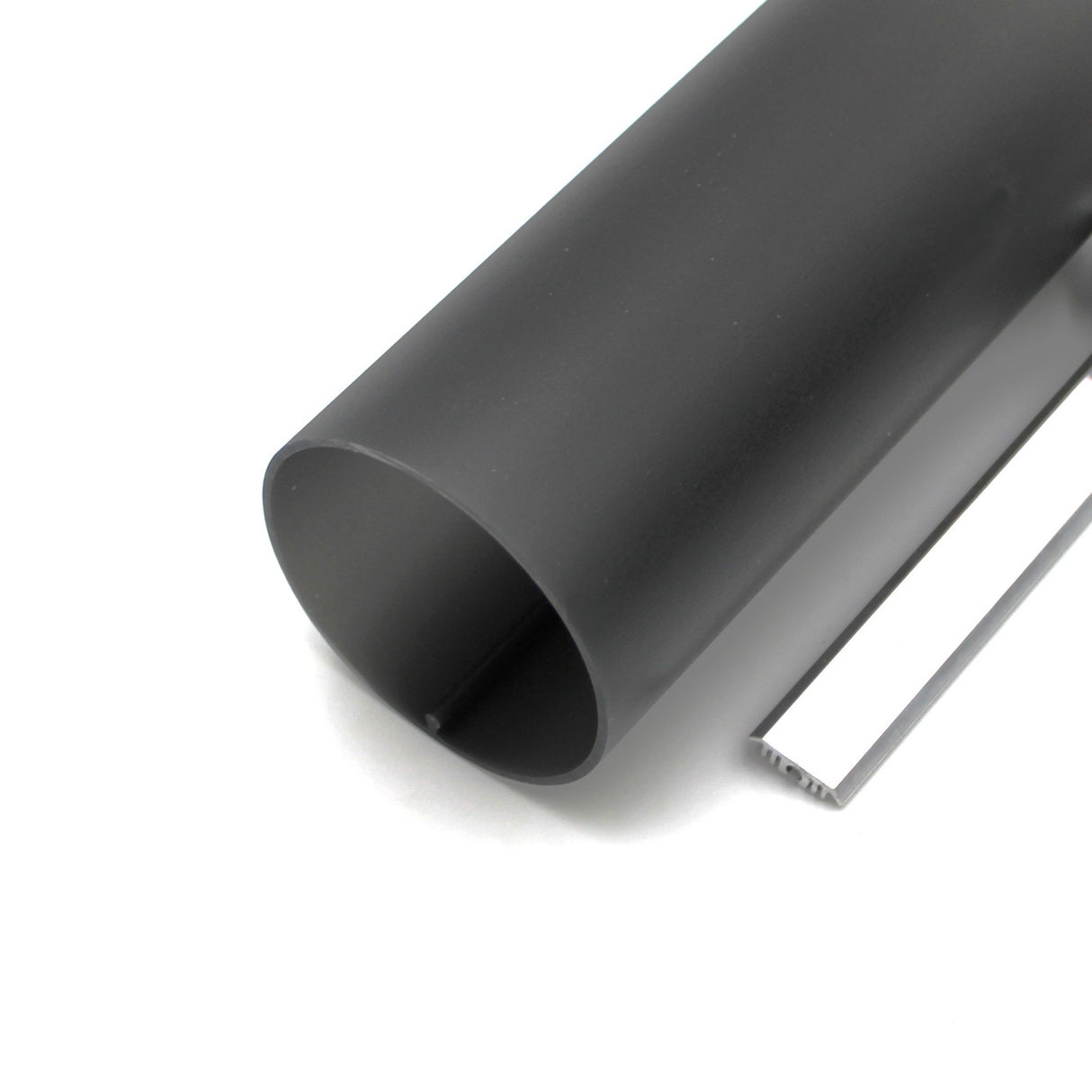

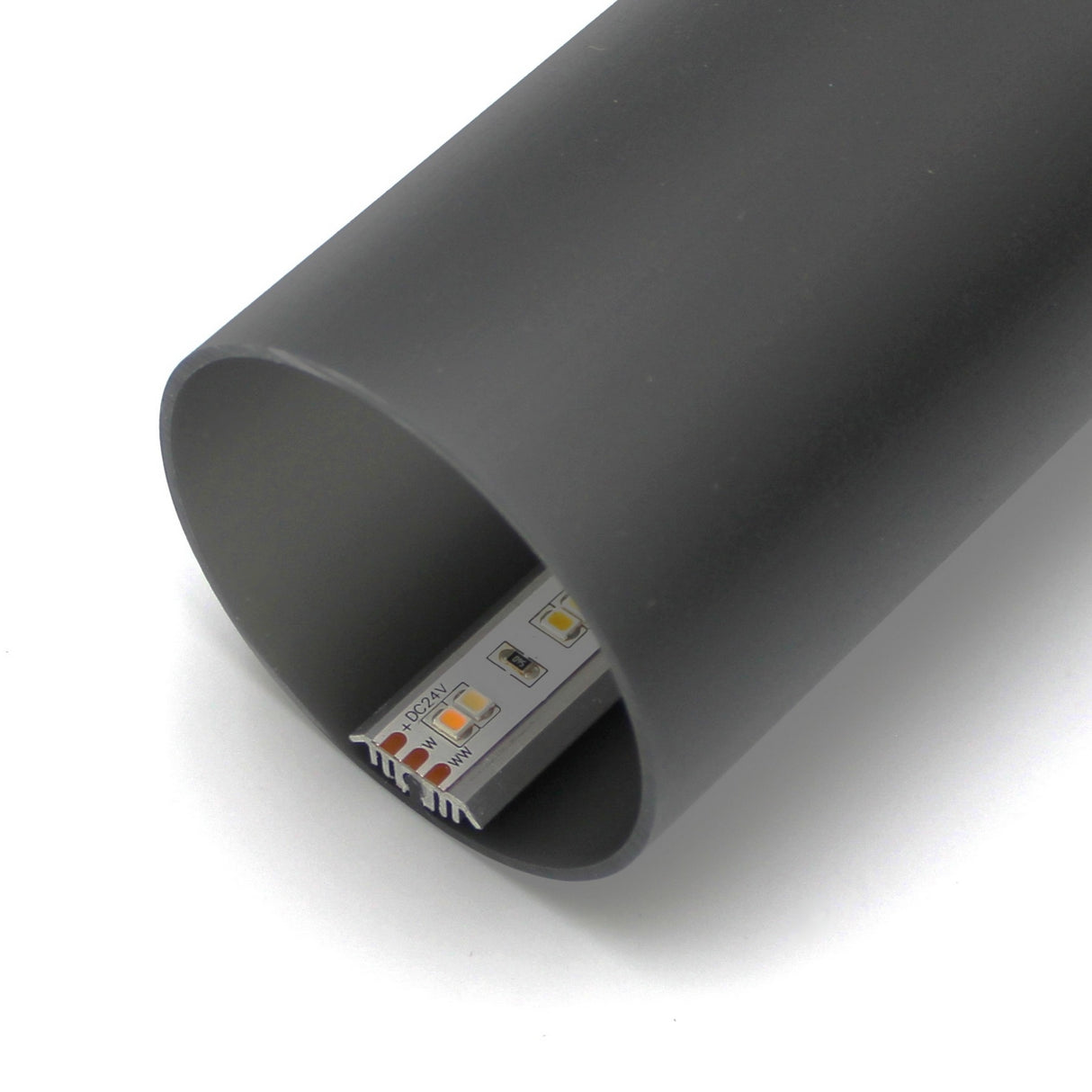

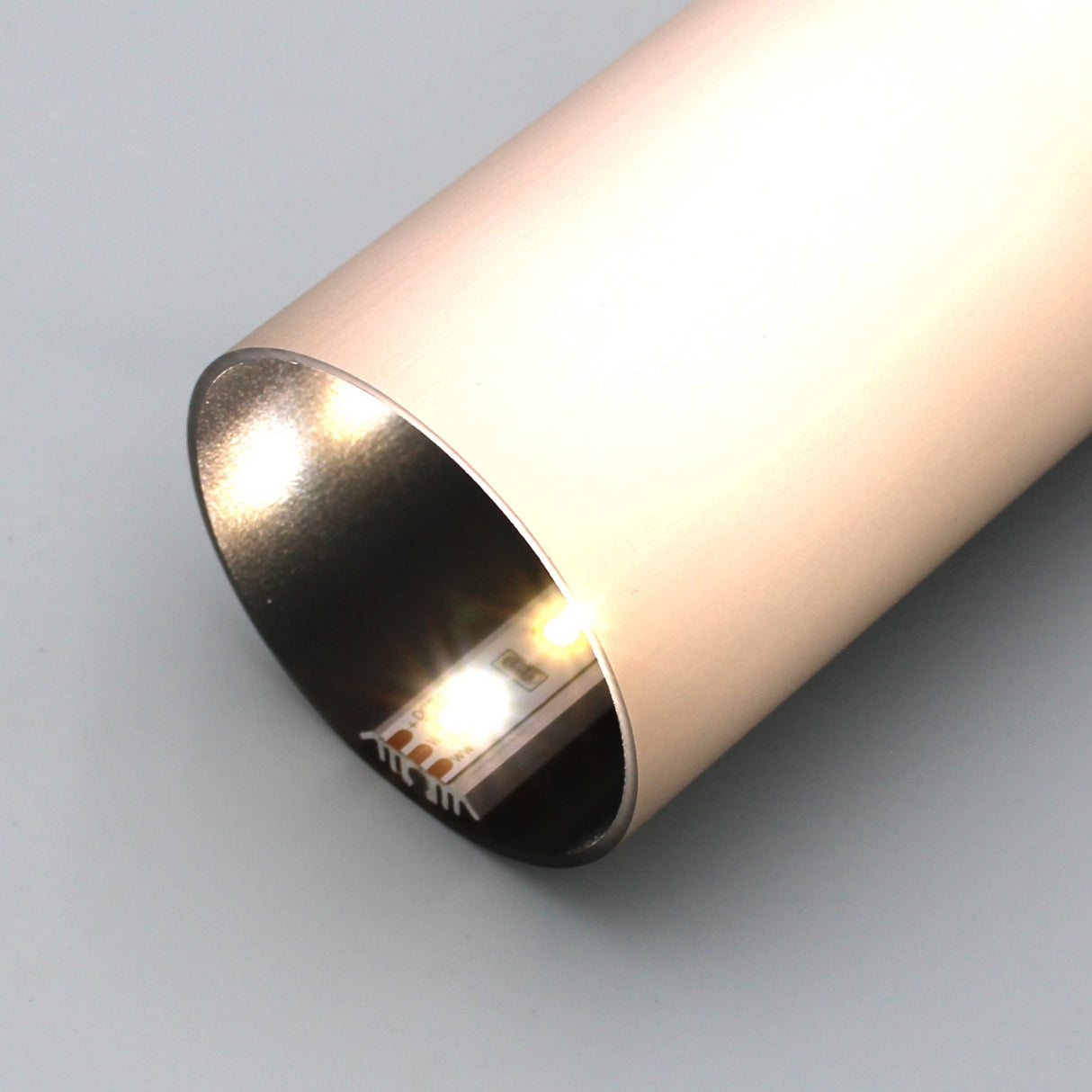

The Sierra65 series is a round acrylic LED lighting tube with a 2.56" diameter manufactured in the USA. It features a mounting rail that holds our Yukon aluminum LED mounting plate (included), which acts as a physical carrier and heatsink for the LED strip.

These LED tubes are the next generation of our Smokies65, crafted from high-quality, high-impact acrylic that is designed to withstand the elements and is UV stable for use in outdoor applications.

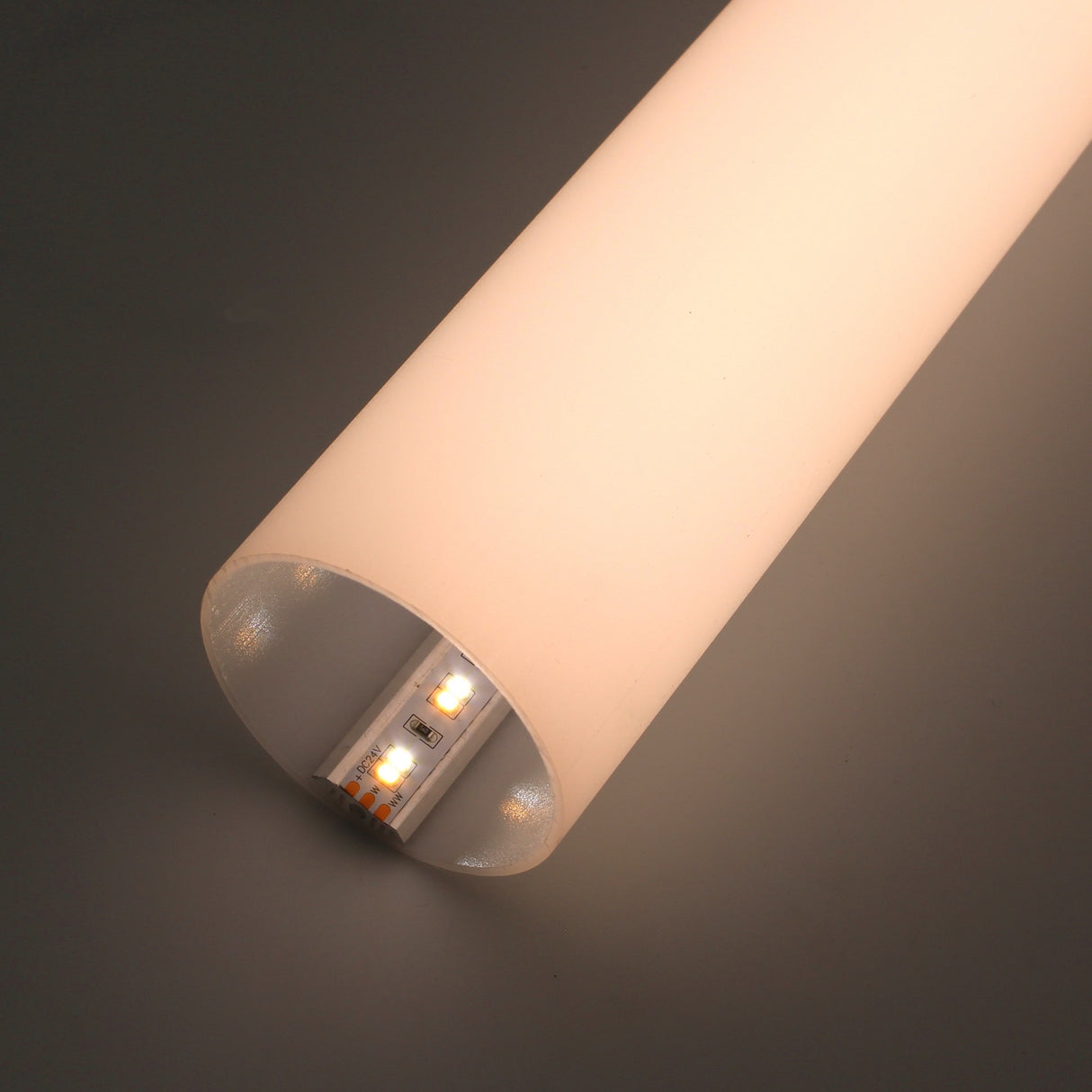

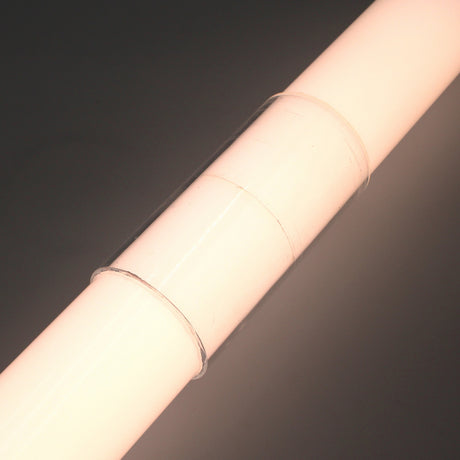

The tubes appear as a solid white or black when they are unlit, and take on the LED color when illuminated. This is particularly striking when combined with RGB or pixel LED strips.

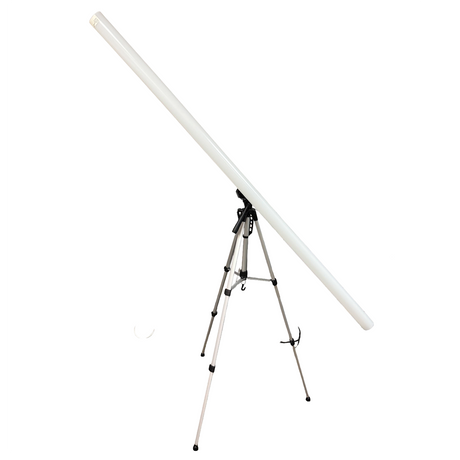

These LED diffuser tubes are strong enough to be self-supporting, which allows for many imaginative installations. They can be used as a pendant light, suspended horizontally from both ends or vertically from one end. They can also be used as freestanding floor lamps or column lights, or mounted on walls as fixtures. The large size of the these tubes is particularly effective for feature lighting in larger spaces such as theater halls and outdoors.

The Sierra65 is available in extra long lengths on request.

General specifications

• Maximum LED strip width: 12mm
• Maximum LED power: 20 W/m

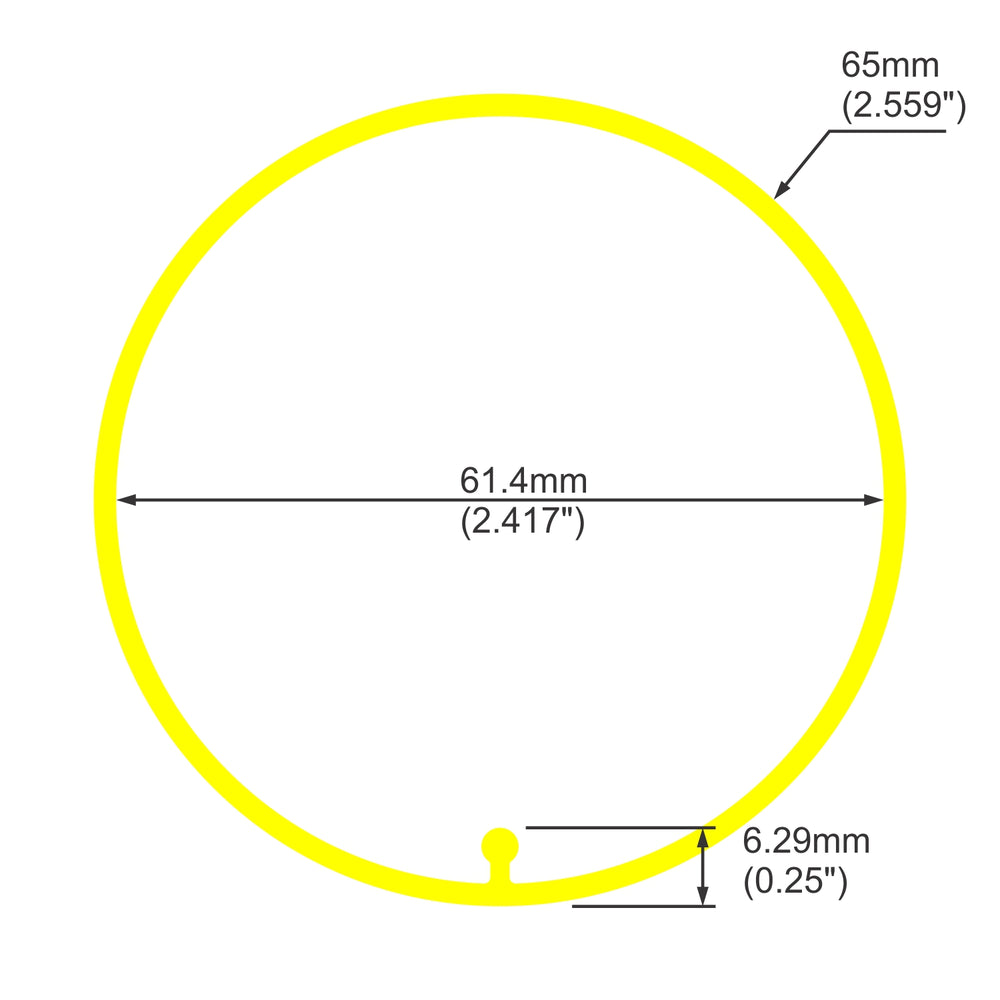

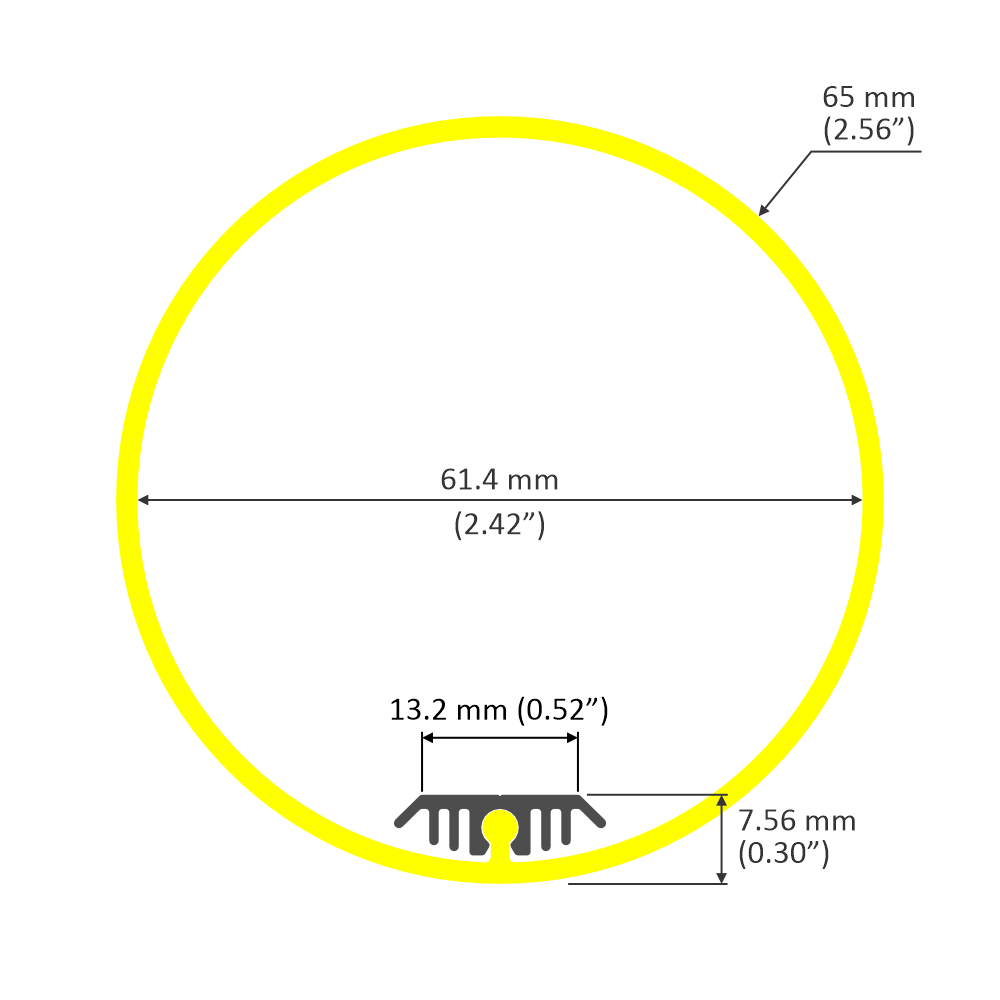

• Outside diameter: 65mm (2.56")

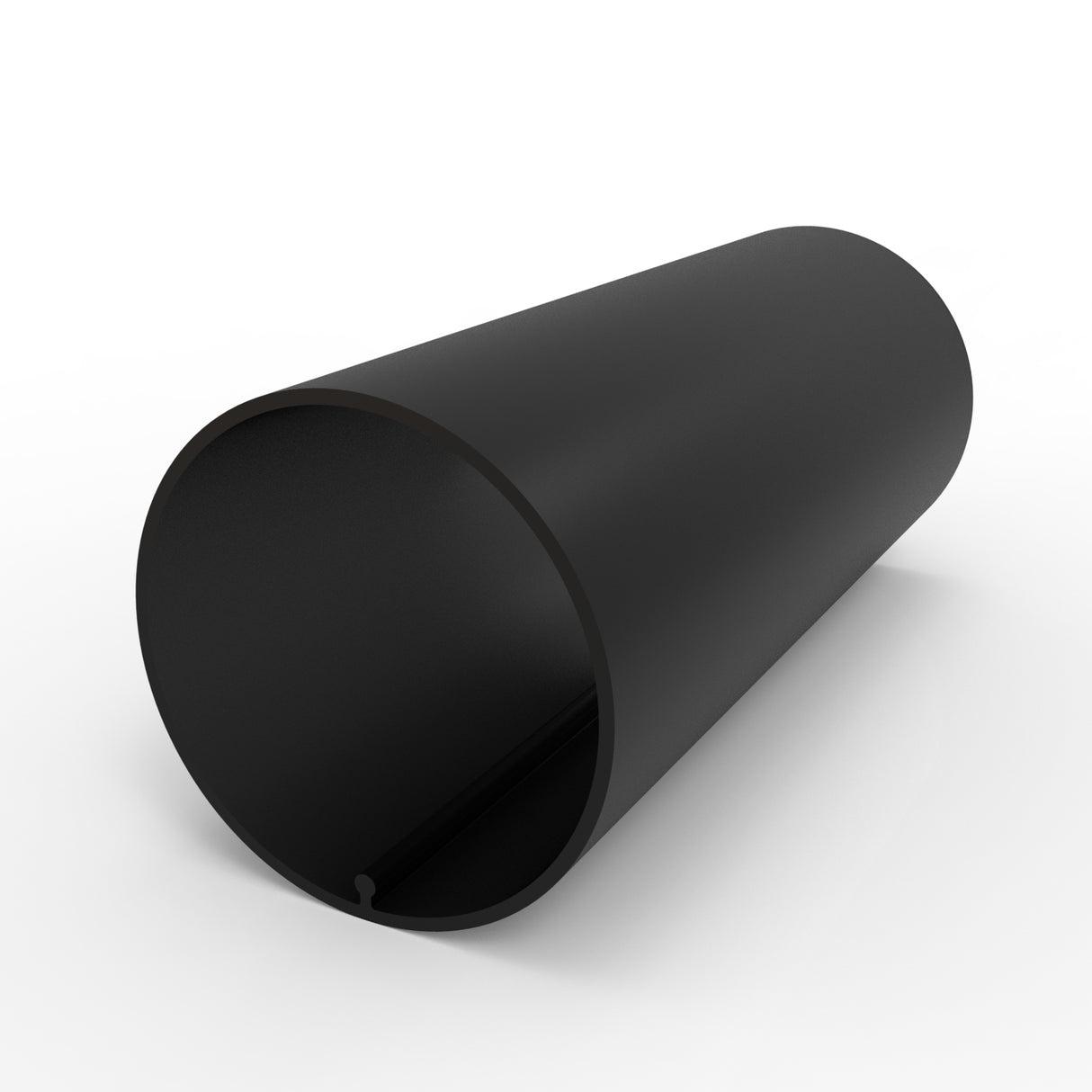

• Colors: White (Opal), Black (Smoky gray)
• Materials:
  • Diffuser tube: PMMA (UL 746C F1 rated)
  • Heat dissipation plate: Aluminum (Yukon)
• RoHS & REACH compliant
• Available in extra long lengths on request.
• Made in the USA.

Downloads

• Sierra65 cut sheet

Important notes

• LED profiles can easily be cut by hand or by machine.
• For your convenience, Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We can also assemble a plug and play light fitting with this profile according to your specifications.
• Please note that we cannot refund or replace LED profiles and covers that have been cut.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
