Product details
Wire only ~ all other accessories are sold separately
Description

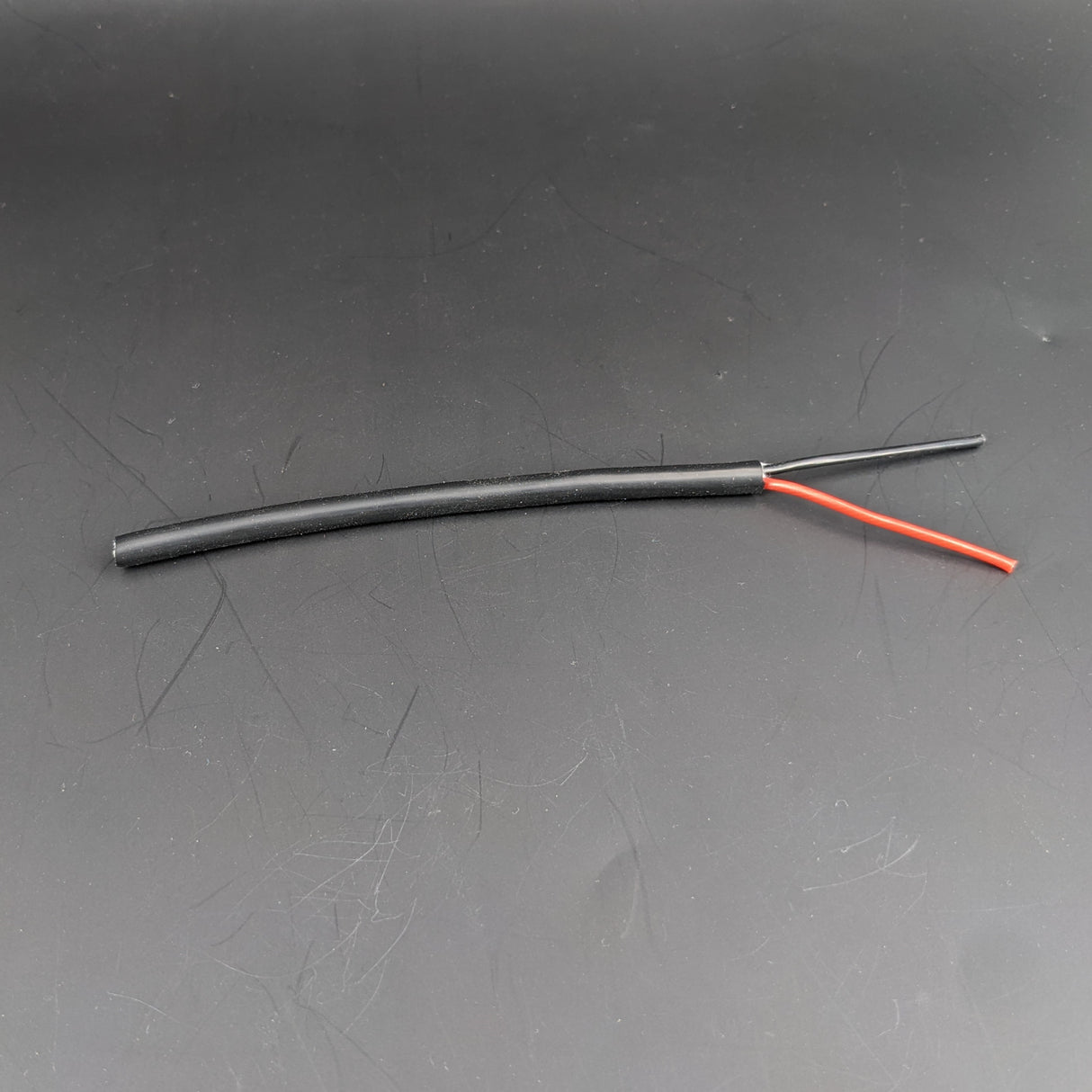

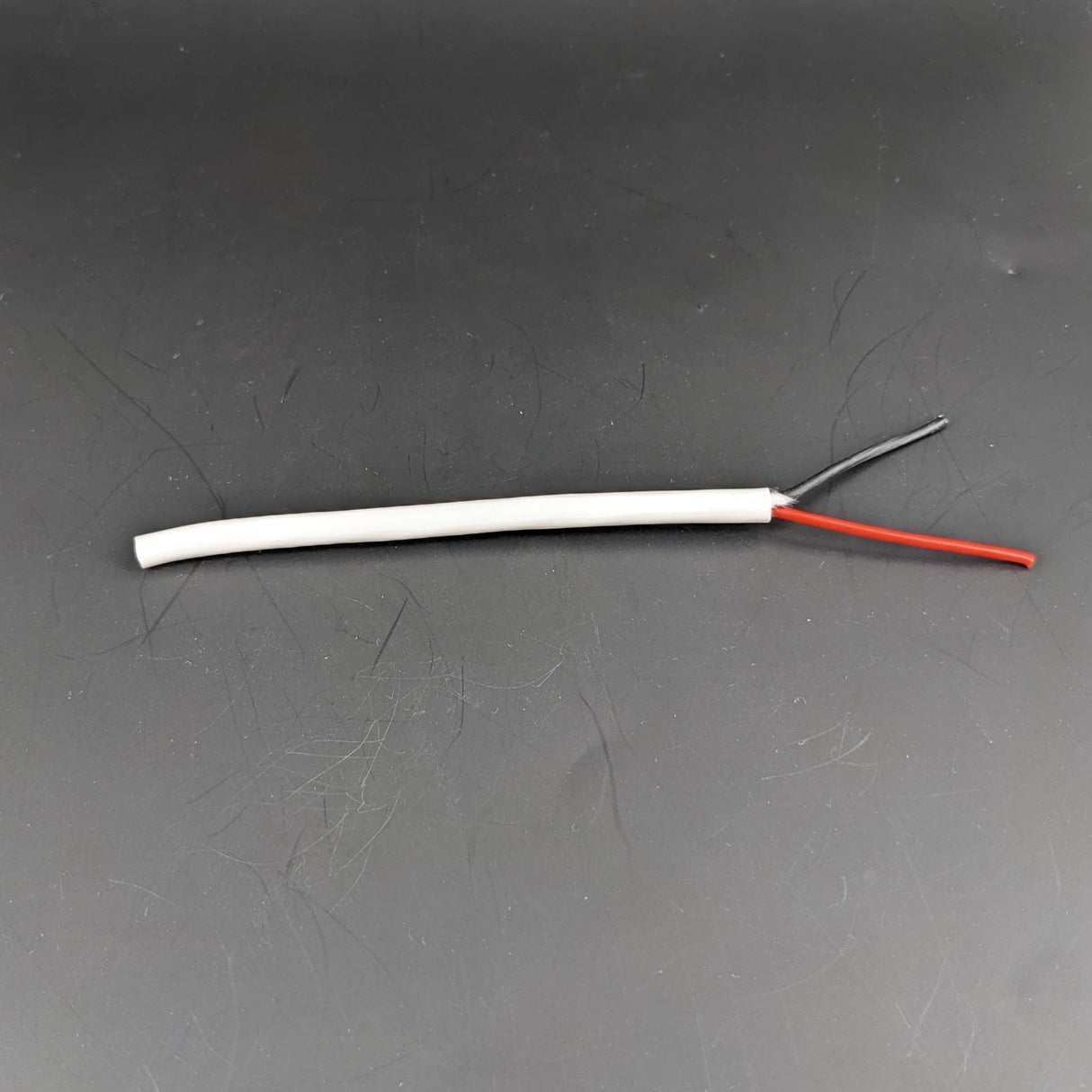

The 2-core 18 AWG silicone electrical wire is a high quality sleeved wire which consists of two parallel conductors, one black and one red.
The wire is constructed with 18 AWG (0.82mm²) silicone material, providing excellent flexibility for easy installation and maneuverability. Inside, it consists of 150 strands of 0.08 mm tinned copper wire, ensuring high efficiency and a super low impedance connection. This promotes optimal electrical performance and minimizes energy loss.
This wire is designed to withstand various electrical demands while maintaining reliable performance. It is suitable for a wide range of applications, from low-power electronics to DIY projects and beyond.
General specifications
- Sold per foot
- Diameter: 6mm (0.236")
- 2 cores in black and red
- Insulator: Silicone
- Temperature rating: -60°C ~ +200°C
- Max voltage: 600V
- Conductor: High-purity oxygen-free Tinned Copper
Important notes
- Items in stock are shipped the same day from Knoxville, Tennessee, United States.
- Bulk pricing is available on request
