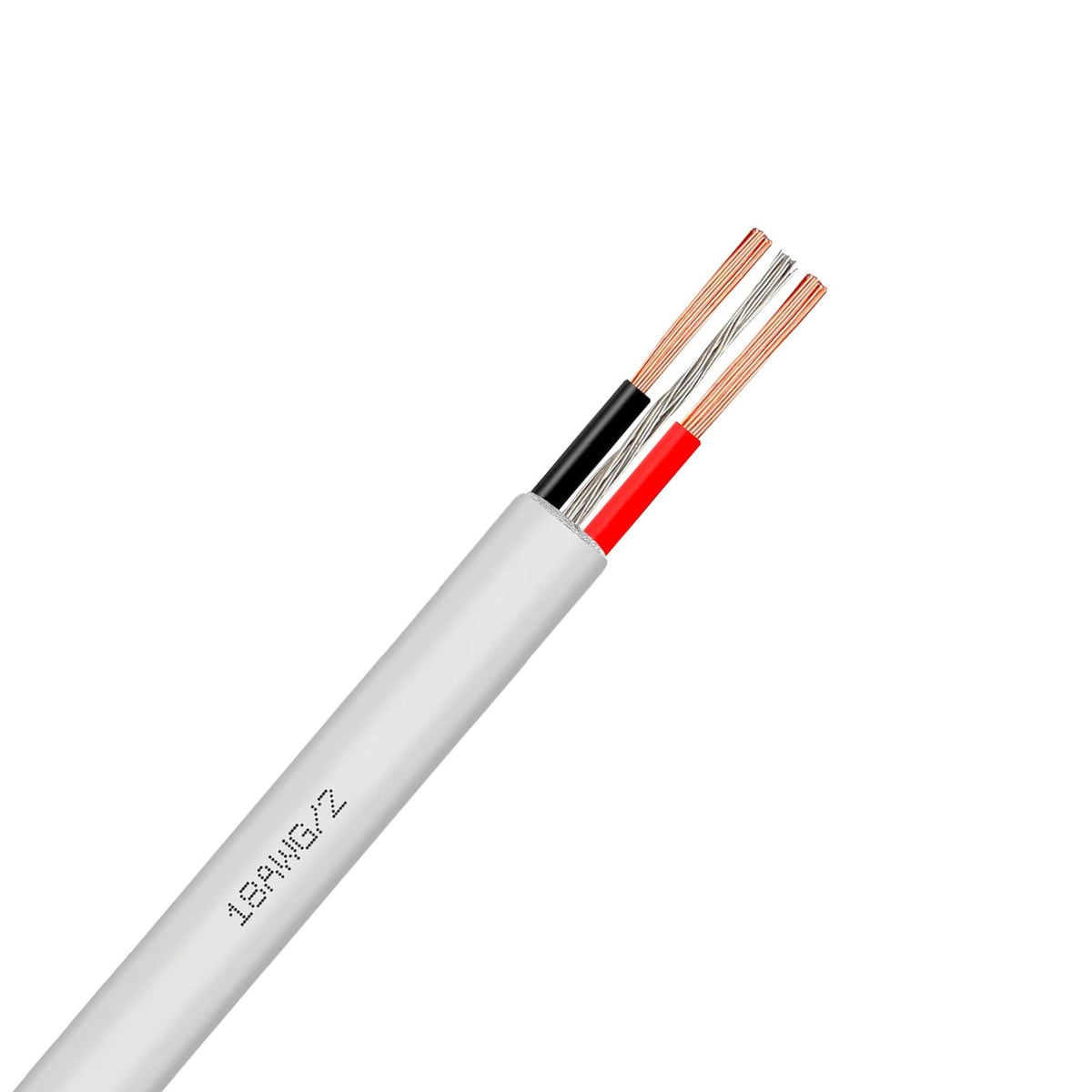

2-Core 18 AWG Stranded Shielded UL Plenum Wire

wire only ~ all other materials are sold separately

Description

This 2-core shielded plenum-rated cable (UL E179335W) is rated FPLP / CL3P / CMP for low-voltage installations where fire-rated plenum cable is required. The cable is constructed with flame-retardant materials using RoHS compliant PVC. Its shielded construction helps reduce electromagnetic and radio-frequency interference, improving signal integrity in electrically noisy environments.

Plenum-rated wiring is suitable for use in air-handling and plenum spaces. This specification of cable is commonly used for fire alarm systems, security and access-control wiring, building automation, control circuits, signaling, sensors, and other low-voltage applications. The 2-conductor design provides a simple, reliable solution for power, control, or signal connections where shielding and plenum compliance are required.

Note: Wire is sold per running foot.

General specifications

• Cross section: 0.75mm² (18 AWG)
• Outside diameter: 5.5mm (7/32")
• Insulation: PVC (RoHS)
• Shielding: Aluminum foil with drain wire
• Voltage rating: 300V
• Working temperature: 14 - 194°F (-10 - 90°C)
• Color: White
• Polarity identification: Yes (red/black color-coded cores)

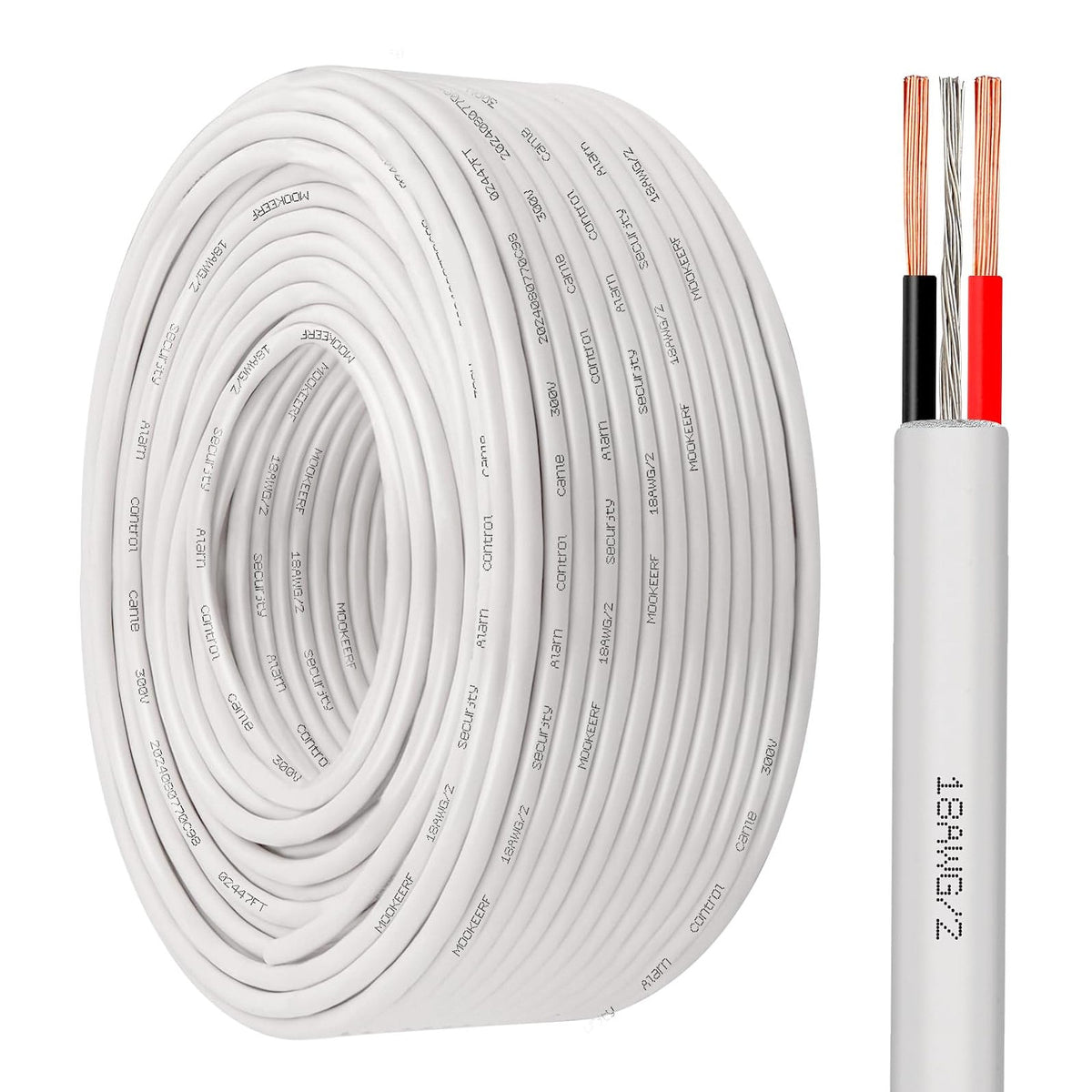

• Roll length: 60m (200ft)
• RoHS compliant
• Certification: UL E179335W (FPLP/CL3P/CMP)

Important notes

• We ship items in stock the same day from Knoxville, Tennessee, United States.
• Bulk pricing available on request.
