3.5x1.5" Linear Suspension Lighting Channel ~ Model Munich Magnum Slim

SKU LED-17.004-3
Original price - Original price
Original price
-
Current price
Shipping restrictions

We cannot ship rigid items over 2.4m (8ft) in length due to freight restrictions. These products are offered for customer pickup only. Please refer to our Shipping Policy for further information.

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

profile only ~ diffusers and all other accessories are sold separately

Description

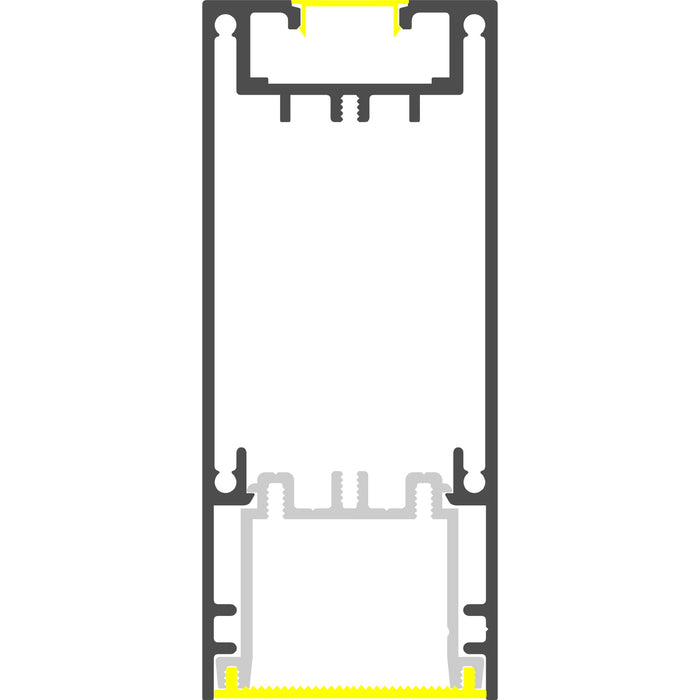

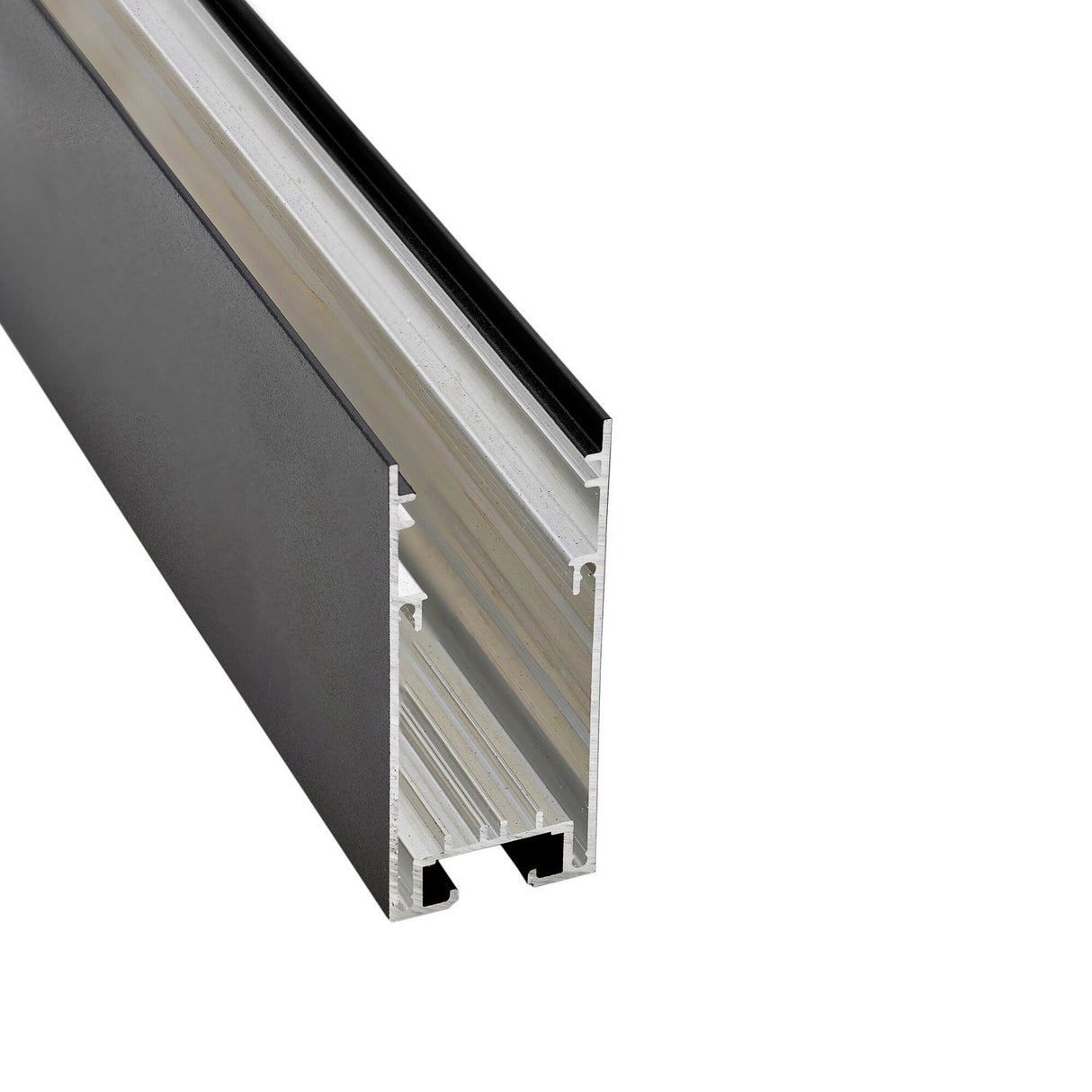

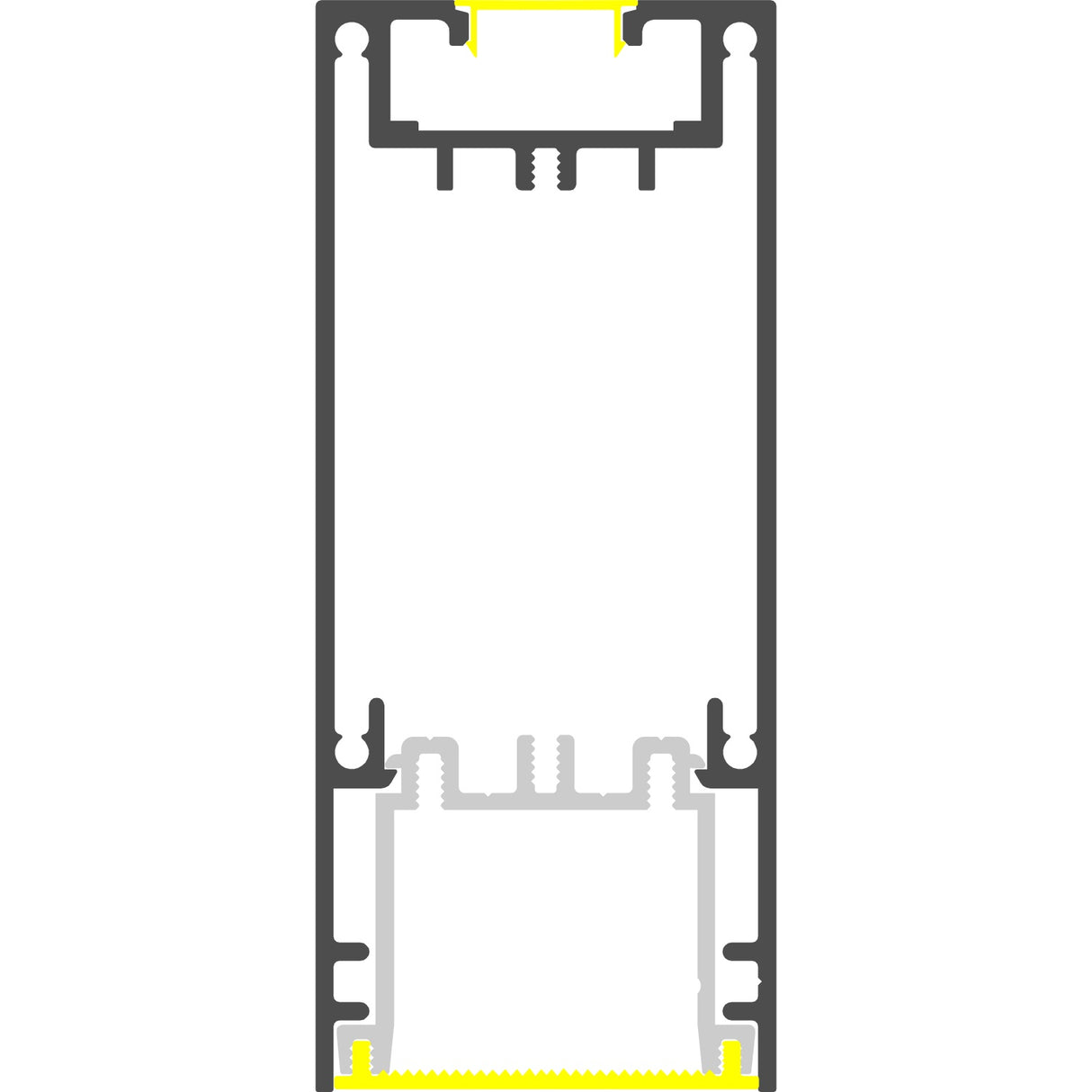

The Munich Magnum Slim lighting profile is designed to be used as a large surface mount LED channel or as a large suspended linear LED lighting channel. This profile is manufactured from high purity aluminum and available in silver anodized, white textured lacquered or black textured lacquered.

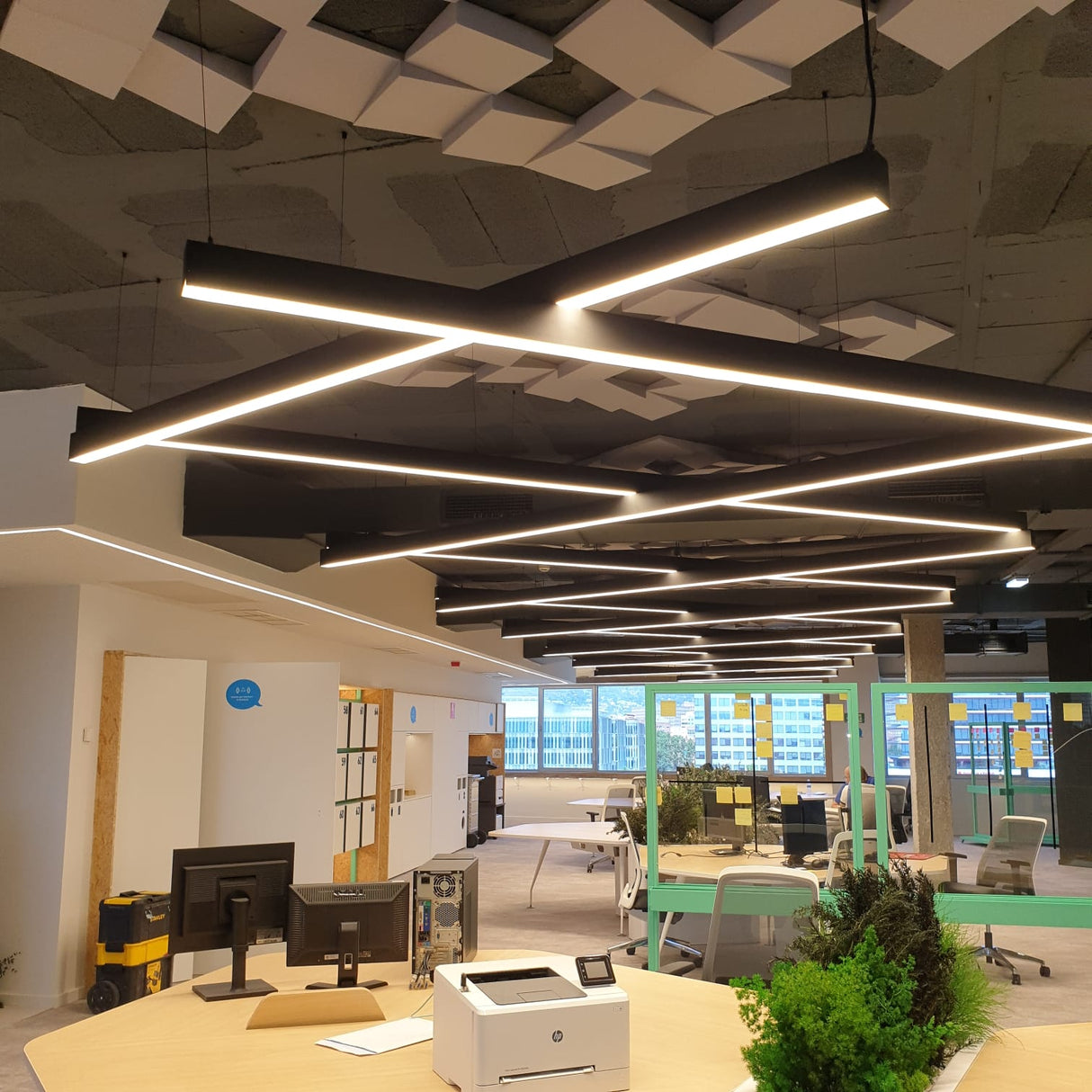

Munich Magnum Slim is a versatile lighting channel which can provide up & down lighting, making it ideal for surface mounted use on ceilings, for primary hanging lights, and even for mounting on walls.

This LED channel uses an Internal Tray (ordered separately) onto which the LED strip is fixed. This design allows for easy assembly and maintenance access and means that a compact LED driver can be installed in the cavity behind the tray to create neat, clutter-free lighting fixtures.

The profile uses our Easy-On frosted white diffuser, which offers an IP65 environmental protection rating, making it a good choice for lighting applications in damp areas such as indoor swimming pools, public showers, and other high humidity zones. We also offer transparent and frosted microprism diffusers.

General Specifications

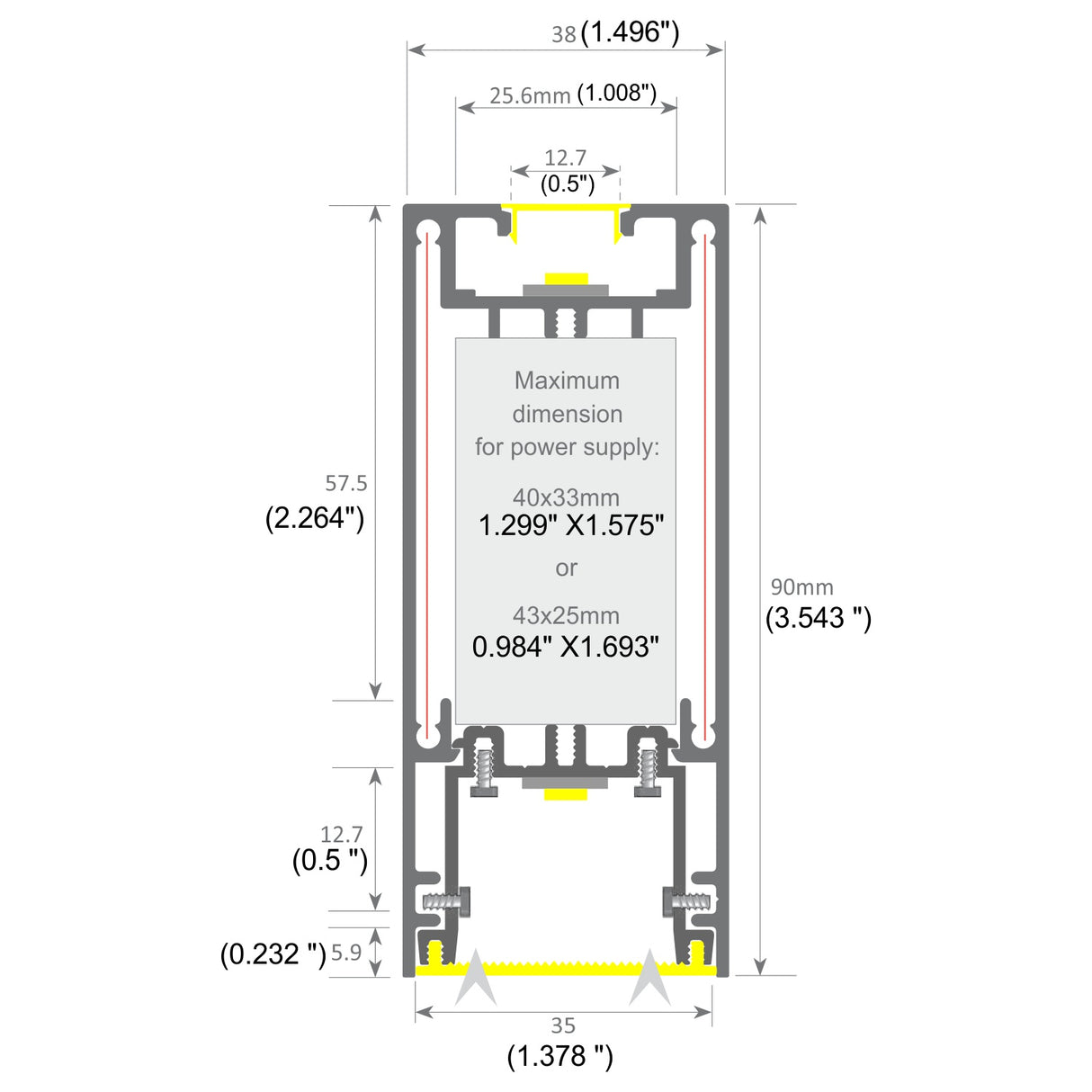

  • Overall dimensions: 38 x 90mm (1.496 x 3.543")
  • Colors: Silver anodized, white lacquered, black lacquered
  • Maximum LED strip width: 15mm (primary, on internal tray) & 12mm (secondary)
  • Environmental protection: IP65 waterproof achievable
  • Please note: Internal Light Tray is required (sold separately, see accessories below)

Downloads

Important notes

  • LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
  • Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
  • LED profiles can easily be cut by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • We can also assemble a plug and play light fitting with this profile according to your specifications.
  • Please note that we cannot refund or replace LED profiles and covers that have been cut.
  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request.
