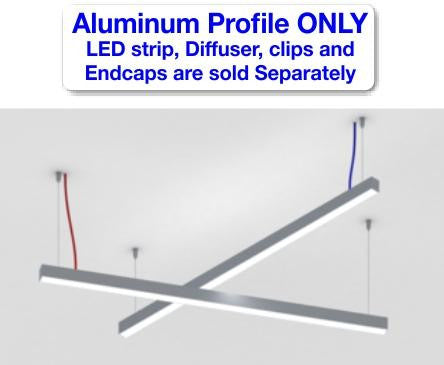

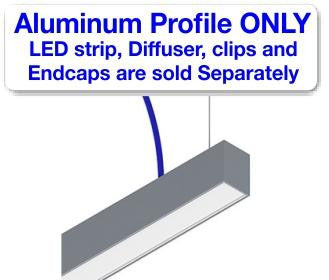

Rectangular LED Linear Pendant - Model DPLS [Profile Only]

Original price - Original price
Original price
Current price
Shipping restrictions

We cannot ship rigid items over 2.4m (8ft) in length due to freight restrictions. These products are offered for customer pickup only. Please refer to our Shipping Policy for further information.

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

Profile only ~ diffusers and all other accessories are sold separately

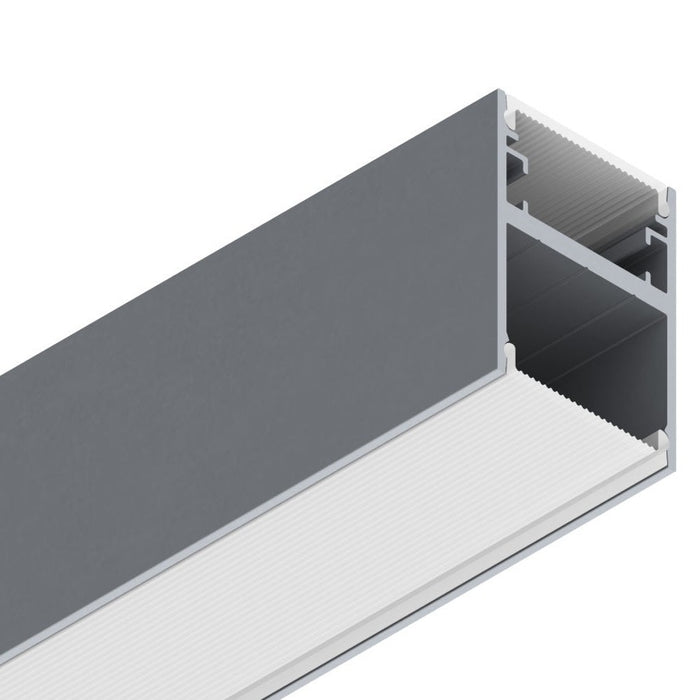

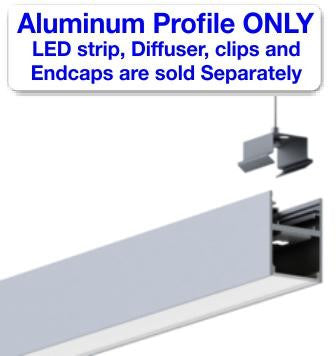

DPLS is a double side LED light profile where the light is directed both to the top and to the bottom. It is a LED dot-free design with two installation options: surface and pendant. Depending on the method of installation we can choose between one side light output or up and down light output.

The profile was designed and optimized to handle LED load up to 40W/m and maintain stable temperature at 55°C @ Ta=25°C. The internal shape is optimized to increase the LED fixture cooling capability and proper light distribution.

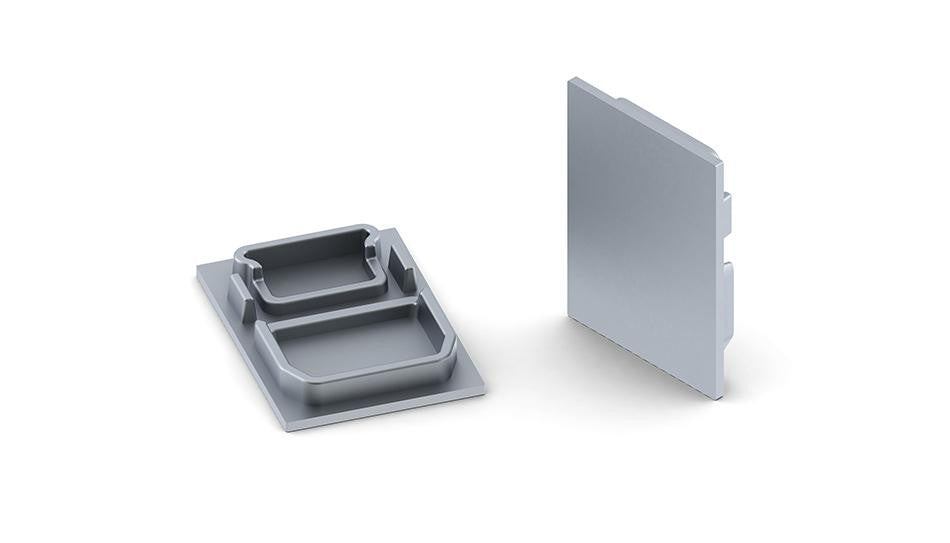

The DPLS is equipped with linear connectors and aluminum end caps. Small in size and with a contemporary design, this profile can be suspended from the ceiling as an independent lamp or can be attached to the ceiling. Power handling capability is high enough to consider this lamp as main lighting LED fixture.

General specification

  • Material: Aluminum

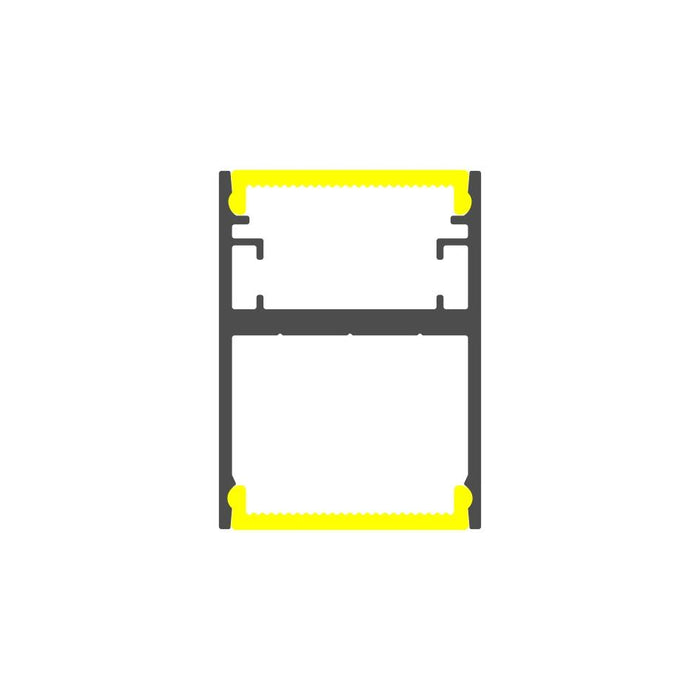

  • Overall dimensions: 30mm x 41mm (1.18" x 1.61")


  • DPLS cut sheet

Important notes

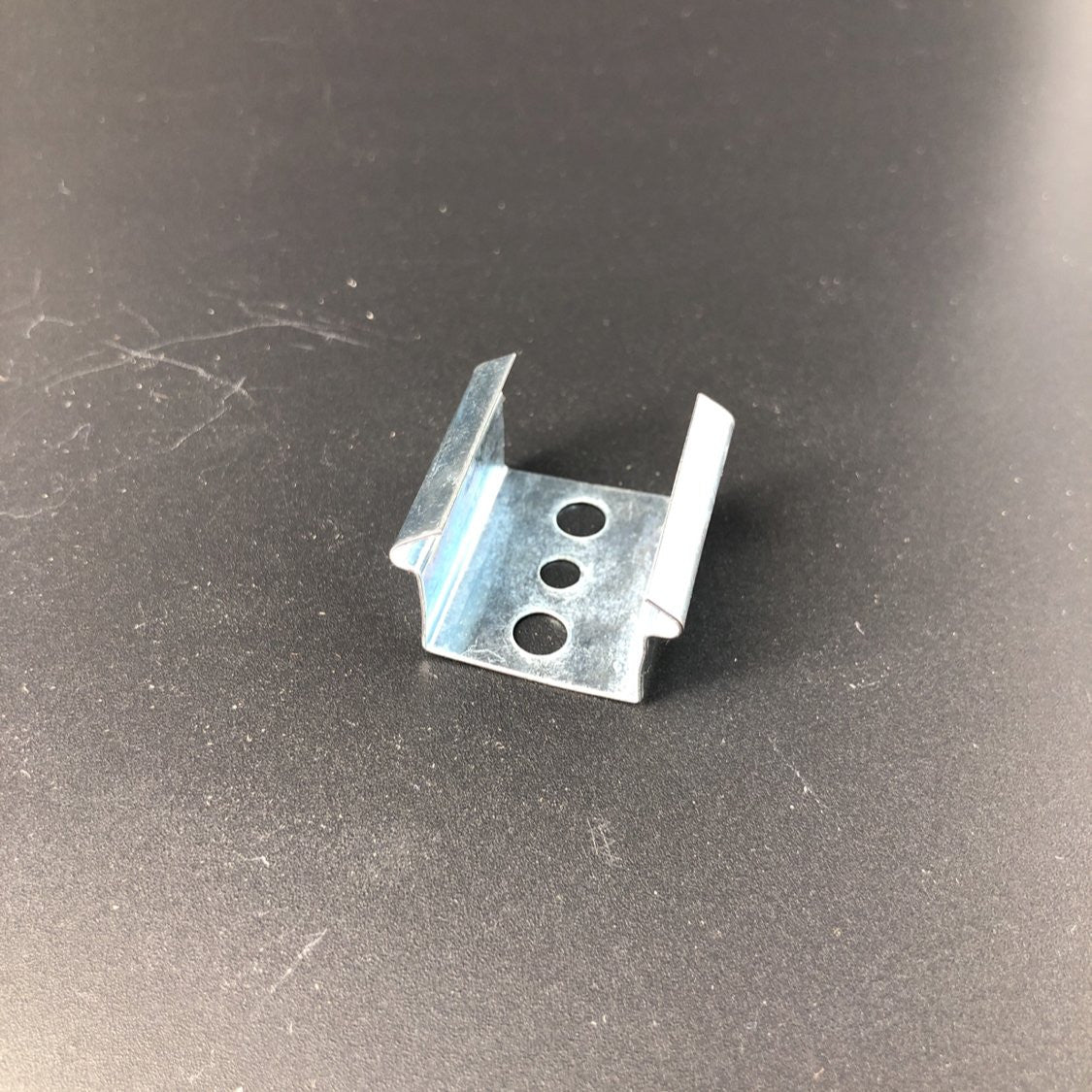

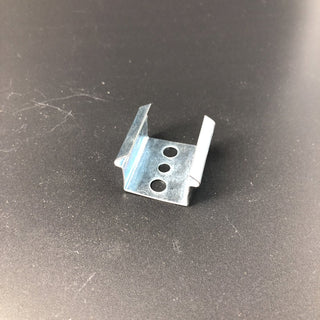

  • LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
  • Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
  • LED profiles can easily be cut by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • Please note that we cannot refund or replace LED profiles and covers that have been cut.
  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request
