30/60 Degree Corner LED Channel ~ Model Corner10.v2

WIRED4SIGNS USA • FREE shipping on orders over $450 T&C apply

30/60 Degree Corner LED Channel ~ Model Corner10.v2

SKU: LED-J6000220-2
Color
Length
$21.32 USD
Shipping calculated at checkout.

Buy in bulk and save

By becoming a wholesale customer, you can save money on your orders. Apply here.

Compatible Components and Accessories

View all

Profile only - all accessories sold separately

Description

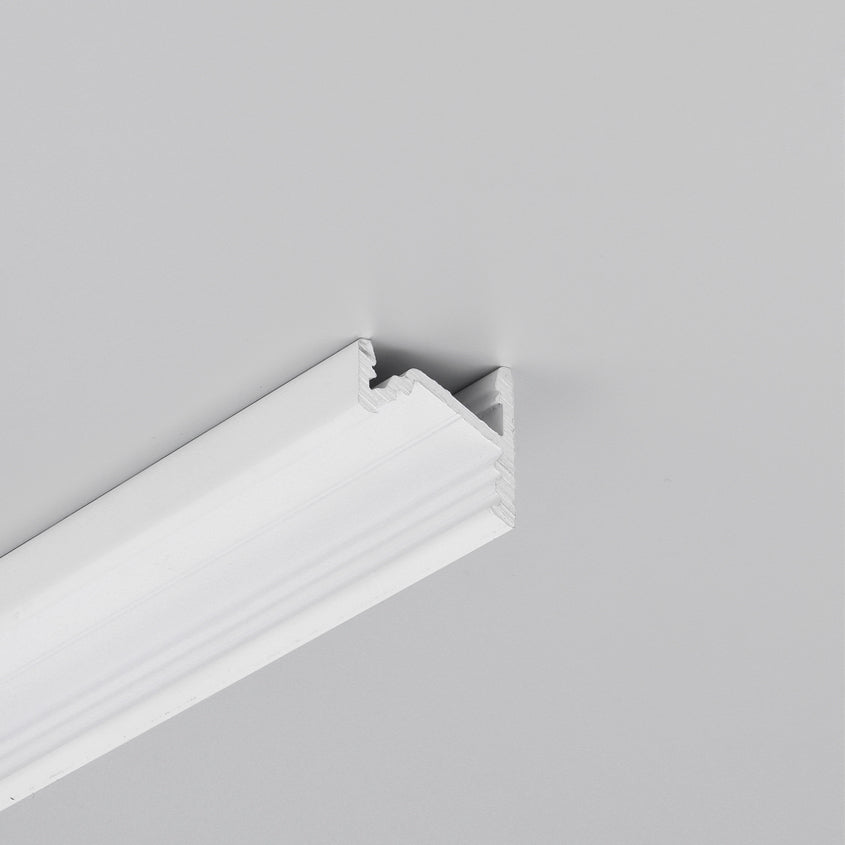

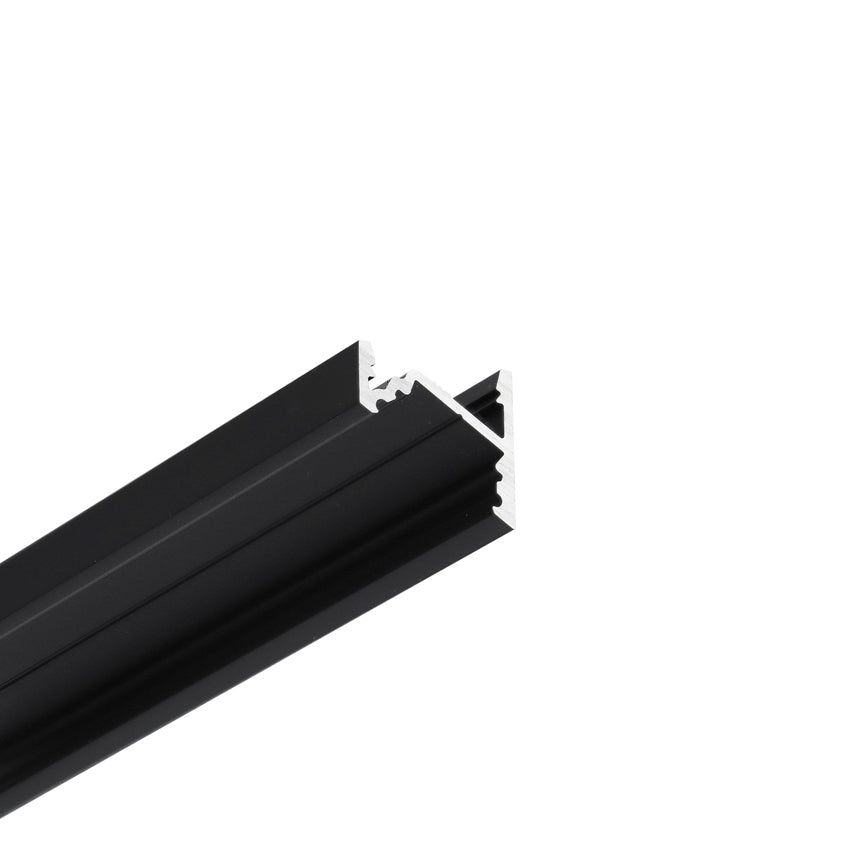

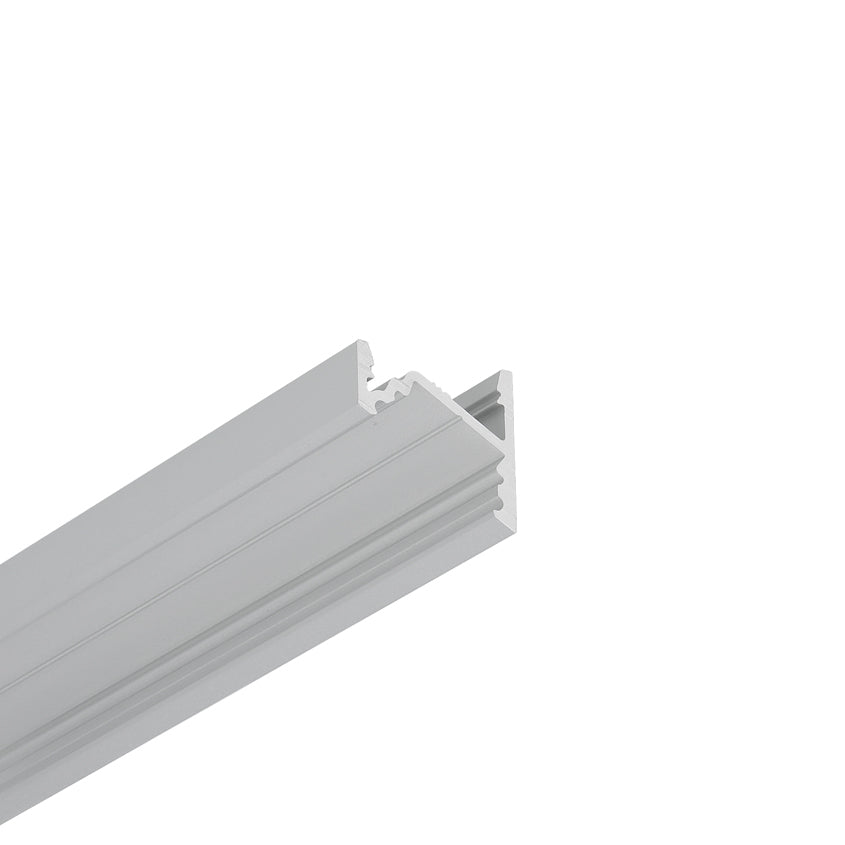

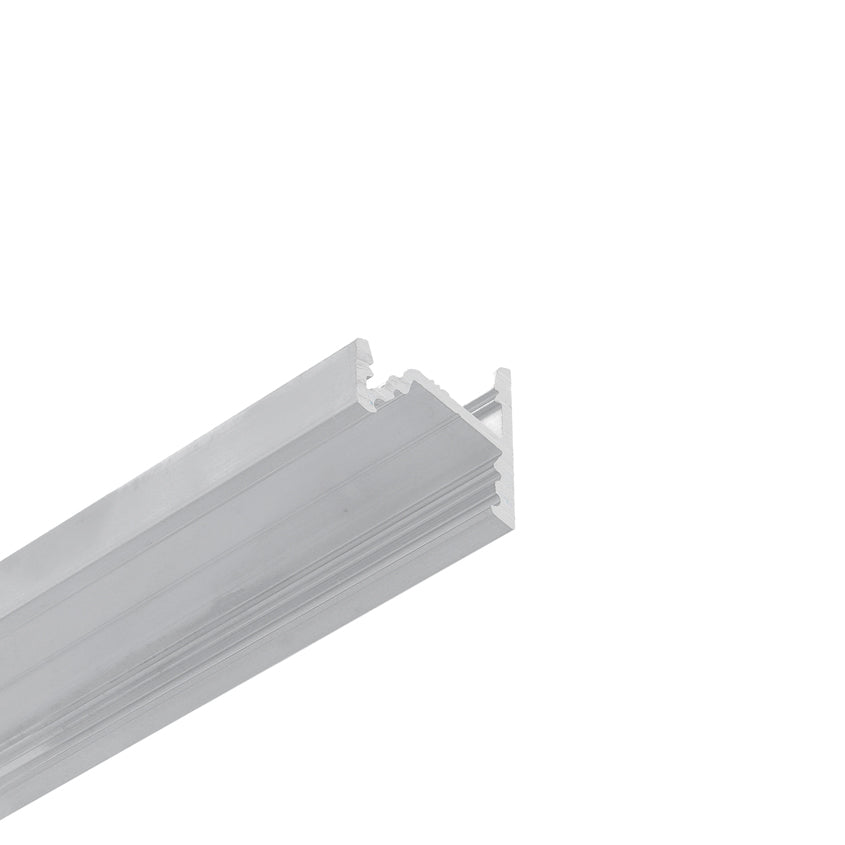

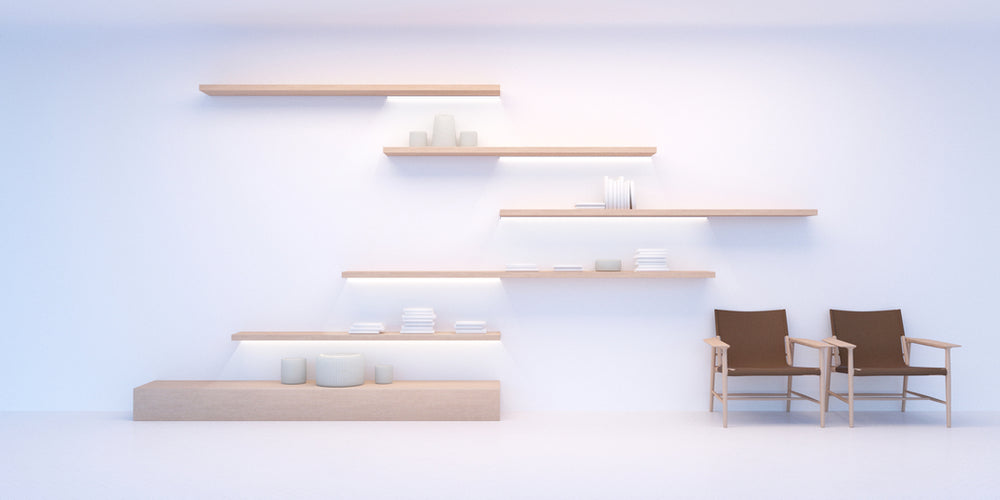

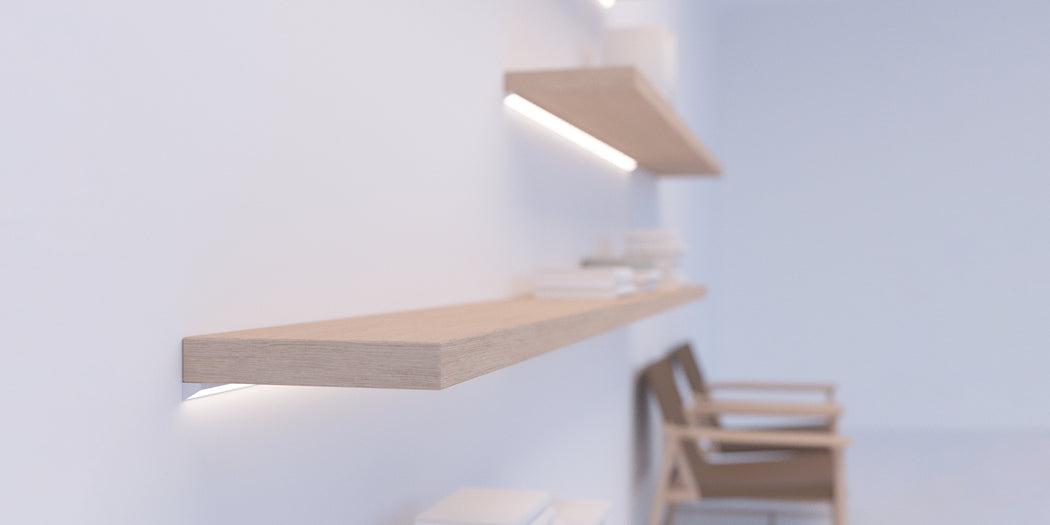

The Corner10.v2 LED channel is an aluminum corner LED profile designed for surface-mounted LED strip installations in cabinets, shelves, wardrobes, drawers, and other furniture applications.

It supports LED strips up to 10mm wide and provides either a 30° or 60° lighting angle depending on the mounting orientation. Its lightweight design is approximately 30% lighter than the previous version, making it easier to handle and install while maintaining durability.

Compatible diffusers and end caps help protect the LED strip from dust, dirt, and minor impacts while creating a clean, finished appearance. For a secure and reliable installation, the profile is recommended for use with dedicated U1 mounting brackets.

The aluminum construction functions as an efficient heat sink, helping dissipate heat from the LED strip to improve performance and extend its lifespan.

General specifications

  • Material: Aluminum
  • Maximum LED strip width: 10mm
  • Full circle quadrant illumination

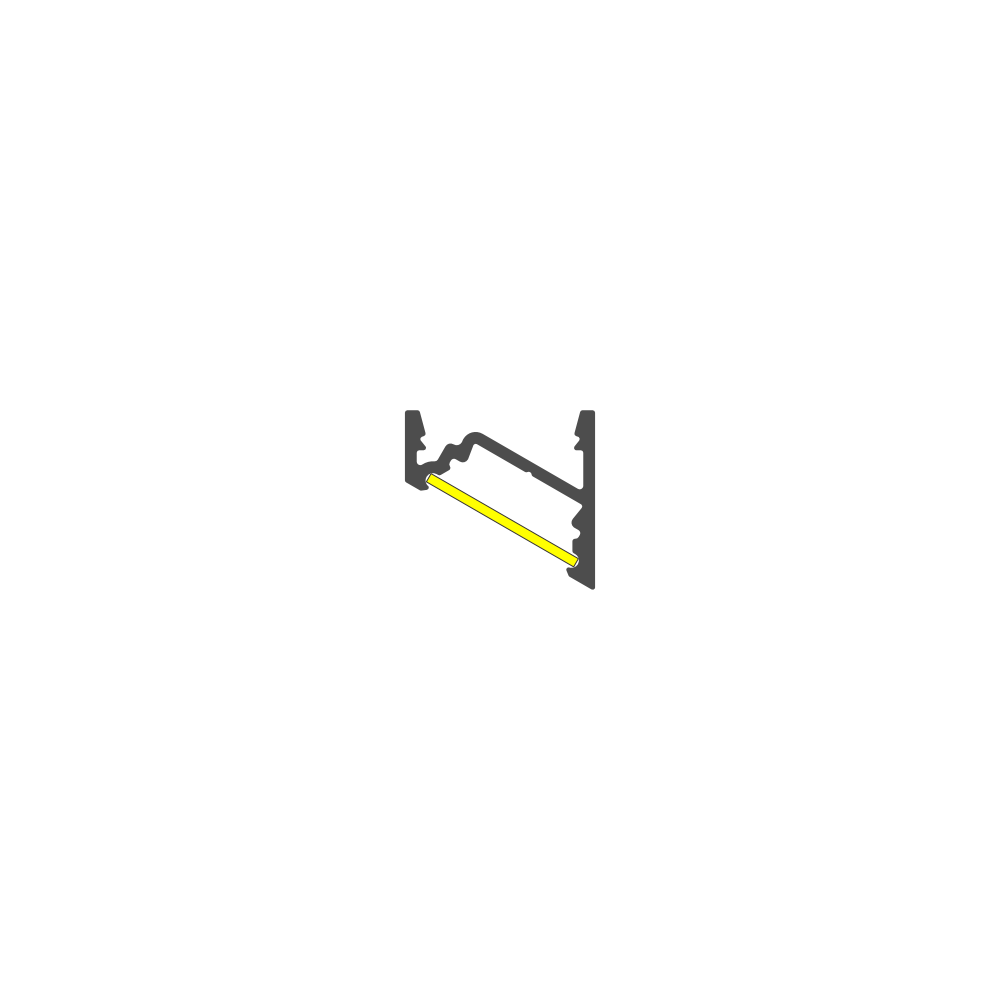

  • LED strip aligned to 30° or 60° angle

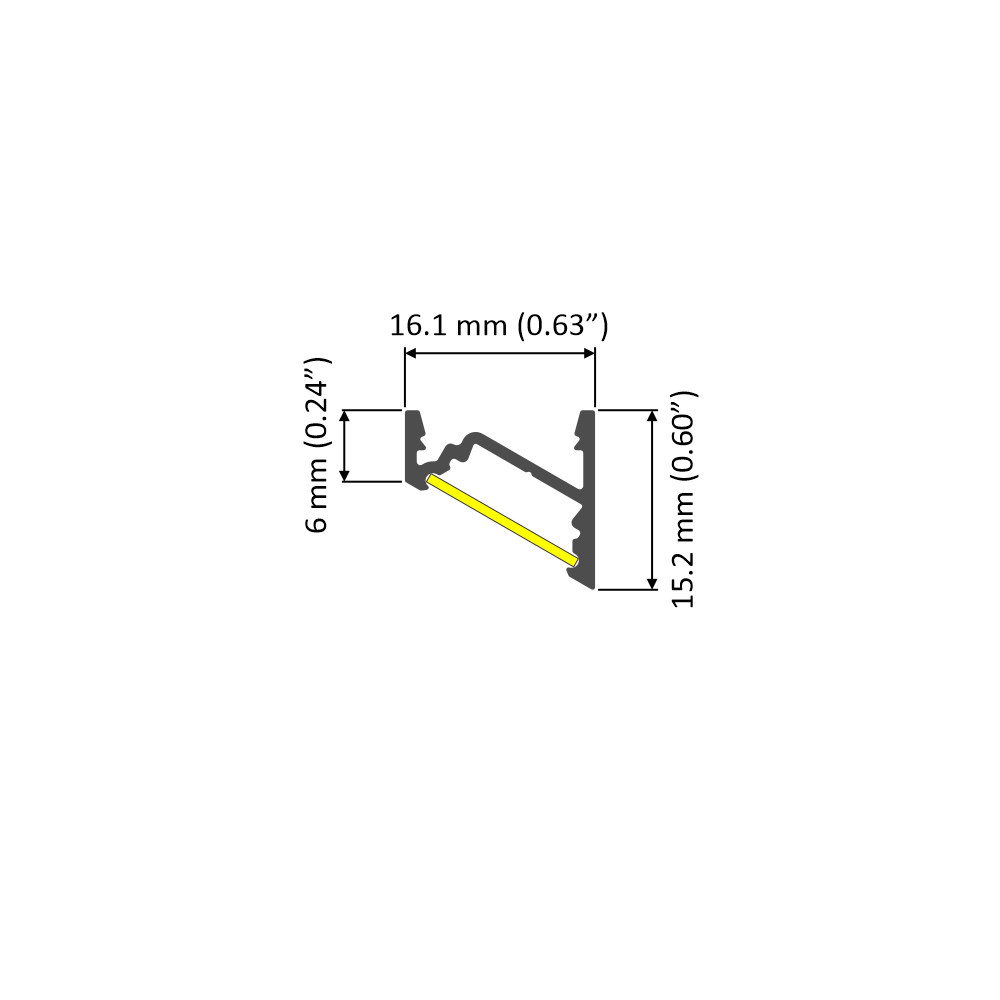

  • Overall dimensions: 16.1 mm x 15.2 mm (0.63" × 0.60")

Downloads

  • Corner10.v2 cut sheet - to be added

Important notes

  • You can easily cut LED profiles by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
  • We ship items in stock the same day from Knoxville, Tennessee, United States. Our team dedicates themselves to carefully packing and safely delivering all packages to their destination.
  • Bulk pricing is available on request. For larger orders, we offer additional discounts and customized pricing to fit your project needs. All in all, please contact us to learn more about our bulk pricing options.
