diffuser tube only ~ end caps, LED strip and all other accessories are sold separately

Please contact us for a custom complete LED fixture using this tube

Description

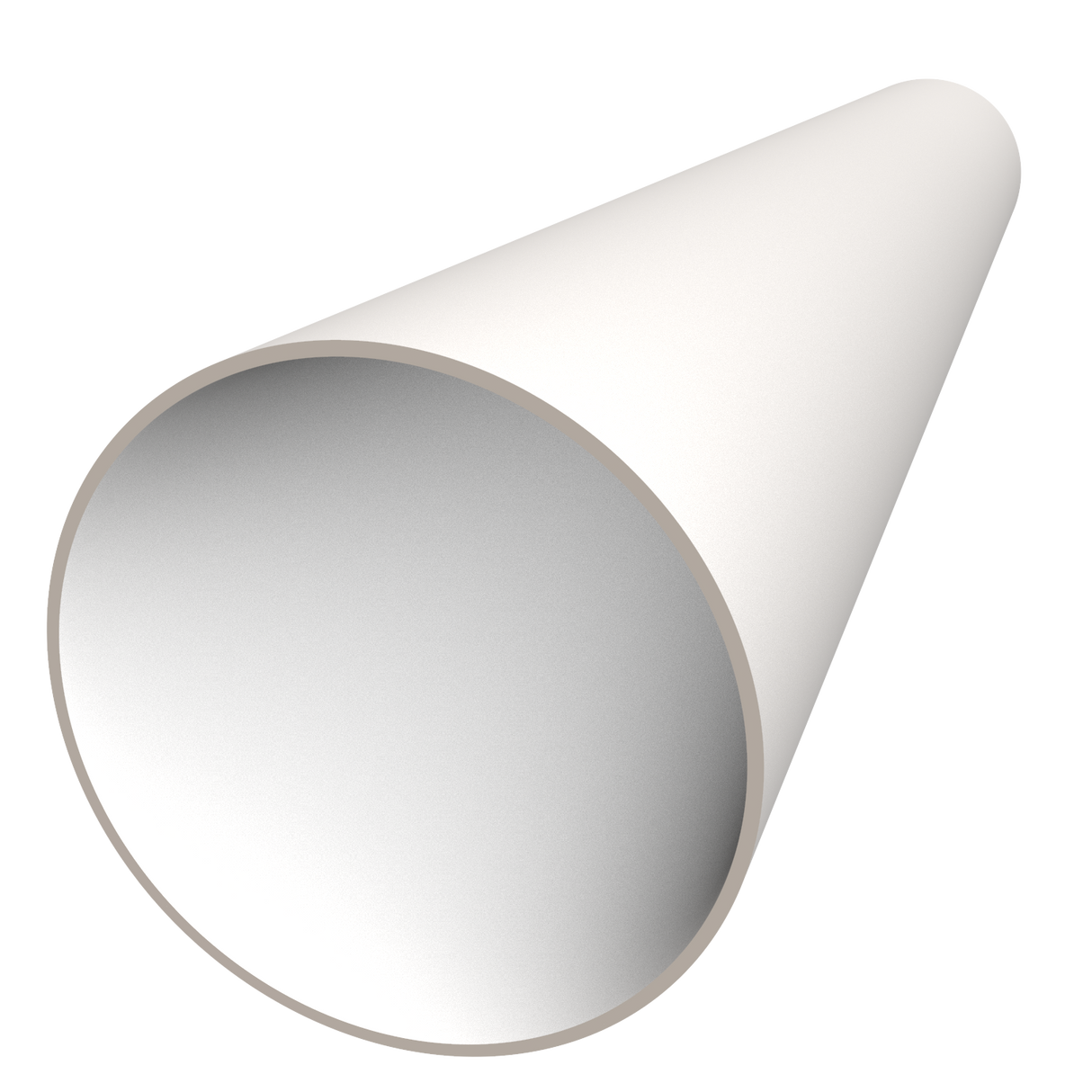

Our Smokies150 series is a 5.90" diameter round acrylic LED diffuser tube with a slot for a square tube to mount LED strip and held in place by the end caps.

Our Smokies150 tubes are made of strong acrylic and are available in frosted white (opal) or black (smoky gray) options to suit your application. The tubes appear as a solid white or black when they are unlit, and take on the LED color when illuminated. This is particularly effective when combined with RGB or RGB pixel LED strip.

These LED diffuser tubes are strong enough to be self-supporting, which allows for many imaginative installations such as a horizontally suspended tube light (from each end) or a vertical pendant light (from one end), as a floor standing column or pillar light, or simply as a wall-mounted fixture.

General specifications

• Maximum LED strip width:
• Maximum LED power
• Outside diameter: 150mm (5.90")
• Colors: White (Opal)
• Materials:
  • Diffuser tube: Acrylic
  • Heat dissipation plate: Aluminum

Downloads

• Smokies150 cut sheet - To be added soon

Important notes

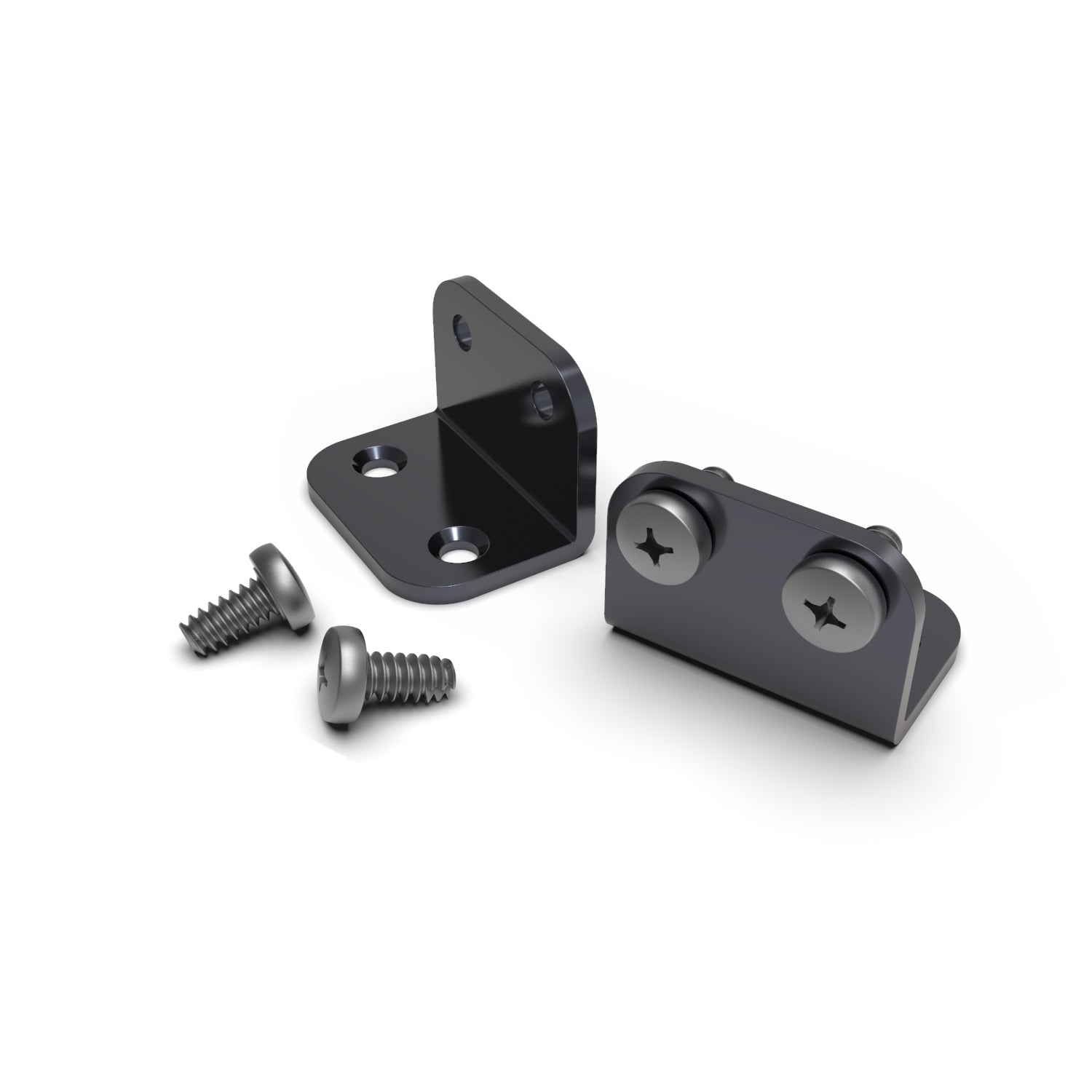

• LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
• Please note that raw or natural profiles channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
• LED profiles can easily be cut by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We can also assemble a plug and play light fitting with this profile according to your specifications.
• Please note that we cannot refund or replace LED profiles and covers that have been cut.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request
