Beetle Clip

Original price - Original price
Original price
-
Current price
SKU LED-BTL-S/W8

clip only ~ LED strip and channels and all accessories are sold separately


Description

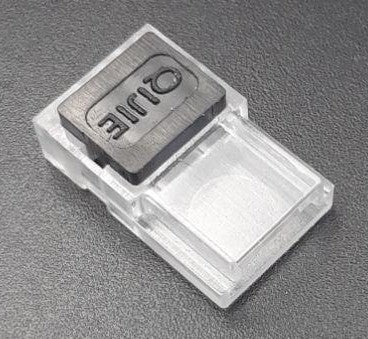

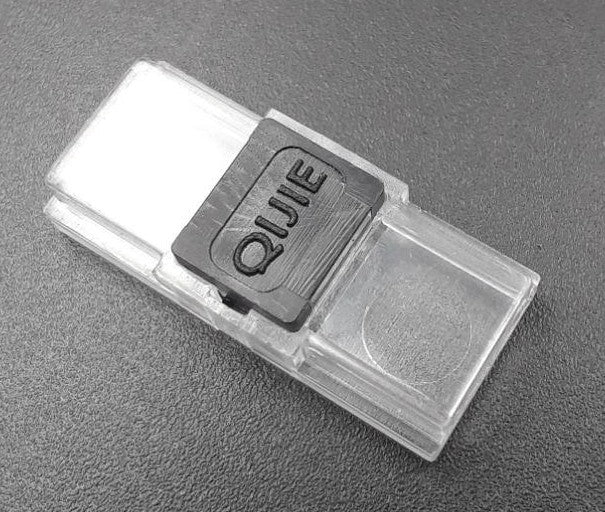

Our beetle clip is available in wire-to-strip and strip-to-strip connector options for IP20 LED strip. Select the 8mm or 10mm LED strip connector to suit the strip you are using.



General specifications

  • Dimensions

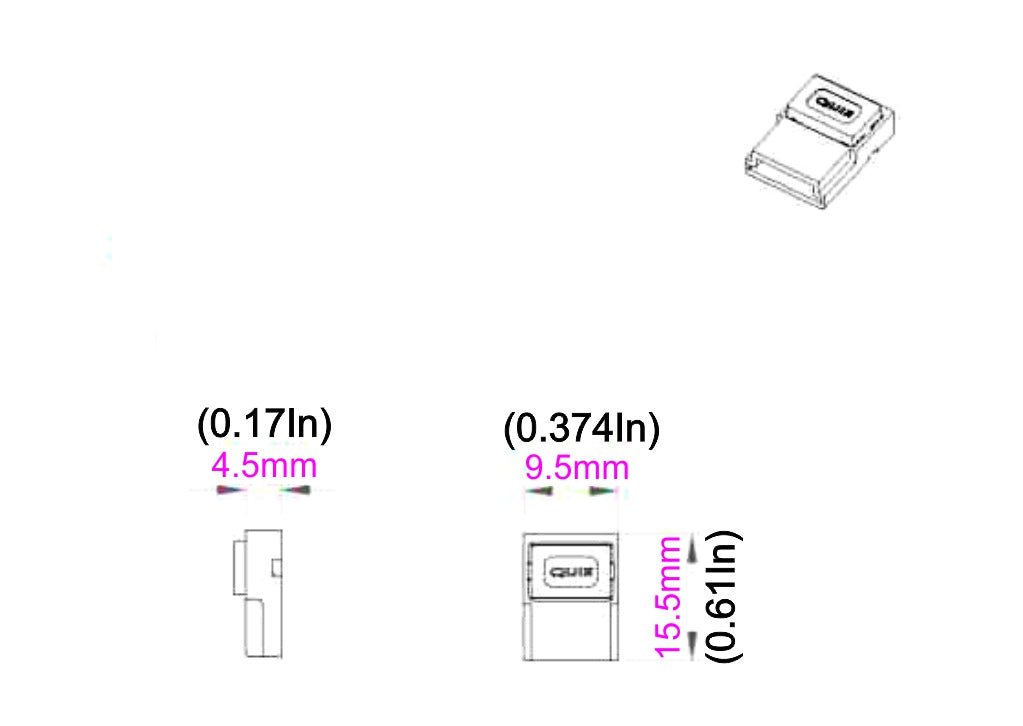

    • 8mm strip-to-wire  0.374In wide x 0.61In long x 0.17In thick

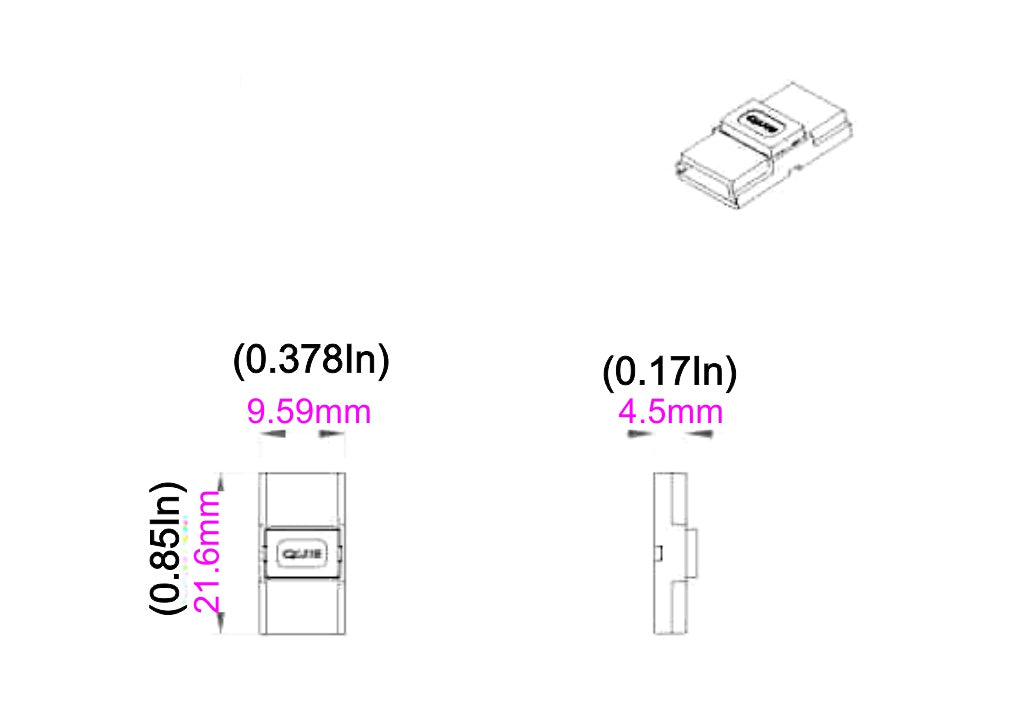

    • 8mm strip-to-strip  0.378In wide x 0.85In long x 0.17In thick

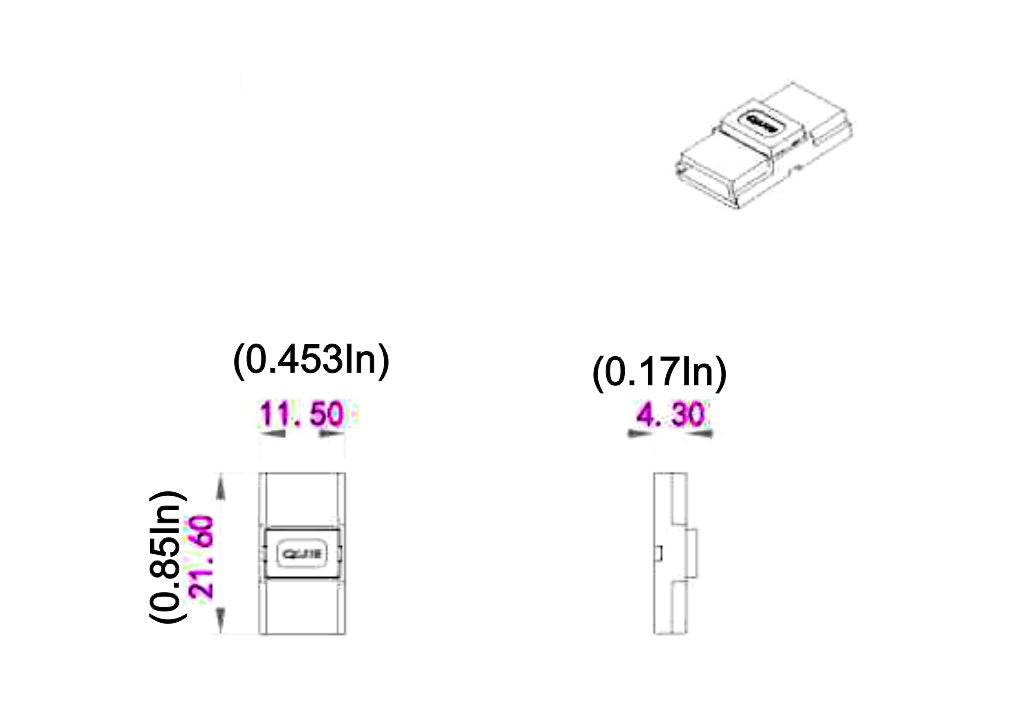

    • 10mm strip-to-wire  0.453In wide x 0.85In long x 0.17In thick
  • Max current of pin: 5A
  • Voltage: 3V DC ~ 36V DC
  • Ambient working temperature: 14deg F to 104deg F
  • Heat resistance: 221deg F
  • Recommended wire gauge: 22-20 AWG / 0.34-0.52mm sq
  • Indoor use only IP20 rating
  • One time use only (Press down on black button only when the wire and strip is in place)

Important notes

  • LED strip, covers, mounting brackets, endcaps, shelf/sign panels and other accessories are sold separately from the aluminum profile.
  • We can also assemble a plug and play light fitting with this profile according to your specifications.
  • Please note that we cannot refund or replace clips that have been used.
  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request
