Waterproof Recessed Aluminum LED Channel ~ Model Berlin XL

SKU LED-BERLINXL-04.005-2
Original price - Original price
Original price
-
Current price
Shipping restrictions

We cannot ship rigid items over 2.4m (8ft) in length due to freight restrictions. These products are offered for customer pickup only. Please refer to our Shipping Policy for further information.

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

Profile only ~ diffusers and all other accessories are sold separately

Description

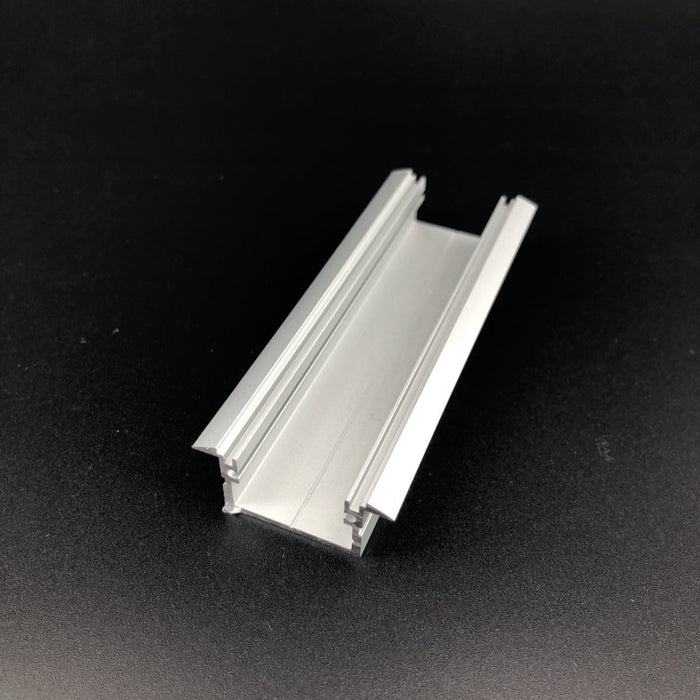

The Berlin XL waterproof LED channel is manufactured in high purity silver anodized aluminum and is ideal for embedding in furniture, shelving and similar areas where a width greater than the standard is required. This allows us to use wider LED strips for an increased heat dissipation and a wider angle of light emission.

Our patented "Easy On" LED channel system provides and IP65 rating to the luminaire. Therefore, the profile can be used in places with high levels of humidity, such as bathrooms, kitchens, gyms, spas, cold storage chambers, fridges and similar. This profile is suitable for LED strips with a maximum width of 15mm and a power not greater than 15W/m, as there is no ventilation when embedded in wooden surfaces.

This system comes with a 10-year guarantee on the profiles and a 4-year guarantee on the "easy on" diffusers. We have developed 21 different profiles so far in this range of Waterproof LED Channel.

General specifications

  • Material: Aluminum

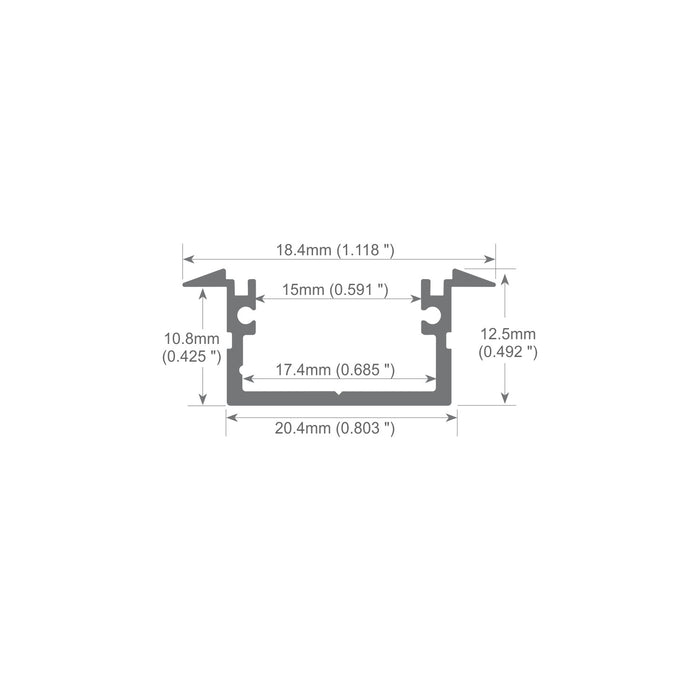

  • Overall dimensions: 28.4mm x 12.5mm (1.11" x 0.49")
  • Maximum LED strip width: 15mm

Downloads


Common Uses For This Recessed Black Aluminum LED Channel

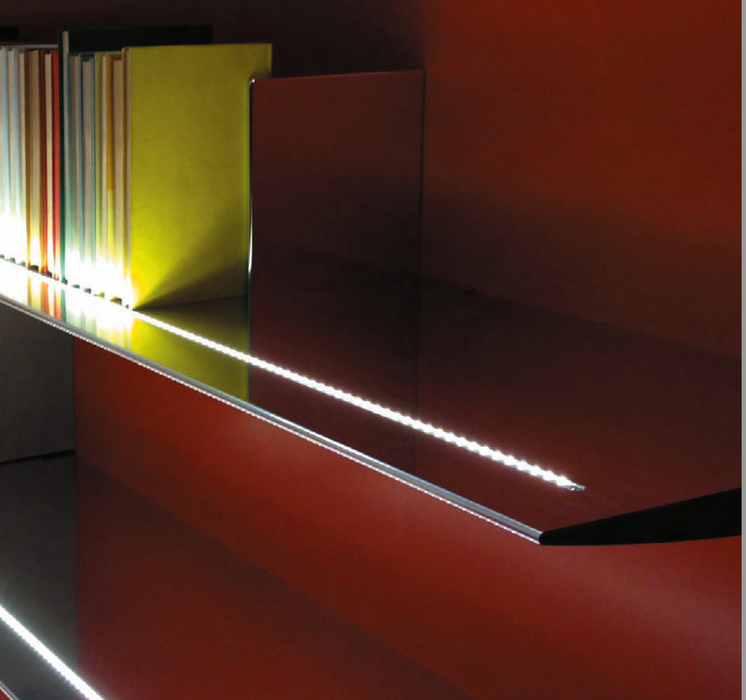

  • shelf lighting
  • bookshelf lighting/bookcase lighting
  • under shelf lighting
  • led shelf
  • under cabinet strip lighting
  • led shelf light
  • display shelf lighting
  • built-in bookshelf lighting
  • a floating shelf with recessed lighting
  • lighting on top of bookcase

Important notes

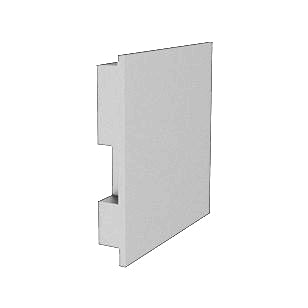

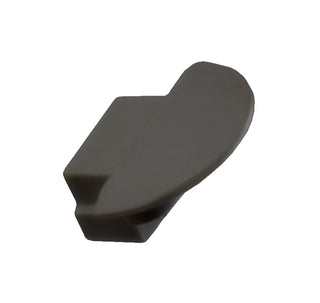

  • LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
  • Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
  • LED profiles can easily be cut by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • Please note that we cannot refund or replace LED profiles and covers that have been cut.
  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request
