Recess LED Strip Channel ~ Model RPL35-FL [Profile Only]

Profile only ~ accessories sold separately

Description

Recess LED Strip Channel ~ Model RPL35-FL

The RPL35-FL LED channel is a narrow, high-quality aluminum anodized profile for plasterboard ceilings.

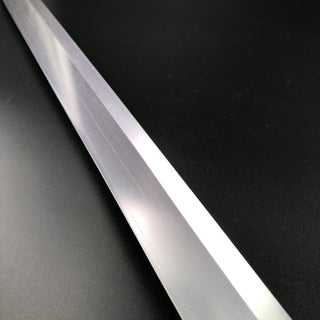

Additionally, the mounted ceiling LED strip channel profile can accommodate optional clip-in reflectors made out of highly polished aluminum for a better light distribution. This improvement increases the luminaire efficiency by 10-18% (depending on the LEDs type). Furthermore, the profile allows you to easily attach a 20mm wide PCB in the Zhaga standard.

Moreover, the Recess LED Strip Channel ~ Model RPL35-FL is designed to distribute the heat efficiently all the way up to 36W/m without going over 50 degree Celsius (ambient temperature 25 degrees C).

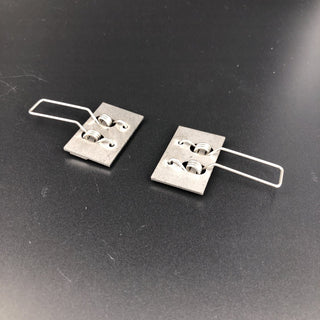

In addition, the profile is mounted in the ceiling using springs without any additional tools. Furthermore, the profile is designed for ceilings up to 18mm thickness. Additionally, channels at the top of the profile allow the installation of the power supply and security cables.

The RPL35-FL profile is available with UV and impact resistant, snap-in diffusers: smooth, matt, prismatic, smooth and prismatic matt.

General specifications

• Max allowable LED power: 11W/ft. (36W/m)
• Max width available for LEDs: 0.82In (21mm)
• Overall dimensions 1.89In wide x 1.4In high
• Available in the following lengths
• 1 Meter(3.28ft)
• 2 Meter(6.56ft)
• 3 Meter(9.84ft)

Downloads

• Cut sheet

Important notes

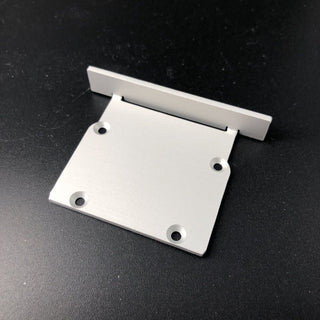

• We sell LED strips, covers, mounting brackets, end caps, shelf/sign panels and other accessories separately from the aluminum profile. Therefore, please select the available components below.
• Please note that in outdoor applications, raw or natural profiles or channels will oxidize over time unless they are coated or painted, as they are not anodized.
• You can easily cut LED profiles by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We can also assemble a plug-and-play light fitting with this profile according to your specifications. Therefore, please leave detailed instructions in the order comment box.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
• We ship items in stock the same day from Knoxville, Tennessee, United States. Additionally, our team dedicates themselves to carefully packing and safely delivering all packages to their destination.
• Bulk pricing is available on request. Moreover, for larger orders, we offer additional discounts and customized pricing to fit your project needs.
• Shipping on 3-meter lengths may differ from checkout calculation. Please contact us for more information.
