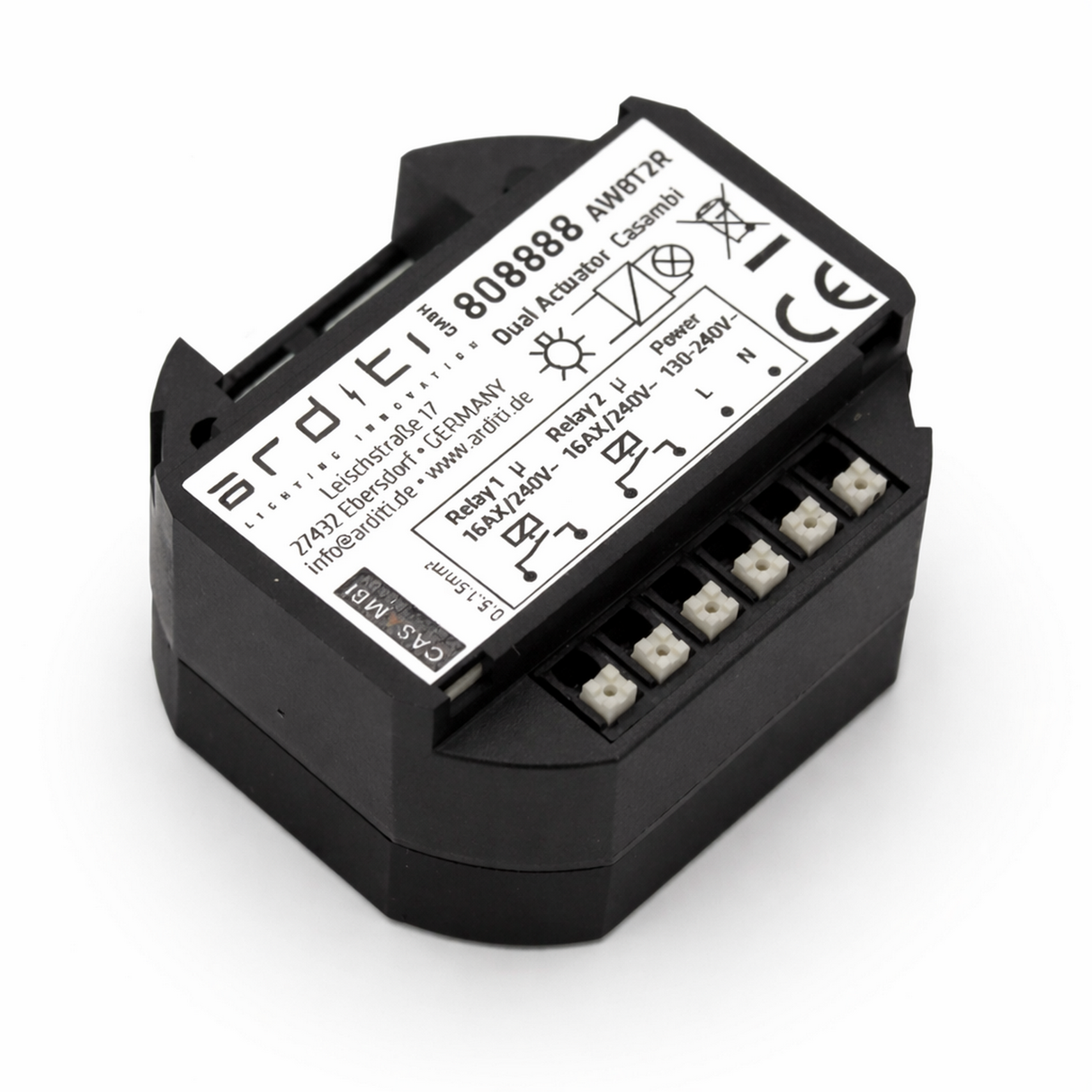

Casambi Smart Relay with Dual Switch

Relay module only ~ power supply and other accessories sold separately

Description

Control legacy lighting installations and other non-smart devices with ease using this dual switch actuator which has two independent relays that can be easily controlled using Casambi network. This Bluetooth relay light control is the ideal upgrade to incorporate older on/off lighting installations into your smart lighting network.

This smart 2-channel relay switch features two independent potential-free relays which are capable of switching mains voltages. The high inrush current capability makes this smart relay suitable for switching LED power supplies and other inductive loads.

It is a programmable relay and is versatile, with all configuration options available through the Casambi smartphone app. A test button makes it easy to check your wiring before finishing the installation.

With built-in Bluetooth for wireless operation and a compact design for installation inside a flush mount wallbox, this wireless relay module is optimized for use in a range of applications. As a smart dual relay controller with wireless Bluetooth capability, the double switch actuator with Casambi wireless light controller is the perfect lighting relay for any application.

Applications

• Casambi enabled wireless switches
• Energy-saving dual bistable relays
• Switching LED power supplies
• Smart control for legacy lighting
• Smart control relay

Important

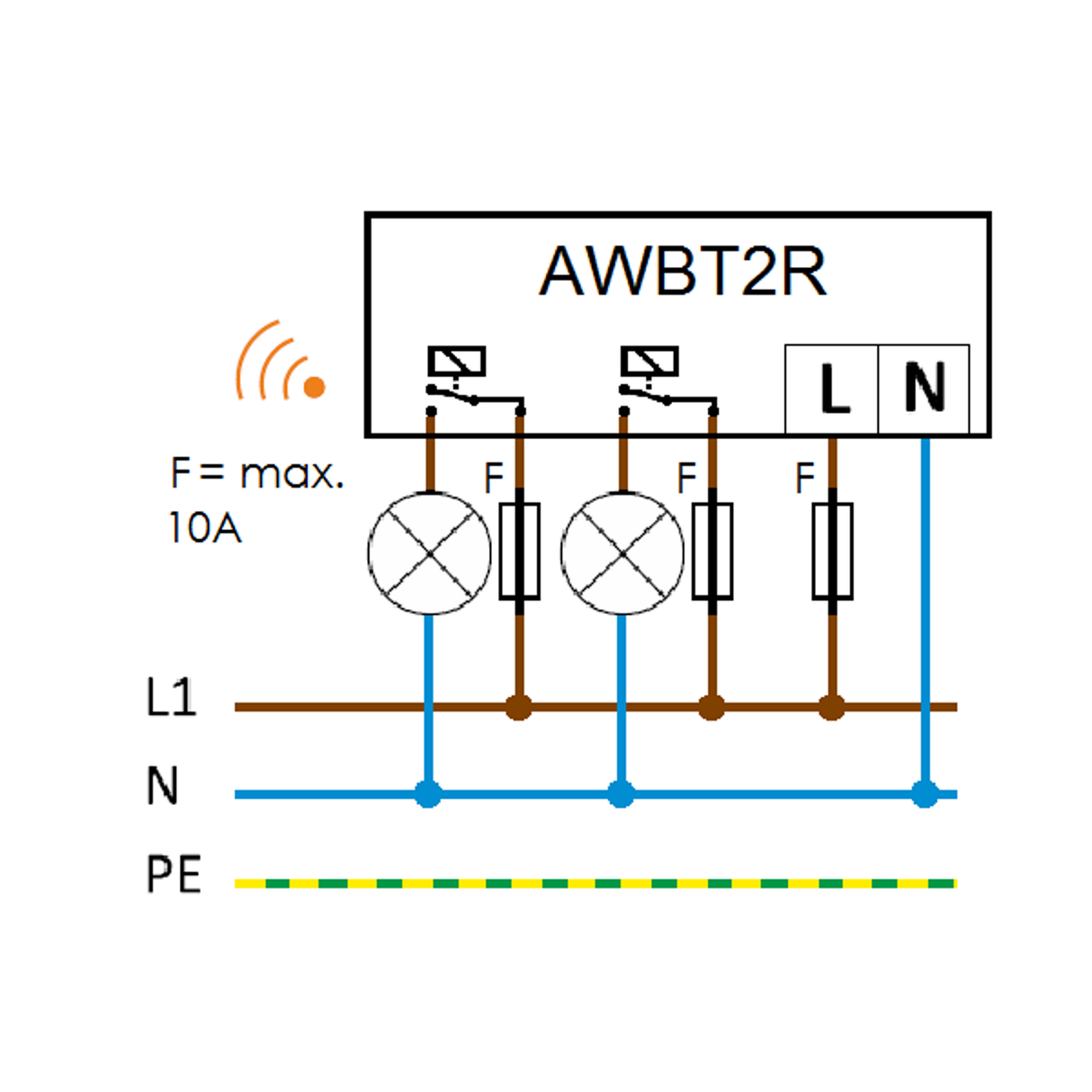

• Please protect the supply and each of the switched circuits with a 16A fuse.
• Do not install inside a metal enclosure

General specifications

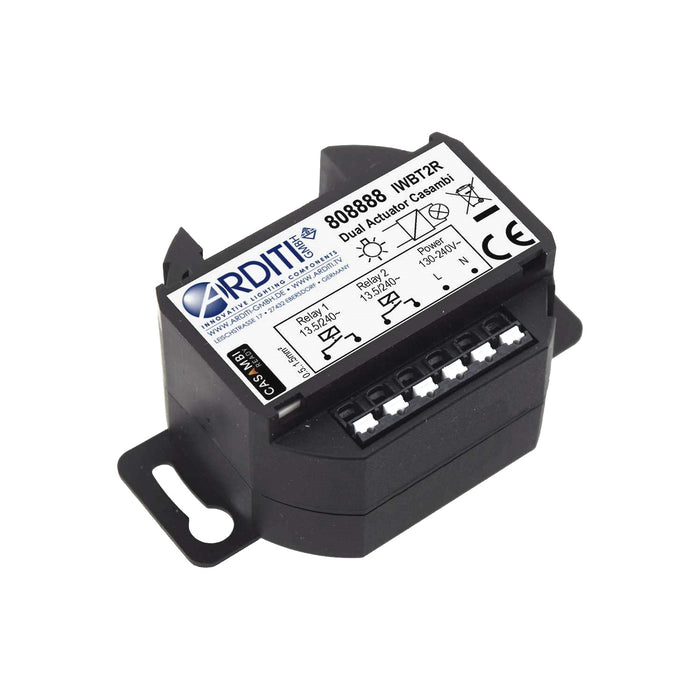

• Model: Arditi AWBT2R
• Control system: Casambi
• Relays: 2x SPST relays
• Supply voltage: 130–240V AC 50/60Hz
• Maximum switched voltage: 240V AC
• Maximum switched current: 16A per relay (protect with fuse)
• Maximum switched inrush current: 165A (20ms) per relay
• Test function: Push button
• Antenna: Integrated
• Installation: Inside flush mount box

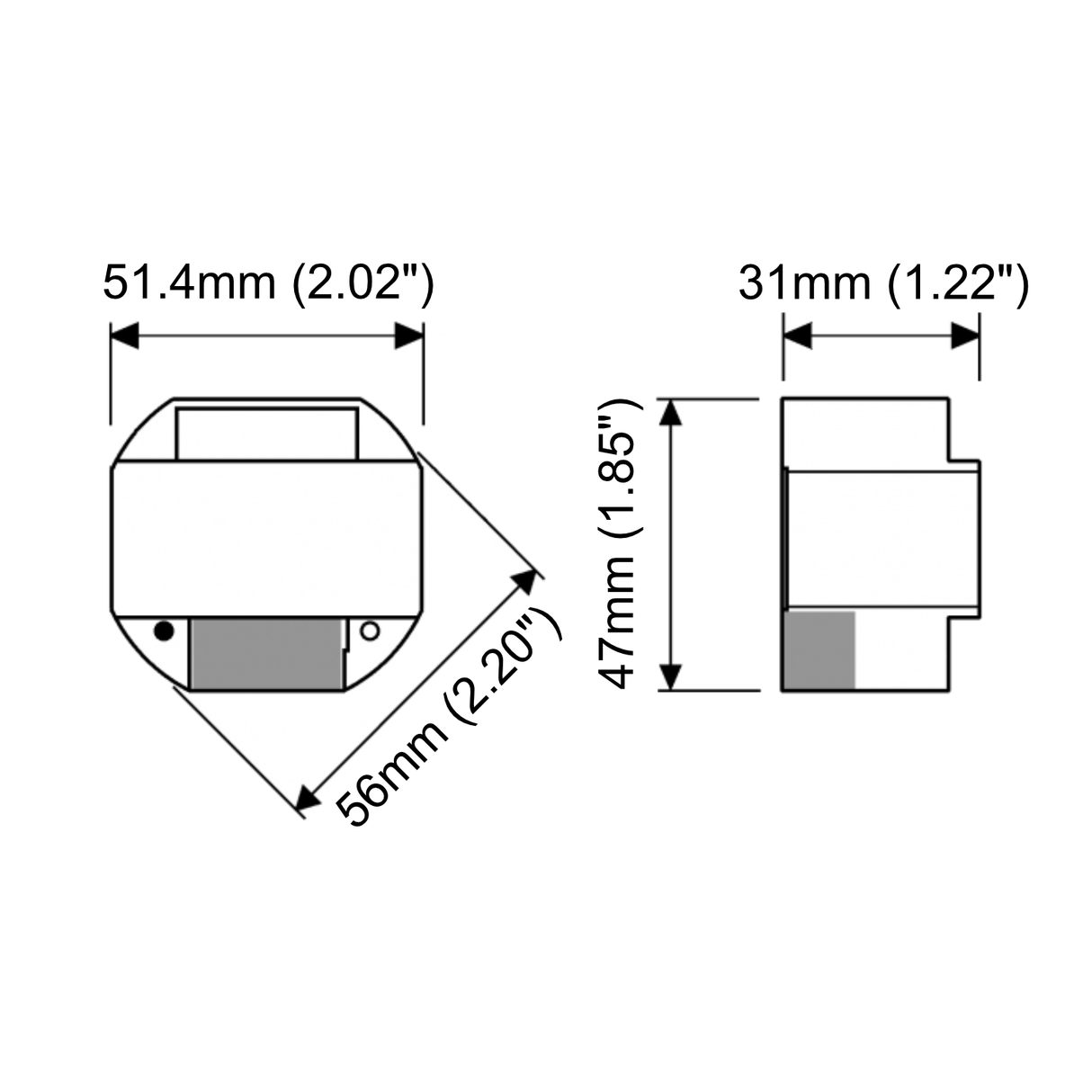

• Dimensions: 51.4 x 47 x 31mm (2.02" x 1.85" x 1.22")


Downloads

• Casambi Smart Relay cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
