Compact Wall Switch LED Driver & Dimmer (24V) ~ EnoLED EnoDim Series
Product details
Compact Wall Switch LED Driver & Dimmer only ~ all other accessories are sold separately
Description

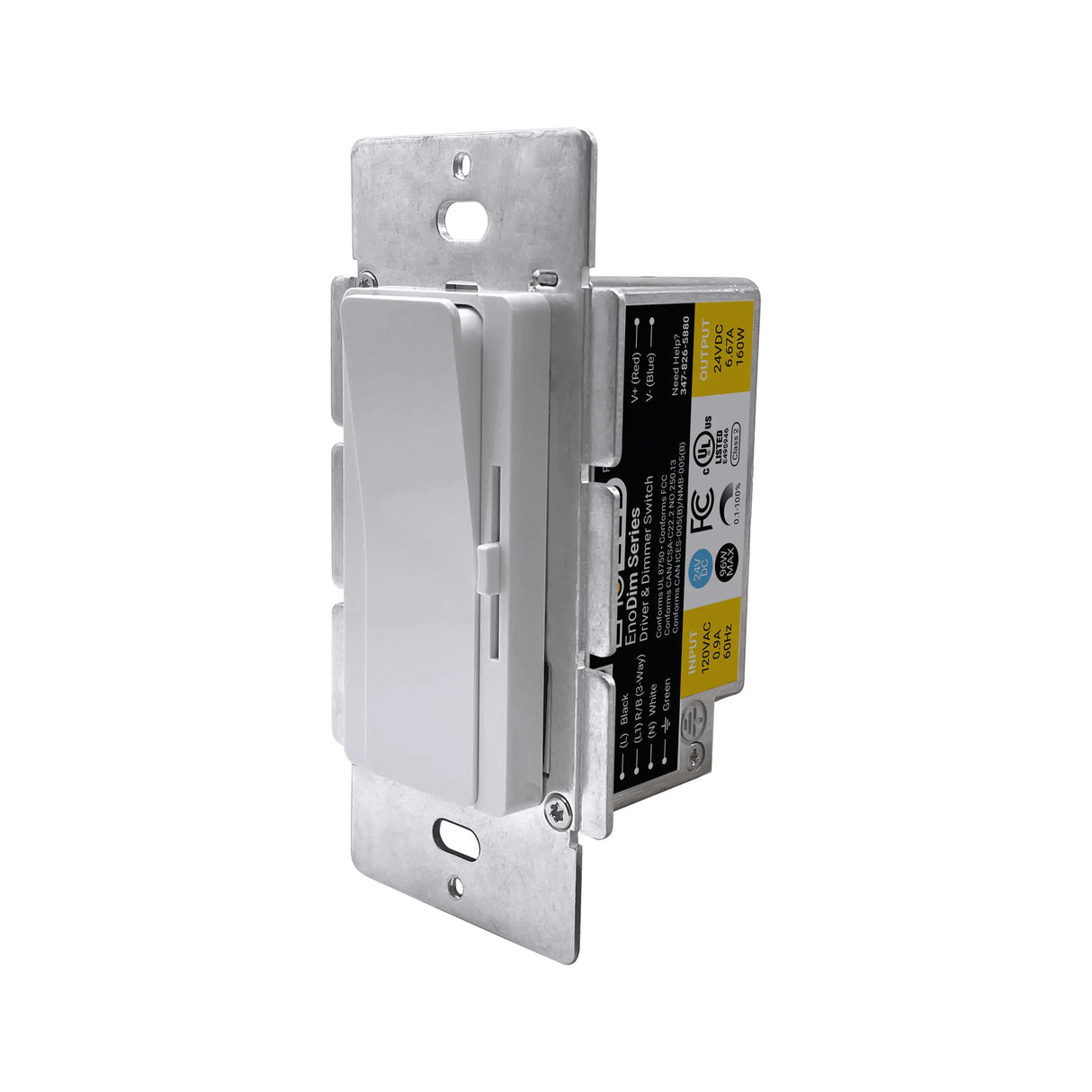

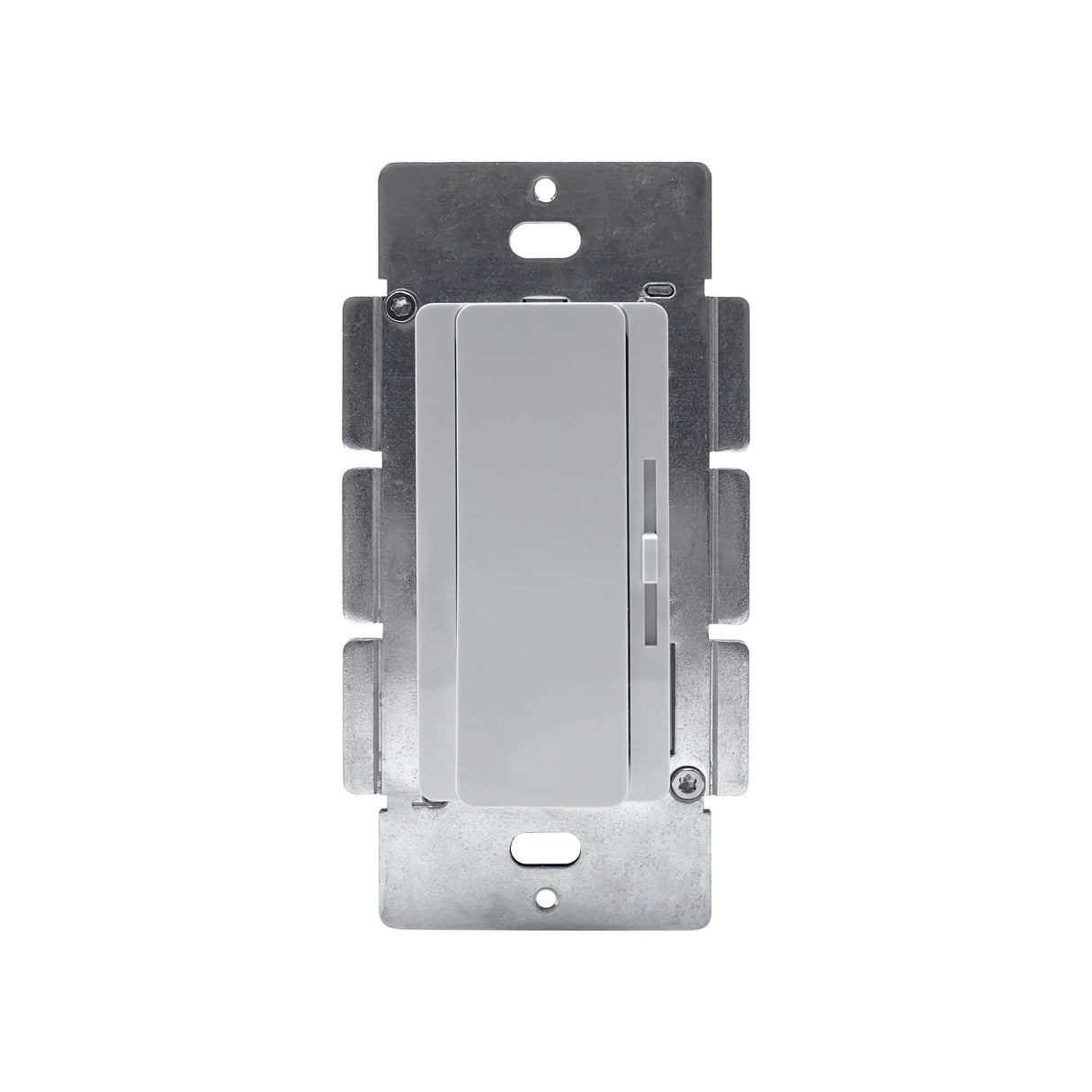

The EnoDim Series is a wall-mounted LED driver and dimmer combined in one sleek designer-style switch. It simplifies installation by integrating both functions into a single unit that fits standard wall plates, making it an ideal solution for remodeling projects where concealing a separate LED driver is difficult or impossible. The design features a large paddle switch with a small dimming slider, offering smooth dimming performance from 0.1% to 100% with no minimum load required.
The EnoDim Series delivers 96W or 160W at 24V DC with a 120V AC input, providing reliable power for a wide range of lighting applications. It is well-suited for LED strip lights, LED tape, cove lighting, linear lighting, and puck lights. With Title 24 Part 6 flicker requirements compliance, the EnoDim Series ensures consistent, high-quality performance in both residential and commercial projects.
For added flexibility, the unit supports both single-pole and 3-way configurations, making it adaptable to various installation needs. By combining power and dimming control in one compact device, the EnoDim Series provides a smarter, space-saving solution for modern lighting design
General specifications

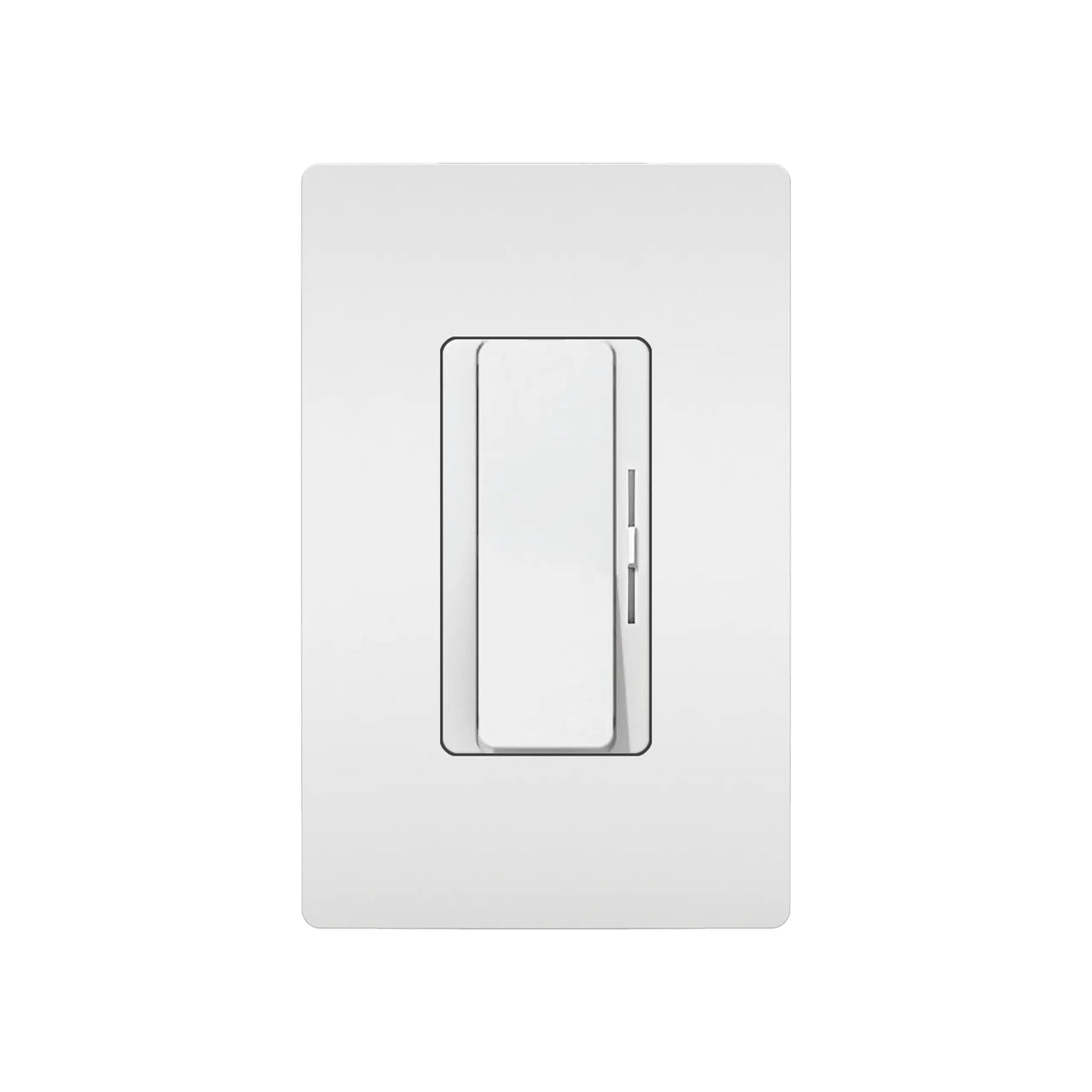

- Fits standard wall plates. Wall plate not included.
- Output voltage: 24V DC
- Max output power: 96W (Class 2) or 160W
- No minimum load required.
- Input voltage: 120V AC
- Input frequency: 60Hz
- Input current: 0.9A max
- Dimming type: PWM (20KHz)
- Dimming curve: Linear
- Min dimming level: 0.1%
- Certification: UL listed
- Compliant with Title 24 Part 6 Flicker Requirements.
- Operating temperature: -40°C – 40°C (-40°F – 104°F)

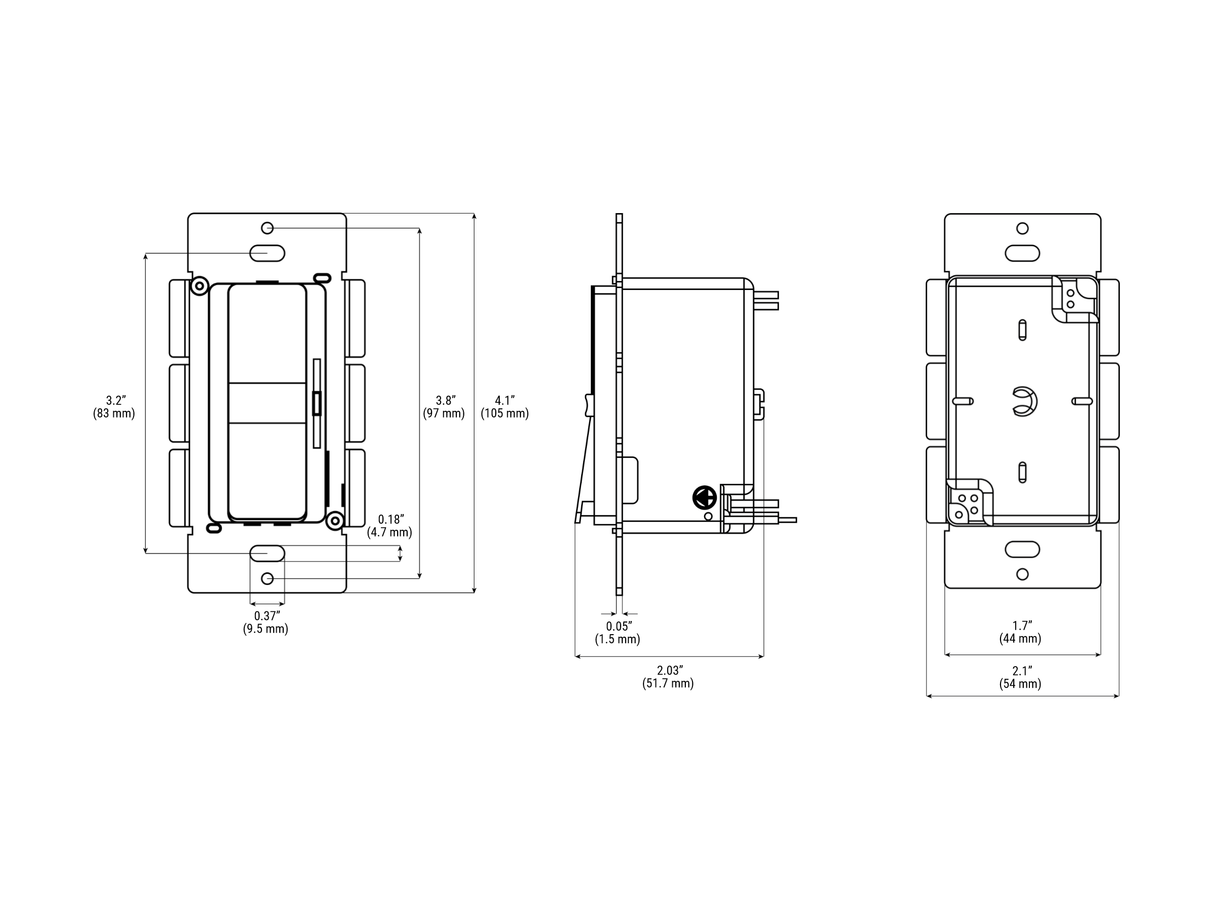

- Dimensions: 104.9 x 54.1 x 50.8 mm (4.13" x 2.13" x 2")
- Warranty: 6 years
Downloads
Important notes
- Items in stock are shipped the same day from Knoxville, Tennessee, United States.
- Bulk pricing is available on request.
