Tunable White Wall Switch LED Driver & Dimmer (24V) ~ EnoLED EnoDim Series

Compact Wall Switch LED Driver & Dimmer only ~ all other accessories are sold separately

Description

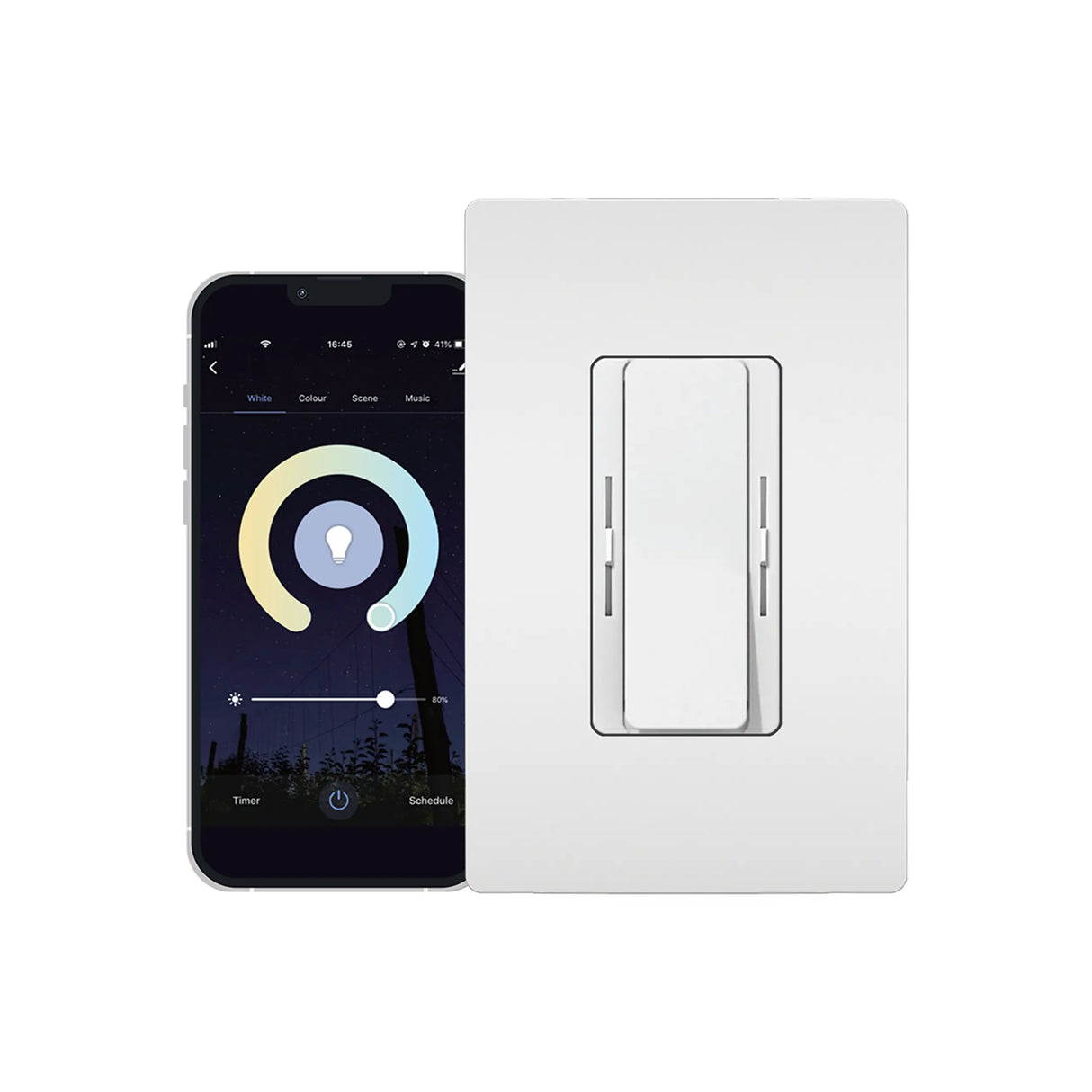

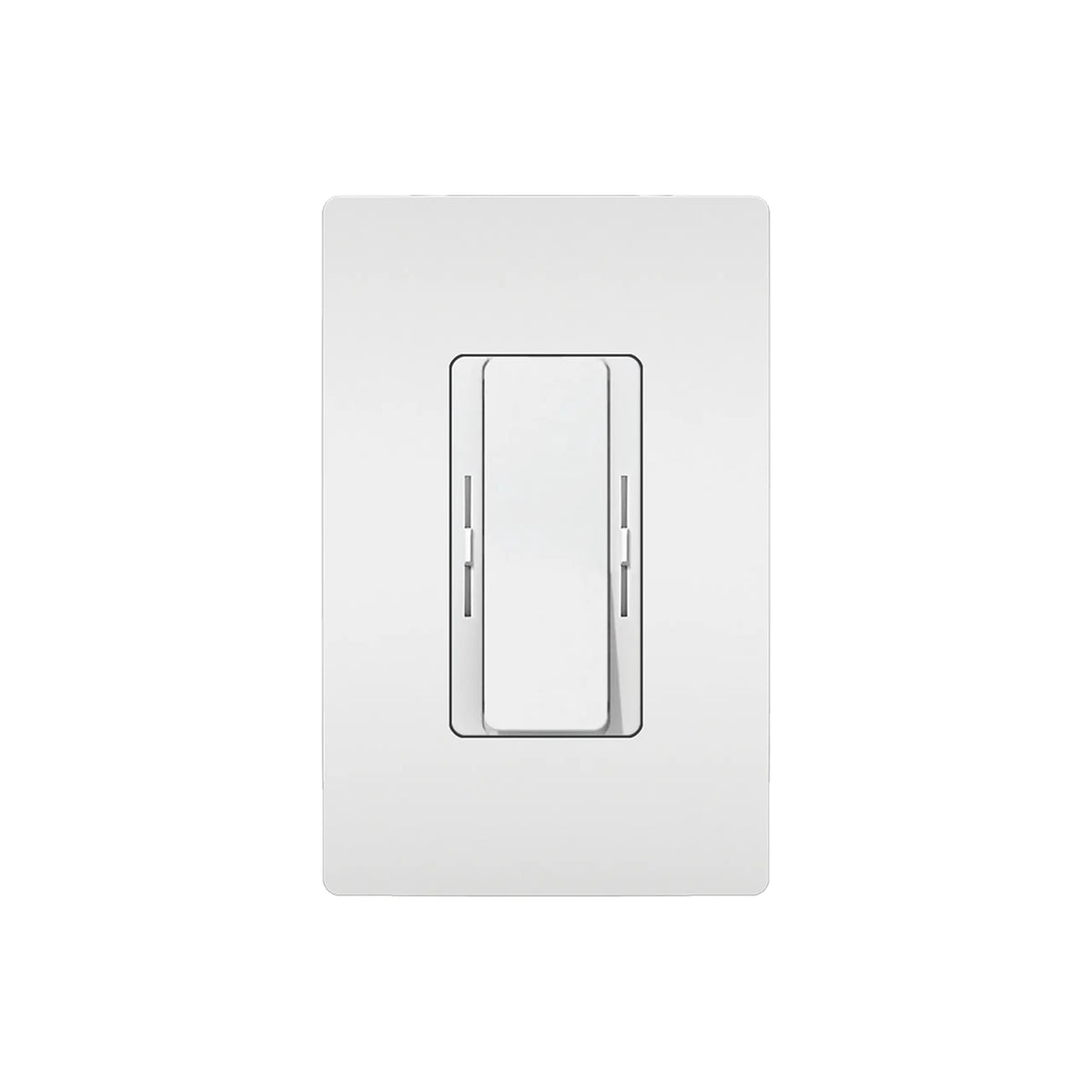

The EnoDim Tunable White Series is a 24V tunable white LED driver and dimmer wall switch that combines a smart LED driver and dimmer into a single device. It installs directly into a standard recessed electrical box, eliminating the need for a separate driver while providing a clean, space-saving solution for tunable white LED lighting.

Control brightness and color temperature through the Smart Life app, voice commands, or the wall switch. The driver delivers smooth, flicker-compliant dimming down to 0.1% with adjustable output to help prevent voltage drop and maintain consistent lighting performance. It supports both single-pole and 3-way installations, requires no minimum load, and is compatible with COB LED tape, LED strips, and standard Decora wall plates.

General specifications

• Fits standard wall plates. Wall plate not included.

• Output voltage: 24V DC
• Max output power: 96W
• No minimum load required.
• Input voltage: 120V AC
• Input frequency: 60Hz
• Input current: 0.9A max
• Efficiency: 91%
• Dimming type: PWM (20KHz)
• Dimming curve: Linear
• Min dimming level: 0.1%
• Compliant with Title 24 Part 6 Flicker Requirements.
• Operating temperature: -40°C – 40°C (-40°F – 104°F)
• Dimensions: 105 x 54 x 51mm (4.13" x 2.13" x 1.99")
• Warranty: 6 years

Downloads

• EnoDim Tunable White Series cut sheet
• Installation instructions

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
