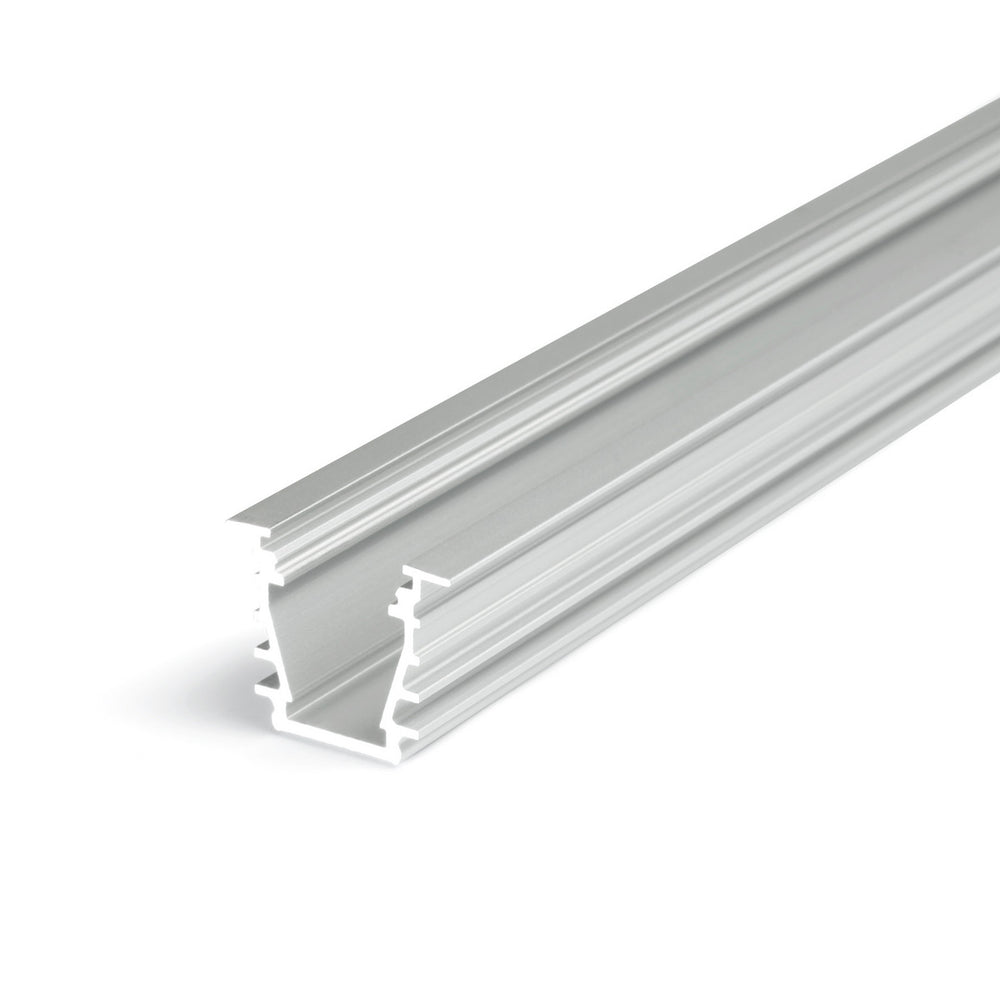

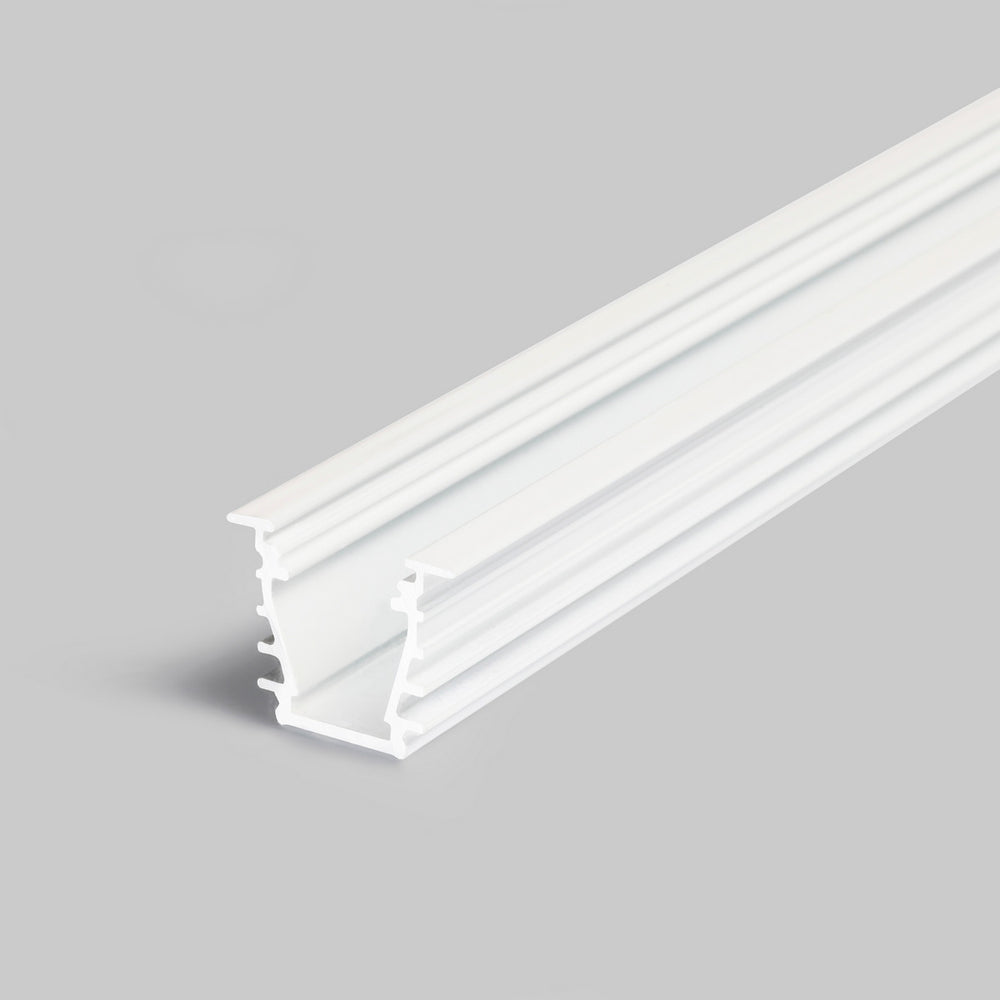

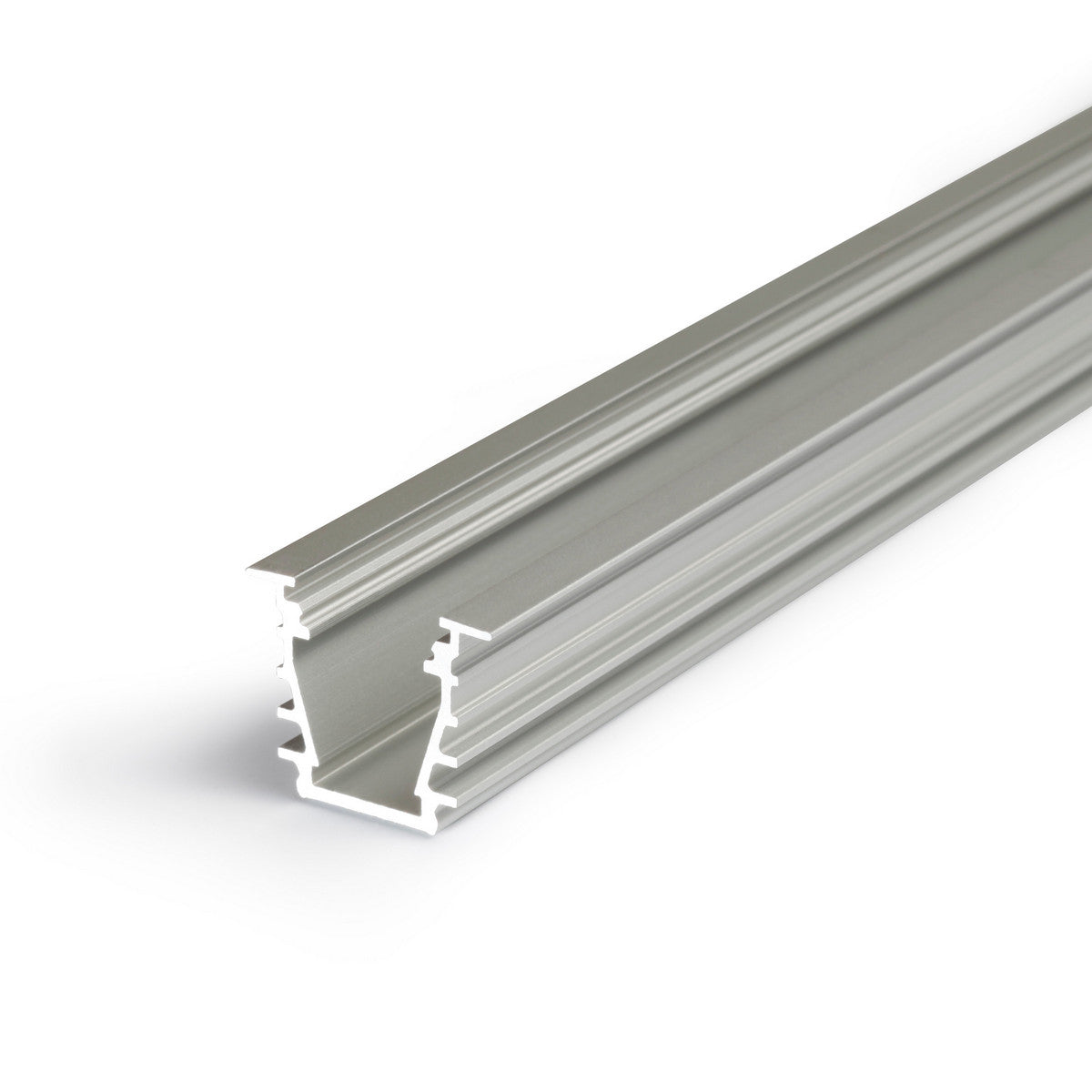

0.39" Recessed LED Channel ~ Model Deep10

Profile only ~ dot free diffusers and all other accessories are sold separately

Description

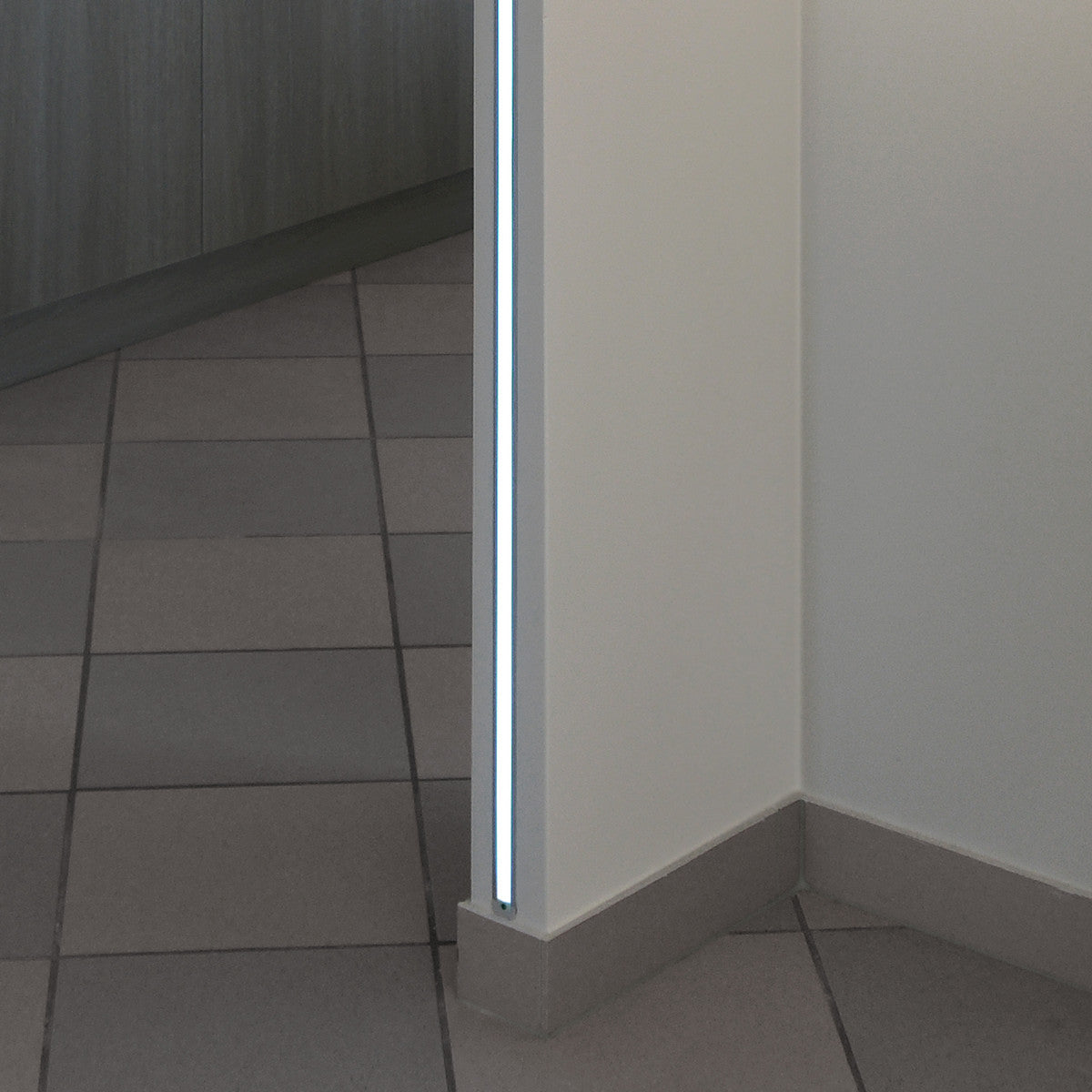

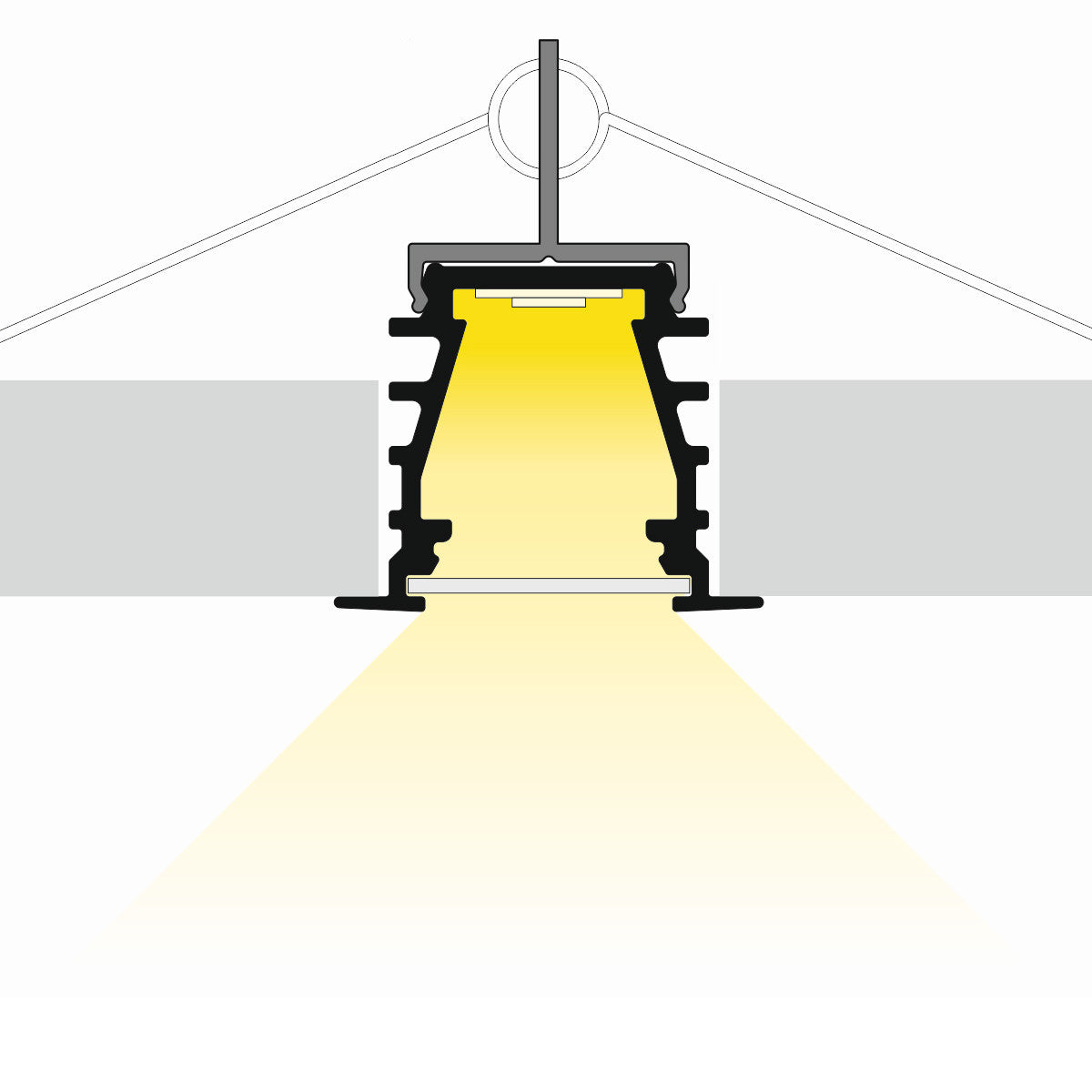

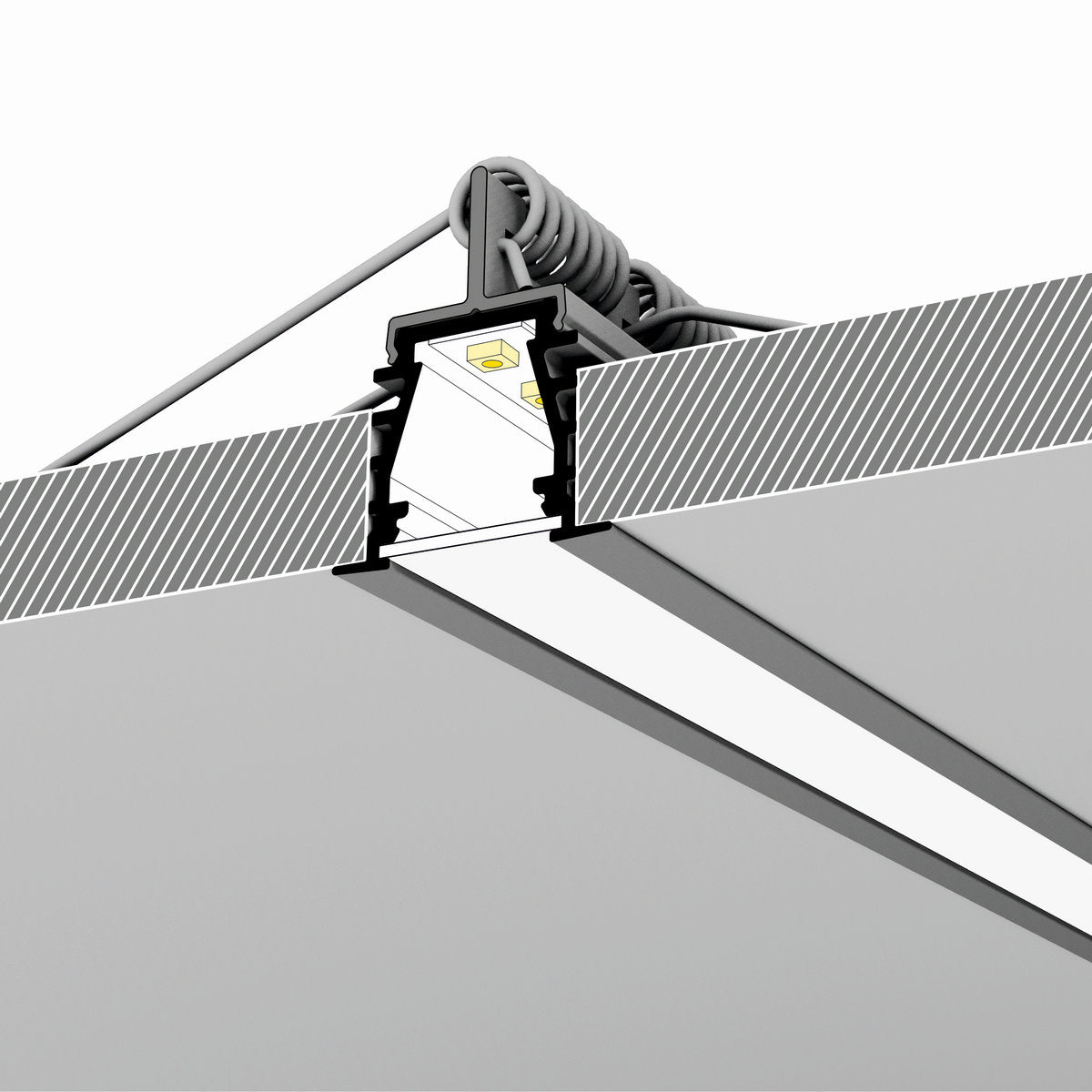

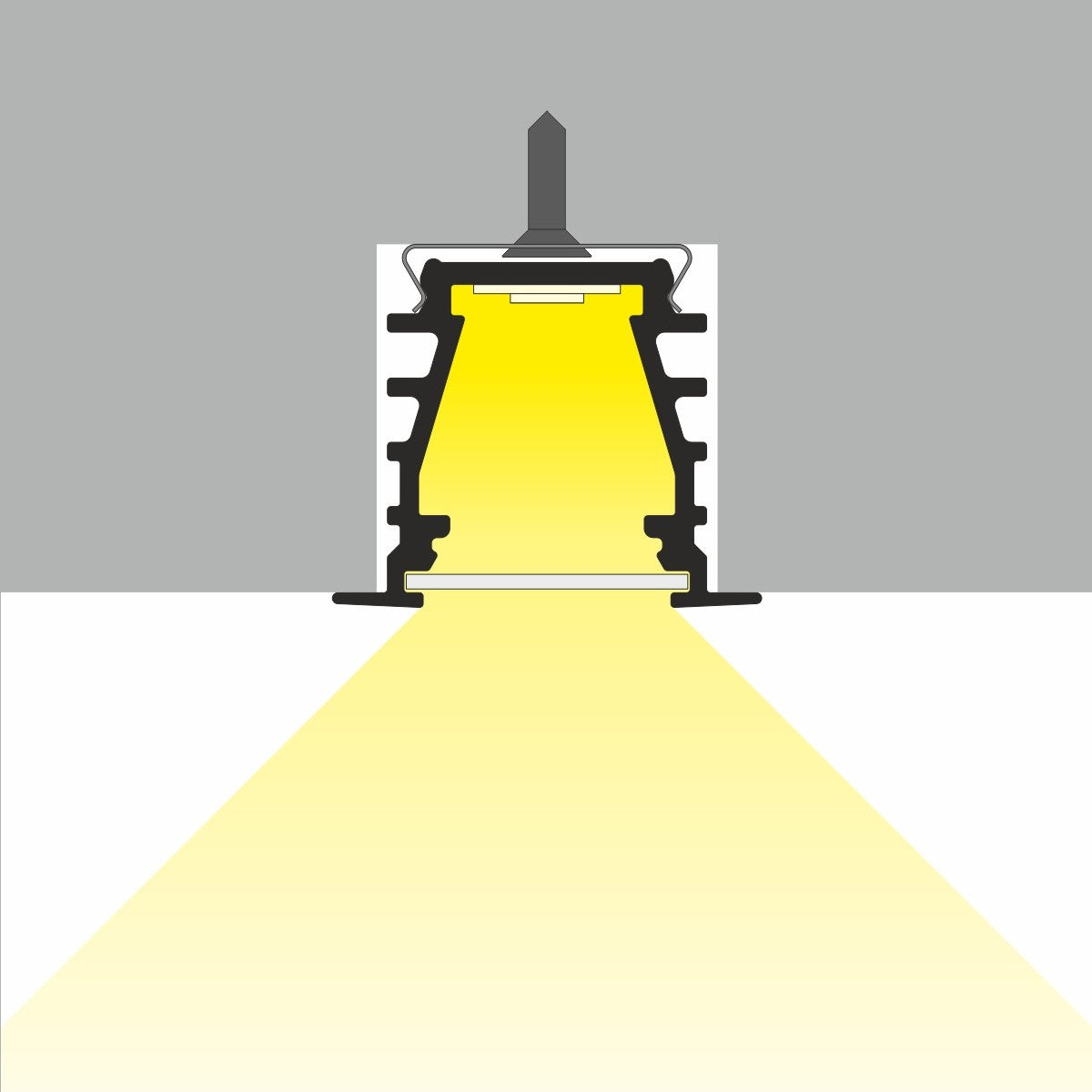

You can use this dot-free plasterboard LED lighting profile, in furniture lighting as well as building and architectural arrangements. And, the deep section of this channel helps you to provide a soft smooth light.

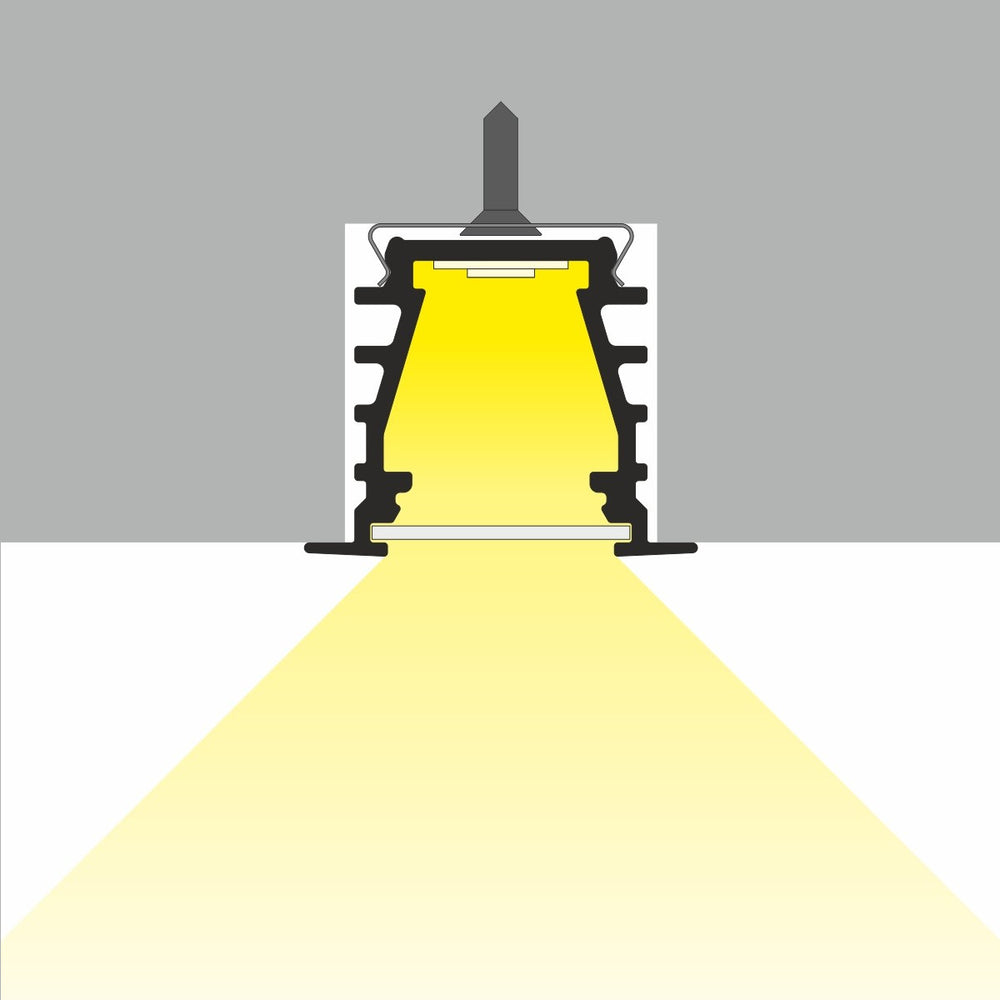

By using a 120 LED/m strip and an opal diffuser, you can achieve a completely continuous (dot free) result. Additionally, this recessed plasterboard profile can hold LED strips with a maximum width of 10mm and its angled internal sides reflect light to enhance overall output.

Covers

The B Slide Cover is the most cost effective version of the cover, however the C Click cover is more convenient for assembly and disassembly. After installing the plasterboard channel, you can easily click the C Click cover into place, while you need to insert the B Slide cover before closing the ends.

The C Click lens cover directs the light beam into a 40-degree angle.

General specifications

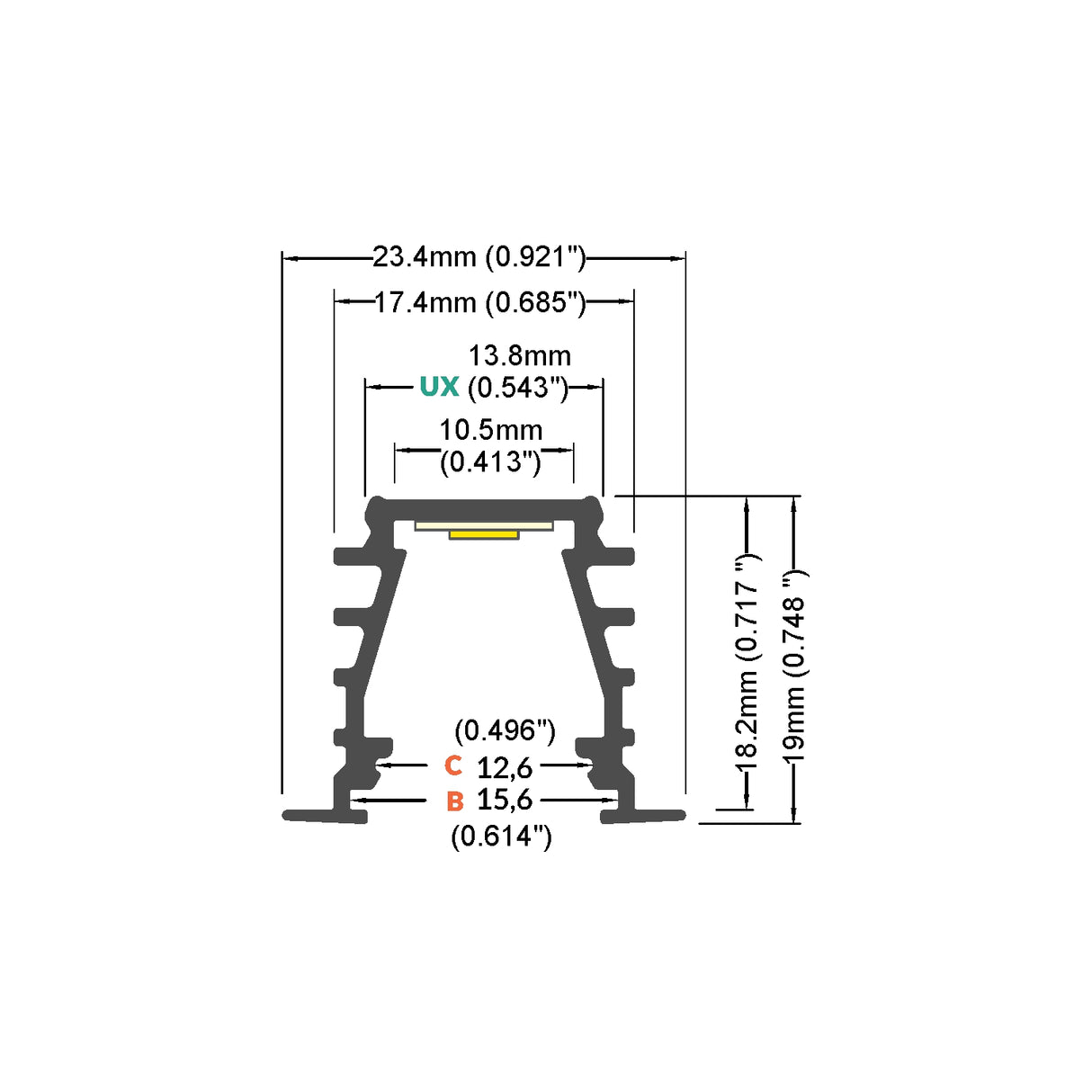

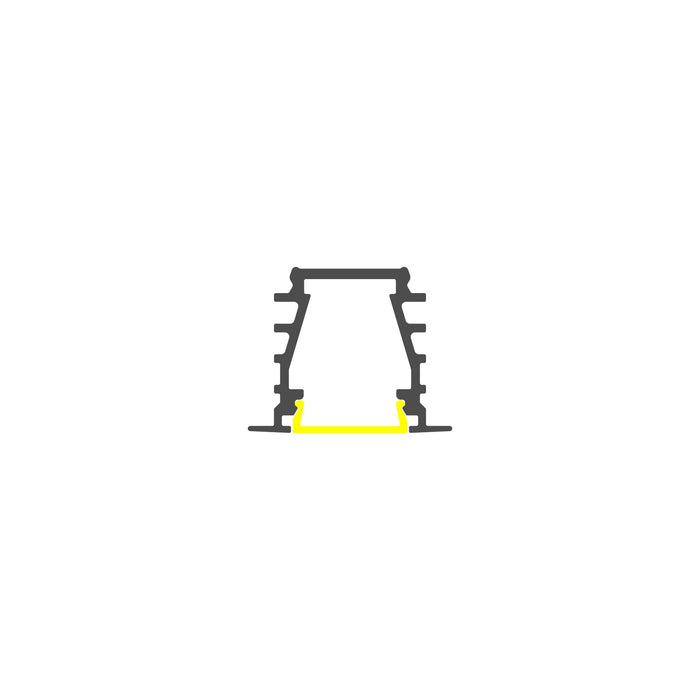

• Overall dimensions: 23.4mm x 19mm (0.92" x 0.74")
• Maximum LED strip width: 10mm
•  it's important to note that the profile alone does not guarantee a continuous effect. However, to achieve this, you must also use the appropriate diffusers and accessories

Downloads

• Deep10 cut sheet
• Deep10 Instructions

Important notes

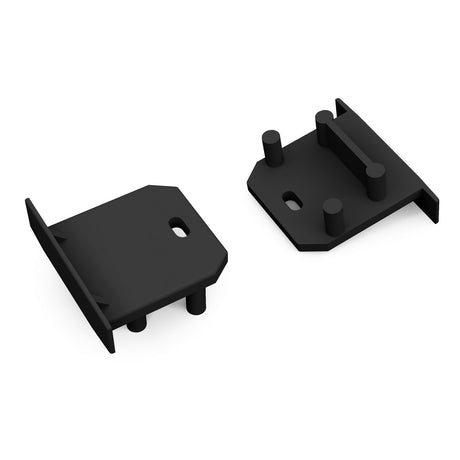

• We sell LED strip, covers, mounting equipment, end caps, shelf/sign panels, and other accessories separately from the dot-free plasterboard LED channel And, please select the available parts below so you can get the specific components you need for your project.
• They can easily be cut by hand or by machine.
• For your convenience, Wired4Signs USA can cut LED profiles according to your requirements.  Leave instructions in the order comment box, additionally please note that we cannot refund or replace LED profiles and covers that have been cut.
• We ship these built-in low profile LED channels the same day from Knoxville, Tennessee, United States. And, bulk pricing is available on request.
• Contact us for more information.
