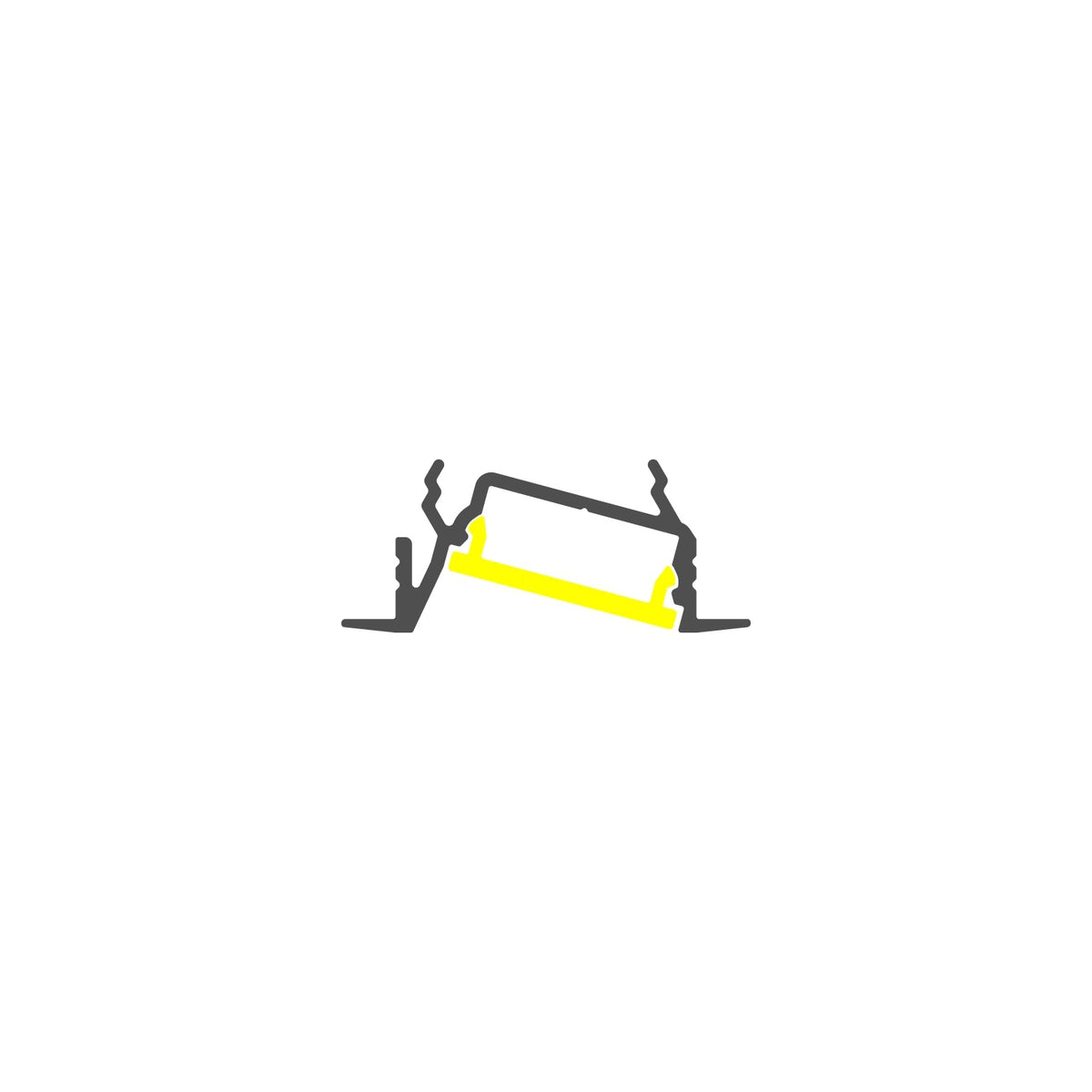

Recessed LED Channel for Angled Lighting ~ Model Diagonal14

Recessed LED Channel for Angled Lighting ~ Model Diagonal14

Original price - Original price
Original price
-
Current price
SKU LED-H5090021-2390

🚚 - Free shipping on most orders over $350 - T&C Apply

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

LED profile only ~ diffusers and all other accessories are sold separately

Description

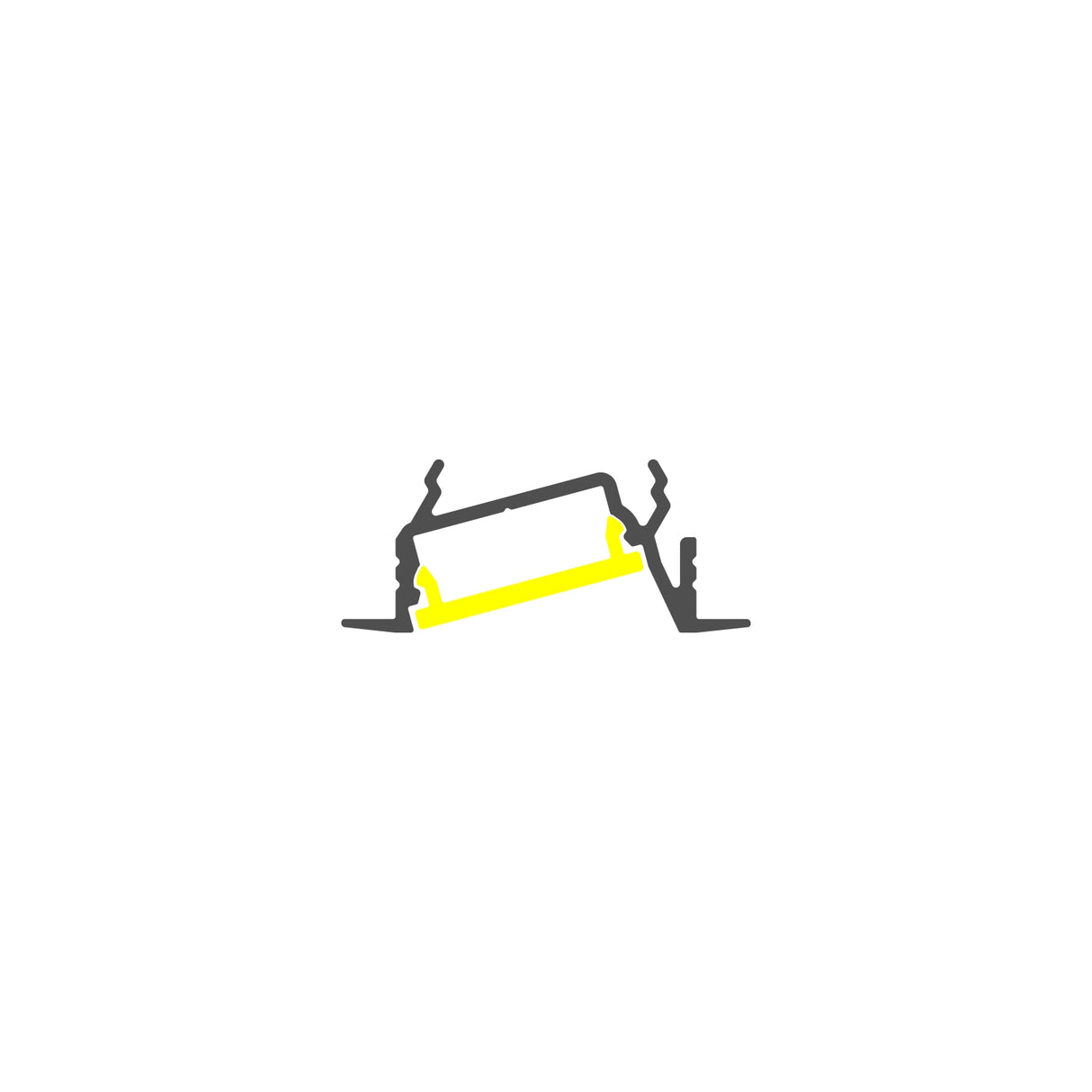

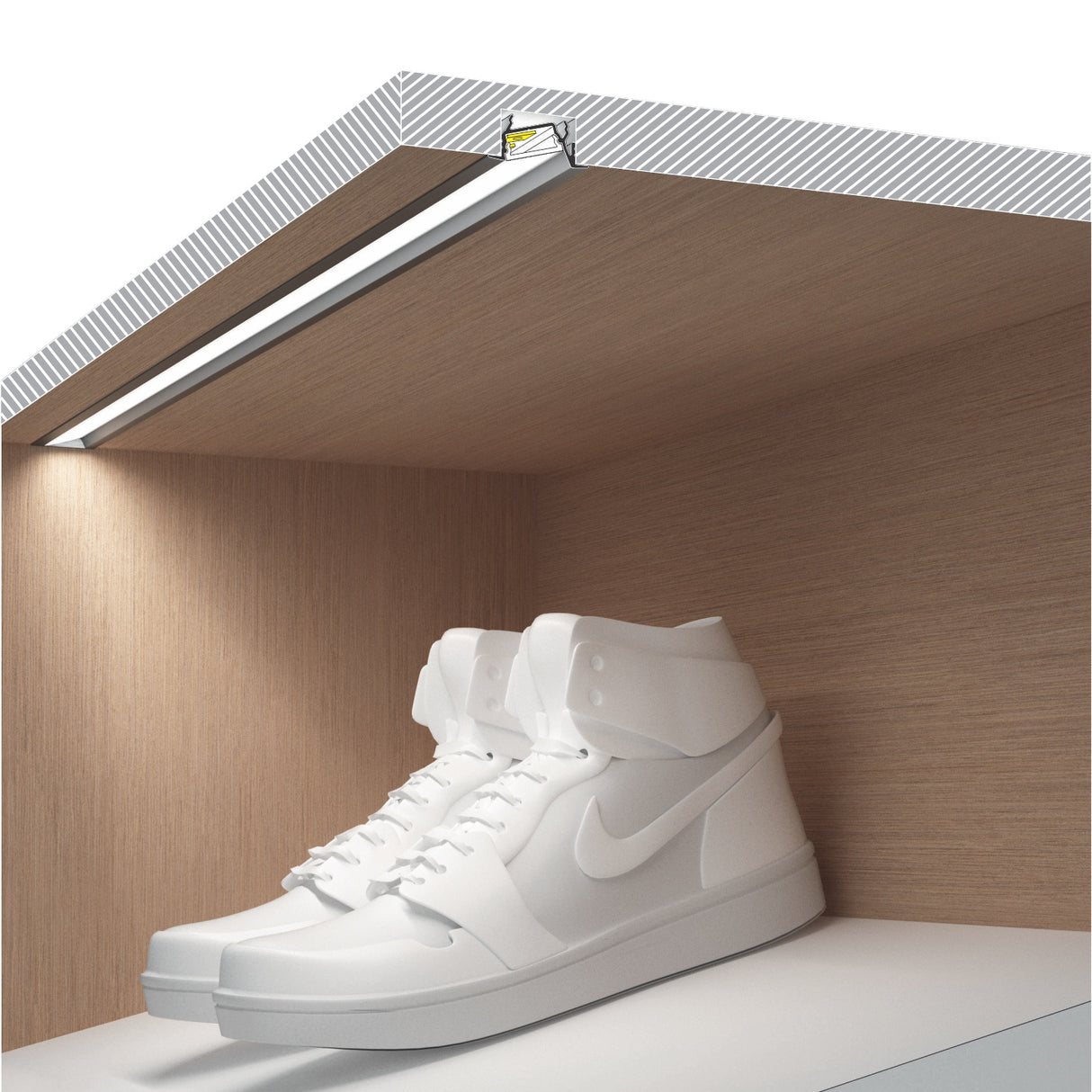

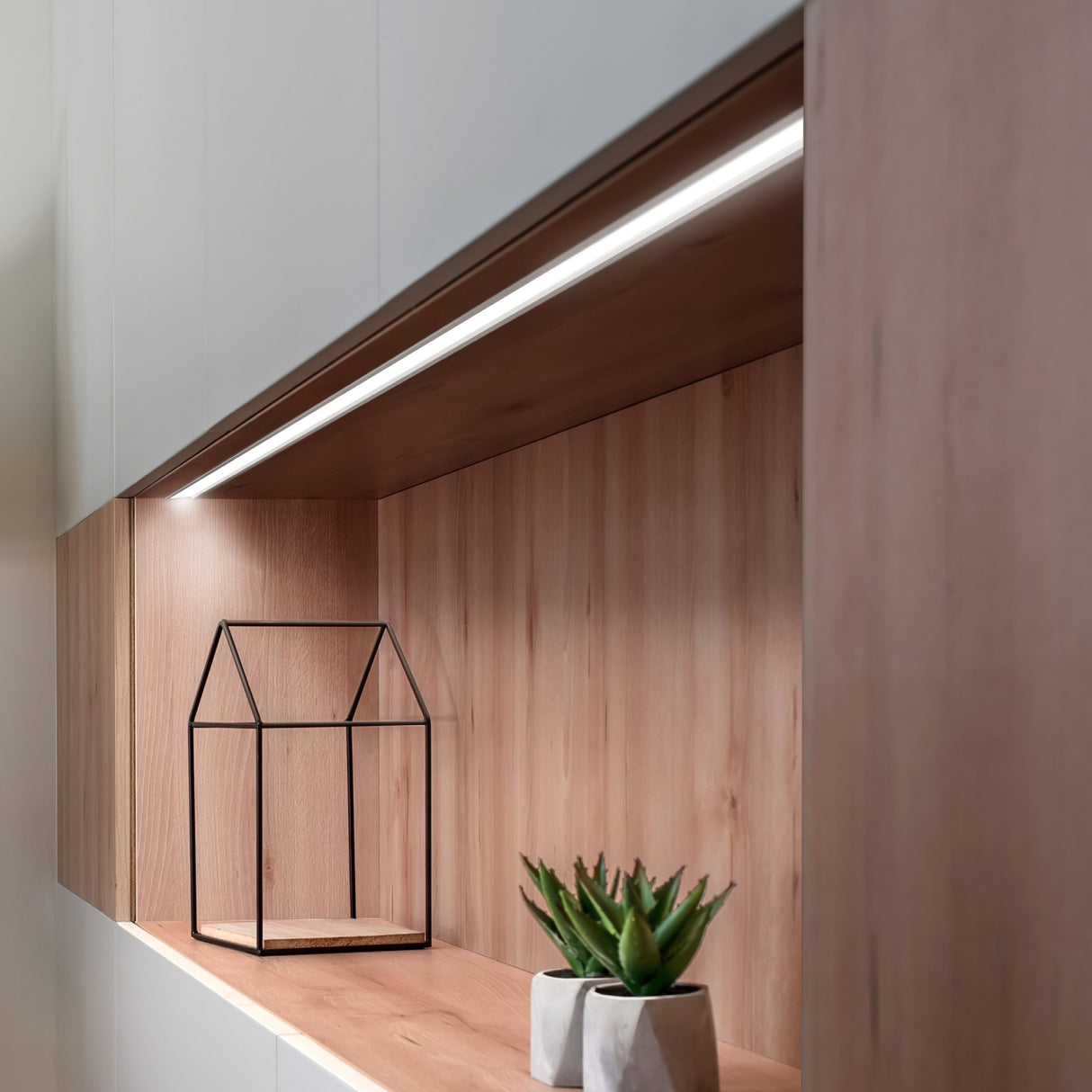

The Diagonal14 channel is an aluminum recessed LED lighting profile with a slot-angle design that reduces glare effect, making it perfectly suited for under-cupboard lighting or under-shelf lighting installation. Its diagonal angle design provides directed illumination to highlight the items or features without interfering with the surrounding furniture and drywall construction aesthetics.

This low-profile Diagonal14 channel can be installed by using either with flexible mounting plate holders (cone mounting plate, which allow the profile to be flush with the mounting surface or with a gentle mounting plate distance) or T rigid mounting plate holders that keep a small gap.

This Diagonal14 channel also serves as a heat sink, helping to prolong the life of the LED strip by protecting it from excessive overheating. This is suitable for all LED light strips up to a maximum of 14mm in width.

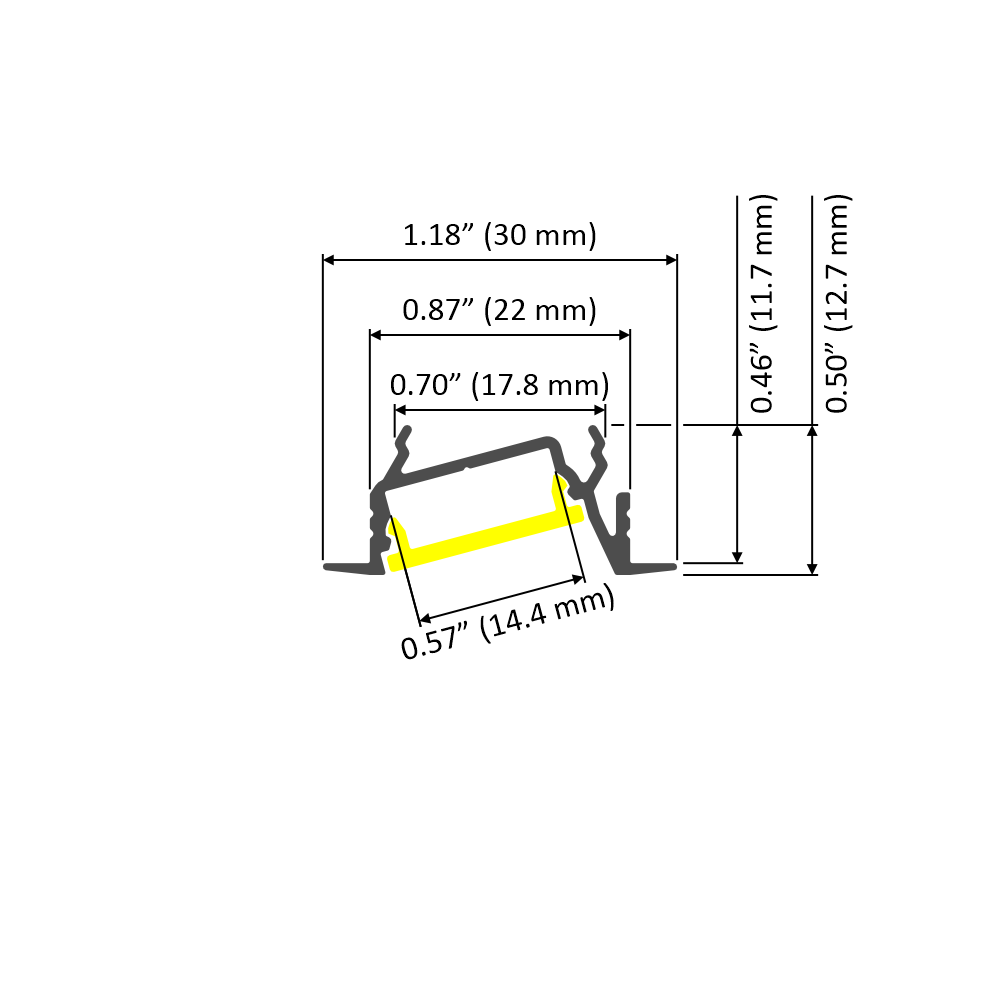

General specification

  • Material: Aluminum
  • Maximum LED strip width: 14mm
  • Overall width: 30mm (1.18")
  • Mounting recess: 22mm wide x 11.7mm deep (0.87" x 0.46")

Downloads


Important notes

  • LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.

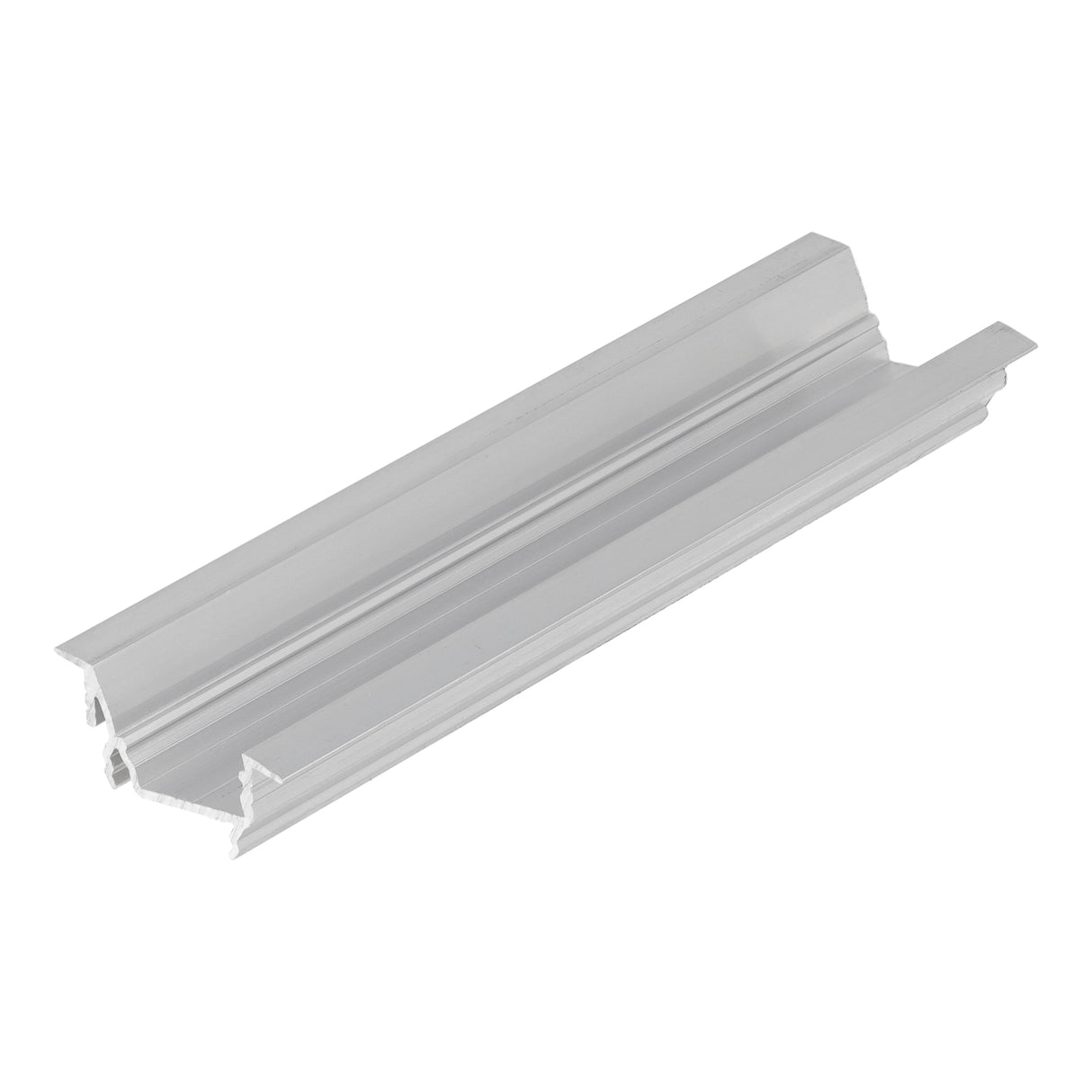

  • Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
  • LED profiles can easily be cut by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • Please note that we cannot refund or replace LED profiles and covers that have been cut.
  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request

Shipping restrictions

We cannot ship rigid items over 2.4m (8ft) in length due to freight restrictions. These products are offered for customer pickup only. Please refer to our Shipping Policy for further information.

Returns policy

We accept returns at our sole discretion. Returns must be in as-new condition and in original packaging. Please refer to our returns policy for more information.
