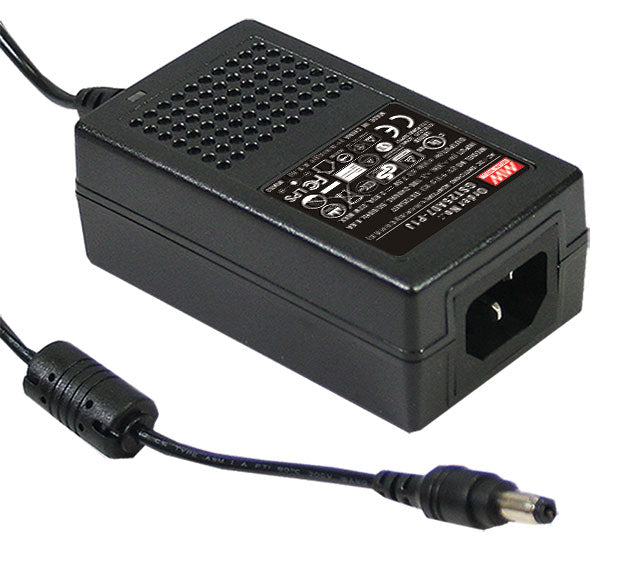

LED Desktop Adaptor (12V) ~ Meanwell GST Series

Description

Meanwell GST is a highly reliable, desktop-style single-output green adapter series. This product is a class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 90V AC to 264V AC.

The entire external led driver series supplies different models with output voltages ranging between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 92% and the extremely low no-load power consumption below 0.075W, GST60A is compliant with USA EISA 2007/DoE, Canada NRCan, Australia, and New Zealand MEPS, EU ErP, and Code of Conduct (CoC) Version 5.

The supreme feature allows the adapter to save energy when it is either under the operating mode or the standby mode. The entire external LED driver series utilizes the 94V-0 flame retardant plastic case. GST60A (GST60A12-P1J) is certified for international safety regulations.

General specifications

• Universal AC input / Full range
• 3 pole AC inlet IEC320-C14
• No-load power consumption <0.075W
• Energy efficiency Level VI
• Compliant with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP and CoC Version 5
• Class I power (with an earth pin)
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Fully enclosed plastic case
• Pass LPS
• Fan-less design with -30-+70°C working temperature
• LED indicator for power on
• 3-year warranty
• Kettle-type mains supply cord is sold separately.

Downloads

• See full spec sheet here.

Applications

• Consumer electronic devices
• Telecommunication devices
• Office facilities
• Industrial equipment
• External led driver GST60A12 P1J

Important Notes

• We stock the 12V version (GST60A12 P1J) and 24V version (GST60A24 P1J) but can supply the other models at short notice.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Kettle-type mains supply cord is sold separately.
