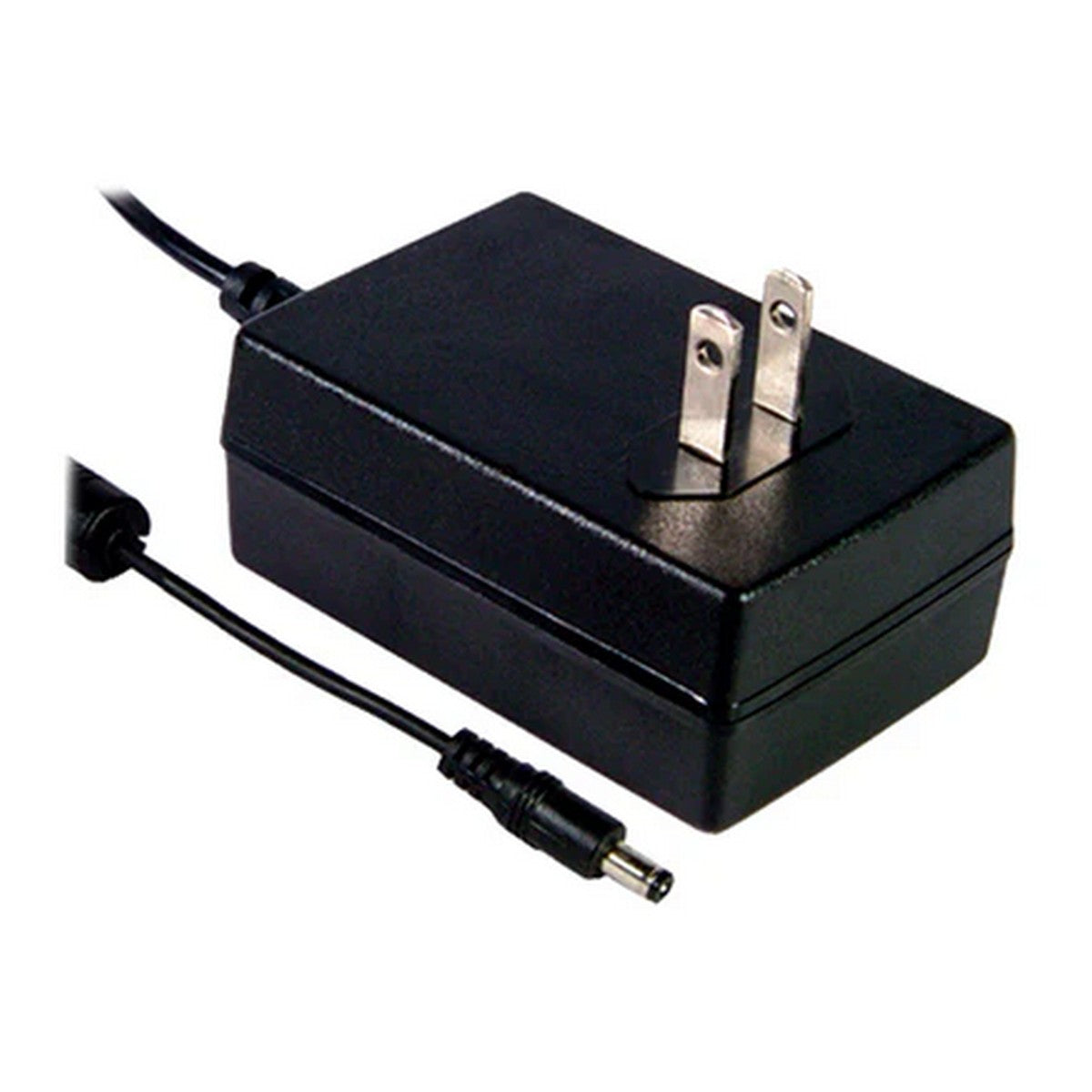

Plug-type Power Supply (24V) ~ Meanwell GST Series

Plug-type Power supply only ~ all other components are sold separately

Description

Meanwell GST Series is a high-reliability wall-mounted power supply with a single output, designed for energy-efficient applications. It is part of Meanwell’s green adapter line and features a plug-type Class II design without a ground pin (no FG), using a standard 2-pin USA AC plug.

This power adapter has an input voltage range of 85V AC to 264V AC, making it suitable for global use, and an output voltage of 24V DC, accommodating various consumer electronic devices. With a typical efficiency of 88% and the extremely low no-load power consumption of under 0.075W, the GST25U meets U.S. EISA 2007/DoE and Canada NRCan energy-saving standards, reducing power usage in both active and standby modes.

Constructed with a 94V-0 flame-retardant plastic case, the GST Series provides double insulation for effective protection against electric shock. It is certified to meet international safety standards, making it a reliable and compliant choice for wall-mount power supply applications.

General specifications

• Output voltage: 24V DC
• Max output current: 1.04A (25W)

• Output connector: Tuning-fork plug; center positive; OD: 5.5mm, ID: 2.1mm, L: 11mm
• Cable length: 6ft (1.8m)
• Input voltage: Universal AC input / Full range (85–264V AC)

• Wall plug: 2-pole USA plug
• Class: Class II power unit
• No-load power consumption: <0.075W

• Electrical protection: Short circuit, overload, over voltage
• Working temperature: -30 ~ +70°C (−22 ~ +158°F)
• Dimensions: 79 x 54 x 33mm (3.1" x 2.1" x 1.3") (LxWxH)
• Power-on indicator: Yes
• Compliant with EISA 2007/DoE and NRCan
• 3 years warranty

Downloads

• Meanwell GST25 cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request .
