High Brightness IP20 COB LED Strip (24V) ~ UniPlus Series
High Brightness IP20 COB LED Strip (24V) ~ UniPlus Series
Product details
LED strip only ~ Profile, covers, end caps and all other accessories are sold separately
Description

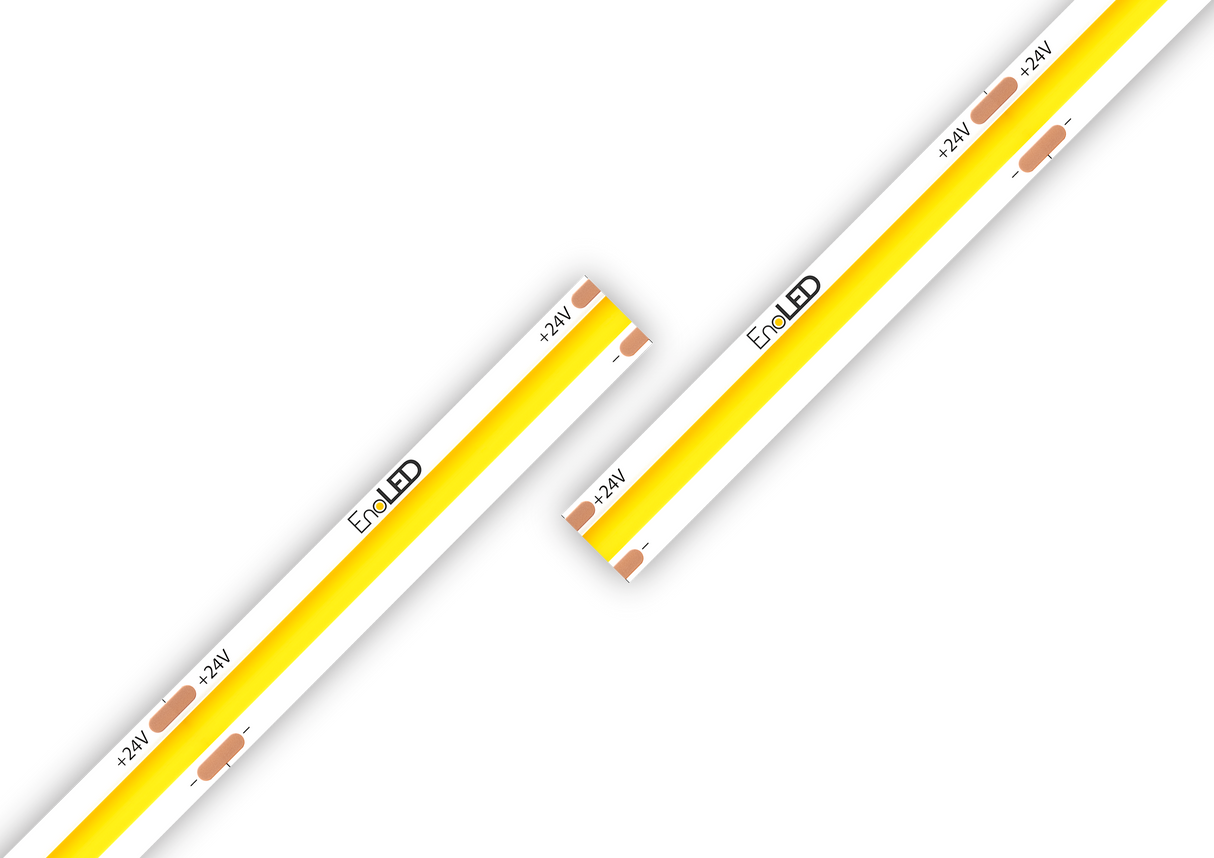

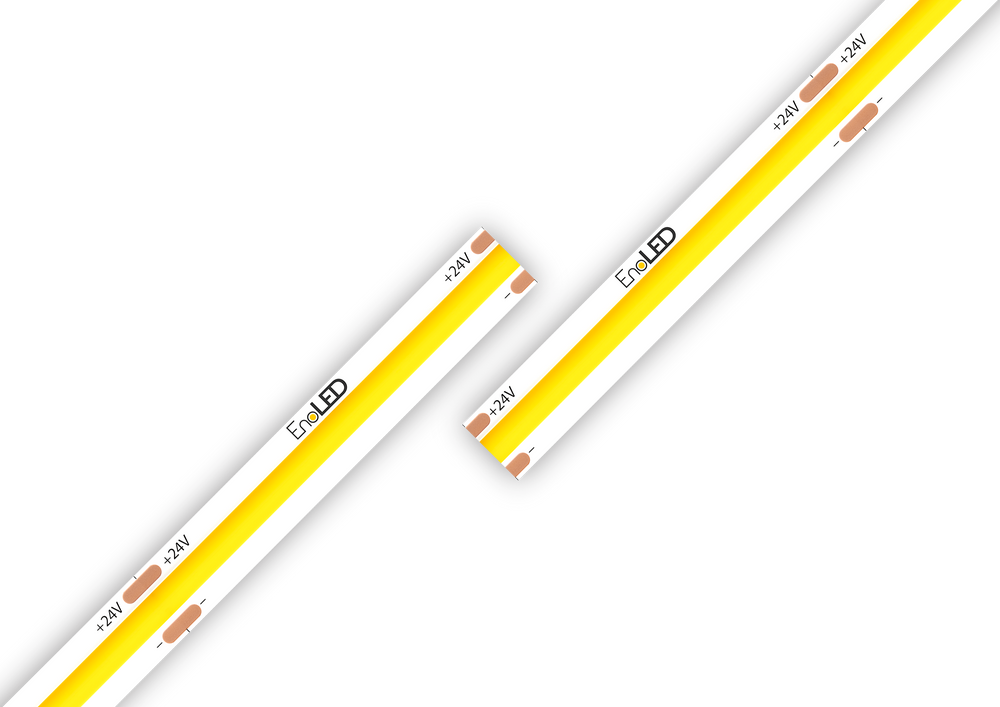

The UniPlus COB LED strip delivers high-brightness, dot-free illumination with up to 530 lumens per foot at 4.6W/ft. Its chip-on-board design produces smooth, uniform light without visible LED hotspots, making it ideal for cove lighting, under-cabinet lighting, and architectural accent applications. Available in five color temperatures from 2700K to 5000K, it features a 90+ CRI for accurate color rendering.
The UniPlus supports a wide range of dimming options, including TRIAC, CFL/LED, MLV, ELV, and 0-10V, as well as wireless app and wall switch control. It is cuttable every 1.97 inches for a precise fit, supports a maximum run length of 25 feet, and features a slim 0.39-inch (10mm) profile that fits standard LED channels.
Designed for easy installation, the strip includes 3M VHB adhesive backing for a secure hold. It is UL Listed, Class 2 certified, and available in 16ft and 100ft reels. Backed by a 6-year warranty and rated for 50,000 hours of lamp life, the UniPlus COB LED strip is built for reliable, long-lasting performance.
General specifications
- Color: 3000K
- Supply voltage: 24V DC
- Power consumption: 4.6 W/ft
- Luminous flux: 466 lm/ft
- Color rendering index (CRI): 90+ (high CRI)
- Beam angle: 150°
- Dimensions: 10mm x 1.27mm (0.39” x 0.05”)
- Cutting pitch: Every 50mm (1.97")
- IP rating: IP20 non-waterproof
- Maximum run length: 10m (32.8ft)
- Mounting method: 3M adhesive backing
- Lifespan: 50,000 hours
- Warranty: 6 years
