Large Recessed Easy-Mounting LED Channel ~ Model Phil Recessed

Profile only ~ diffusers and all other accessories are sold separately

Description

The Phil Recessed LED channel is a high-quality, professionally designed LED recessed mounting channel made of high-quality anodized aluminum. The Phil Recessed profile is intended for professional commercial applications with low-glare and options of different lighting designs like wide angle or narrow angle.

The Phil Recessed LED profile is designed with an elegant finish that looks great in modern interiors. It is easy to install and can be easily trimmed down to the perfect size for your project using a basic trimmer. You also have the option to add a cover, which protects the LED strip and provides a softer, more diffused light output.

Another advantage of using Phil Recessed LED profiles is that they extend the life of your LED strips by acting as a heat sink, effectively directing heat away from the LED strip. This ensures longer life and better performance.

General specifications

• Material: Aluminum

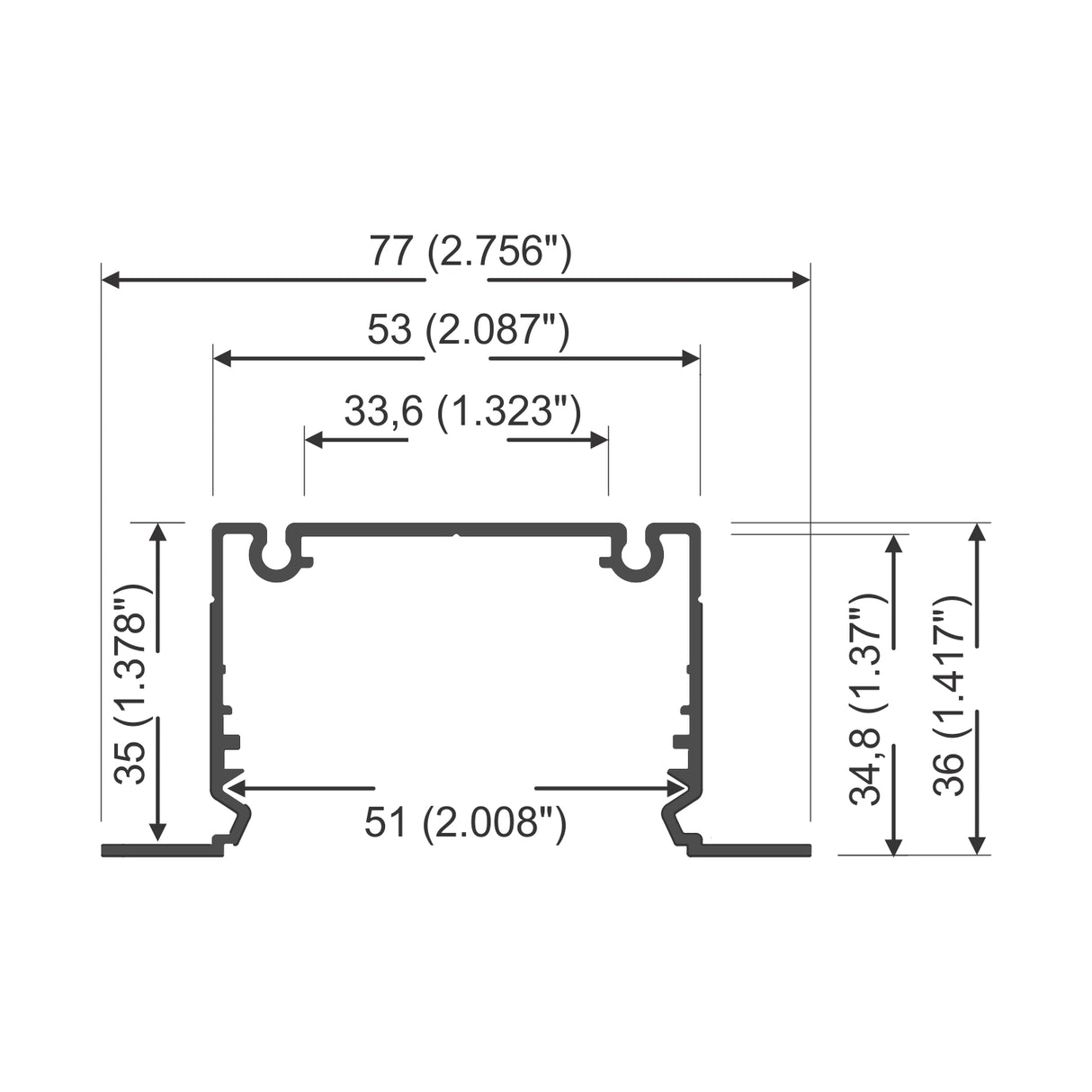

• Dimensions: 77mm x 36mm (3.03" x 1.42")
• Recess dimensions:
  • Plain: 53mm x 35mm (2.09" x 1.38")
  • Recessing clip: 70mm x 38mm (2.76" x 1.50")
  • Plasterboard mounting spring: 55–63mm wide (2.17"–2.48")
• Maximum LED strip width: 46mm

Downloads

• Phil recessed cut sheet

Important notes

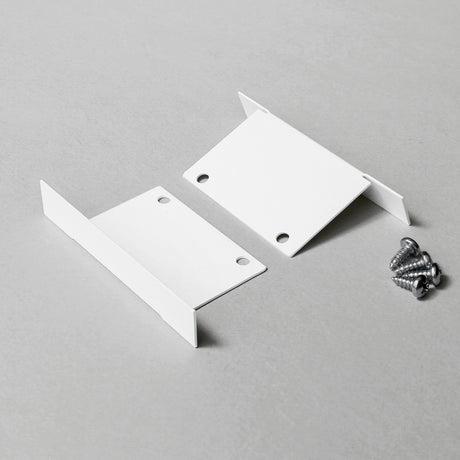

• LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
• Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
• LED profiles can easily be cut by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• Please note that we cannot refund or replace LED profiles and covers that have been cut.
• Bulk pricing is available on request.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
