Pneumatic Cartridge Gun for Methacrylate 400ml/490ml ~ DP2X

Dispenser gun only ~ adhesive and mixer nozzle sold separately

Description

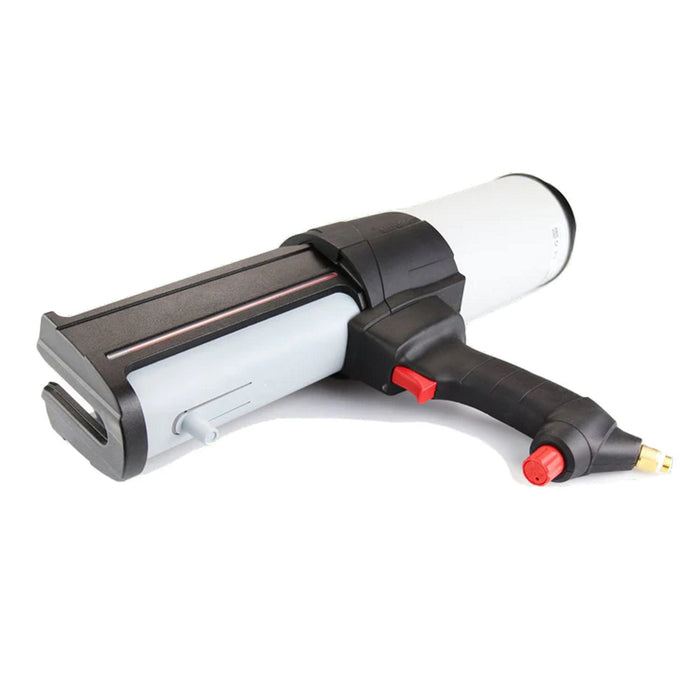

The Mixpac DP2X model is a pneumatic dispenser gun for two-part adhesives. This powered dispenser is compatible with 400ml and 500ml cartridges with a 10:1 adhesive mix ratio.

This industrial DP2X 400ml/490ml pneumatic adhesive dispenser is designed for the controlled application of most two-component epoxies, silicones and other materials. Use this high-quality manual gun with a 10:1 ratio 400ml and 490ml dual-component cartridges.

For epoxies, adhesives and other materials that are supplied in 400ml two-part (490ml total), side-by-side 10:1 ratio cartridges with the use of a static mixing nozzle. The lightweight and durable construction of these dual guns makes them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive. The DP2X 400ml/490ml pneumatic adhesive dispenser works with standard 400ml dual cartridges.

The cartridge is simply pushed into the pivoting gun retainer and clicked in place.

General specifications

• Dispenser type: Pneumatic operation
• Compatible with:
  • Volume: 400ml, 490ml and 500ml
  • Mix ratio: 10:1 ratio (1:1, 1:2 and 1:4 with optional accessories)
• Centralizing rods included
• 85mm cylinder diameter
• Maximum thrust: 3.2kN
• Maximum air pressure: 100psi
• Includes an adjustable air regulator
• Reverse air feature
• Instant dump valve for fast air release
• CE certified
• 1 Year warranty

Downloads

• DP2X dispenser product brochure

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing available on request.
