6-Core 14/16 AWG PVC Sleeved Wire for RGB+TW LED Strip
Buy in bulk and save
Buy in bulk and save
By becoming a wholesale customer, you can save money on your orders. Apply here.
Custom Fabrication
Made to Measure
Have your channels cut and your strips soldered for you. We’ll do 5 of each for you at no additional cost.
Custom Fabrication
Made to Measure
Cutting & Soldering
Every order comes with up to 5 free channel cuts and 5 free solder connections on your LED strips handled by our team as part of your order.
Need more than that? No problem. Just get in touch with our sales team and we'll help you sort it out.
Or if you prefer, send an email to info@w4susa.com.
6-Core 14/16 AWG PVC Sleeved Wire for RGB+TW LED Strip
20+ YEARS LED EXPERIENCE
20+ YEARS LED EXPERIENCE
SHIPPED FROM TENNESSEE
SHIPPED FROM TENNESSEE
COMMERCIAL GRADE QUALITY
COMMERCIAL GRADE QUALITY
EXPERT TECH SUPPORT
EXPERT TECH SUPPORT
Product details
Wire only ~ all other accessories are sold separately
Description

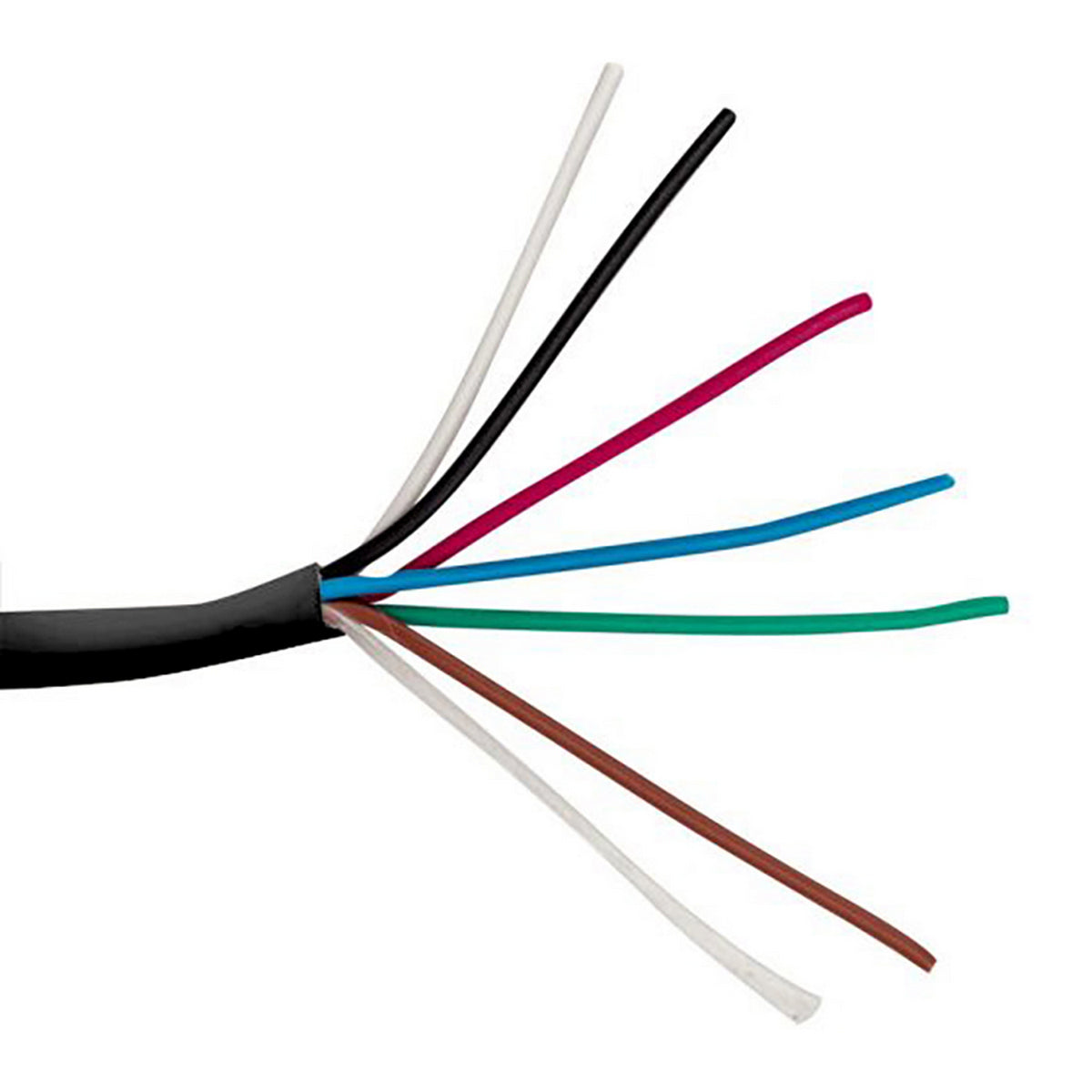

The 6-core PVC wire is a high-quality wire designed to provide an efficient and reliable connection for RGB+TW (Tunable White) LED strip installations. It features six individually insulated 14 or 16 AWG stranded copper conductors in PVC insulation (Black, White, Green, Blue, Brown, and Red) enclosed in a single electrical wire sleeve.
The black PVC outer jacket ensures durability and protection in various indoor environments. The cable wire is UL-rated for CMR, CL2/3R, and FT4, meeting safety and fire-resistance standards.
General specifications
- Sold per foot
- 6 cores (Black, White, Green, Blue, Brown, and Red)
- Maximum current: 6.4A @ 25°C (77°F)
- Rated voltage: 300V
- Operating temperature: 20°C – 75°C (68°F – 167°F)
- Insulation material: PVC
- Jacket material: PVC
- Conductor: Stranded Bare Copper
Downloads
Important notes
- Items in stock are shipped the same day from Knoxville, Tennessee, United States.
- Bulk pricing is available on request.
