Single Channel Dimmable Constant Current LED Driver ~ Model NANODRIVER-1CC
Product details
LED driver only ~ LEDs and all other components are sold separately
Description
The
NANODRIVER-1CC is a single-channel constant current LED driver designed
for driving dimmable spotlight and LED modules. It is compatible with
constant voltage SELV power supplies (5V, 12V, 24V DC) or PWM voltage
(5-24V DC), providing a versatile solution for a variety of
applications. This driver can deliver a maximum output current of 700
mA, and it is suitable for use with constant current dimmable LED loads,
controlled by a PWM modulated voltage, such as a constant voltage LED
dimmer.
The NANODRIVER-1CC is available in multiple versions,
offering selectable constant current outputs of 350 mA, 500 mA, or 700
mA. Additionally, a customizable version allows users to select the
desired current by soldering the dedicated pads. Note that for
NANODRIVER-1CC, you MUST solder the current rating accurately to ensure
optimal functionality and safe operation of the driver.

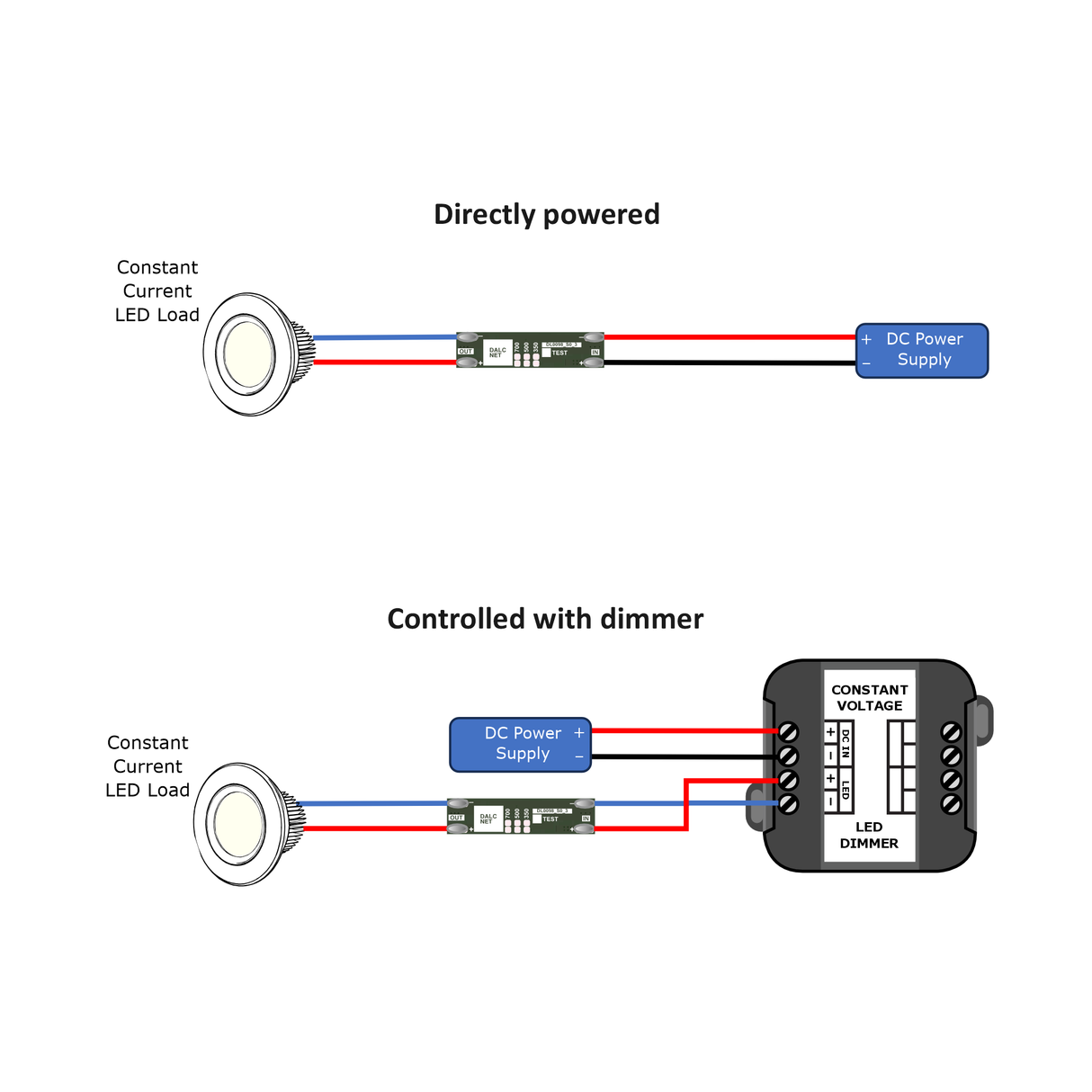

It is
dimmable in conjunction with a constant voltage (CV) dimmer, allowing
precise lighting control and flexibility for different applications.
With a dimming PWM input frequency of up to 4 kHz, the driver ensures
smooth, flicker-free lighting control, ideal for both white and
monochrome light applications.
Built for durability, the
NANODRIVER-1CC features a zero-noise system and limited in-rush current
to prevent electrical interference. It is designed to perform reliably
across an extended temperature range, making it suitable for a variety
of environments. Each unit undergoes a 100% functional test before
delivery and comes with a 5-year warranty, ensuring long-term
reliability and customer satisfaction.
General Specifications
- NANODRIVER-1CC
• Max output power: 1x350-500-700mA
• NANODRIVER-1CC350
• Max output power: 350mA
• NANODRIVER-1CC500
• Max output power: 500mA
• NANODRIVER-1CC750
• Max output power: 750mA
• Input voltage: 5V - 24V DC
• Output Channels: 1
• Efficiency: >95%
• Operating temperature: -10ºC to 60ºC (14°F to 140°F)
• Protection rating: IP20
