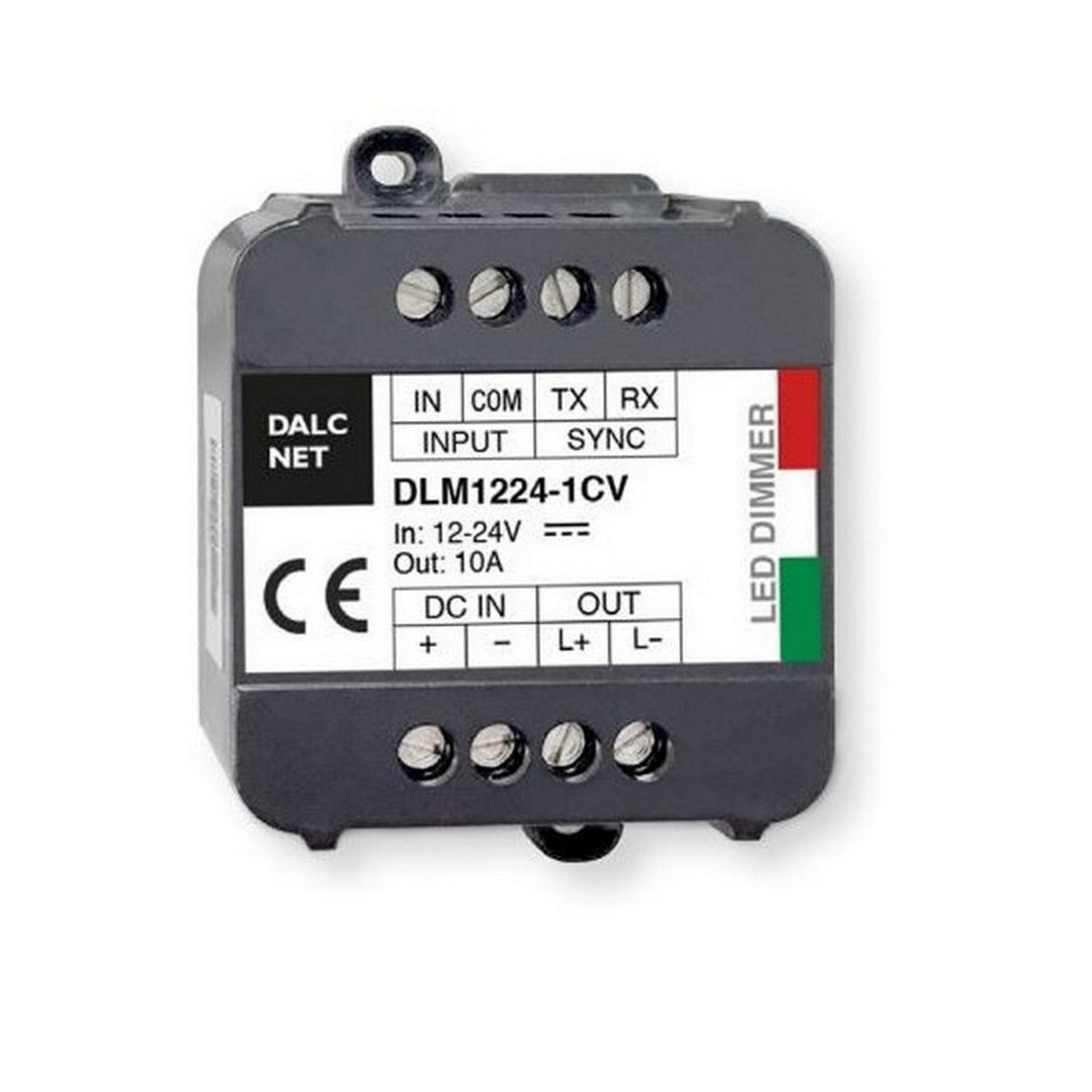

Single-Channel Analog LED Light Dimmer ~ Model DLM1224-1CV

Single-Channel Analog LED Light Dimmer ~ Model DLM1224-1CV

Original price - Original price
Original price
Current price

🚚 - Free shipping on most orders over $350 - T&C Apply

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

LED dimmer only ~ power supply, LEDs and all other accessories are sold separately


Experience superior control over your LED strip lights with the DLM1224-1CV LED Strip Light Dimmer. This advanced dimmer offers a range of cutting-edge features to enhance your lighting experience.

With flexible DC input options of 12-24V DC, this small single-channel LED dimmer/fader is perfect basic brightness control. Using its unique "Analogic" feature, this LED strip light dimmer automatically detects and identifies various control methods including analog control, N.O. push button, 0-10V or 1-10V, and potentiometer inputs. Enjoy seamless integration with your existing setup and effortless adjustment of lighting levels.

The sync and master-slave functions enable synchronized operation across multiple units, ensuring uniform lighting control throughout your installation. With an optimized output curve and impressive efficiency of 95%+, this dimmer LED light delivers exceptional performance while minimizing energy consumption.

Fine-tune your lighting environment with the DLM1224-1CV dimmer's ability to adjust brightness from full intensity to complete off for both white light and monochromatic color settings. The soft start and stop feature of this LED light strip dimmer ensures gentle transitions, adding a touch of elegance to your lighting experience.

General specifications

  • Model: DLM1224-1CV
  • Voltage Range: 12-24V DC
  • Max Output Power: 1x 10A
  • Output Channels: 1
  • Input: 0-10V, 1-10V, Push button, Potentiometer
  • Working Temperature Range: -10/+40°C
  • Dimensions: 44 x 57 x 25mm (1.73 x 2.24 x 0.98")


  • DLM1224-1CV cut sheet
