Slim LED Channel ~ Model Slim8

profile only - all accessories sold separately

Description

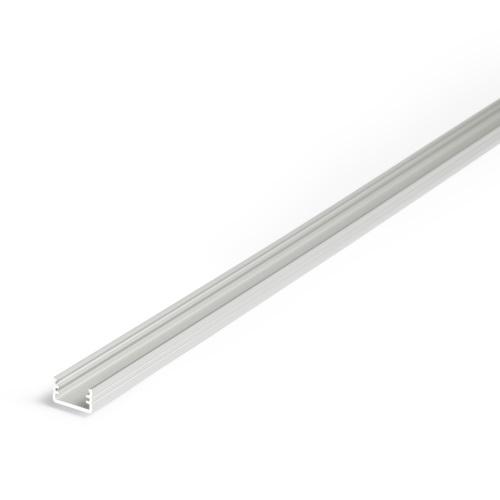

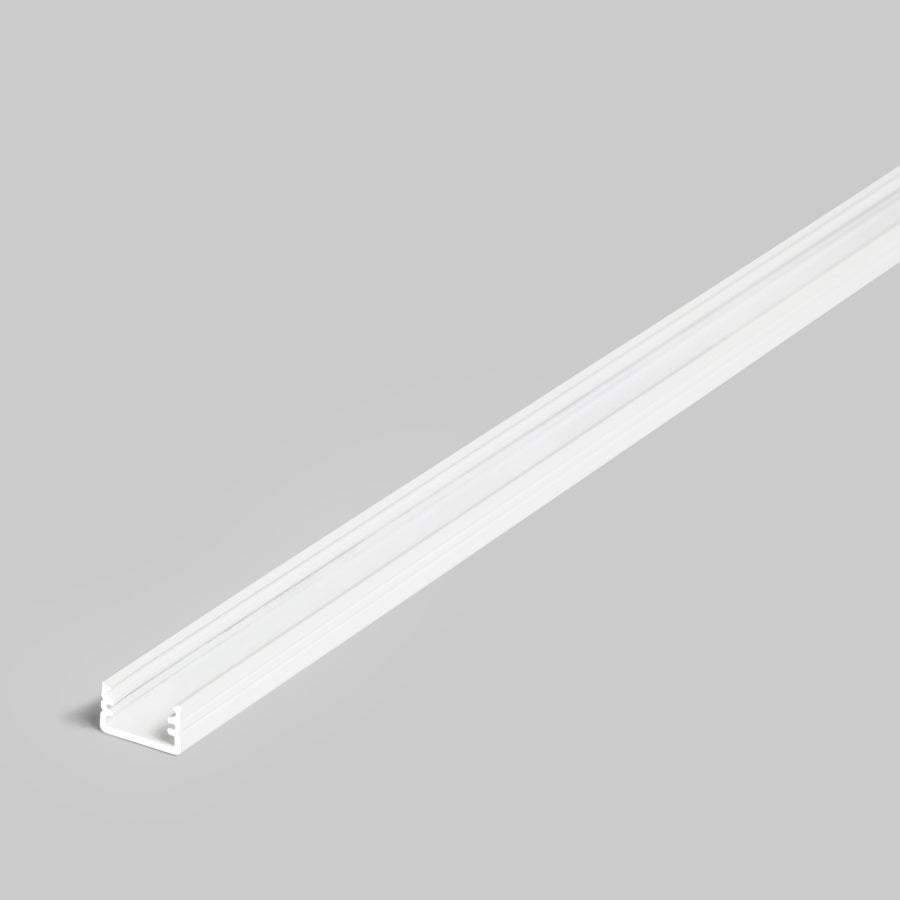

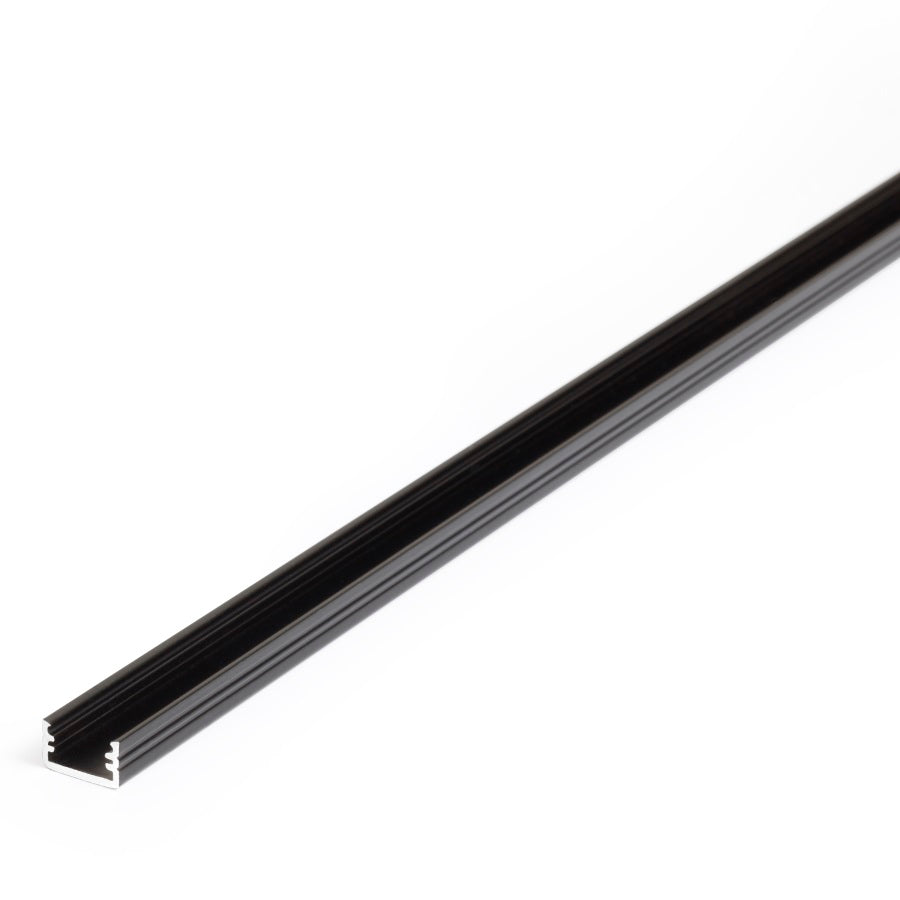

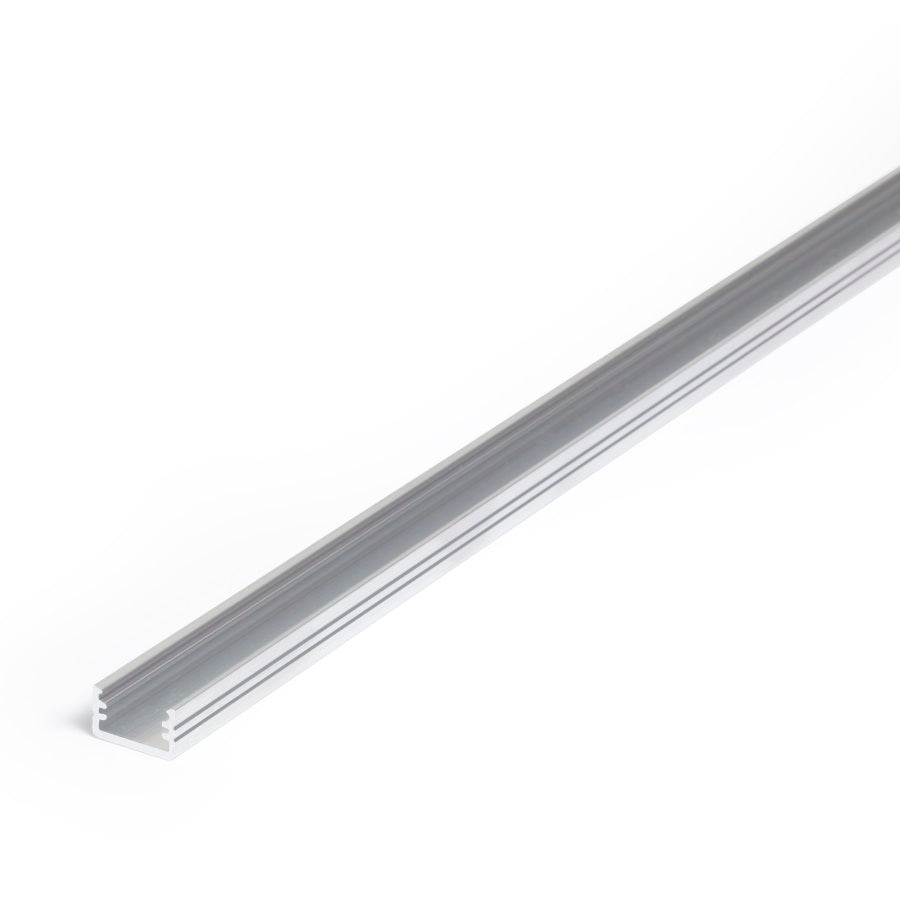

The Slim8 surface mount LED channel is a one of our smallest LED profiles and is available in four different finishes - silver anodized, coated white, black anodized and raw.

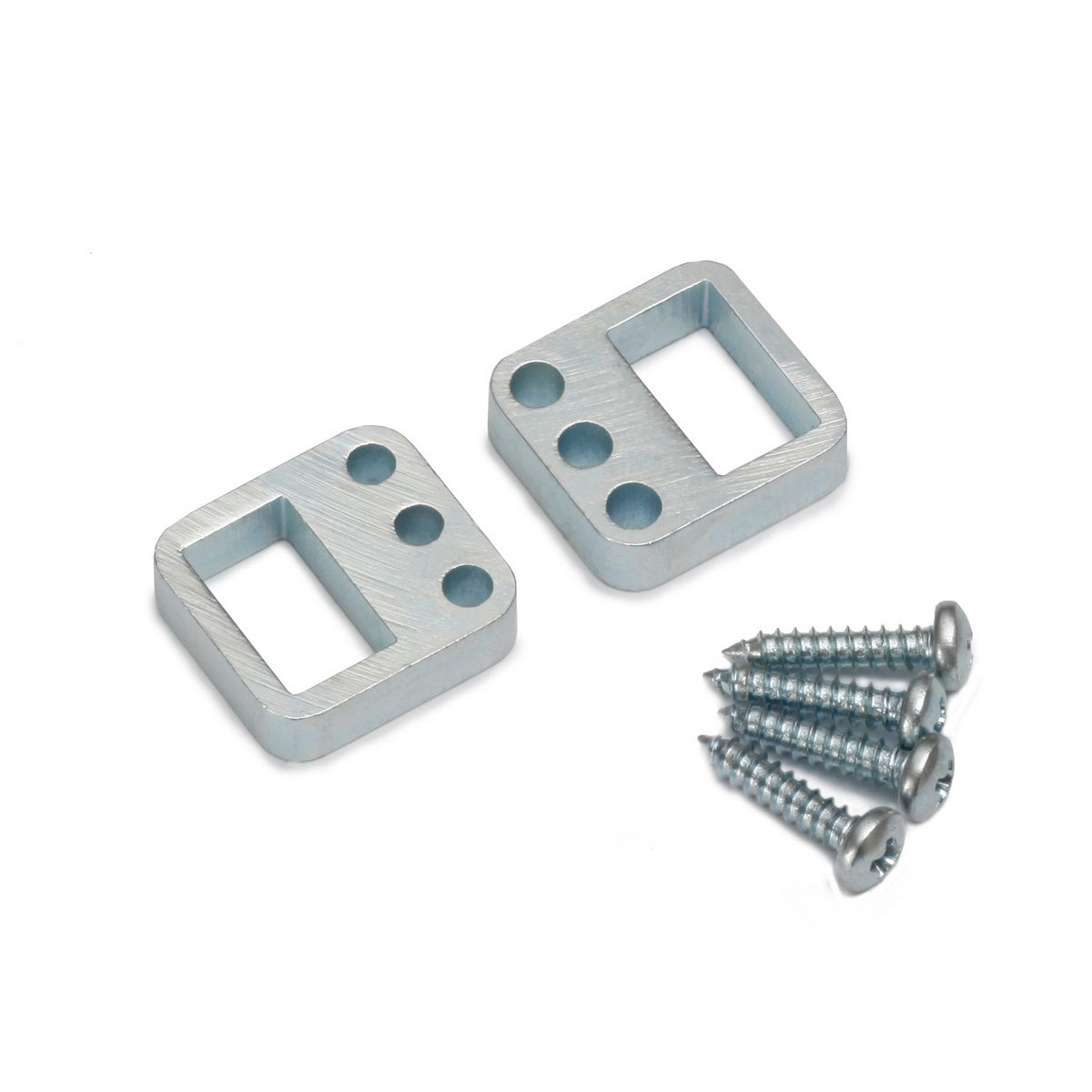

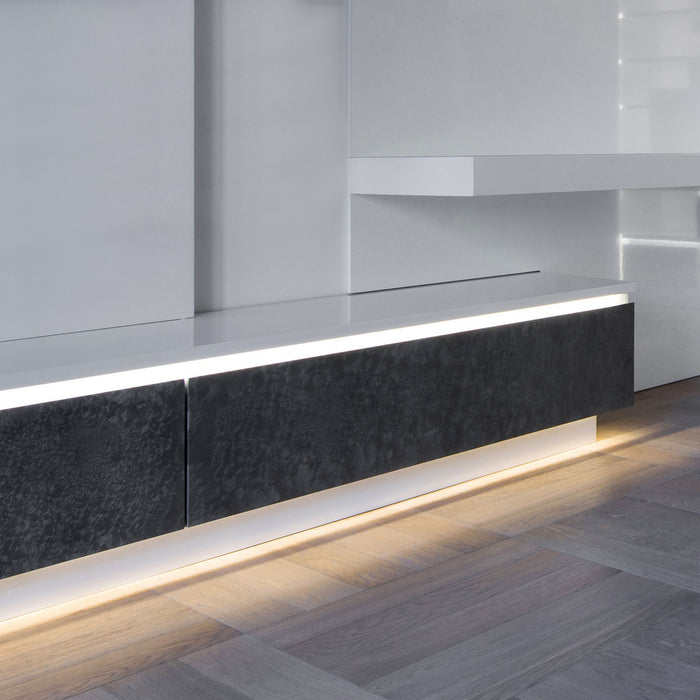

This small LED profile can be hidden easily, making it ideal for discretely lighting bookcases or shop shelves. The optional simple holder brackets can be used to mount this profile on the ends to create a self-supporting illuminated closet rail or shoe rack.

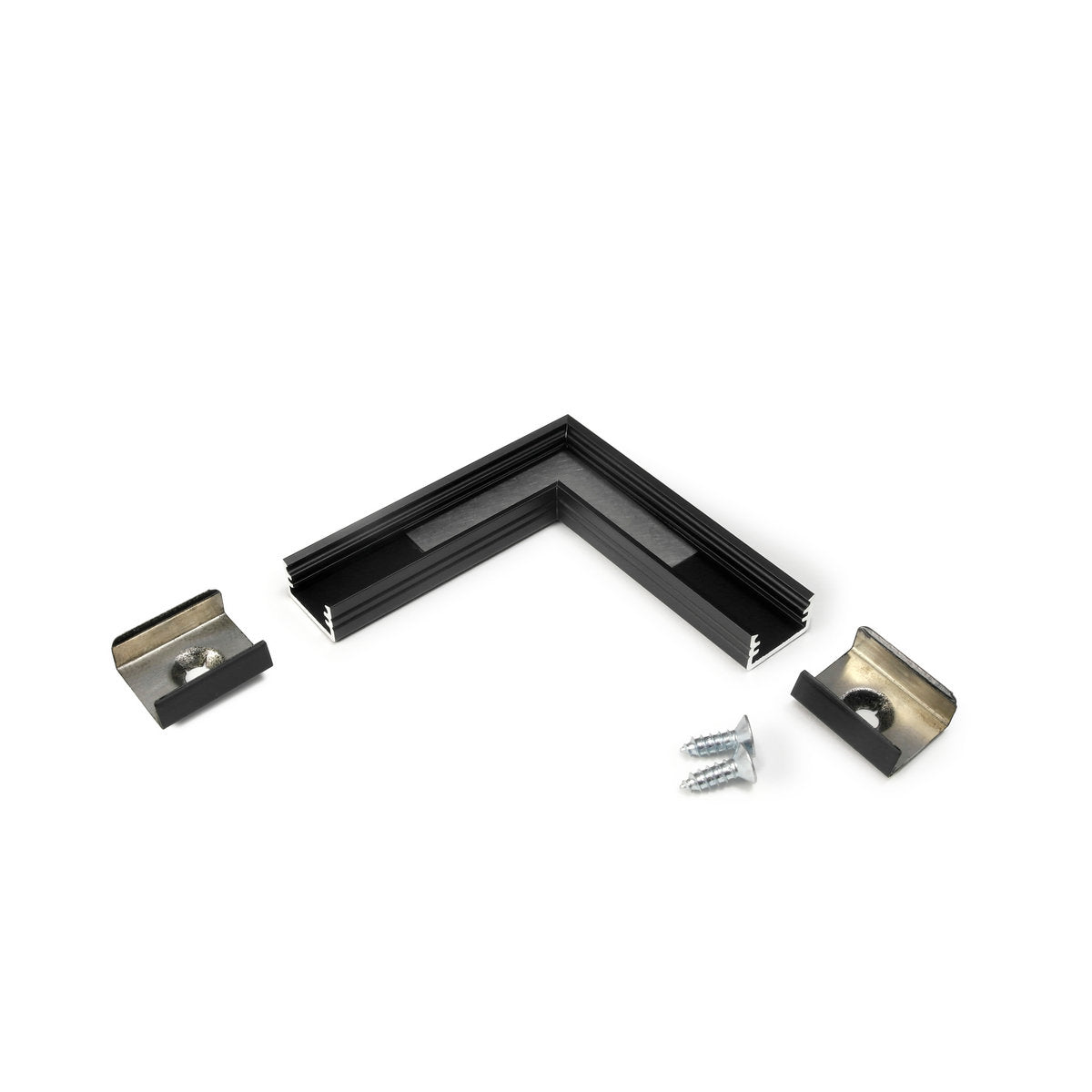

This LED surface mount channel has ready-made matching corner joint modules which allow you to assemble perfectly fitting corners on site without having to cut accurate miters.

General specifications

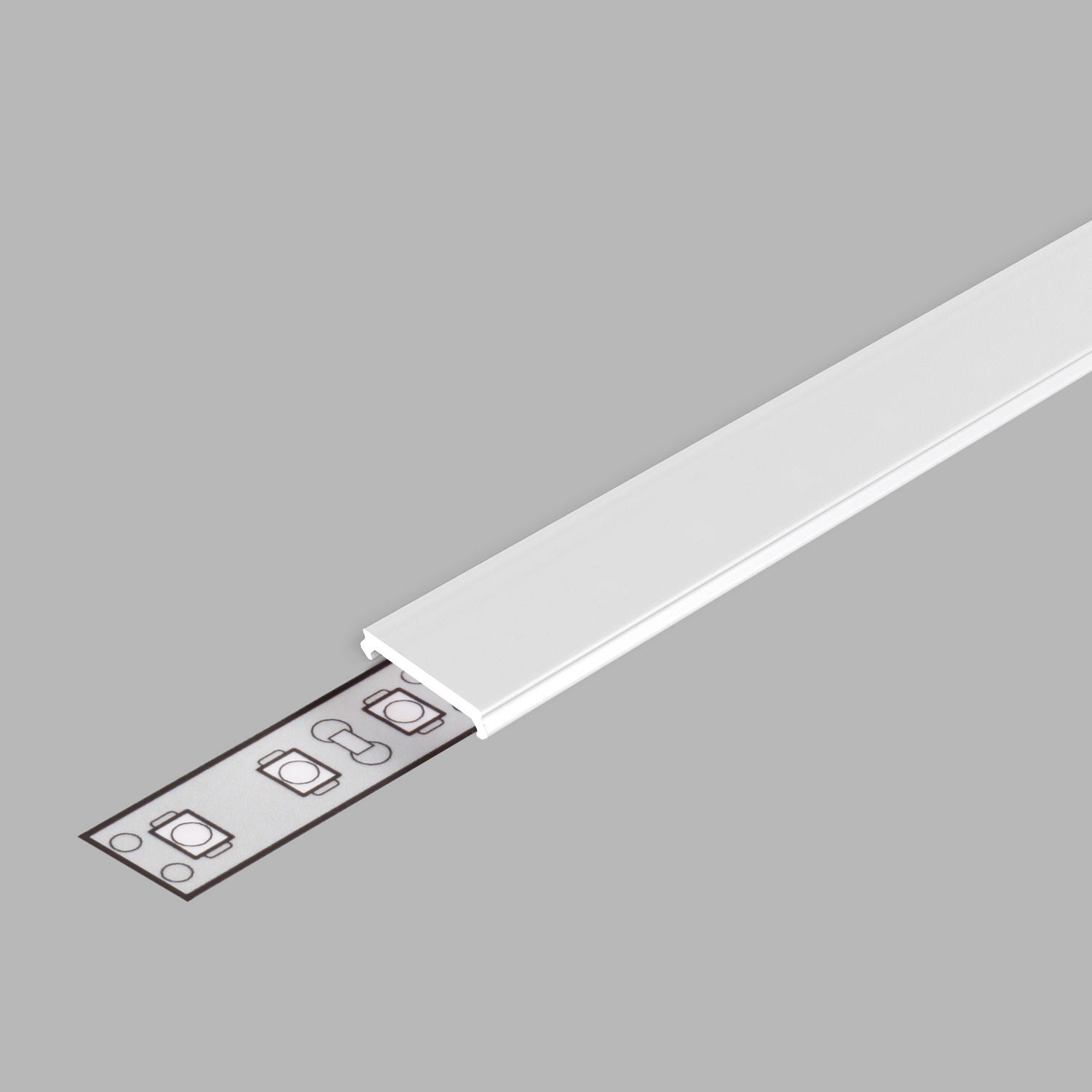

• Slick socket for clip in cover installation

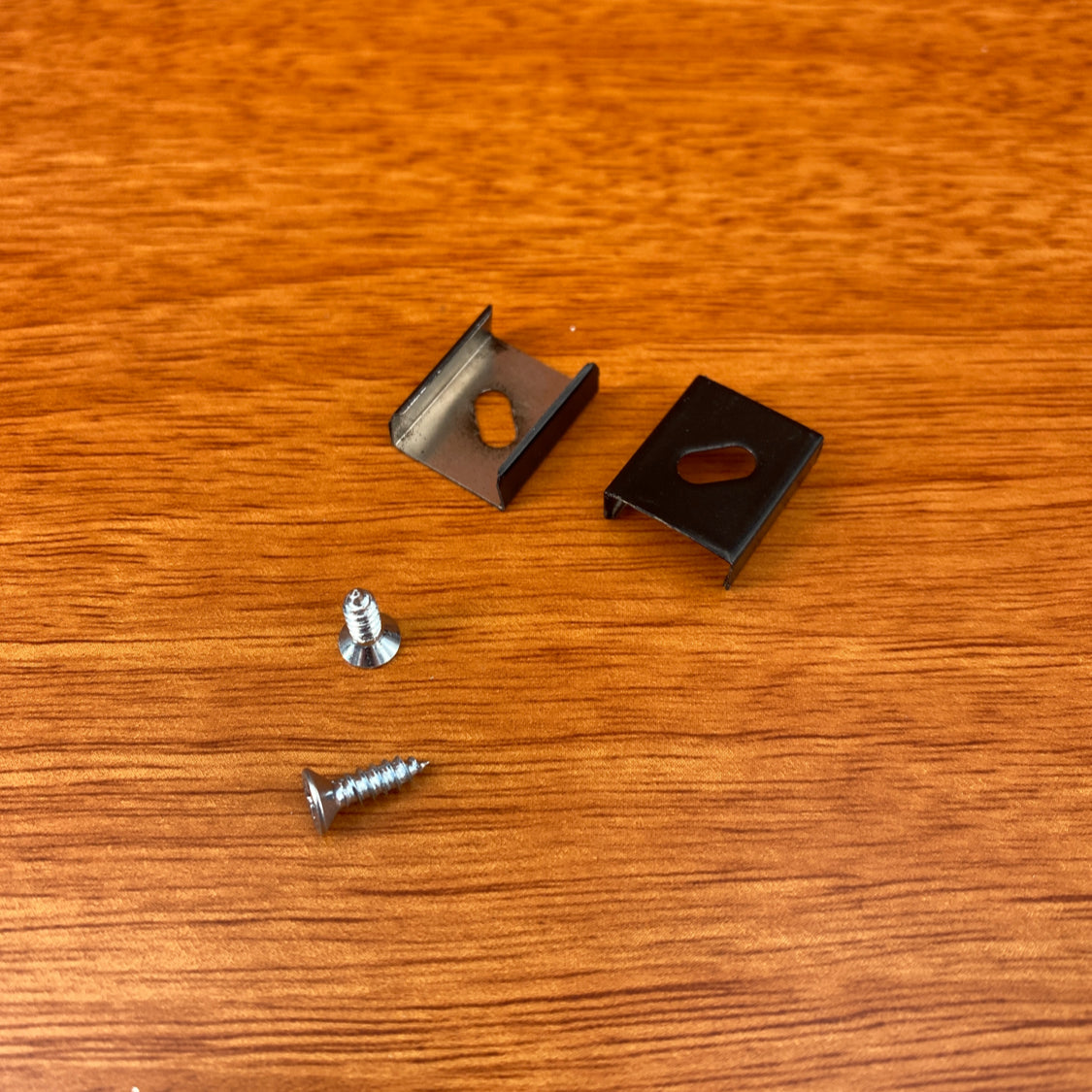

• Height adjustable with 2 positions for mounting bracket

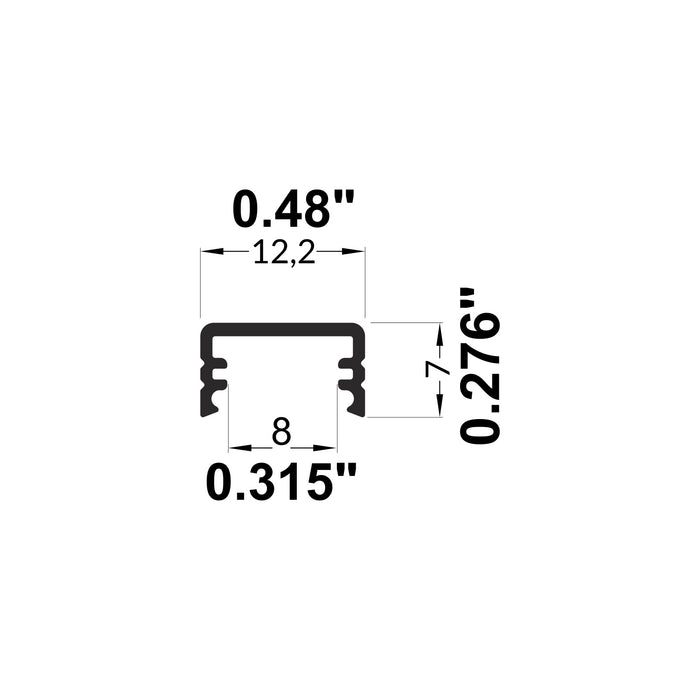

• Dimensions: 12.2mm x 7mm (0.48" x 0.279")
• Max LED strip width
  • Self-adhesive application: 8mm (0.315")
  • Slide-in: 10.2mm (0.4")
• Various accessories and covers available separately

Downloads

• Slim8 cut sheet

Important notes

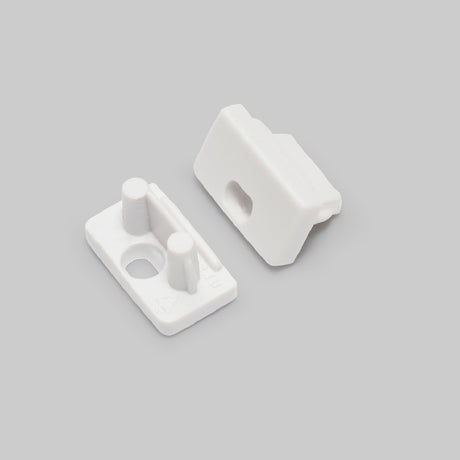

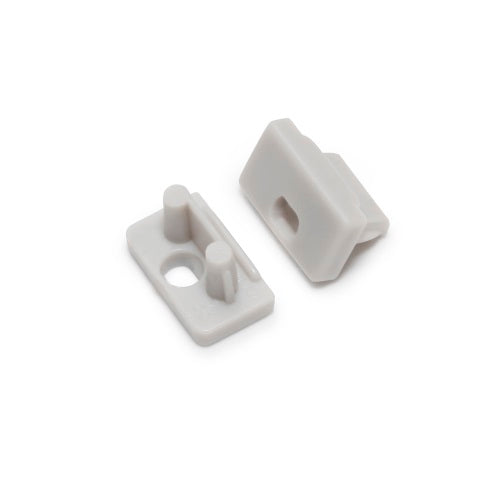

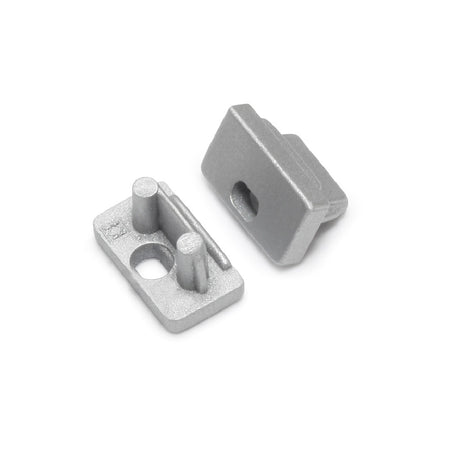

• LED strip, covers/lenses, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
• LED profiles can easily be cut by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• Please note that we cannot refund or replace LED profiles and covers that have been cut.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request
