Smart RGB+CCT LED Controller and Wall Switch System ~ EnoLED Cyan RGBCW

LED controller and wall switch system only ~ all other components are sold separately

Description

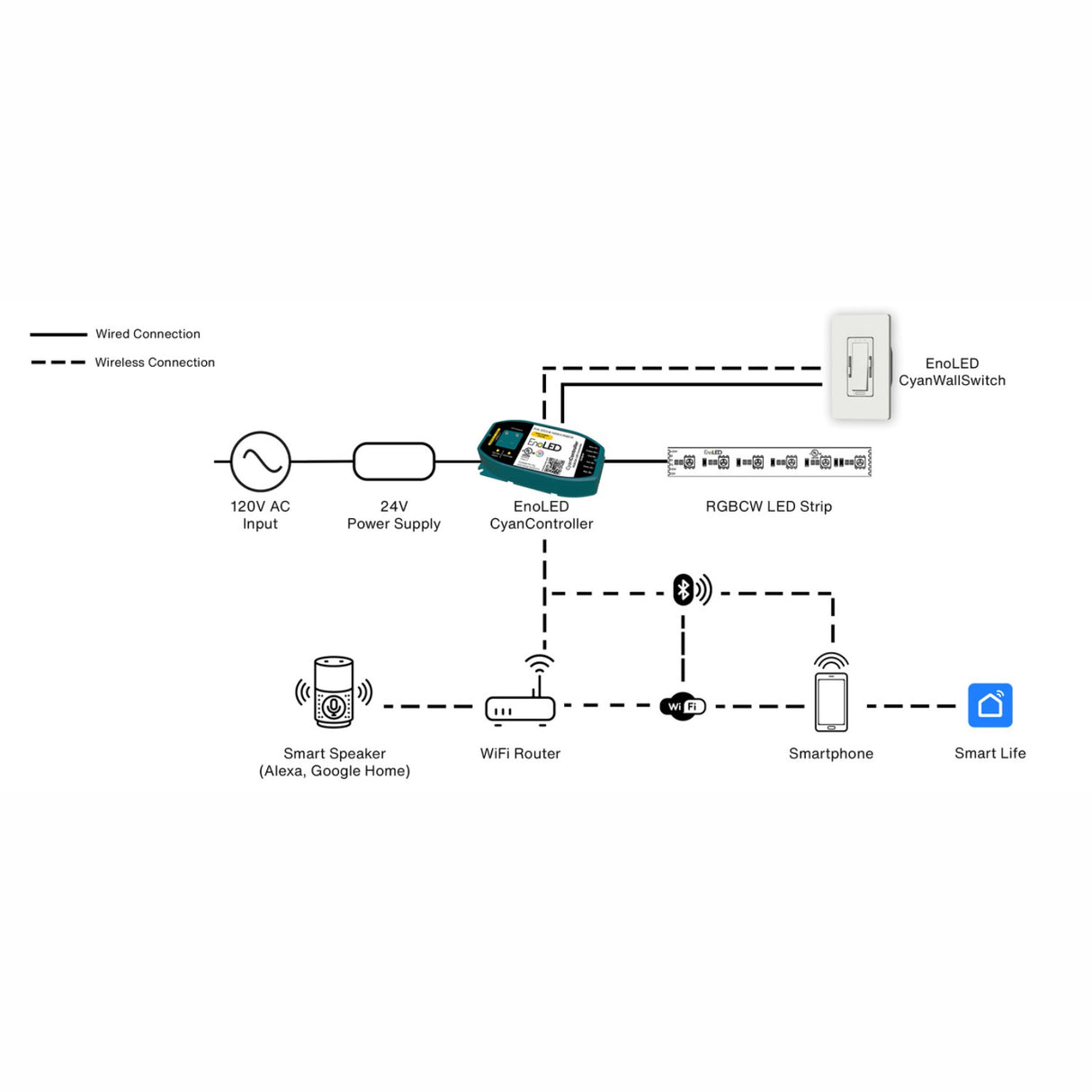

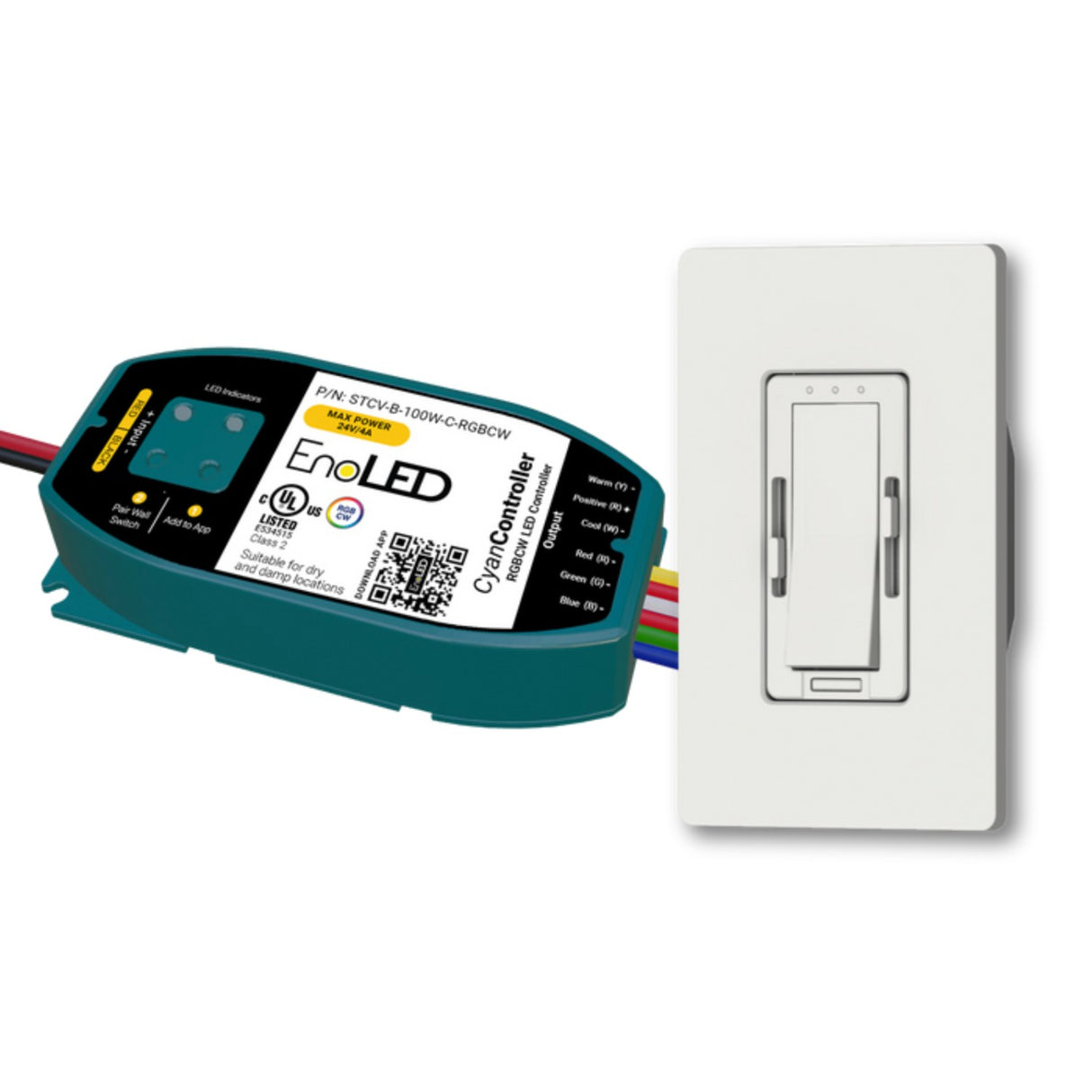

The Cyan RGBCW system consists of a wireless CyanWallSwitch and one or more CyanController smart RGB+CCT LED controllers. This smart wall switch system offers RGB and tunable white control, allowing you to adjust colors and lighting temperatures with ease. The CyanController integrates with the Smart Life app for convenient operation from your smartphone, as well as Amazon Alexa and Google Home for voice control over your LED lighting.

The smart RGB+CCT LED controller features Title 24 compliant flicker-free soft dimming down to 0.1% and a dim-to-off function for precise lighting adjustments. It is UL listed for safety and complies with IEEE and Title 24 flicker requirements. The smart RGB+CCT LED controller requires a standard 24V DC LED power supply.

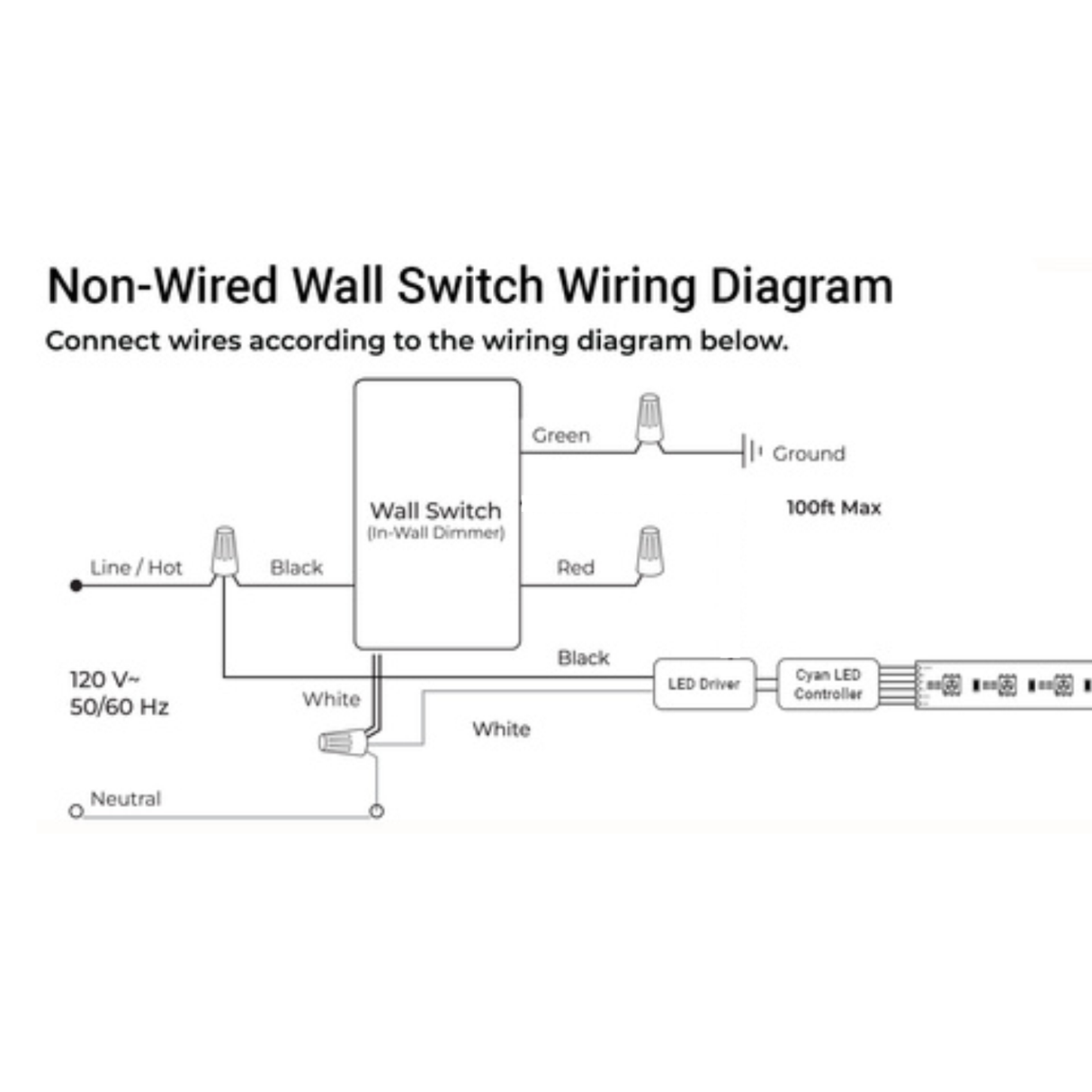

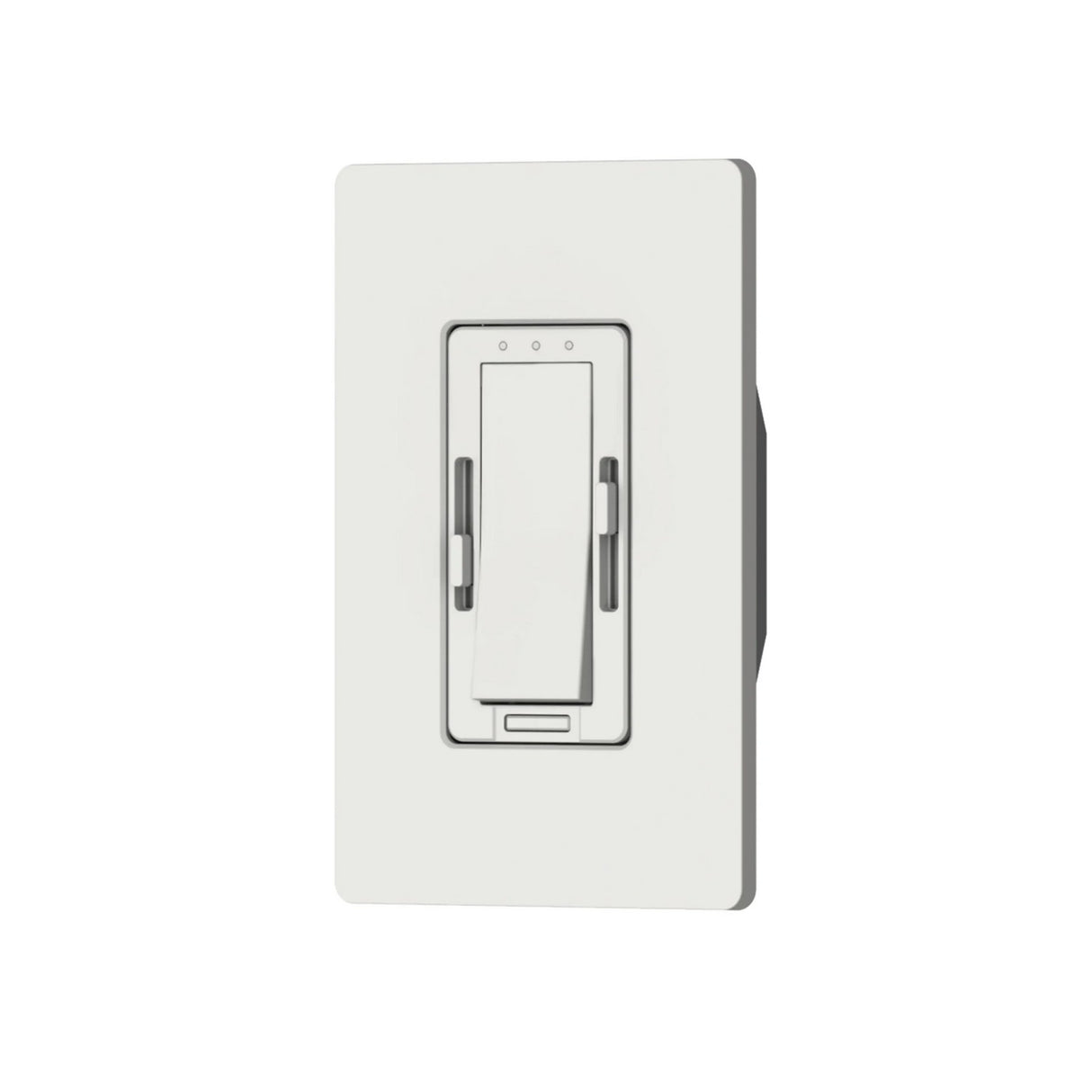

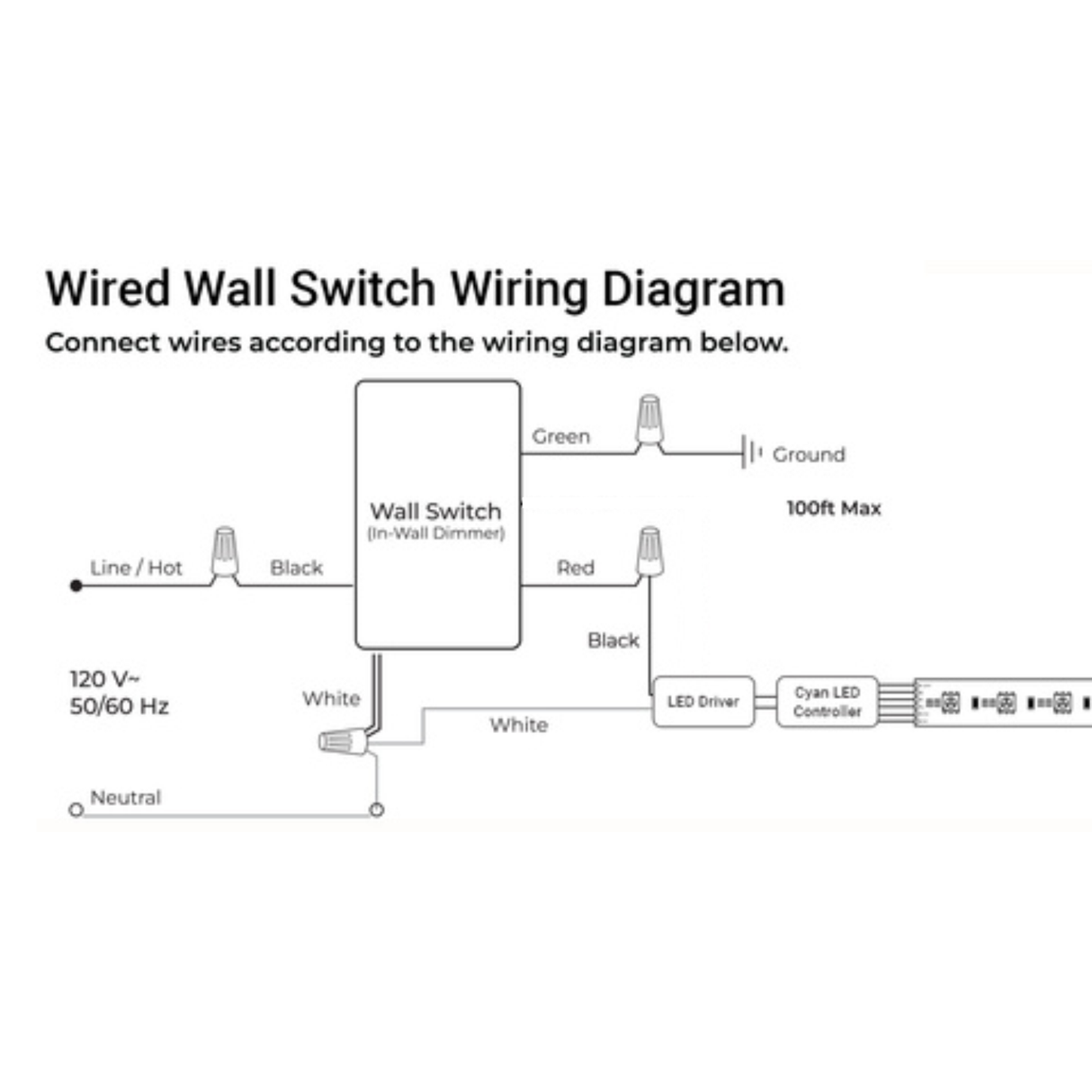

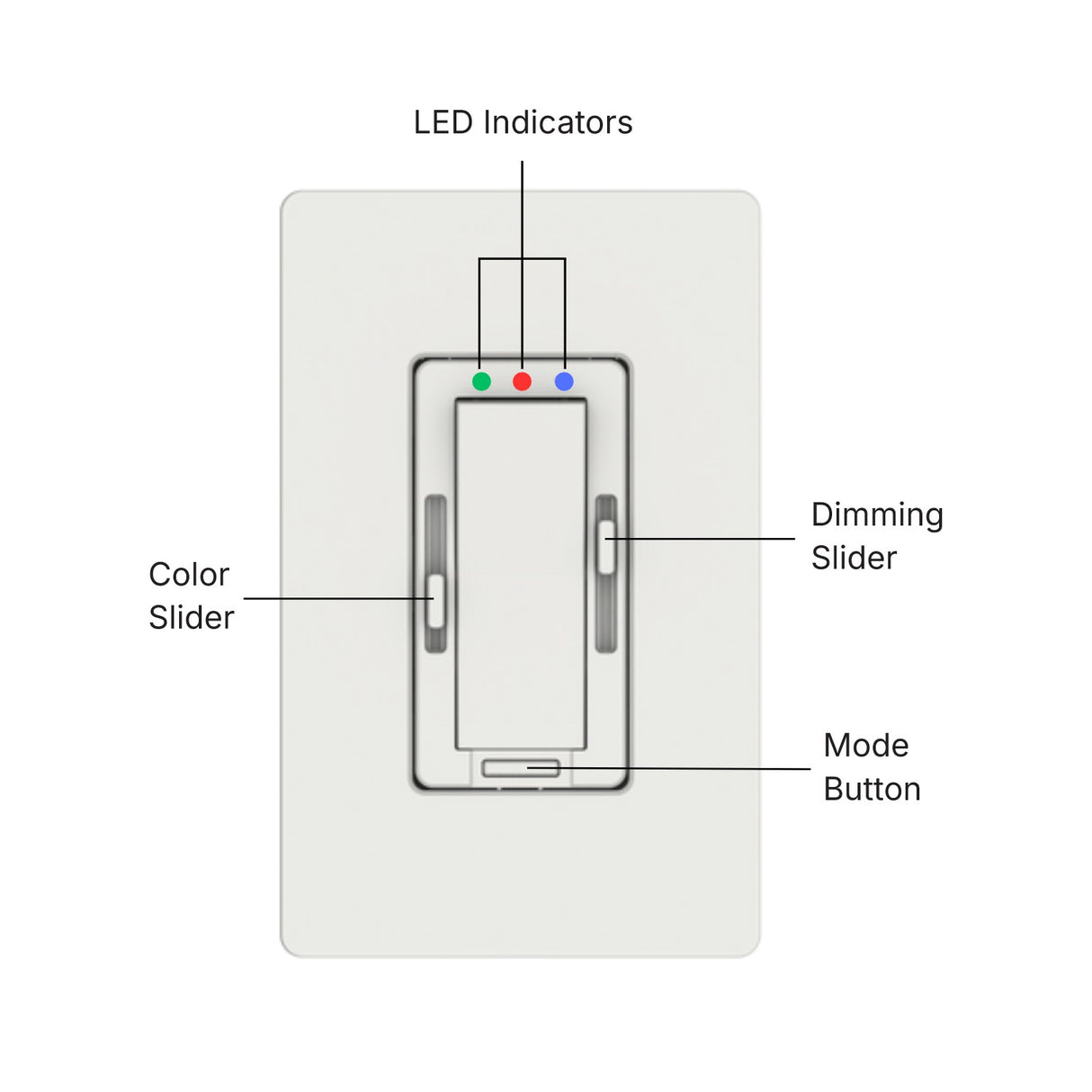

The CyanWallSwitch is designed to allow for easy upgrades to existing lighting systems. With simple installation that requires no extra wiring, the wireless wall switch fits into standard US multi-gang boxes and is compatible with any Decora wall plate. The CyanWallSwitch operates on existing 120V AC and requires no batteries.

The wall switch and controller connect directly without need for a WiFi network. A single wireless CyanWallSwitch can control up to 32 CyanControllers in multiple zones, making it a versatile and efficient solution for smart lighting needs.

General Specifications

• Kit Contents (optional):
  • 1x CyanWallSwitch RGBCW
  • 1x CyanController RGBCW

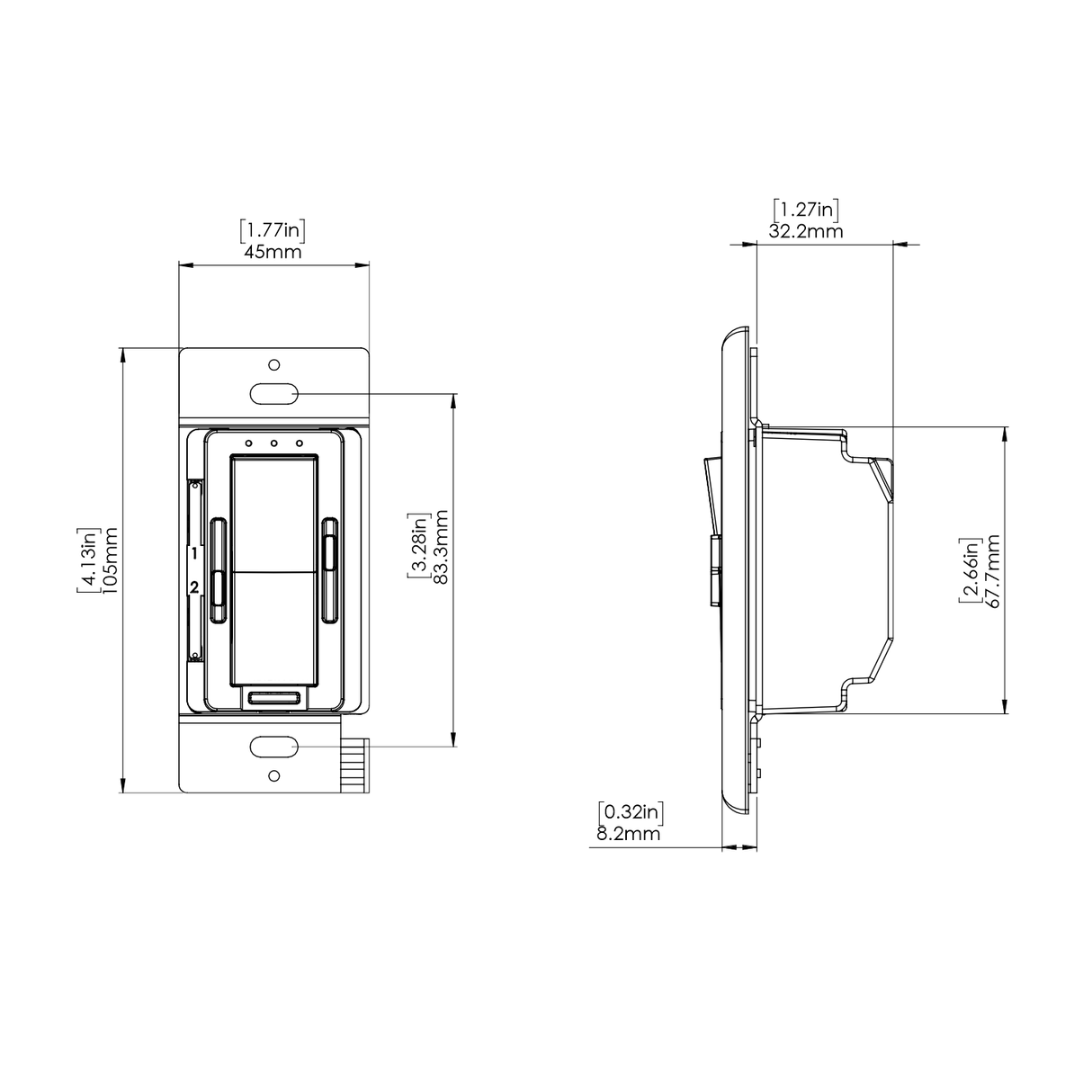

• CyanWallSwitch RGBCW
  • Model: CYAN-RGBCW-S3
  • Input voltage: 120V AC
  • Max hardwired load: 500W

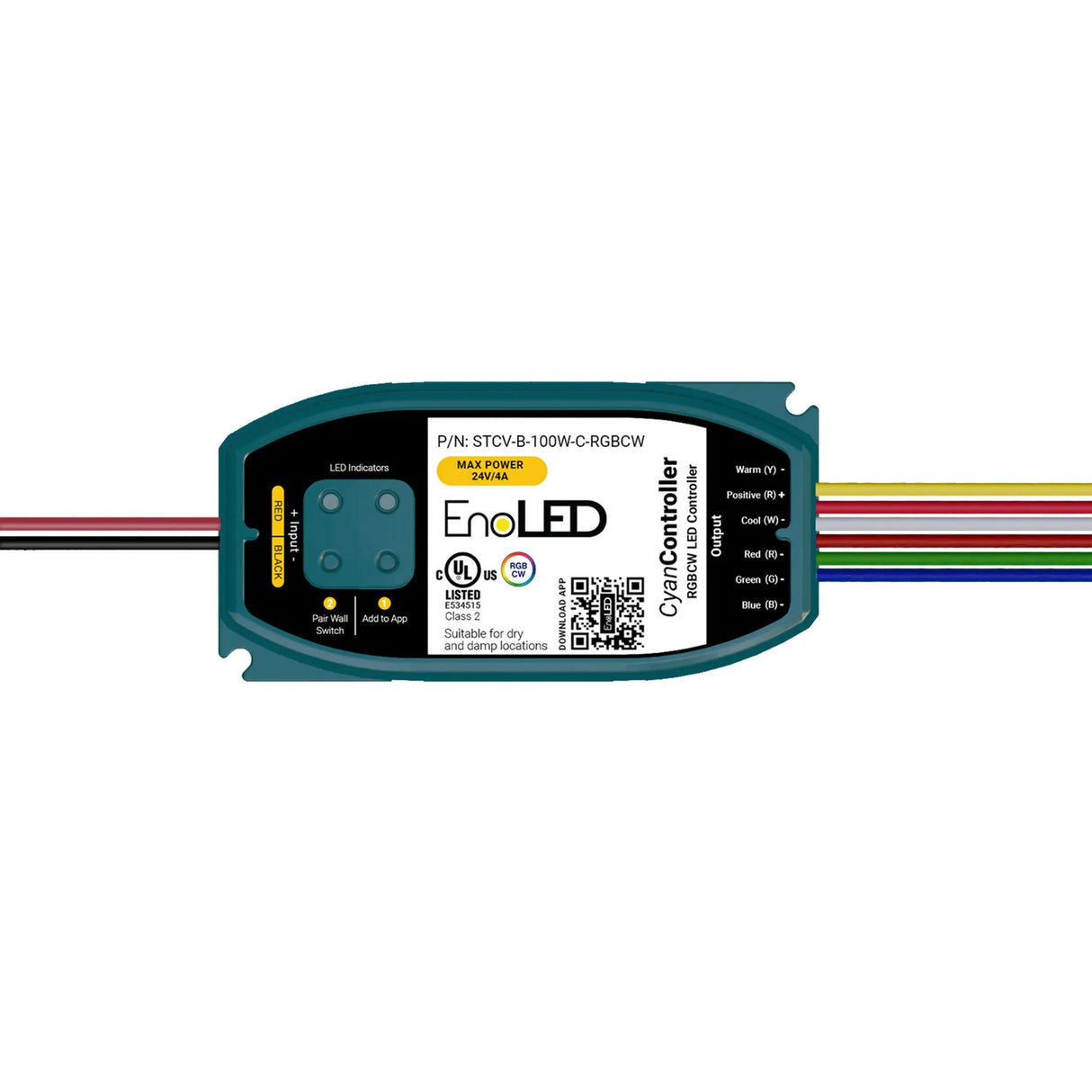

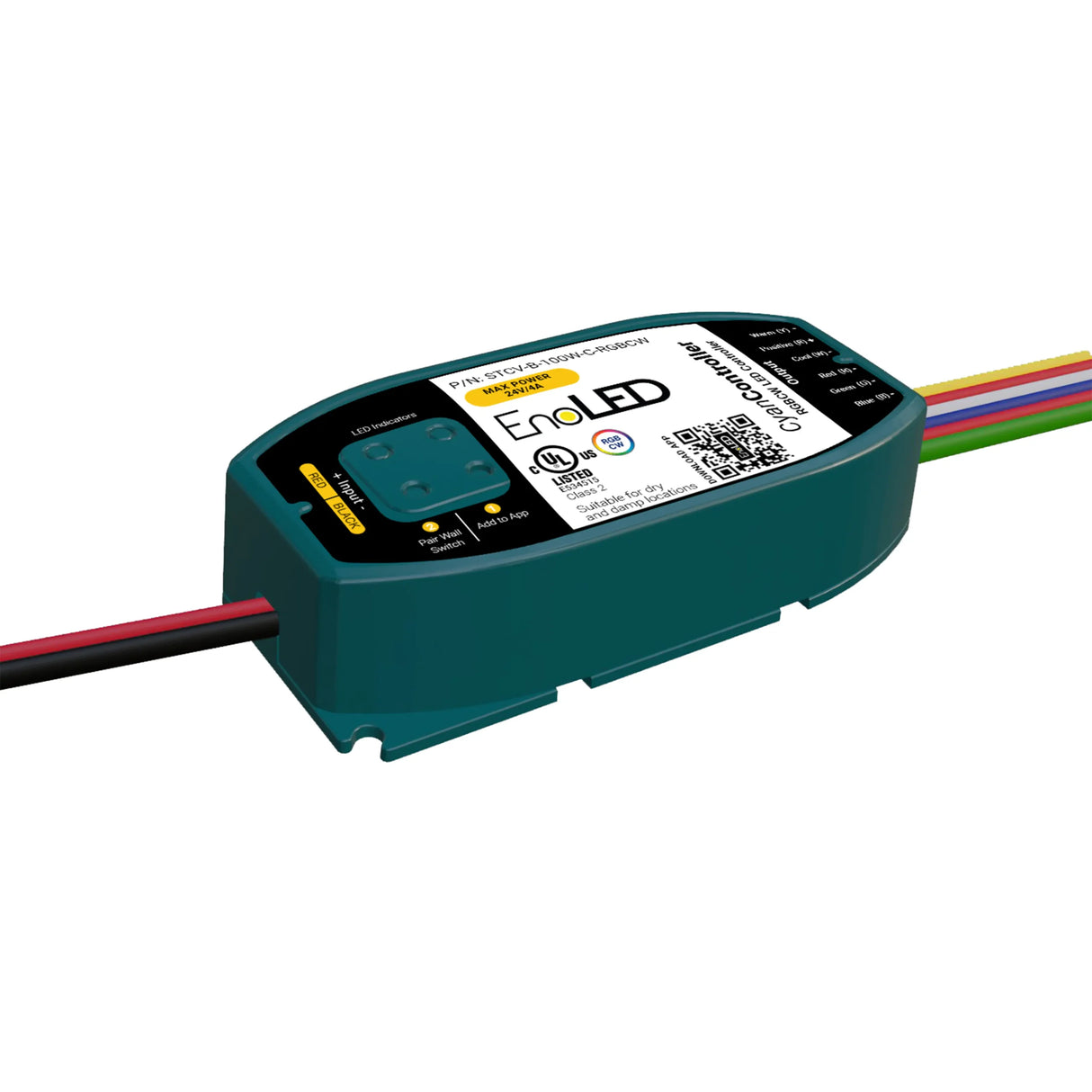

• CyanController RGBCW
  • Model: STCV-B-100-C-RGBCW
  • Input voltage: 24V DC
  • Maximum load: 100W (4A)
  • Channels: 5-channel (RGB + Tunable White)
  • Dimming Range: 0.1 – 100%
  • Dim to Off: Yes
  • Dimming Method: PWM (2400Hz)
  • Electrical protection: Overload, short circuit
  • Environmental protection: IP23 (Dry and damp locations)

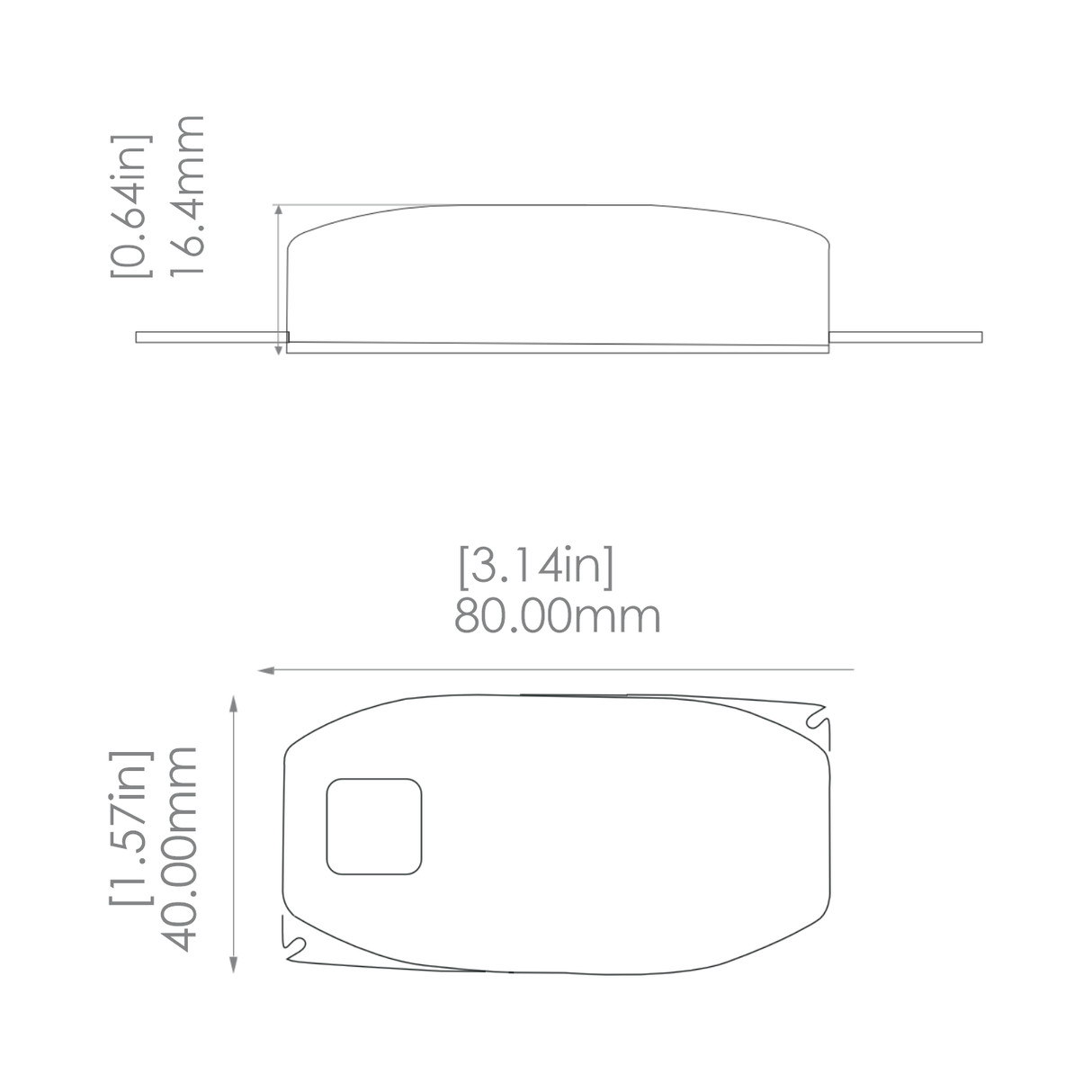

  • Dimensions: 80mm x 40mm x 16.4mm (3.14" × 1.57" × 0.64")
• Wireless protocol: RF / WiFi
• Wireless range: 100ft (maximum)
• Operating Temp: -30°C - +40°C (-86°F- +104°F)
• Certifications: UL Listed UL1472, FCC Class B Part 15

Downloads

• Cyan RGBCW system installation instructions
• Cyan RGBCW controller standalone (no wall switch) installation instructions
• Cyan RGBCW controller cut sheet
• Cyan RGBCW wall switch cut sheet
