Smart Wi-Fi Air Temperature and Humidity Sensor ~ humiditySensor by Blebox

Humidity sensor only ~ all other accessories are sold separately

Description

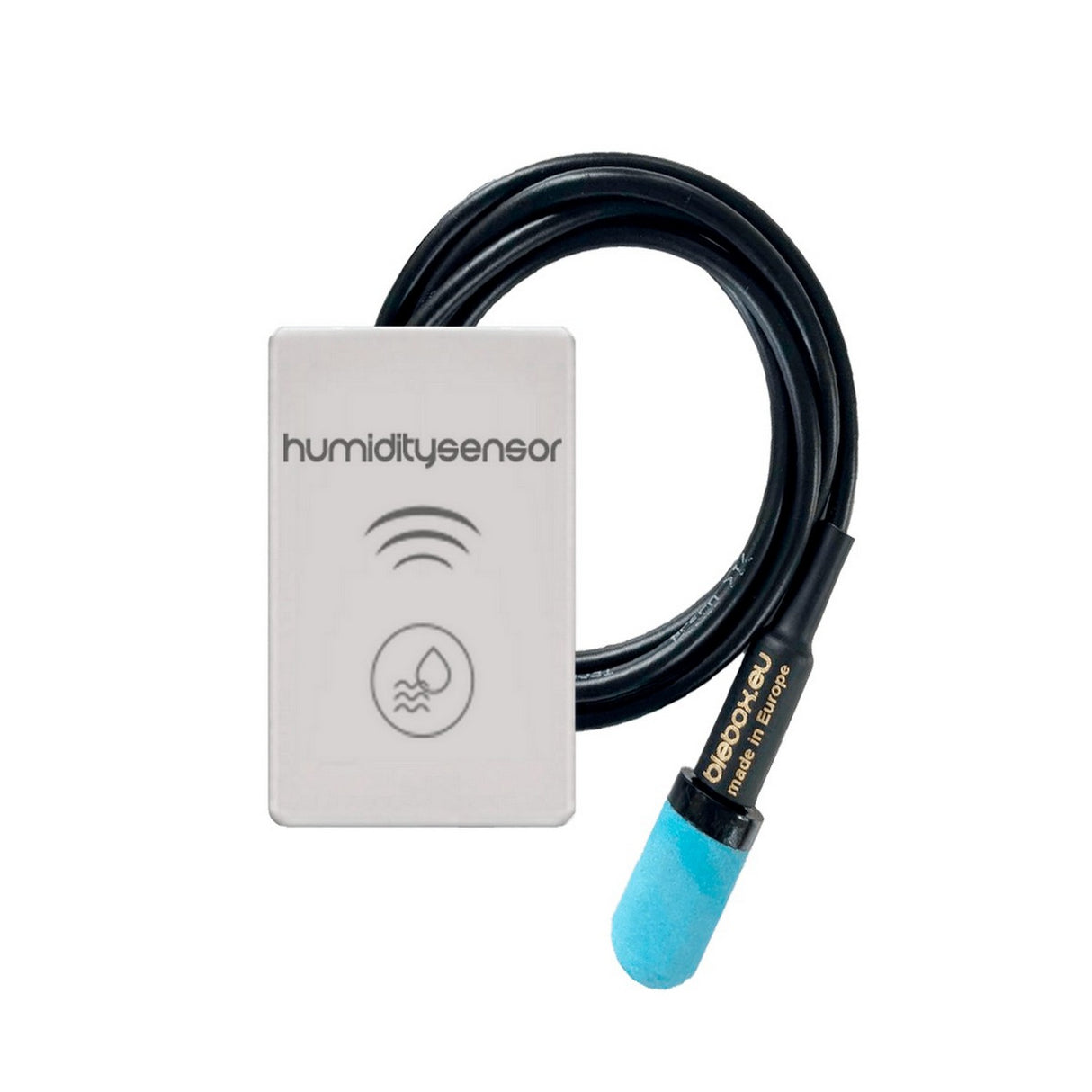

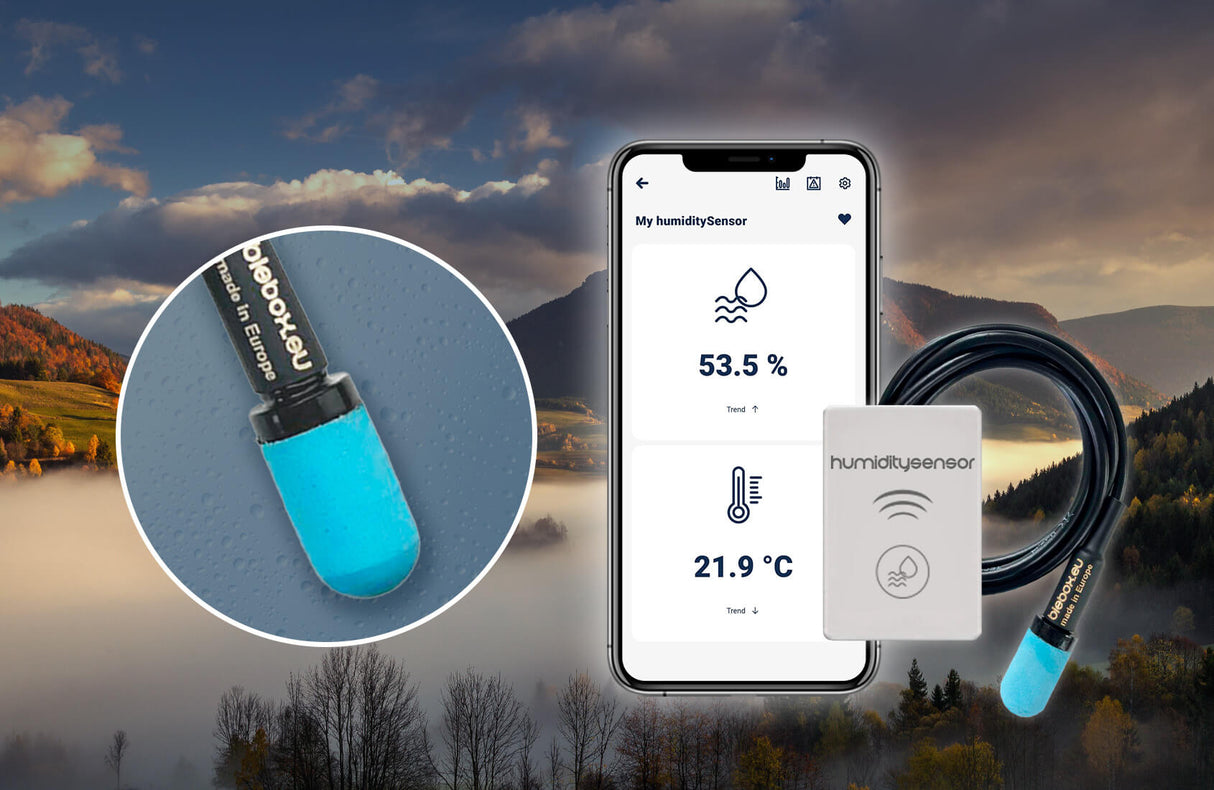

The humiditySensor is a wireless air humidity sensor that enables remote reading of air temperature and relative humidity from anywhere via a local WiFi network. Using the wBox application, you can access data globally. This smart small sensor measures humidity from 0 to 100% and temperature from -40°C to +125°C (-40°F to +257°F), and it is resistant to splashing water.

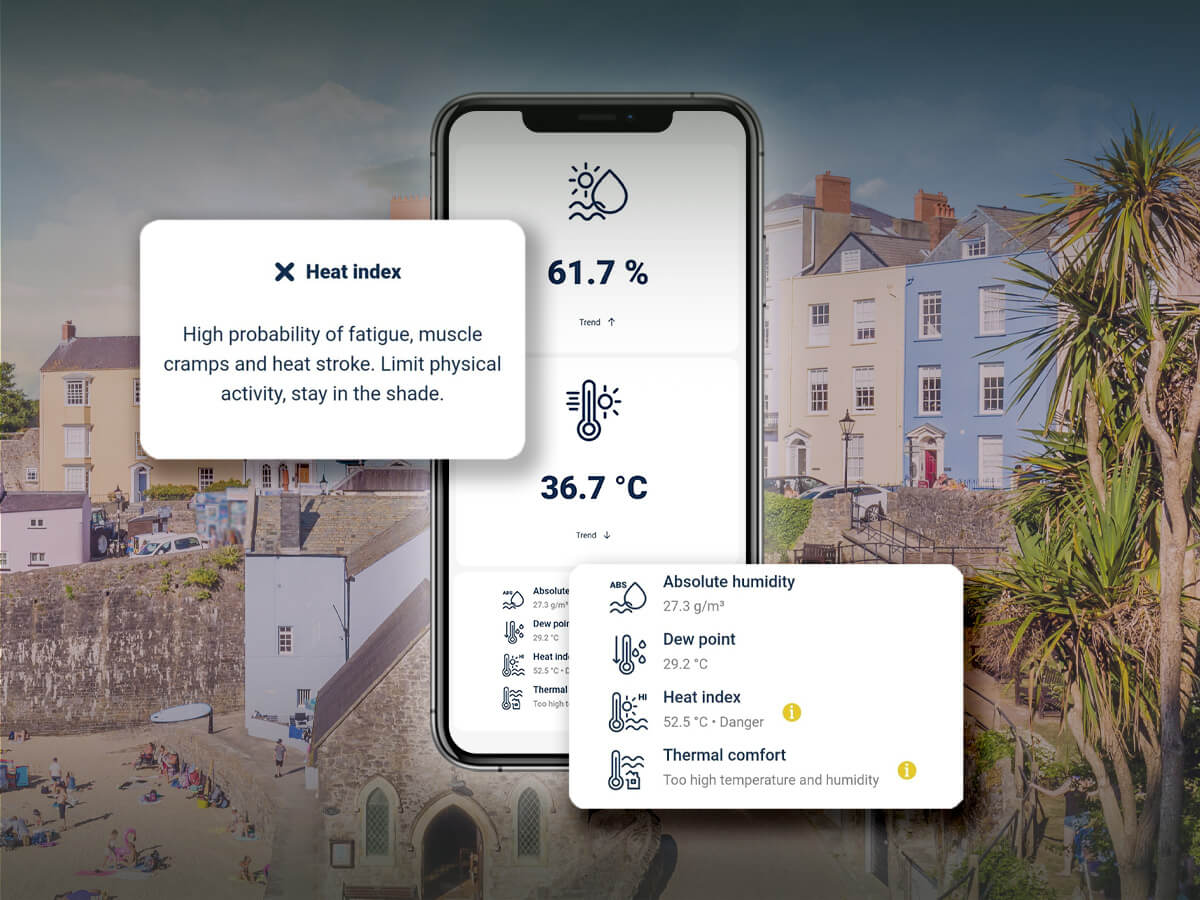

In addition to humidity and temperature, the humiditySensor provides indicators for thermal comfort, heat index with warnings, dew point, and absolute humidity. It serves multiple purposes, including outdoor and indoor humidity and temperature monitoring, use in saunas, greenhouses, and environments with tropical plants.

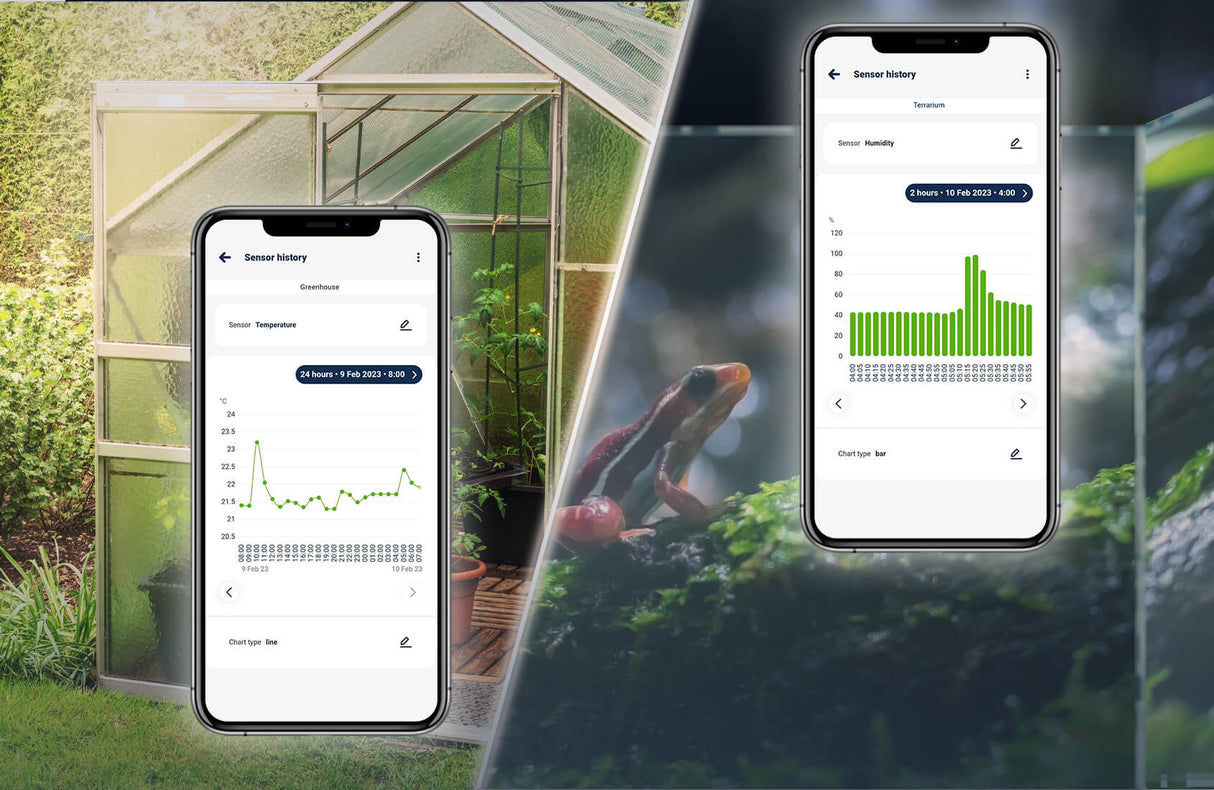

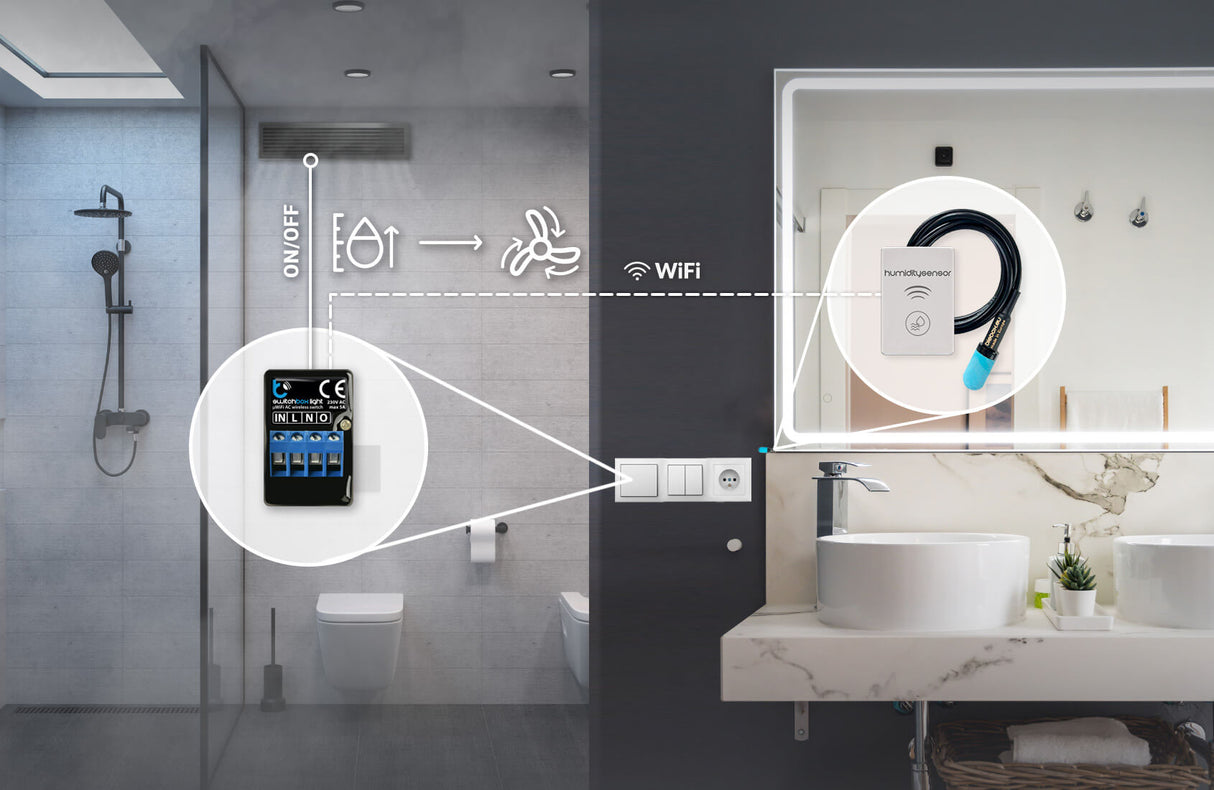

This temperature and humidity sensor can wirelessly control up to 30 other BleBox devices. It can activate fans, sprinklers, and ventilation systems when combined with controllers like switchBox LIGHT, switchBoxDC, or shutterBox. Interactive graphs allow for historical data analysis, and advanced users can export data for further processing. Notifications are sent to smartphones when set thresholds are exceeded.

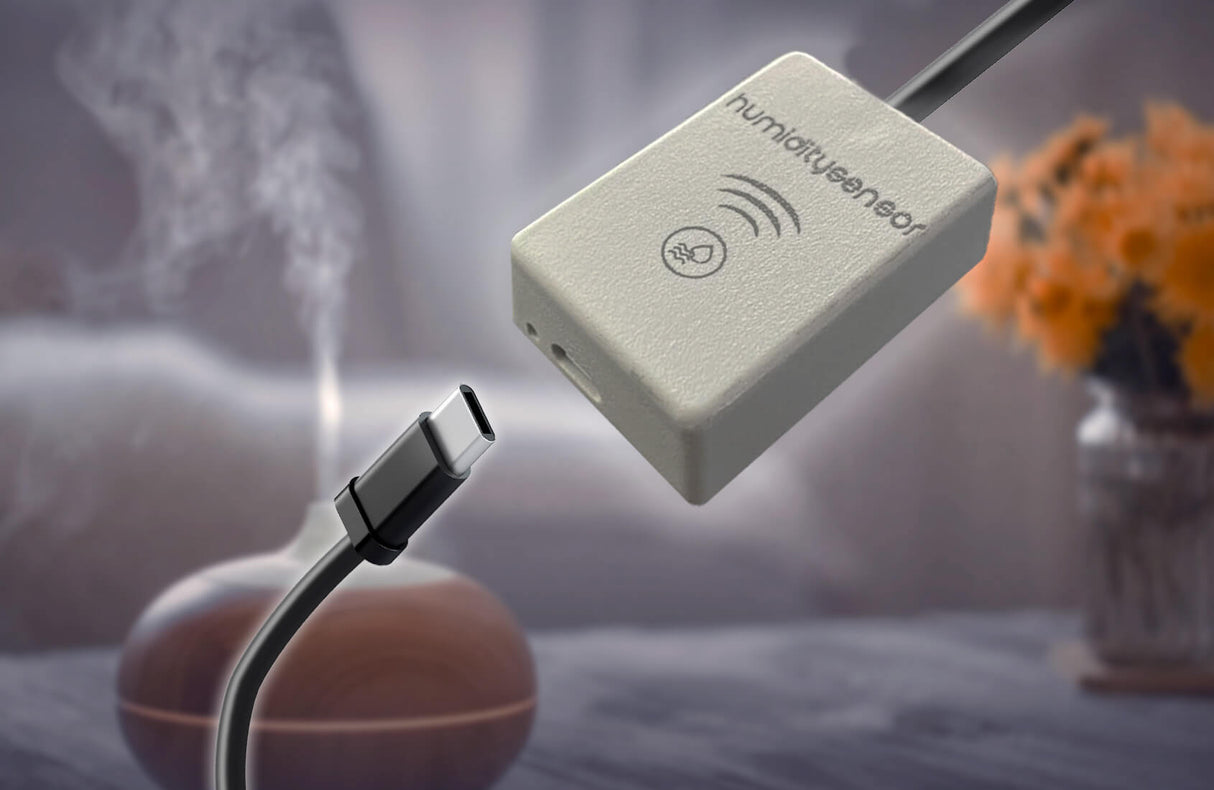

The device is plug-and-play, requiring only a 5V charger to operate. With its comprehensive features and versatile applications, the humiditySensor is a great tool for accurate and remote climate monitoring.

General Specifications

• Overall dimensions: 31 x 45 x 15 mm (1.22” x 1.77” x 0.59”)
• Dimension of the probe: 13 x 46 mm (0.12 x 1.81”)
• Power supply: 5V by USB-C connector
• Energy consumption: < 1W
• Measurement range:
  • Humidity sensor: 0 – 100 %RH or up to condensation on the surface of the sensor
  • Temperature sensor: -40 – 125 °C (-40 – 257 °F)
• Typical accuracy:
  • Humidity sensor: ±1.8% RH in 30 – 70% humidity range and 0 – 80 °C (32 – 176 °F) temperature range
  • Temperature sensor: ±0.2 °C in 0 – 60 °C (32 – 140 °F) range
• Measurement resolution:
  • Humidity sensor: 0.1% RH
  • Temperature sensor: 0.1 °C (0.18 °F)
• Temperature range of the probe: -5 – 70 °C (23 – 158 °F) (occasional flexing), -40 – 80 °C (-40 – 176 °F) (fixed connection)
• Controller operating temperature: -20 – 50 °C (-4 – 122 °F)
• Type of probe: Wired, resistant to splashing water, cable length 1m (3ft)
• Mounting method: Double-sided mounting tape, installation in a place protected from rain
• Protection Rating: IP32
• Communication standard: μWiFi, compatible with WiFi, 802.11g

Downloads

• humiditySensor instructions
• Blebox App Quick Start Guide
• Google Home User Guide
• Alexa User Guide App Quick Start Guide
