SKU: LED-DACBOXD-DC

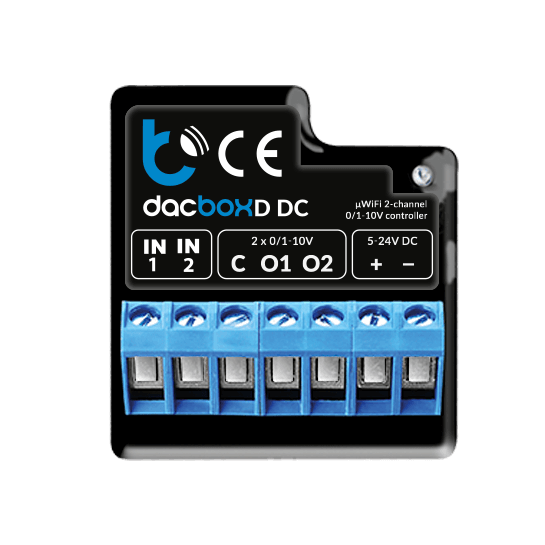

Smart WiFi 2-Channel 0-10V Controller ~ Model dacBoxD DC

$91.56 USD
Shipping calculated at checkout.

Product details

Controller only ~ all other components are sold separately

Description

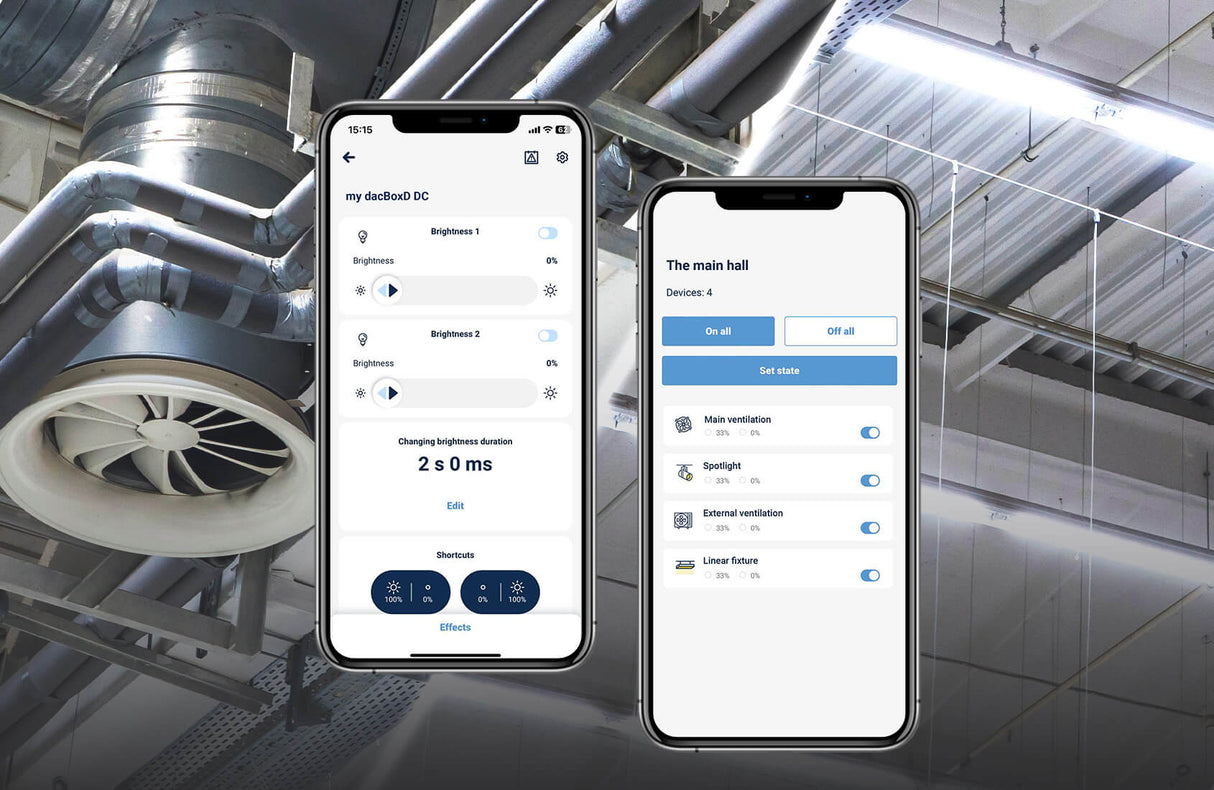

dacBoxD DC is a two-channel smart analog controller used to control devices like lamps, dampers, heaters, pumps, inverters, ventilation systems, and more with a 0-10V, 1-10V, or 0-5V interface. Powered by 5-24V DC, it offers precise control of devices with 0-10V, 1-10V, or 0-5V interface/input, making it ideal for both residential and industrial settings. It connects to the wBox app for local and remote control, scene creation, and automation, including scheduling with an astronomical clock.

You can use it with standard buttons or wireless modules like actionBox and proxiBox. The dacBoxD DC controller integrates with voice assistants like Google Home and Amazon Alexa, allowing for voice-activated control. It also supports uRemote and sRemote devices for wireless remote operation.

Additionally, this smart analog controller dacBoxD DC can automate actions based on environmental sensors – such as tempSensor (temperature), humiditySensor (humidity), airSensor (air quality), rainSensor (rain), windSensor PRO (wind speed), or floodSensor (detection of water/flooding) – enabling full smart home integration without Wi-Fi dependency.

The dacBoxD DC controller is powered by a safe voltage of 5–24V DC, which means it is suitable for FELV, PELV, SELV systems. The 5–24V DC power supply and ELV (extra low voltage) support on inputs/outputs make the dacBoxD DC perfect for home and industrial automation.

This controller is designed for seamless operation in diverse settings, offering both direct connection options and flexible automation, ensuring reliable, smart control of lighting and devices across various applications.

General specifications

  • Supply voltage: 5-24V DC
  • Energy consumption: <1W
  • Number of outputs: 2
  • Output type: Analog voltage (0-10V, 1-10V, 0-5V)
  • Max load: 20mA / channel
  • Electrical protection: Short-circuit protection, reverse connection, surge protection
  • Number of inputs: 2
  • Input type: Optoisolated, logical, configurable, 5–24V DC, active by shorting to GND
  • Supported switches: Monostable (push-button), bistable (traditional, cross switch), not-illuminated
  • Overall dimensions: 41 x 39 x 17mm (1.61” x 1.54” x 0.67”)
  • Protection rating: IP20
  • Operating temperature: -20°C to 50°C (-4°F to 122°F)
  • Communication standard: μWiFi, compatible with WiFi, 802.11g/n
  • Communication mode: Direct connection (as access point), WiFi connection via a standard router, connection with access from any location in the world (requires access to the Internet)
