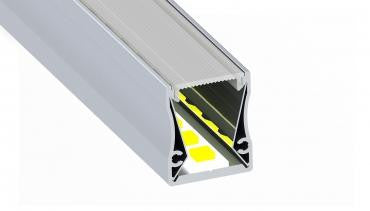

Surface Mount LED Strip Channel ~ Model SLW20-FL

Profile only ~ diffusers, end caps and all other accessories are sold separately

Description

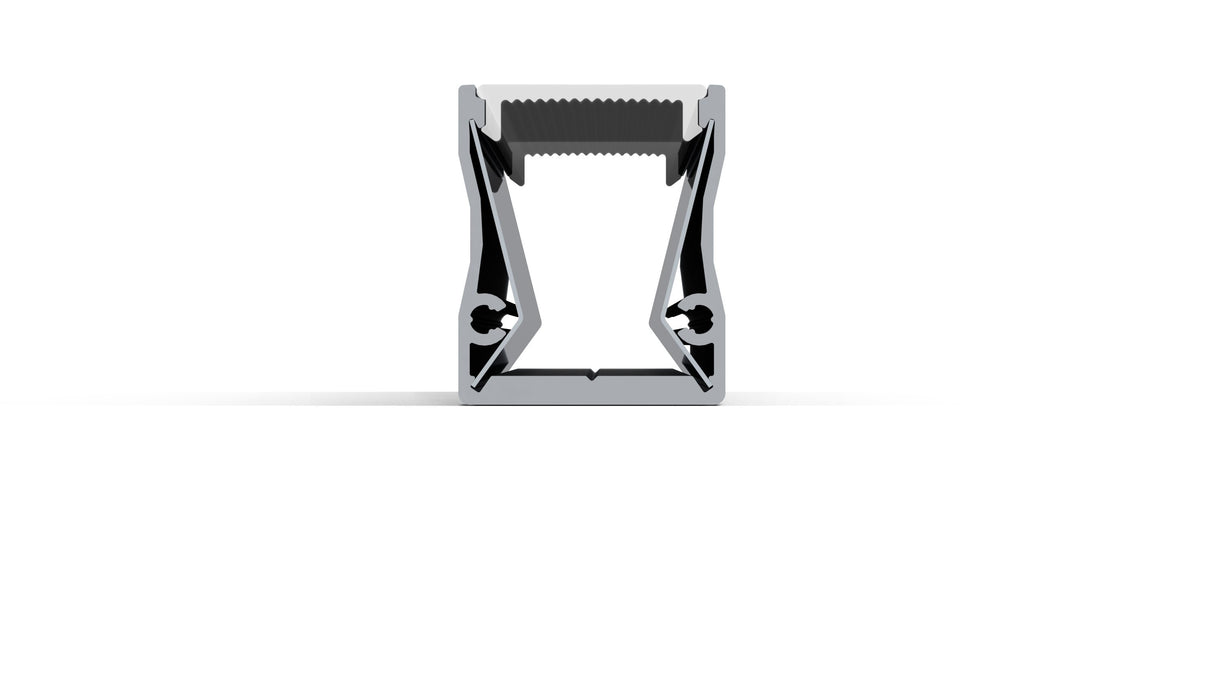

The SLW20-FL channel is a premium aluminum LED profile designed for surface-mounted LED strip lighting applications requiring durability, efficiency, and clean light output. Constructed from anodized silver aluminum, this LED strip channel measures 23x28mm and provides a modern, professional housing solution for linear lighting installations.

This LED strip channel is an improved version of the SLW20 profile, built with a lighter structure while maintaining strong heat dissipation. It supports thermal loads up to 25 W/m, helping extend the lifespan of LED strips. The optimized internal chamber accommodates wider LED strips, making it suitable for various lighting setups.

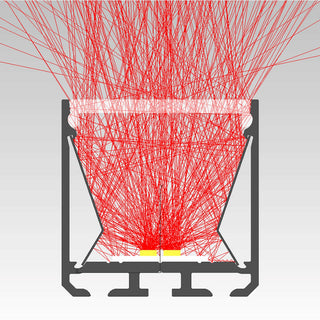

The SLW20-FL LED profile is compatible with optional high-reflectivity aluminum reflectors, including the Vega95 light reflector, which can increase light output by up to 18%. This enhancement improves optical efficiency and maximizes brightness without increasing energy consumption.

General specifications

• Material: Aluminum
• Finish: Silver anodized

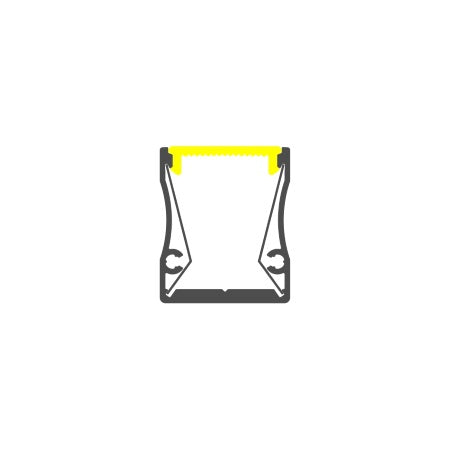

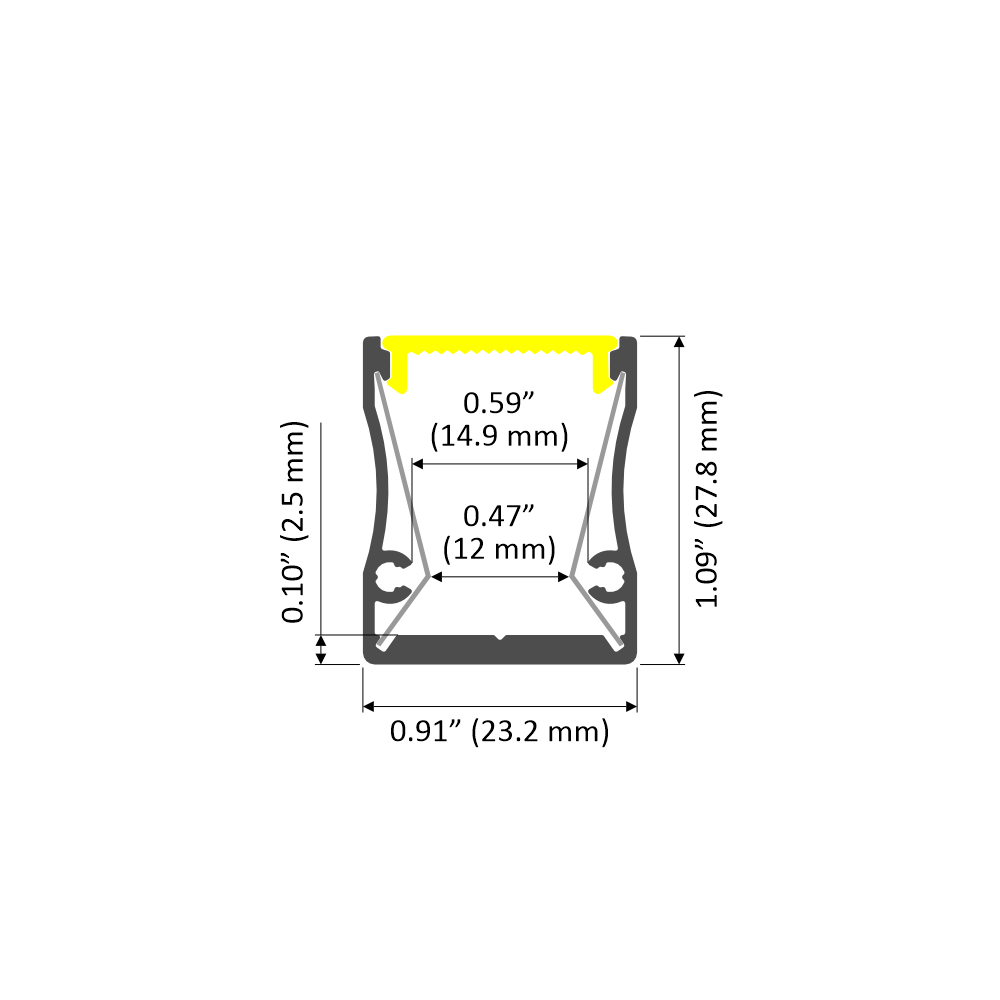

• Overall dimensions: 23mm x 28mm (0.91” x 1.10”)
• Maximum LED strip width: 12mm

Downloads

• SLW20-FL cut sheet - to be added

Important Notes

• Please note that in outdoor applications, raw or natural profiles or channels will oxidize over time unless they are coated or painted, as they are not anodized.
• You can easily cut LED profiles by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
• We ship items in stock the same day from Knoxville, Tennessee, United States. Our team dedicates themselves to carefully packing and safely delivering all packages to their destination.
• Bulk pricing is available on request. For larger orders, we offer additional discounts and customized pricing to fit your project needs.
