Tile Edge LED Strip Light Channel Kit ~ Model Uni-Tile12 180Deg
Tile Edge LED Strip Light Channel Kit ~ Model Uni-Tile12 180Deg
Product details
Profile kit only ~ LED strip and all other components are sold separately
Description

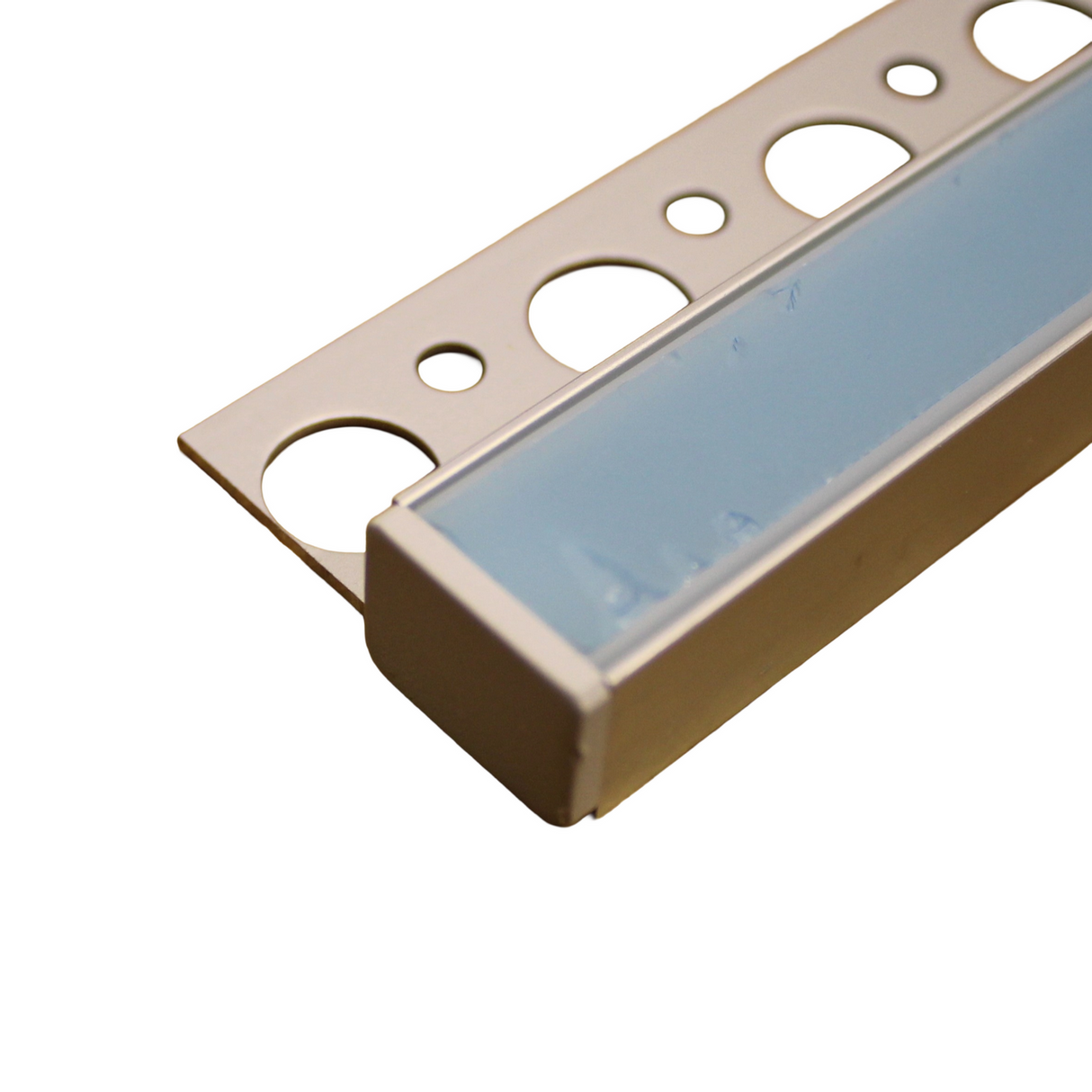

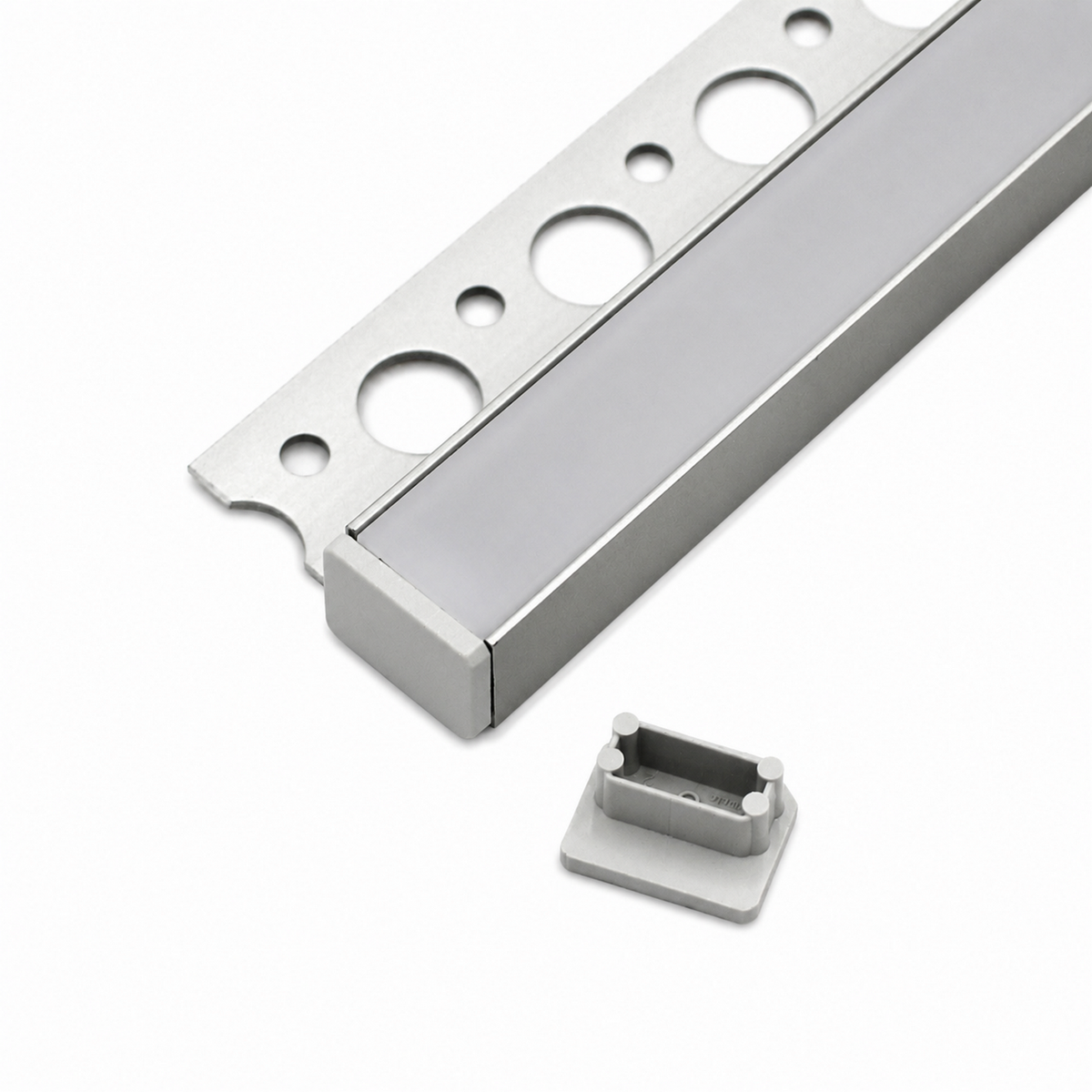

The Uni-Tile12 180Deg LED Channel Kit includes everything you need for a clean, finished tile-edge LED installation – no need to source accessories separately. The kit combines the Uni-Tile12 180Deg aluminum profile with an opal C Click diffuser cover and a pair of end caps.
Designed for bathrooms, kitchens, and other tiled spaces, this 180-degree profile mounts flush between tiles, ceramic, or stoneware surfaces for a sleek recessed lighting effect. Use it between two tiles or as a tile ending trim – the mud-in trim on one side and perforated L-shaped trim make fitting into concrete and wall surfaces straightforward.
The opal C Click cover minimizes the dotting effect of the LED strip and produces a smooth, even light output. The aluminum channel doubles as a heat sink, distributing heat away from the LEDs and helping to prolong their lifespan.
Wired4Signs offers the option to cut profiles to specification and resin fill them, providing a fully waterproof LED lighting solution – ideal for showers, saunas, and outdoor areas.
Product Video
Installation guide video

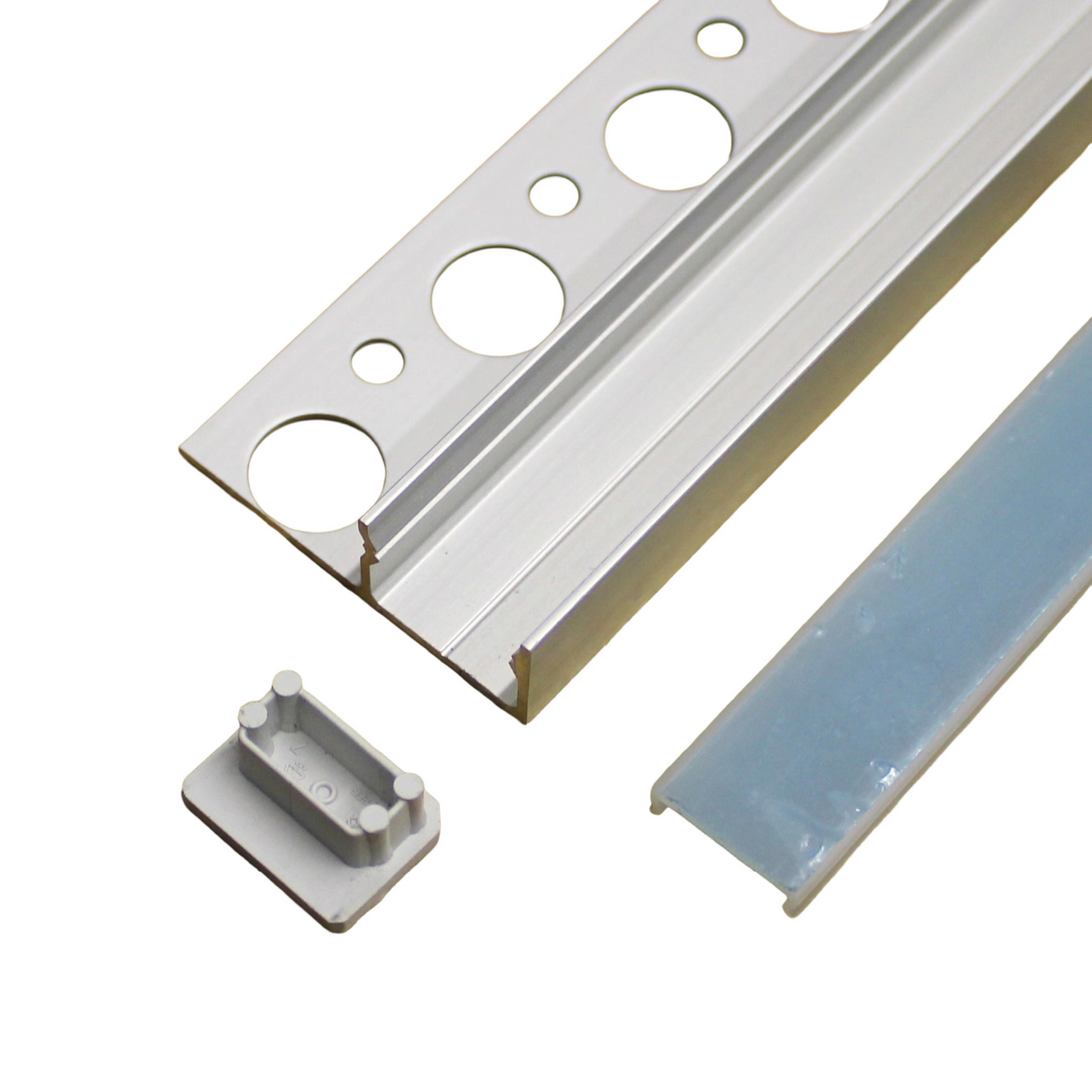

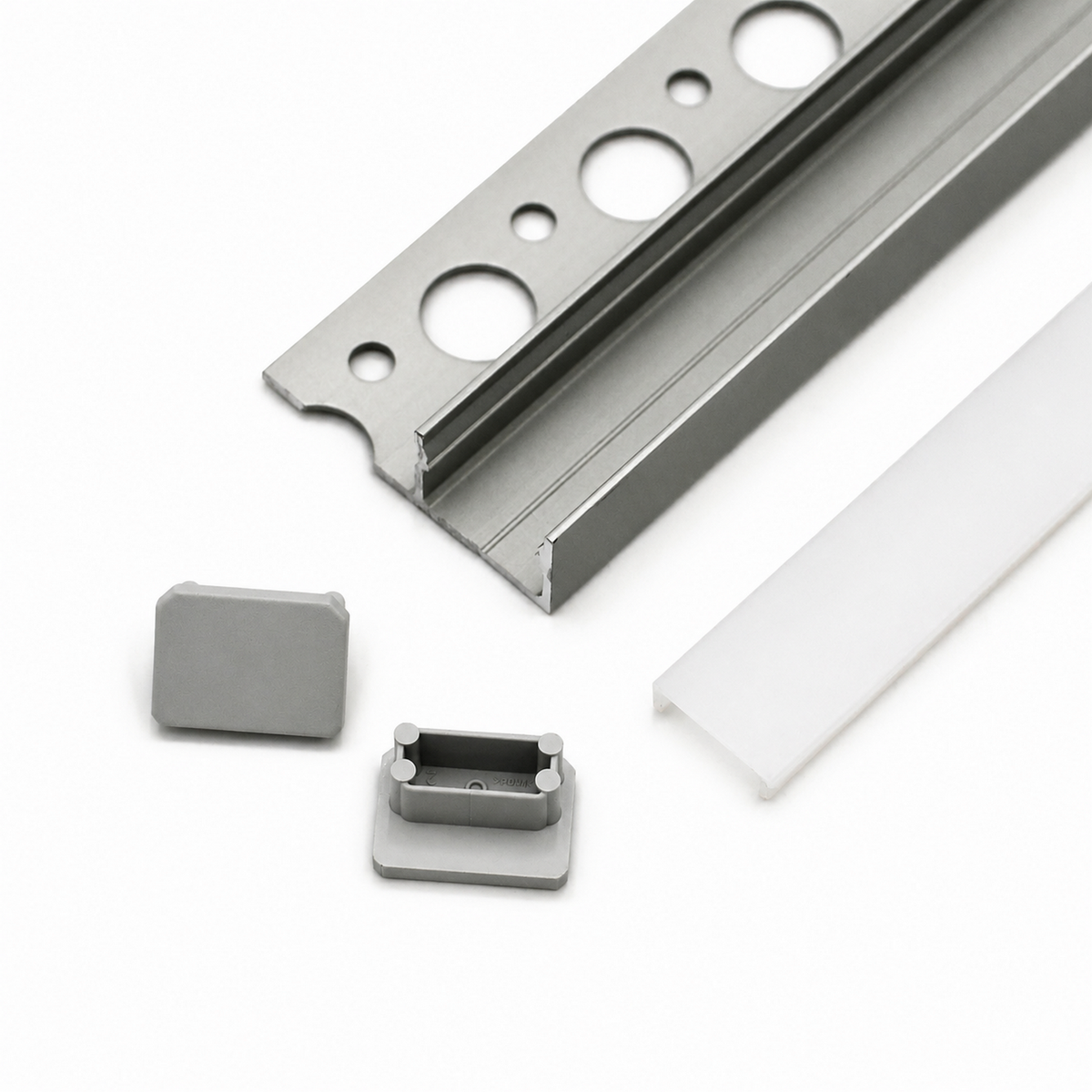

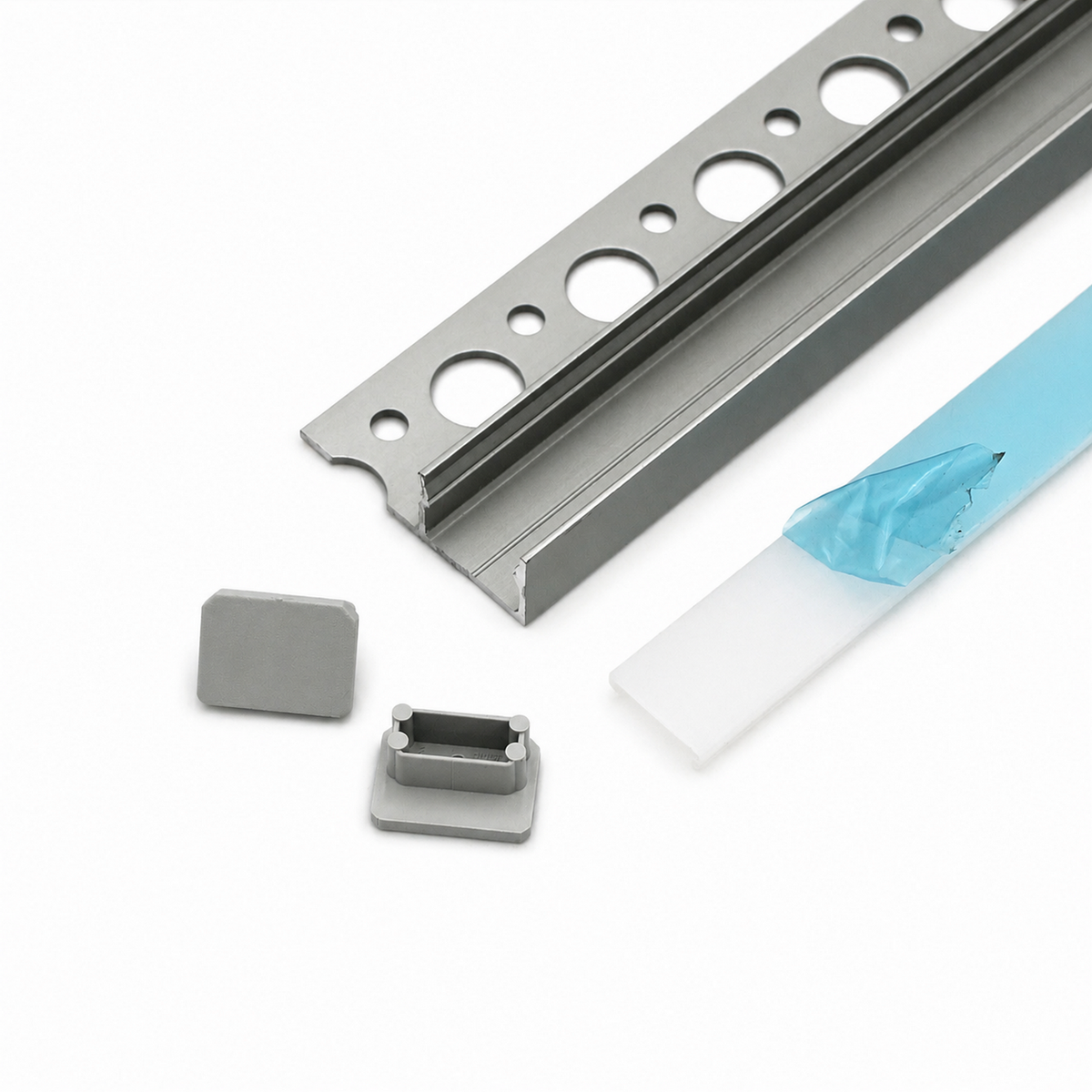

Kit contents
The profile kit option for Uni-Tile12 180 includes:
- Uni-Tile12 180Deg aluminum LED profile
- C Click Opal LED channel cover
- Pair of gray end caps
General specifications
- Maximum LED strip width: 12mm
- Maximum LED power: 20W/m
- Tile Thickness: 10mm
- Color: Anodized Silver
Downloads
Important notes
- You can easily cut LED profiles by hand or by machine.
- For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
- We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
- We ship items in stock the same day from Knoxville, Tennessee, United States. Our team dedicates themselves to carefully packing and safely delivering all packages to their destination.
- Bulk pricing is available on request. For larger orders, we offer additional discounts and customized pricing to fit your project needs. Contact us to learn more about our bulk pricing options.
