Tile Edge LED Strip Light Channel ~ Model Uni-Tile12 180Deg

Tile Edge LED Strip Light Channel ~ Model Uni-Tile12 180Deg

Original price - Original price
Original price
-
Current price
SKU LEDKIT-YY000196-1828
In stock and ready to ship

🚚 - Free shipping on most orders over $350 - T&C Apply

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

Profile only ~ covers and all other accessories are sold separately

Description

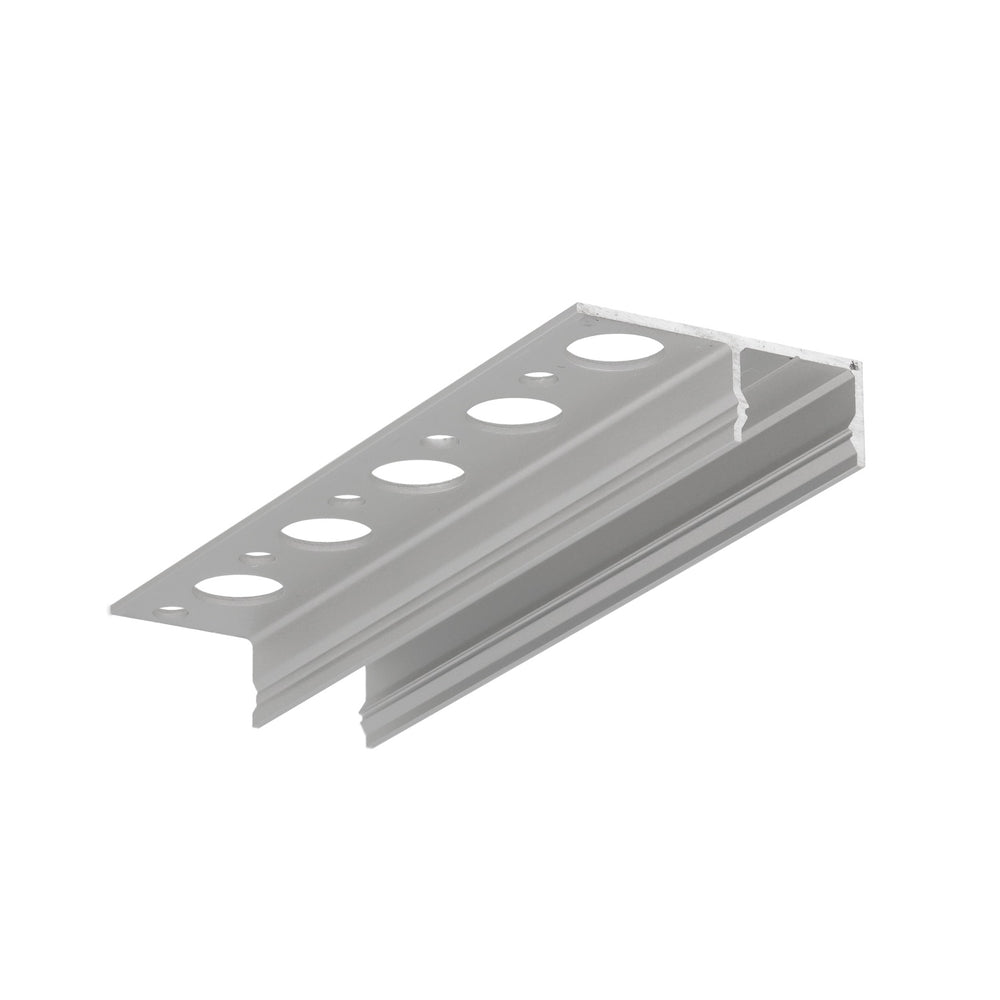

The Uni-Tile12 tile edge LED strip light channel profile series is ideal for illuminating bathrooms and kitchens, where it is mounted into tiles, ceramic or stoneware surfaces. Perforated L-shaped trim facilitates profile fitting into concrete for perfect wall adhesion. Designers created this range of architectural LED aluminum extrusions to produce excellent recessed lighting effects between and around tiles.

The Uni-Tile12 tile edge LED strip light channel range consists of three versions: 180 degree for flat surfaces, 90 degree for inside corner lighting, and 270 degree for outside corner lighting. Specifically, this 180 degree profile is intended for LED accent lighting on flat tiled surfaces. You can mount it between two tiles or use it as a tile ending trim, thanks to the mud-in trim on one side.

Additionally, the opal cover minimizes the dotting effect of the LED strip lights and creates a smooth, even light. Furthermore, the aluminum channel serves as a heat sink, distributing the heat generated from the LEDs. This, in turn, helps to prolong the life span of the LED strip lights.

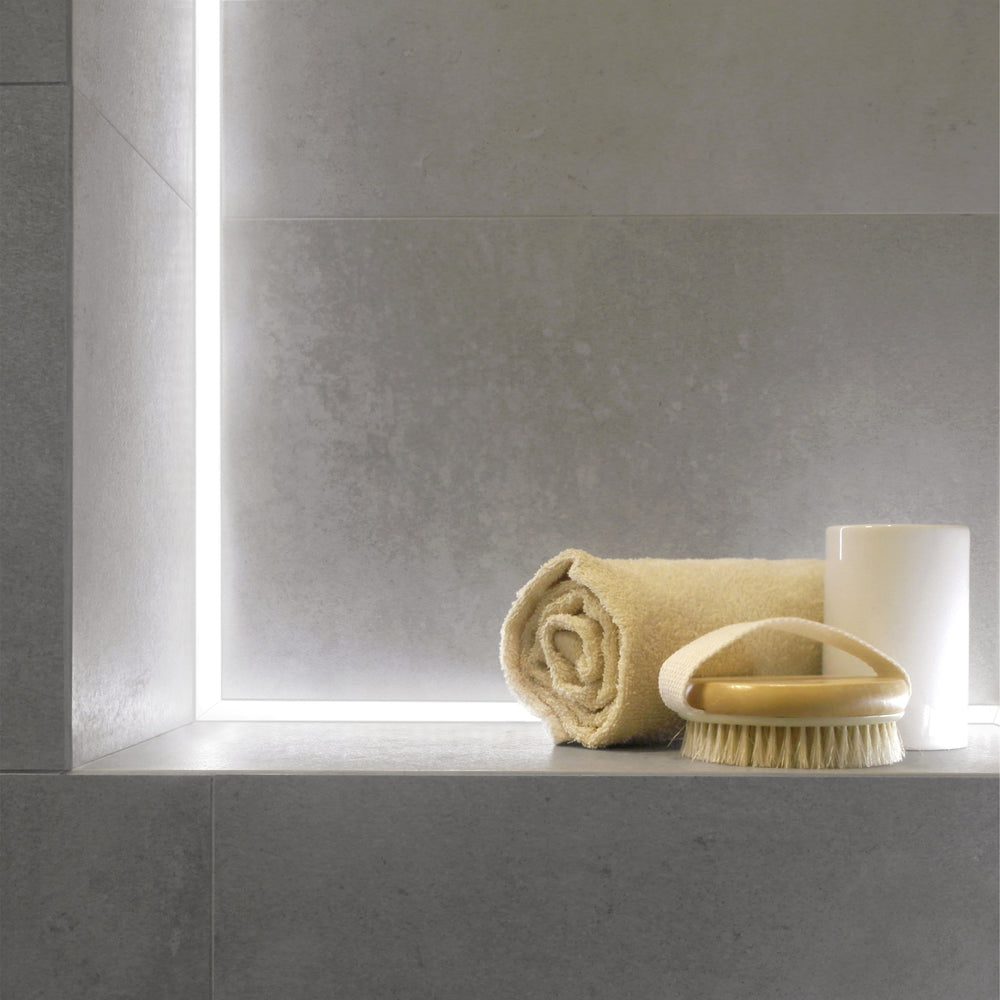

Moreover, Wired4Signs offers the option to cut to specification and resin fill these profiles, providing a fully waterproof LED lighting solution. This makes it an ideal choice for installing LED lighting features in wet environments such as showers, saunas, and outdoor areas. Lastly, use the 180 degree version to trim a shower or bathroom, and we recommend using the corner profiles for creating shower niche lighting.

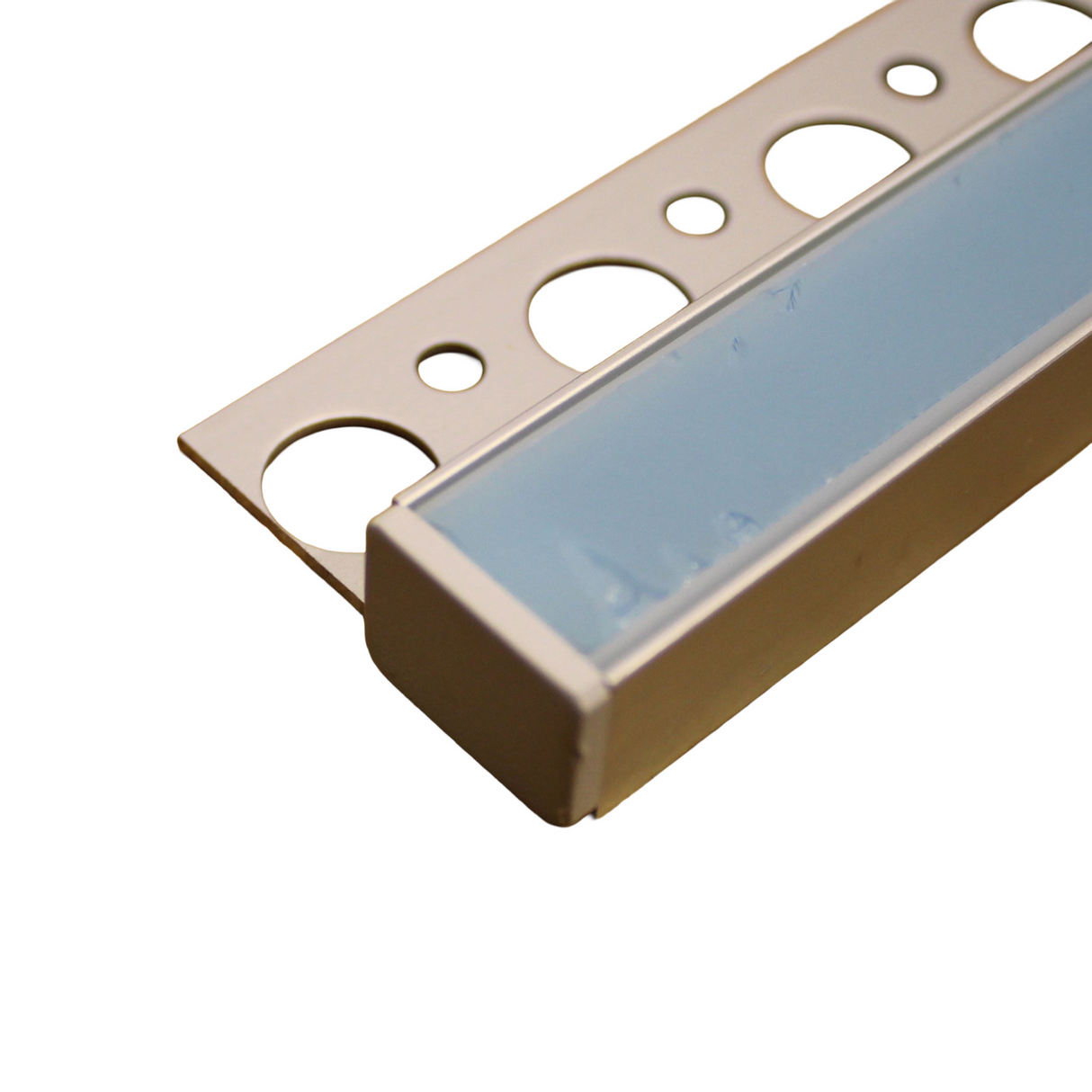

We also offer the Uni-Tile12 180Deg profile for tiled surfaces as a kit which includes the aluminum profile plus an opal cover and end caps.


Installation guide video


Kit contents (optional)

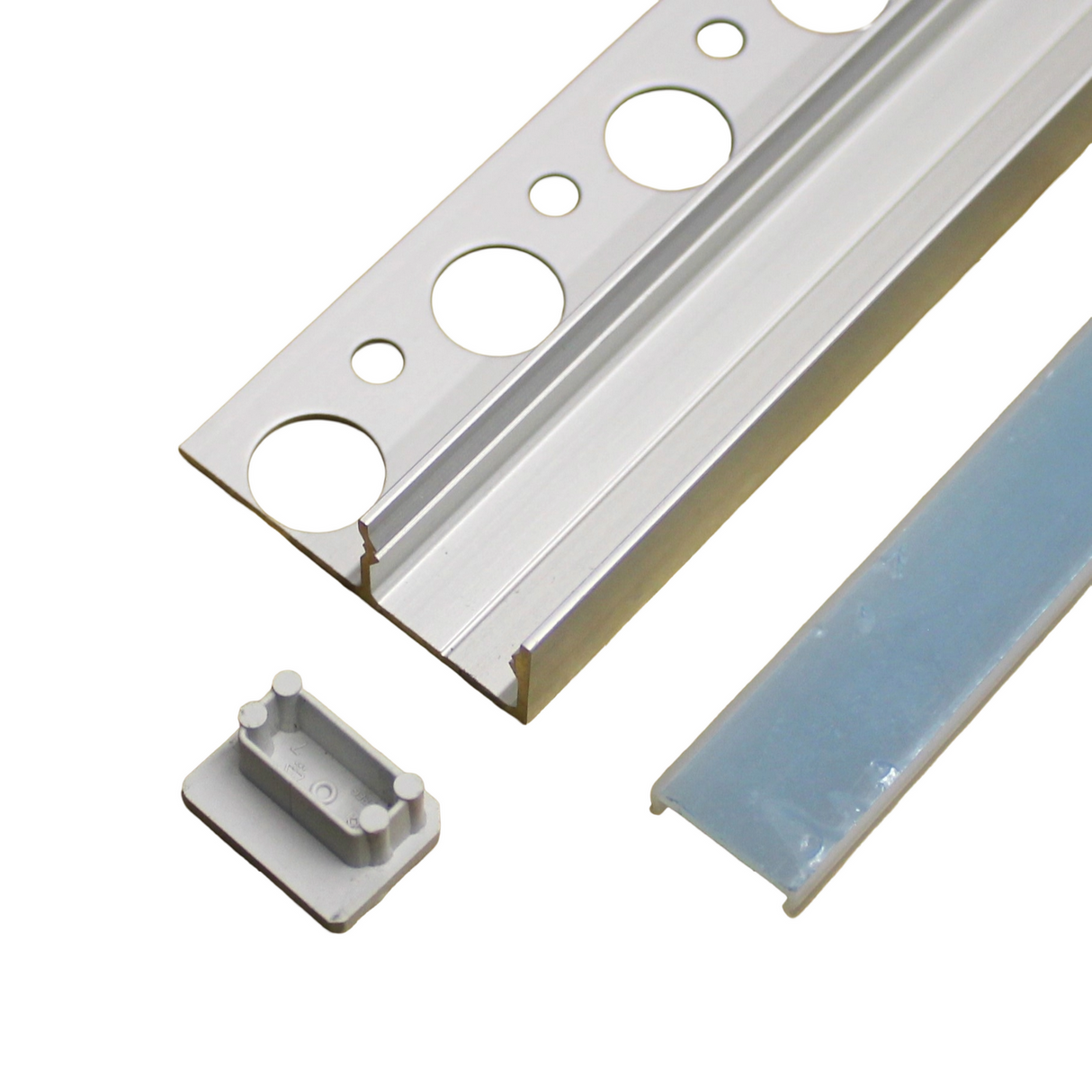

The profile kit option for Uni-Tile12 180 includes:

  • Uni-Tile12 180Deg aluminum LED profile
  • C Click Opal LED channel cover
  • Pair of gray end caps

General specifications

  • Maximum LED strip width: 12mm
  • Maximum LED power: 20W/m
  • Tile Thickness: 10mm
  • Color: Anodized Silver

Downloads


Important notes

  • LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Hence, select the available components below.
  • You can easily cut LED profiles by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
  • We ship items in stock the same day from Knoxville, Tennessee, United States. Additionally, our team dedicates themselves to carefully packing and safely delivering all packages to their destination.
  • Bulk pricing is available on request. Moreover, for larger orders, we offer additional discounts and customized pricing to fit your project needs. All in all, please contact us to learn more about our bulk pricing options.

Common search terms

LED strip lights in tiles, LED strip lights in floor tiles, LED strip in shower niche, Shower niche LED strip, LED strip tile profile, LED tile strip, LED profile recessed tile edge for LED strip, Tile LED strip

Why you should always use profiles

Shipping restrictions

We cannot ship rigid items over 2.4m (8ft) in length due to freight restrictions. These products are offered for customer pickup only. Please refer to our Shipping Policy for further information.

Returns policy

We accept returns at our sole discretion. Returns must be in as-new condition and in original packaging. Please refer to our returns policy for more information.
