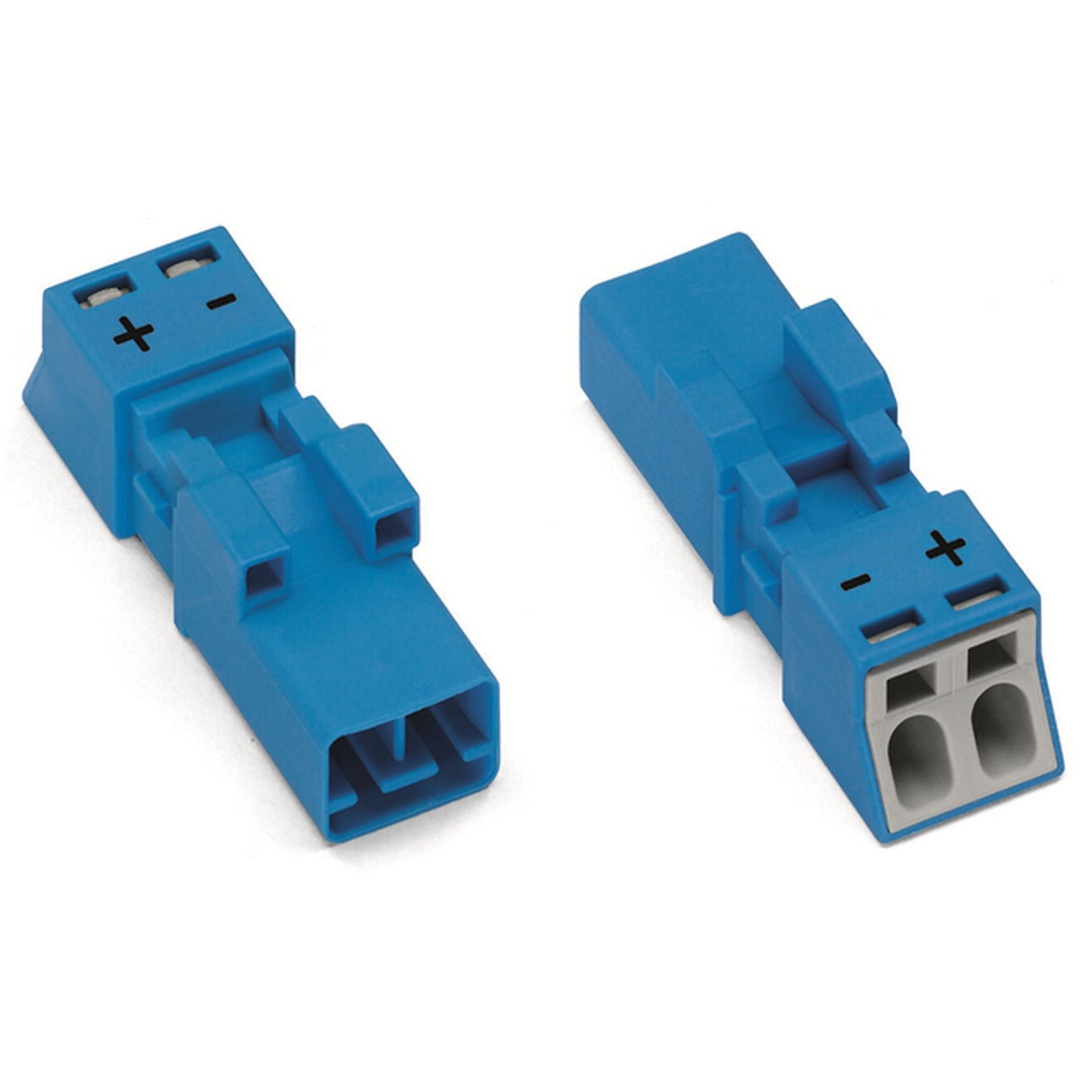

Wago 890 Series Pluggable Connector for Lighting Control

Wago 890 Series Pluggable Connector for Lighting Control

New In
Original price - Original price
Original price
-
Current price

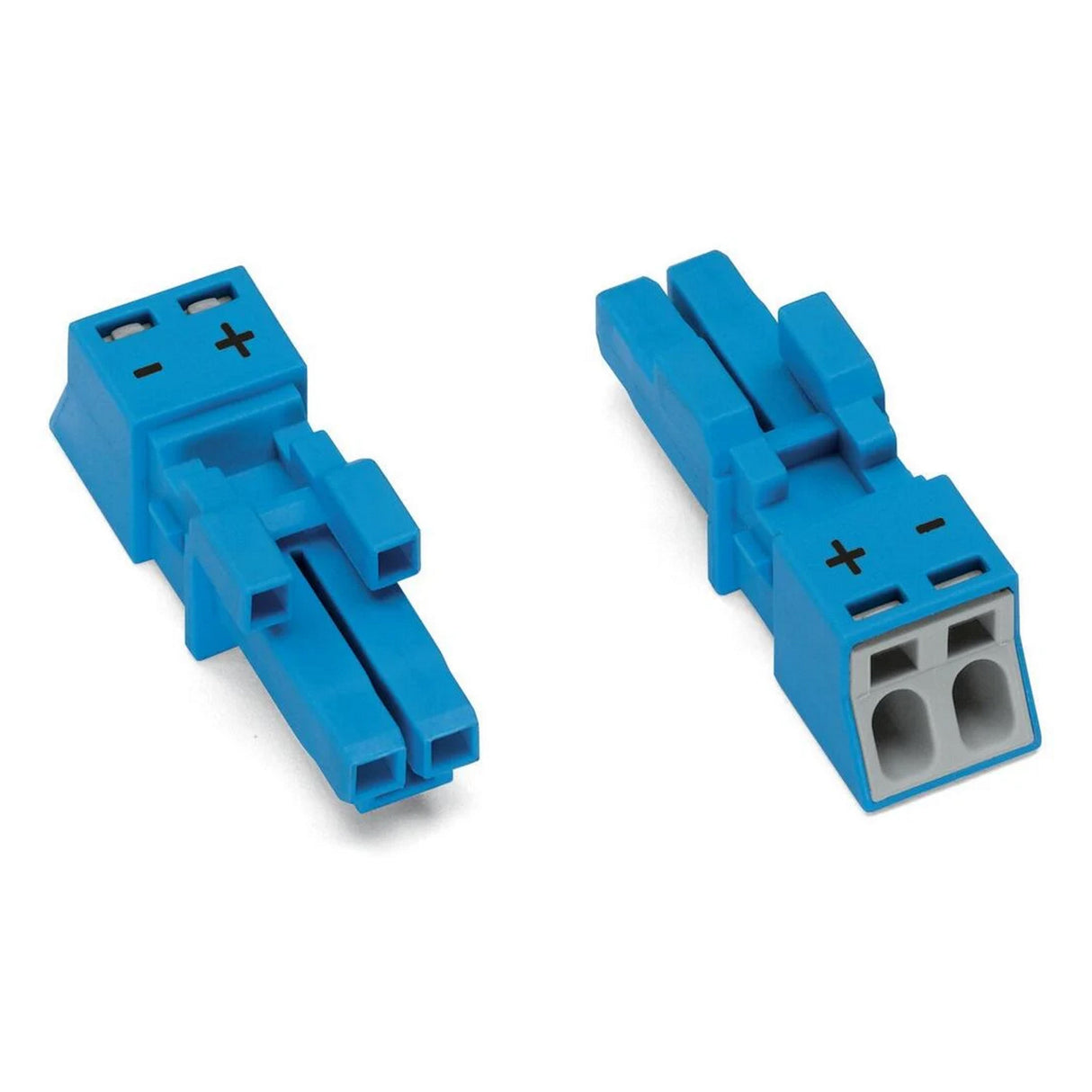

SKU 890-1102
In stock and ready to ship

🚚 - Free shipping on most orders over $350 - T&C Apply

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

Connector only ~ all other components are sold separately

Description

The WAGO 890 series connectors are pluggable installation connectors designed for building installations. They feature the CAGE CLAMP® connection technique that allows easy insertion of solid and ferruled conductors by simply pushing them in. These connectors have a space-saving design, with terminal blocks up to 30% smaller than standard ones and a conductor entry angle of less than 15°C (59°F) for easier installation in confined spaces.

These mini socket connectors are suitable for sensors, actuators, halogen lamps, and class II control signal lamps. They are particularly useful for installations requiring multiple connections or specific grid layouts, such as grid flush-mount lighting.

The 890 series pluggable connectors with I coding in blue are ideal for lighting management applications like dimming DALI lights. The compact WINSTA® MINI connection system saves space and offers time-saving, low-maintenance installation with Push-in CAGE CLAMP® technology, eliminating the need for screw connections.

With IP20 protection, these pluggable connectors reduce servicing needs and prevent downtime. They provide effective mismating protection, easy tool-free operation with coding options, intelligent lighting installation solutions, custom-engineered options, and rapid, structured electrical installation.


General specifications

  • Dimensions: 11.7mm x 10.4mm x 34.1mm (0.46” x 0.41” x 1.34”)
  • Rated voltage: 250V
  • Rated surge voltage: 4 kV
  • Rated current: 16 A
  • Number of poles: 2
  • IP rating: IP20
  • Strip length: 9mm (0.35”)
  • Cross section: 0.25mm² - 1.5mm² (0.00038in2 - 0.00232in2) | 22-16 AWG
  • Connection type: Spring clamp connection
  • Max. continuous operating temperature: 85°C (185°F)
  • Max. continuous temperature resistance strain relief: 105°C (221°F)
