Wireless Casambi Network Lighting Controller ~ Casambi Cloud Gateway
Product details
controller only ~ power supply, LEDs and all other accessories are sold separately
Description

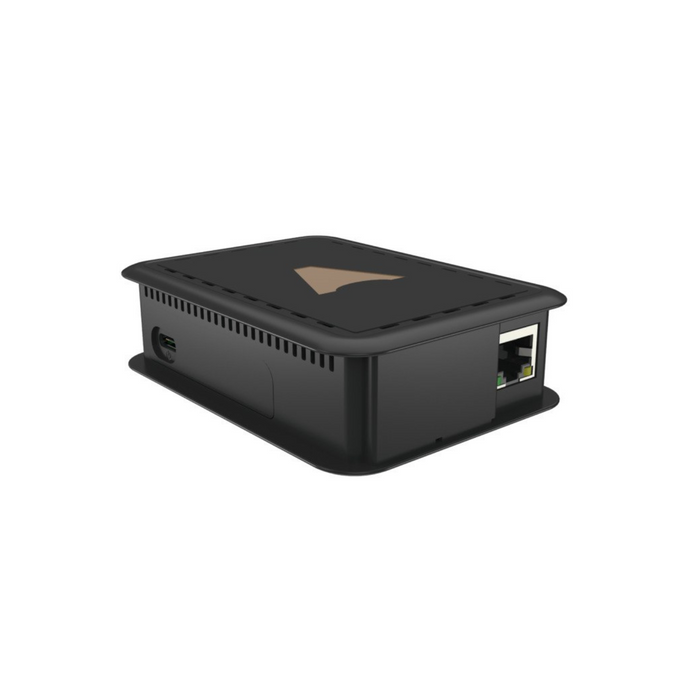

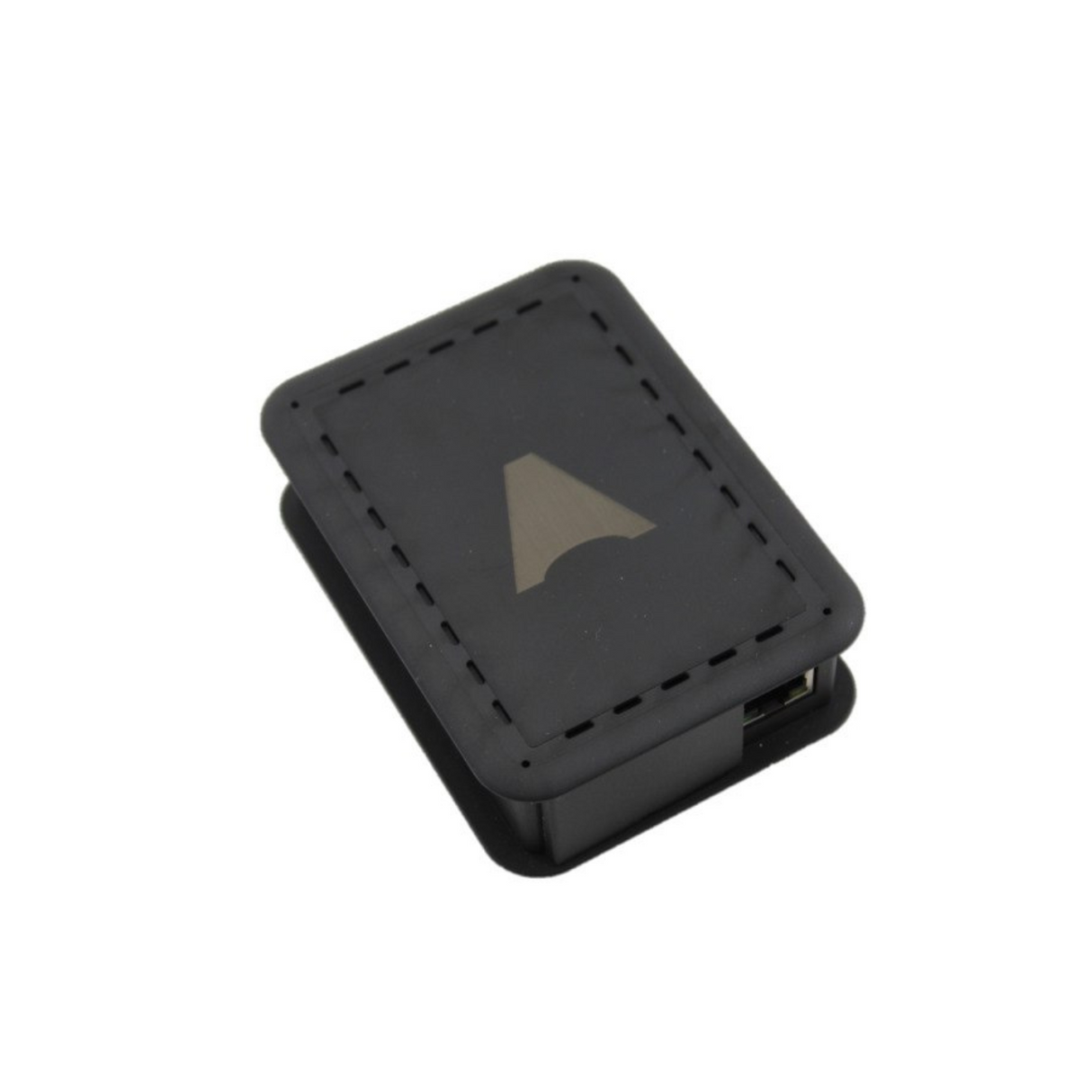

Wireless Casambi Network Lighting Controller ~ Casambi Cloud Gateway is a gateway for remotely accessing and controlling a Casambi network over the internet. It features both Ethernet (LAN) and Wi-Fi connections for internet access and the user interface is the Casambi app.
The Casambi Cloud Gateway can be used for remote diagnostics, network monitoring or remote control, not for updates and configuration changes. Secure remote access is enabled through encrypted data exchange using HTTPS protocol. This is powered via USB-C input and comes bundled with power adapter for EU, UK, US and AU regions out of the box.
The Casambi Cloud Gateway offers an array of lighting control options, delivering the same intuitive end-user functionality as the Casambi App.
- Create customized groups, scenes, and animations
- Dim or turn on/off singular or groups of luminaires
- Take command of an entire network with the power to toggle it on/off
- For remote control and monitoring of a Casambi network in real time
- Activate or deactivate scenes and animations at your convenience
- Control the color temperature, hue, and saturation using the app's intuitive control slider
- Create and adjust timers with precision and ease
The Casambi Cloud Gateway brings enhanced flexibility and control to your lighting system, ensuring a seamless integration with your Casambi network.
General specifications
- Broadcom BCM2711, Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
- 4GB LPDDR4-3200 SDRAM
- Radio signal: 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
- Connections: 1x USB-C and 1x Ethernet connection
- Range: up to 30 m
- Gigabit Ethernet
- USB-C and Ethernet ports
- Input voltage: 5V DC via USB-C connector (min. 3A)
- Operating temperature: 30 - 50 °C ambient temperature
Downloads
Important notes
- Items in stock are shipped the same day from Knoxville, Tennessee, United States.
- Bulk pricing is available on request
