1.50" Round Polycarbonate LED Lighting Tube ~ Model Smokies38

SKU LED-SMOKIES38-W-MP-3
Original price - Original price
Original price
-
Current price
Shipping restrictions

We cannot ship rigid items over 2.4m (8ft) in length due to freight restrictions. These products are offered for customer pickup only. Please refer to our Shipping Policy for further information.

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

diffuser tube only - end caps, LED strip and all other accessories are sold separately

Please contact us for a custom complete LED fixture using this tube

Description

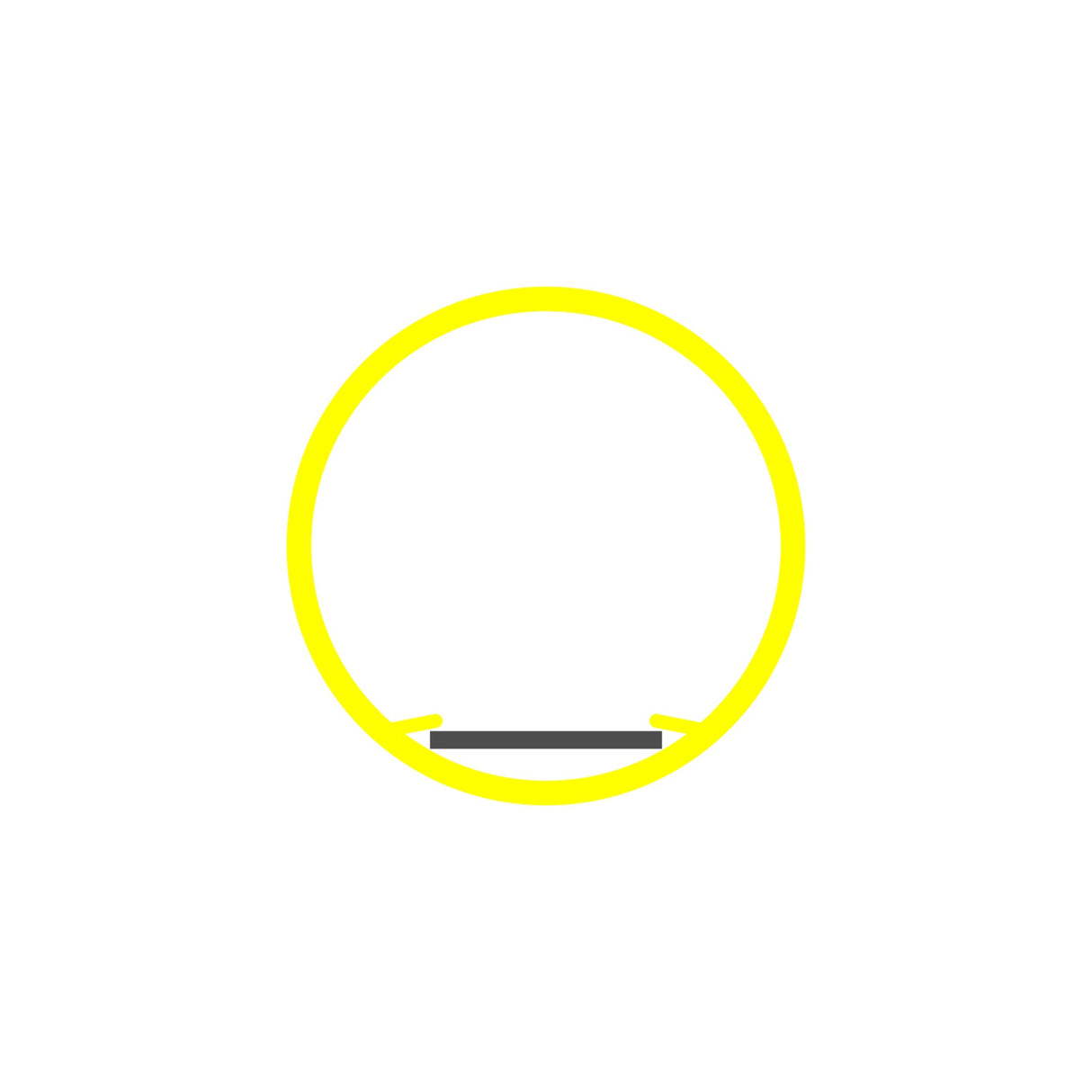

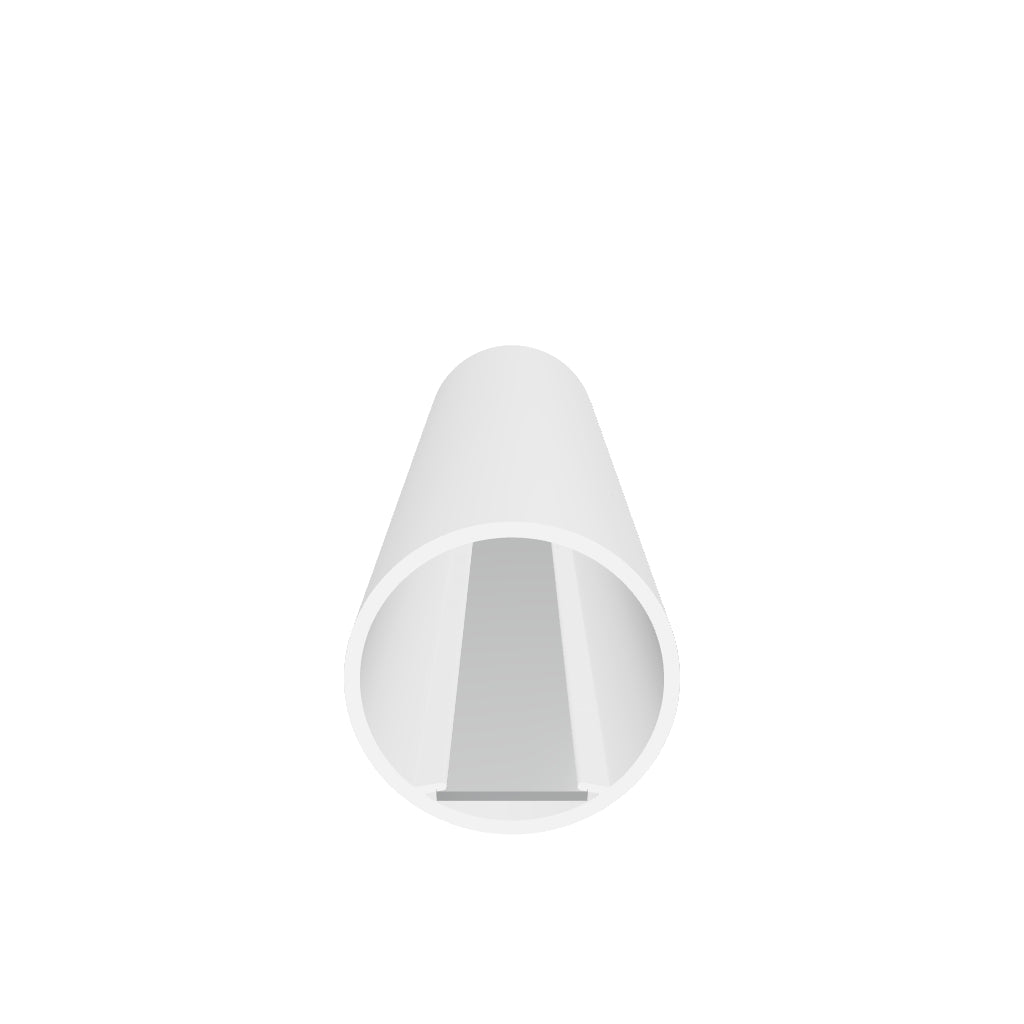

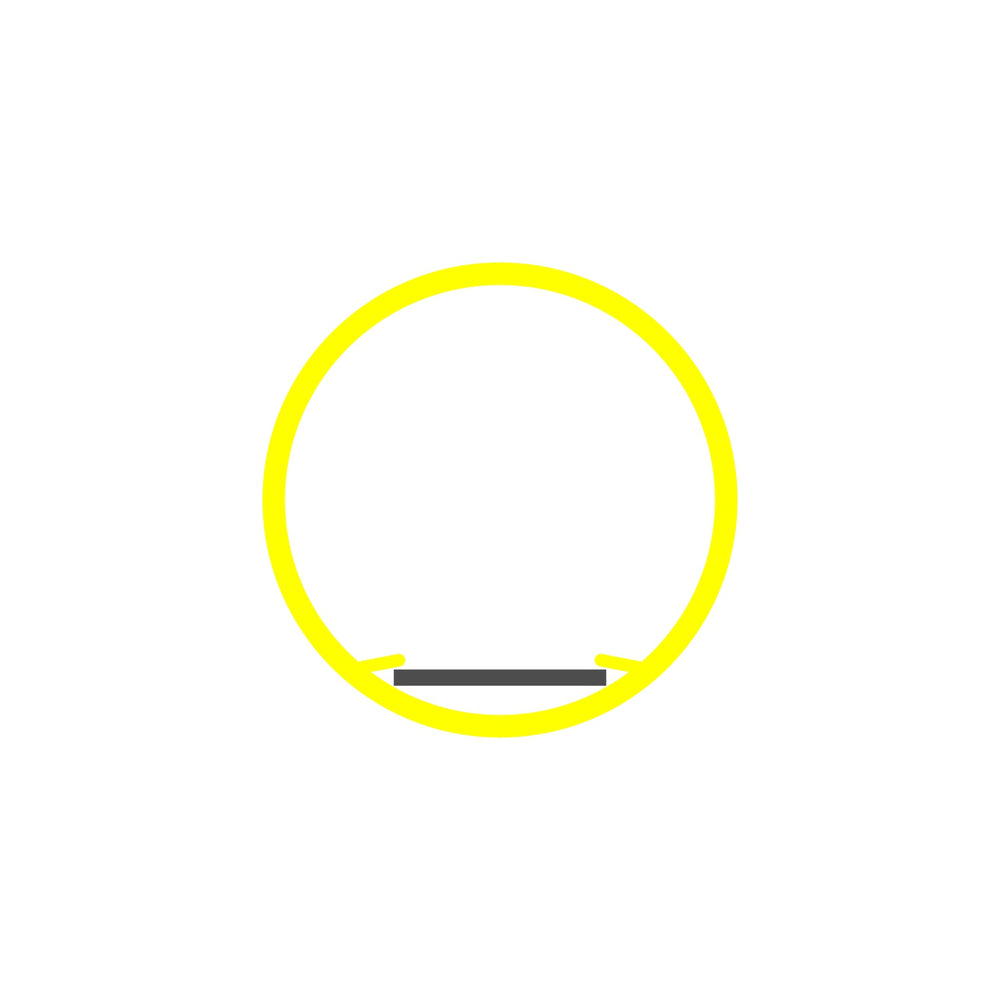

Our Smokies38 series is a 1.50" diameter round polycarbonate LED diffuser tube with a slot for an aluminum LED mounting plate. The LED mounting plate slides into the plastic tube and acts as the physical carrier and heat sink for the LED strip.

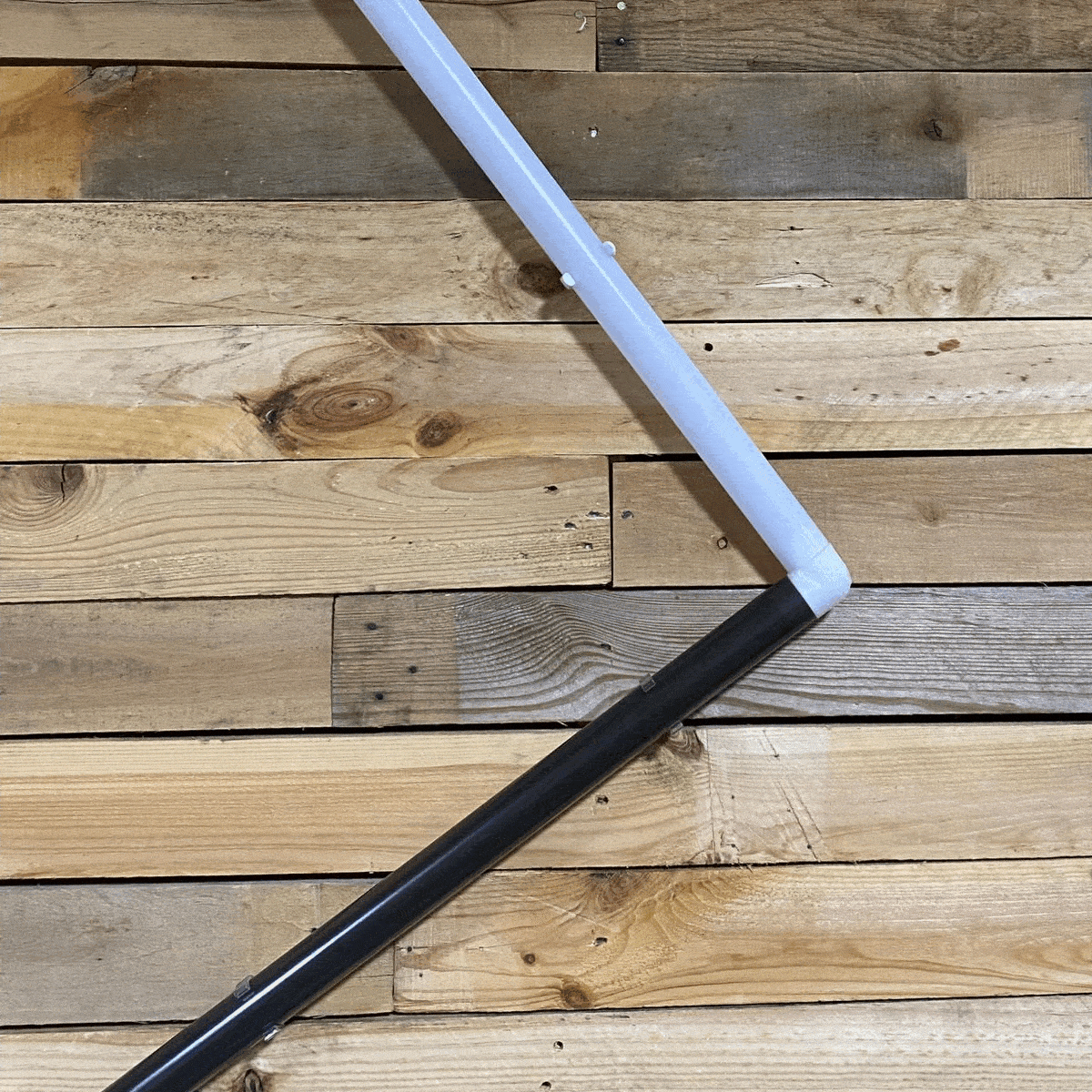

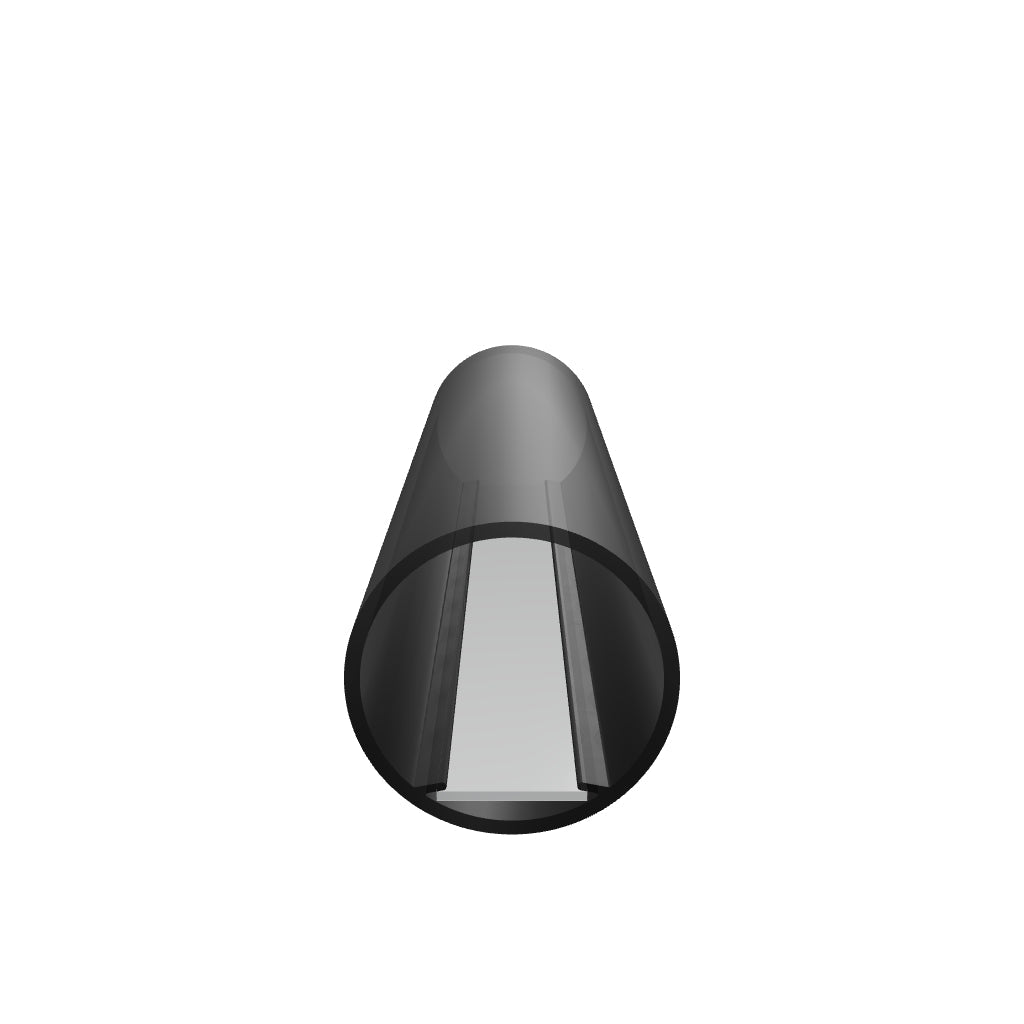

Our Smokies38 tubes are made of strong polycarbonate and are available in frosted white (opal) or black (smoky gray) options to suit your application. The tubes appear as a solid white or black when they are unlit, and take on the LED color when illuminated. This is particularly effective when combined with RGB or RGB pixel LED strip. Our polycarbonate LED tubes are a suitable replacement for frosted acrylic (PMMA) lighting cylinders.

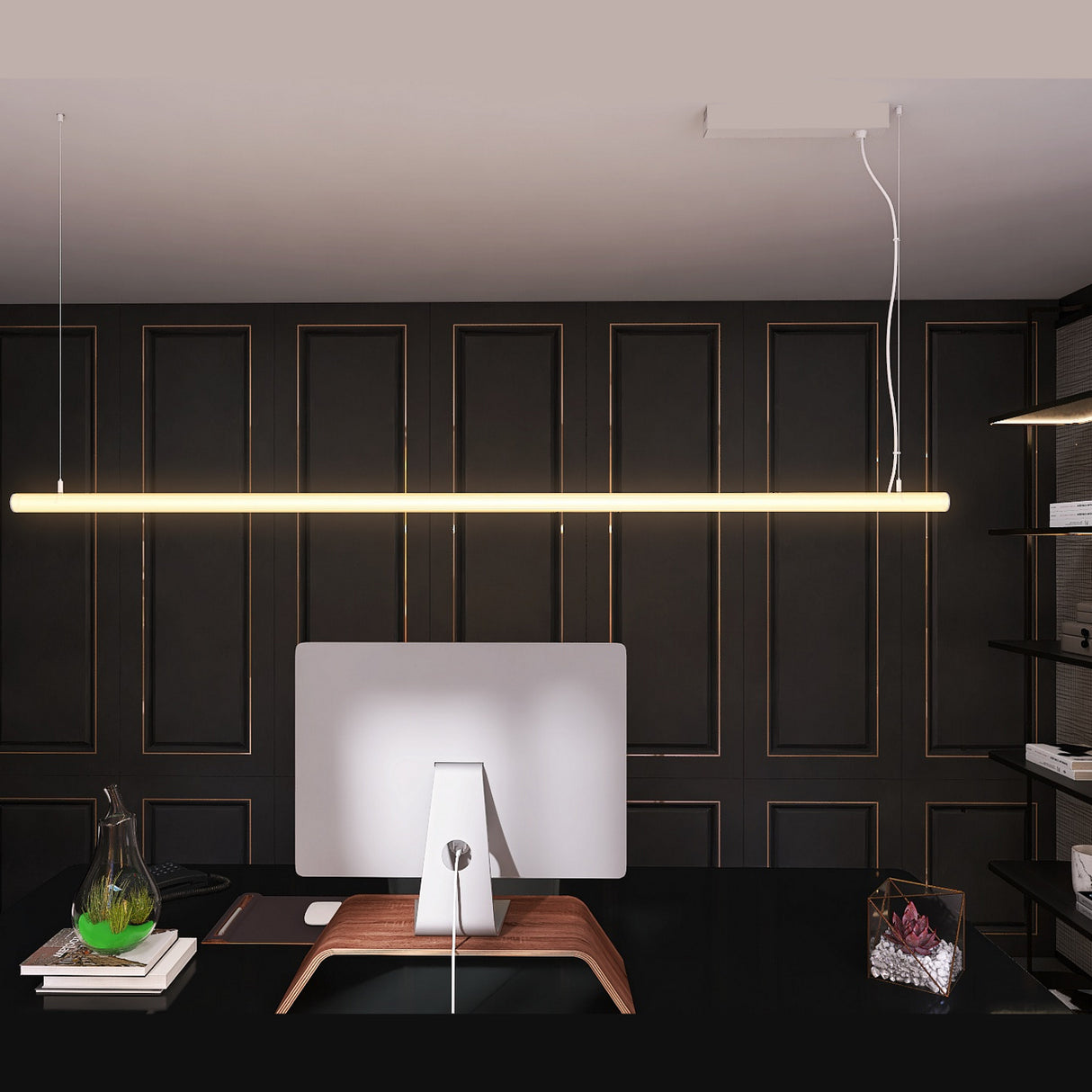

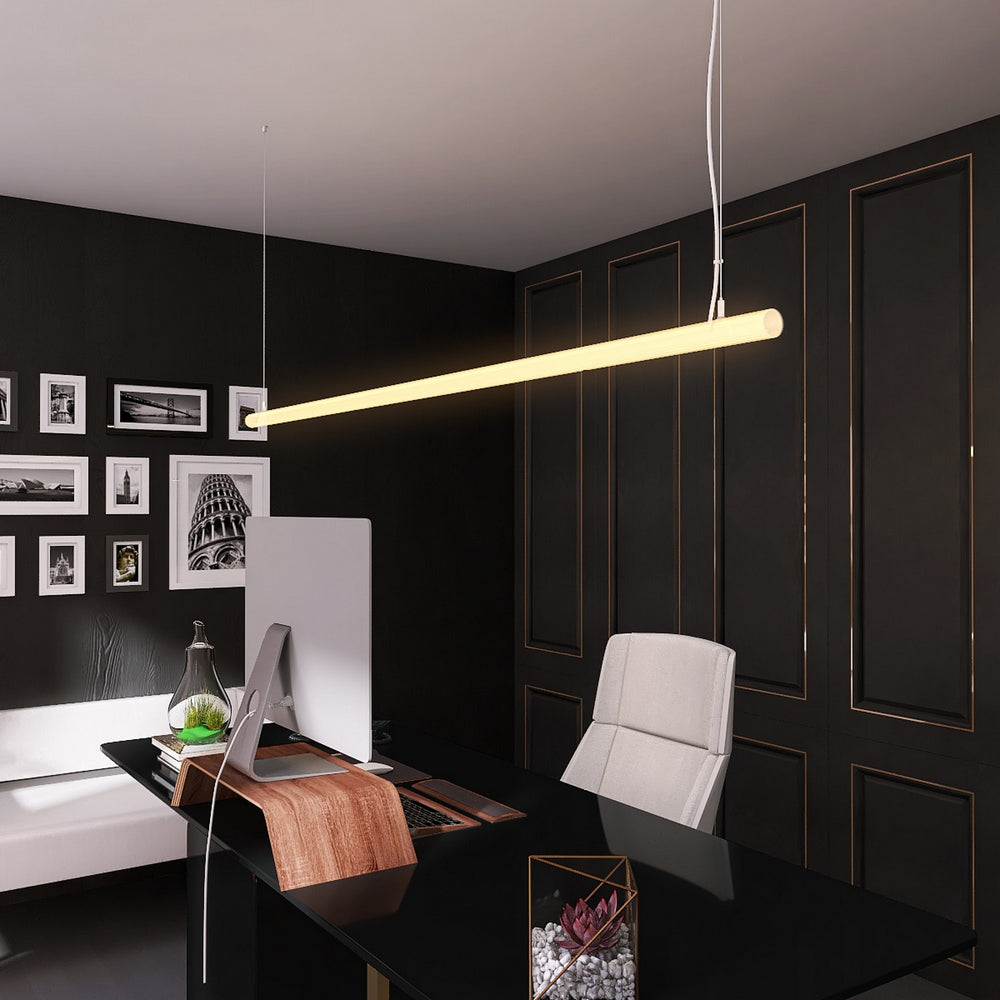

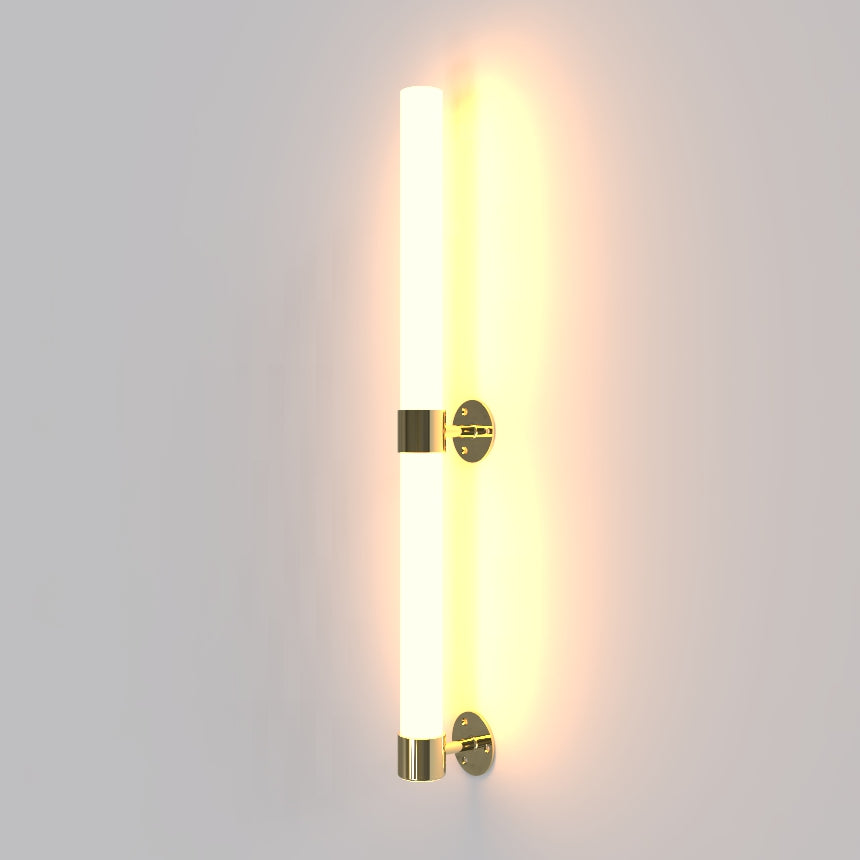

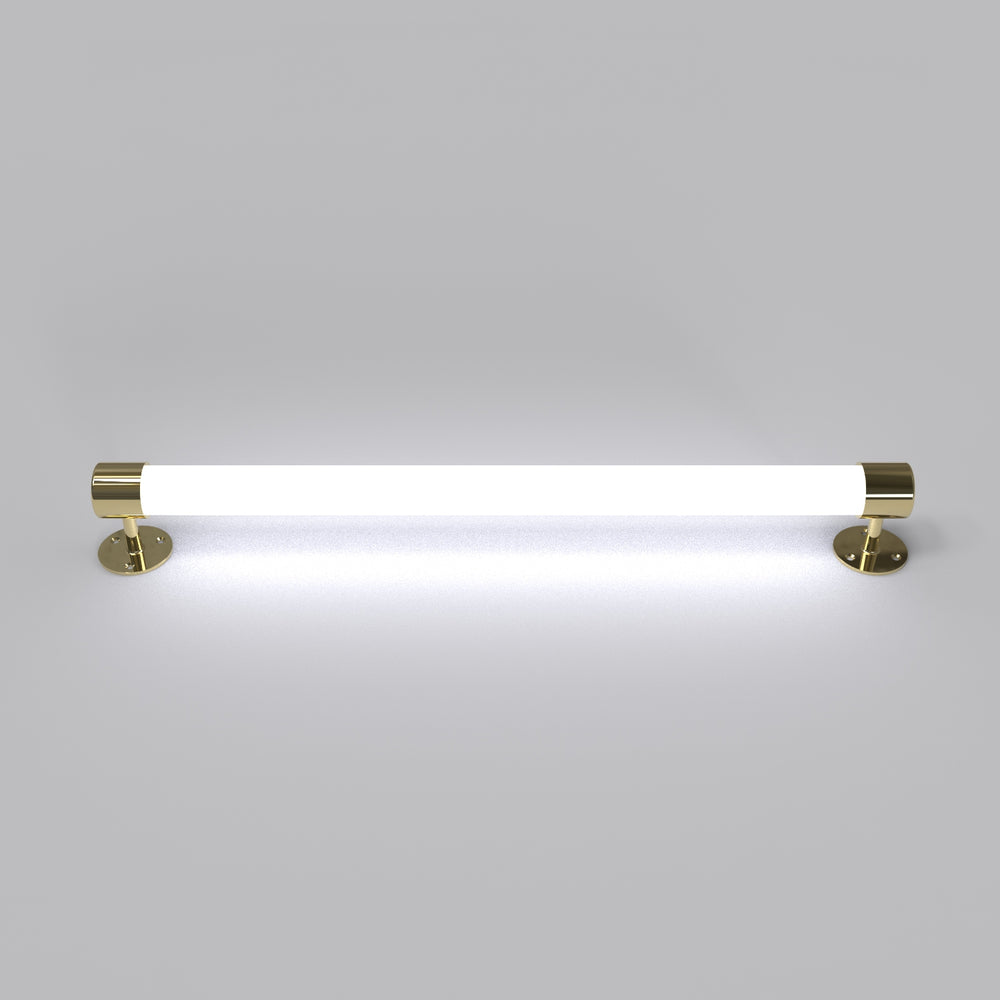

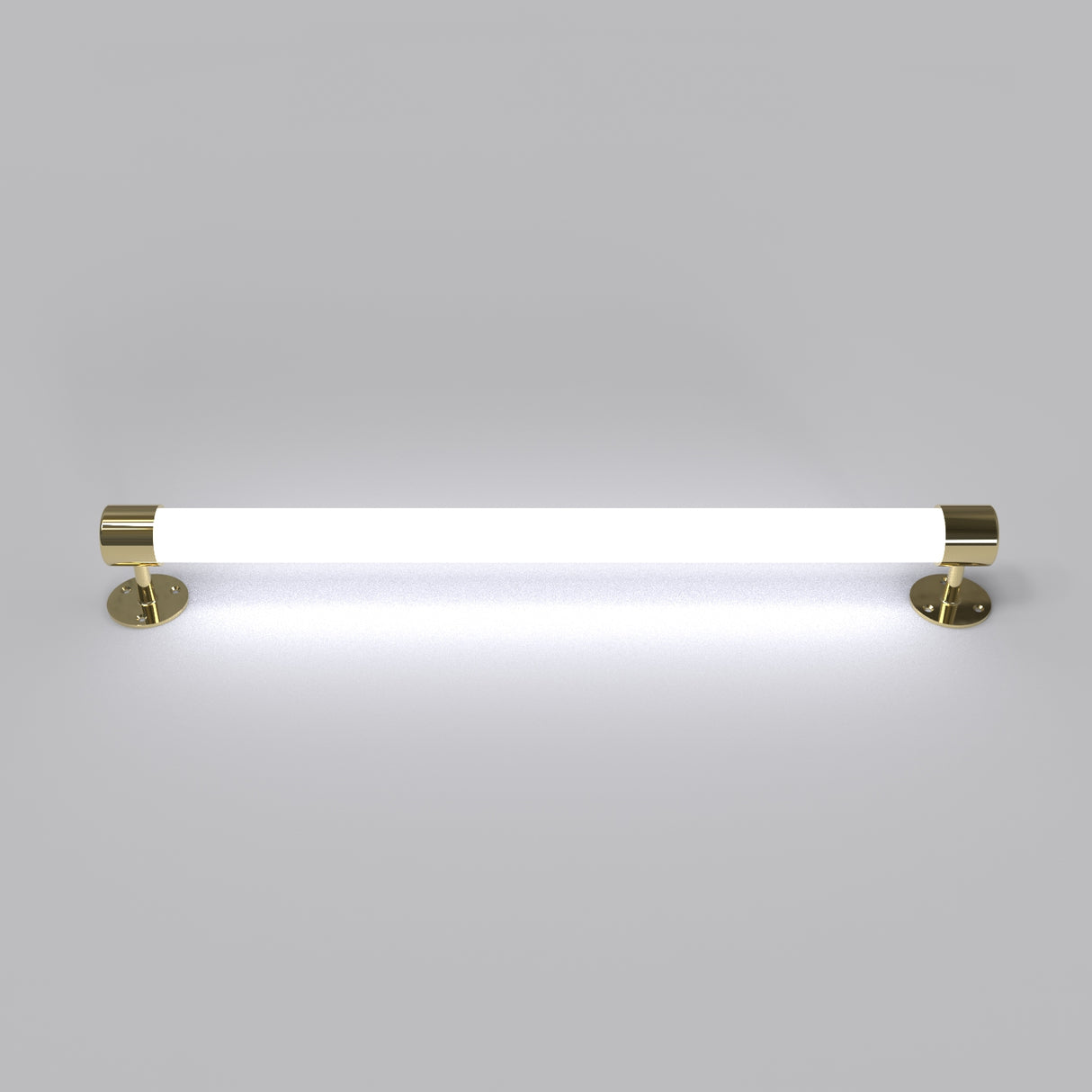

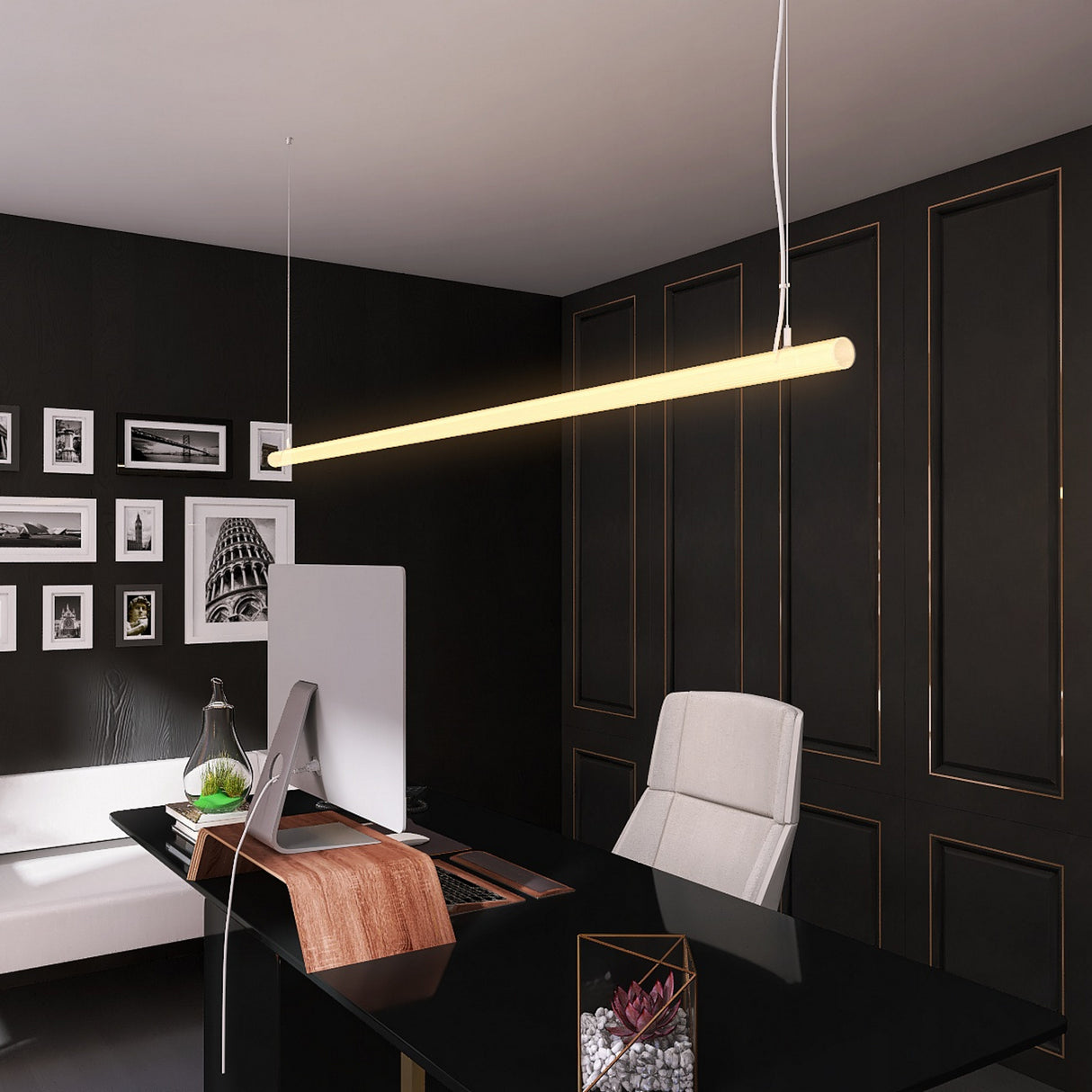

These LED diffuser tubes are strong enough to be self-supporting, which allows for many imaginative installations such as a horizontally suspended tube light (from each end) or a vertical pendant light (from one end), as a floor standing column or pillar light, or simply as a wall-mounted fixture.

We do not recommend to use polycarbonate for outdoor applications because it may discolor when exposed to high UV levels.

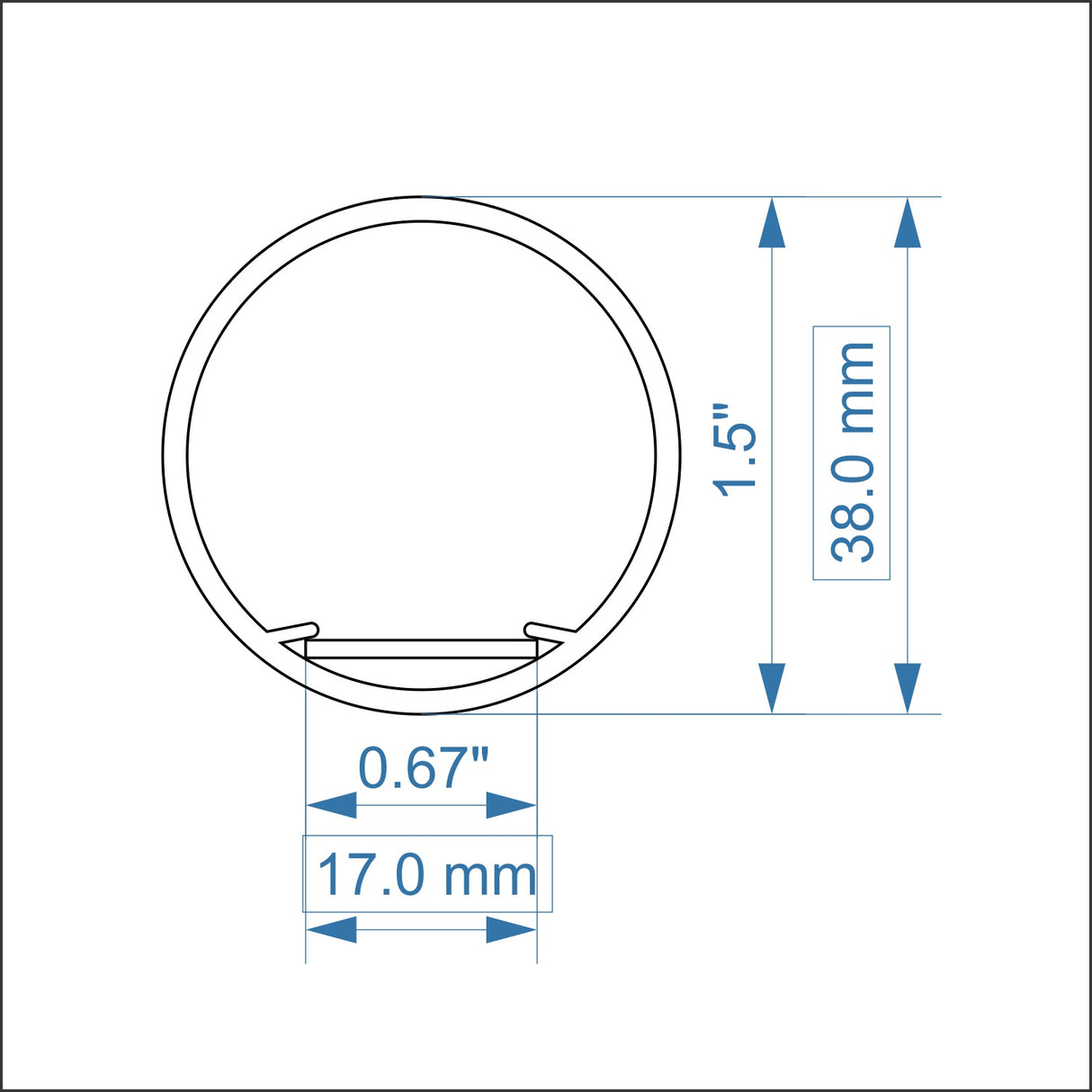

General specifications

  • Maximum LED strip width: 15mm
  • Maximum LED power 20w/m

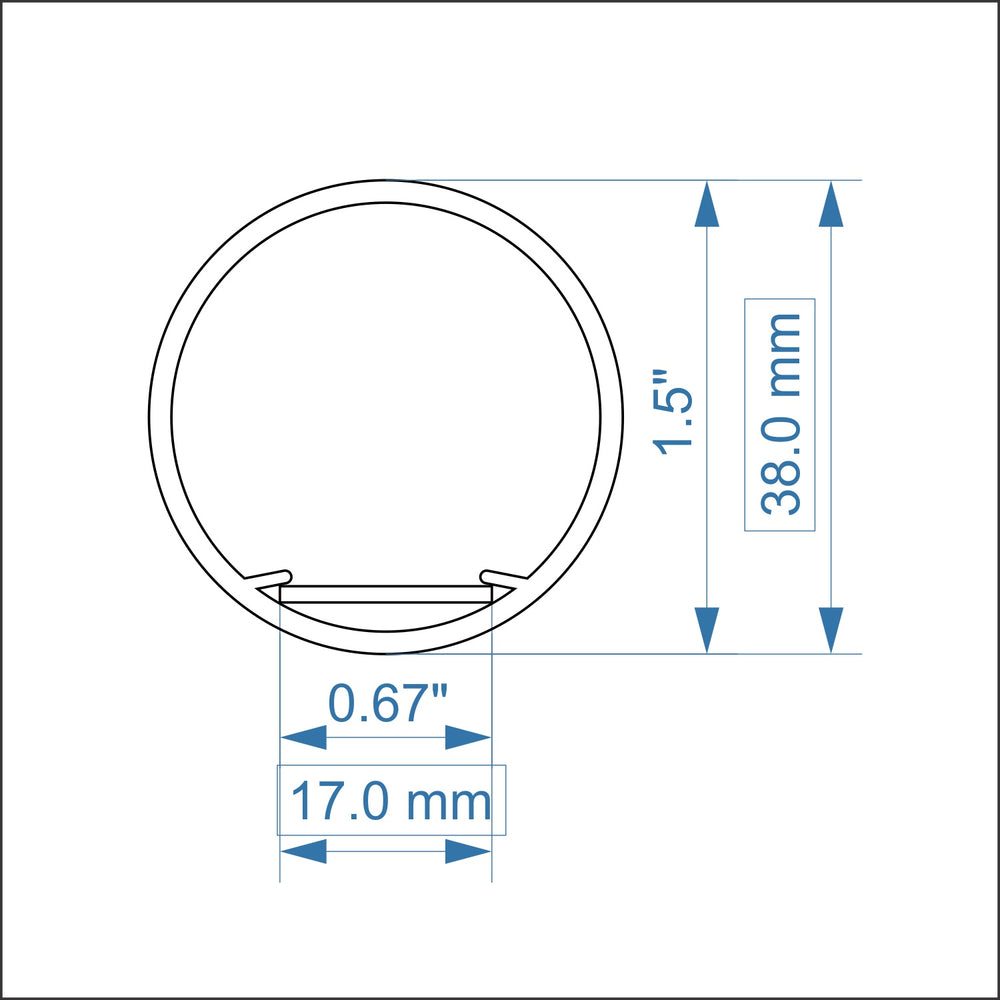

  • Outside diameter: 38mm (1.50")
  • Colors: White (Opal) and Black (Smoky gray)
  • Materials:
    • Diffuser tube: Polycarbonate
    • Heat dissipation plate: Aluminum

Note: We do not recommend to use Polycarbonate for outdoor applications as it discolors when exposed to UV

Downloads

Important notes

  • LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
  • Please note that raw or natural profiles channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
  • LED profiles can easily be cut by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • We can also assemble a plug and play light fitting with this profile according to your specifications.
  • Please note that we cannot refund or replace LED profiles and covers that have been cut.
  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request
